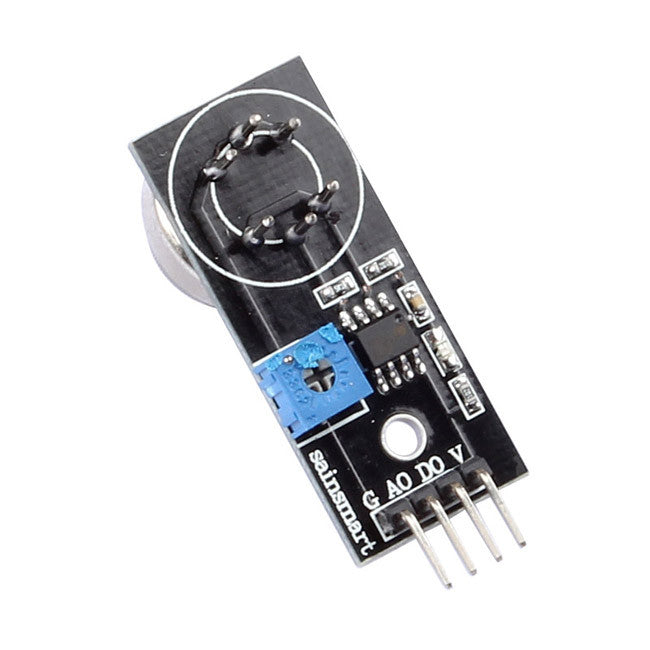

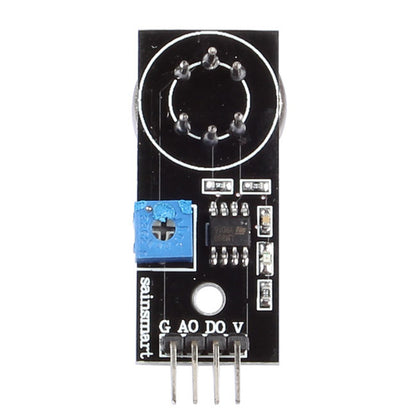

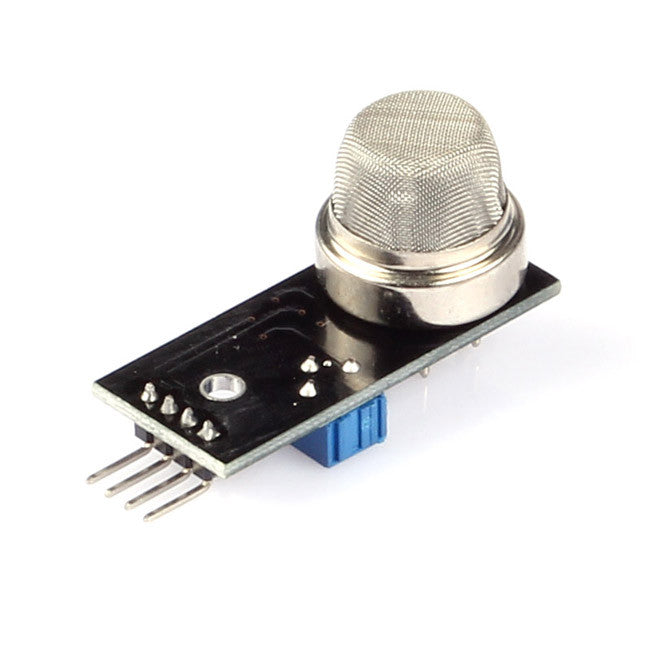

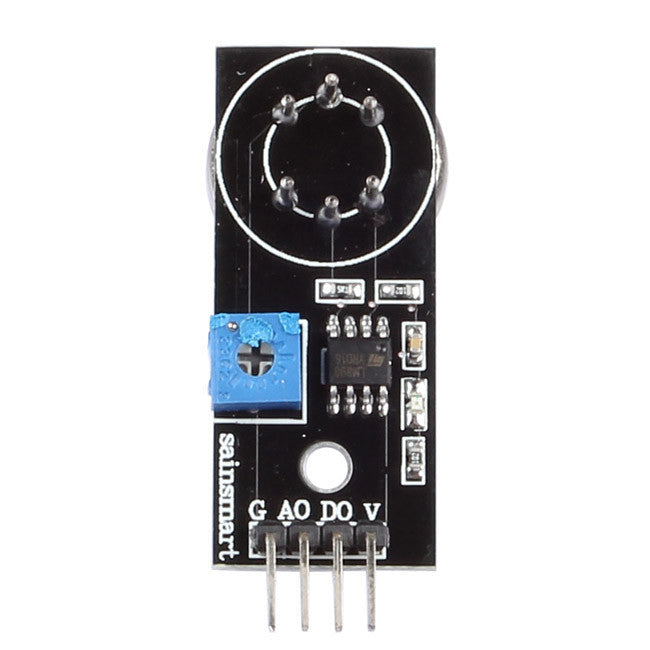

MQ-8 Hydrogen Gas Sensor

brand: SainSmart SKU: 101-60-110 Variants ID: 45100550612
Oops, 0 In Stock


Main chip: the LM393, MQ-8 gas sensor
Working voltage: DC5V


1. With a signal output instructions.
2. Dual signal output (TTL level output and analog output)
3. TTL output valid signal for low level. (when the low output electric signal lights at 4. ordinary times, can be directly pick up SCM)
5. Analog 0 ~ 5 v voltage, the higher the concentration, the higher the voltage.
6. High sensitivity to hydrogen
7. Can be resistant to ethanol steam, LPG (petroleum), smoke interference
8. Has a long service life and reliable stability
9. Quick response recovery features
