NAX5 ATC System, 5 Position Auto Tool Change Box, From Roughing to Finishing in One Workflow, For Genmitsu PRONAX CNC

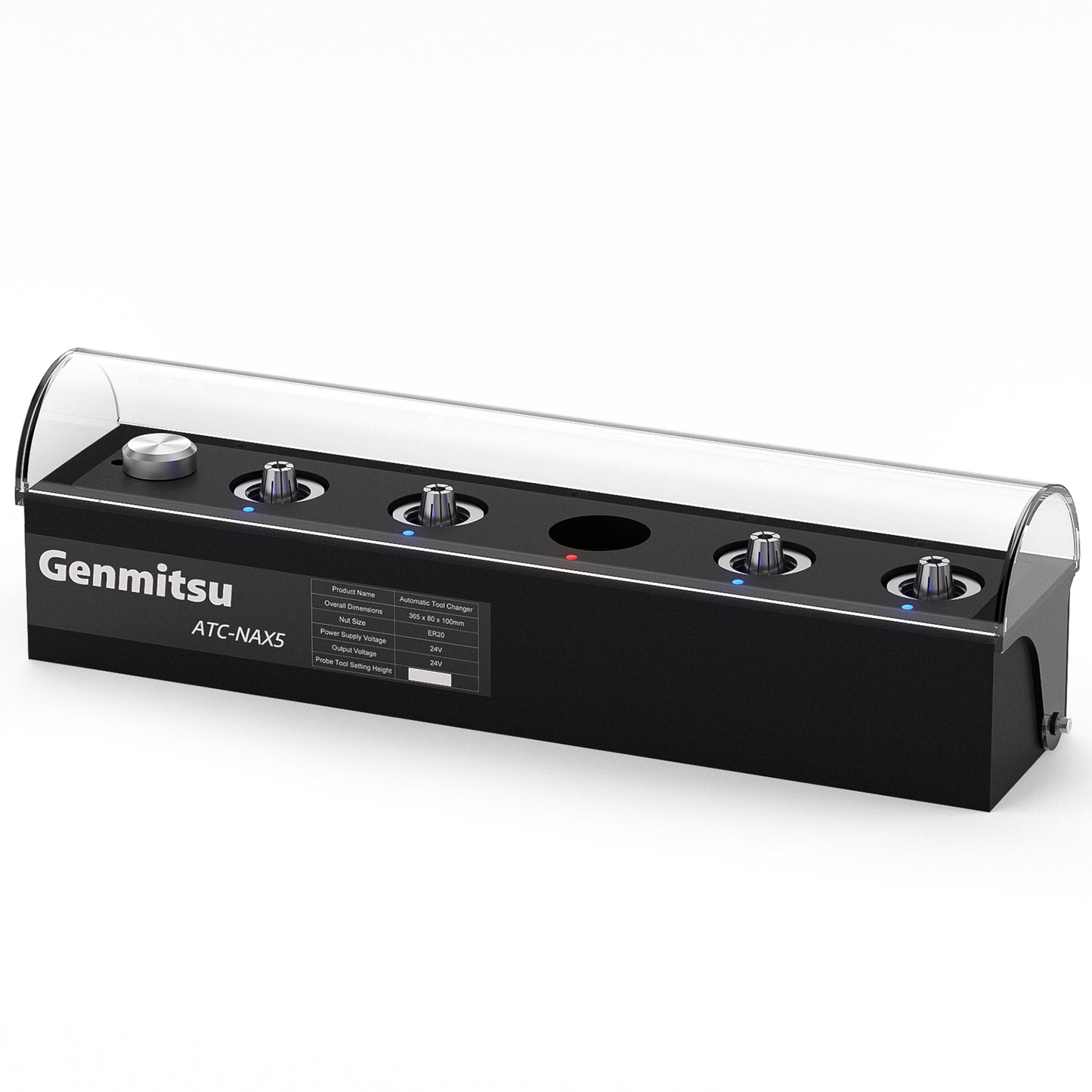

Genmitsu PRONAX NAX5 ATC System

The Genmitsu PRONAX NAX5 is a 5-position Automatic Tool Changer (ATC) designed for the PRONAX CNC platform. It enables fully automatic tool changes between machining operations — eliminating manual interruptions and delivering seamless, multi-step workflows from roughing to finishing in a single run.

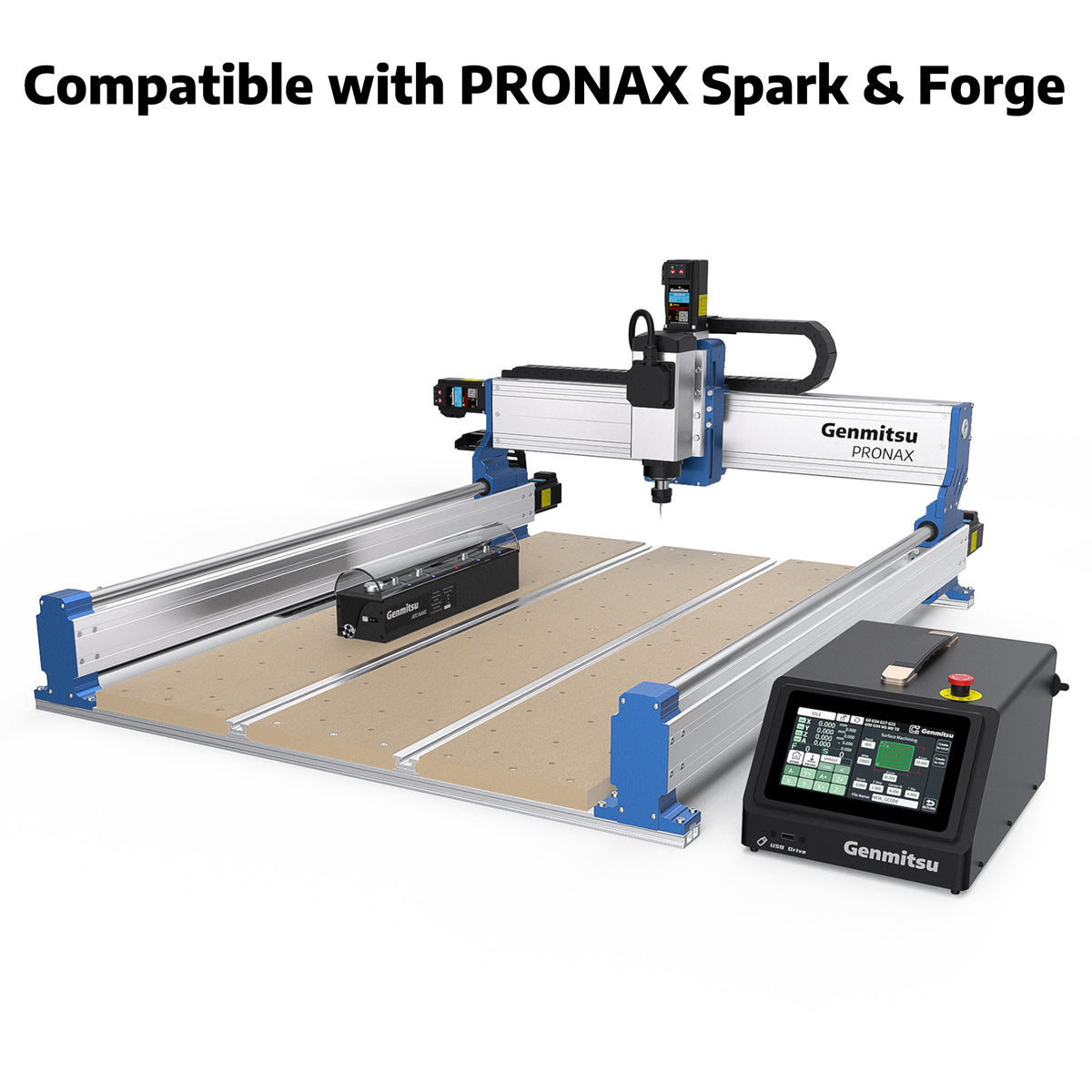

Compatibility

The NAX5 ATC tool magazine communicates with the Genmitsu PRONAX control system via RS485, enabling plug-and-play operation and a seamless upgrade from manual to fully automatic tool changes. Compatible with:

• PRONAX Spark 6090 CNC Router Machine
• PRONAX Forge 8080 CNC Router Machine

Rigorous Logic for Error Prevention

Continuous tool status monitoring — including in-place verification, load/unload confirmation, and drop detection — eliminates the risk of tool breakage or missed installation at the source, ensuring comprehensive machining safety and system reliability.

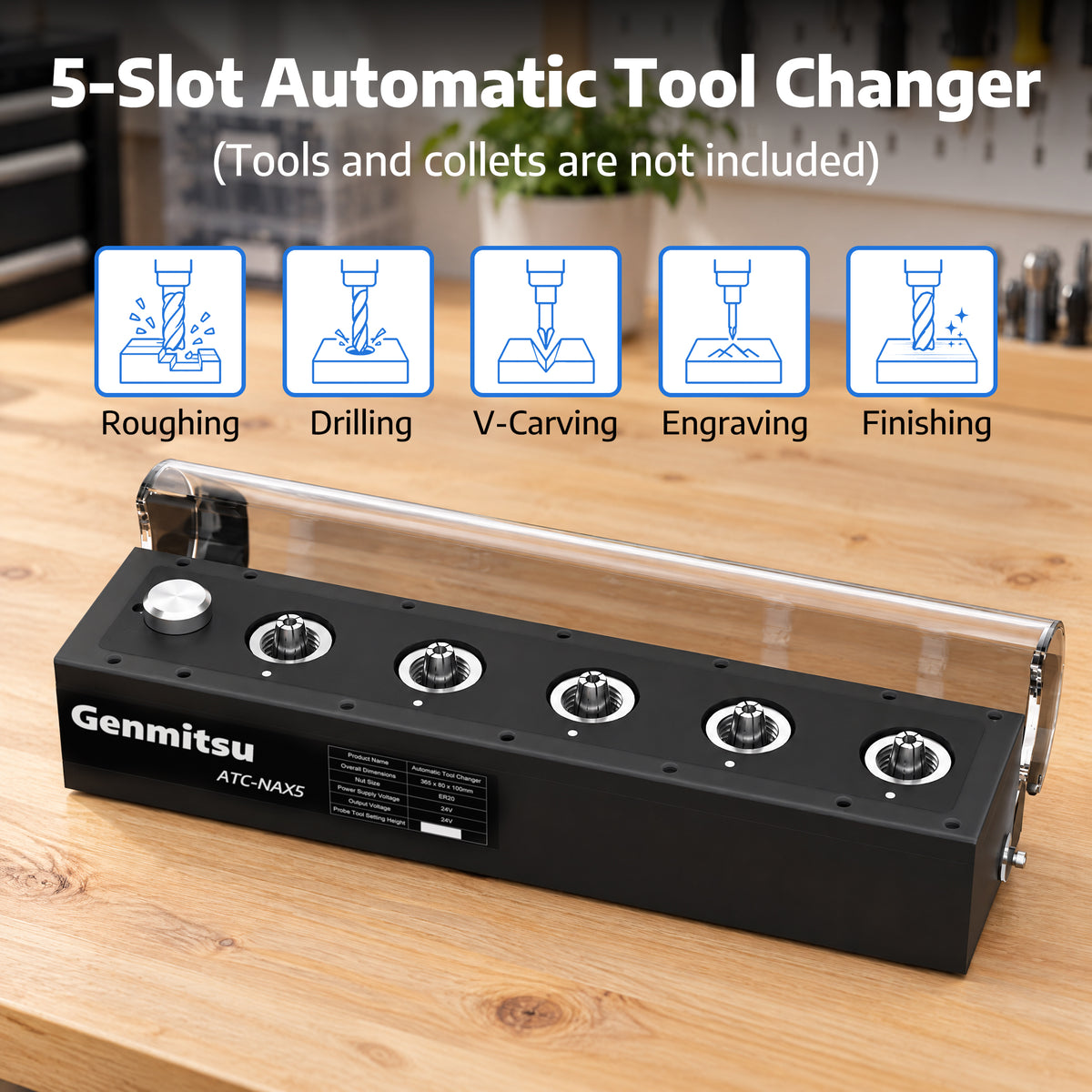

5-Tool Position Design

Equipped with a 5-position tool magazine covering commonly used tools, the NAX5 eliminates manual tool changes and enables seamless transitions between operations, significantly improving machining efficiency for multi-step jobs.

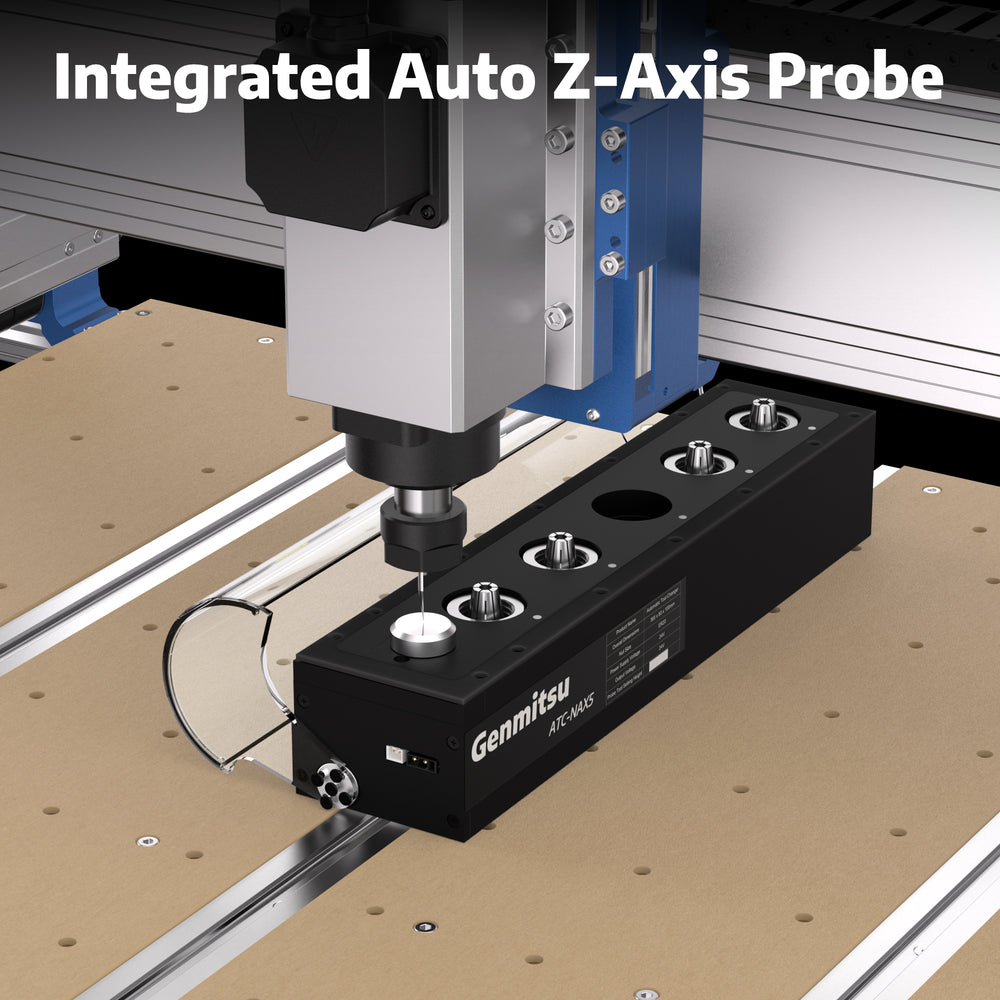

Integrated Z-Axis Tool Probe

An integrated automatic Z-axis probe system triggers a tool probing cycle after every tool change, compensating for tool length differences in real time. This improves machining accuracy, eliminates manual error risk, and ensures consistent machining safety throughout the job.
