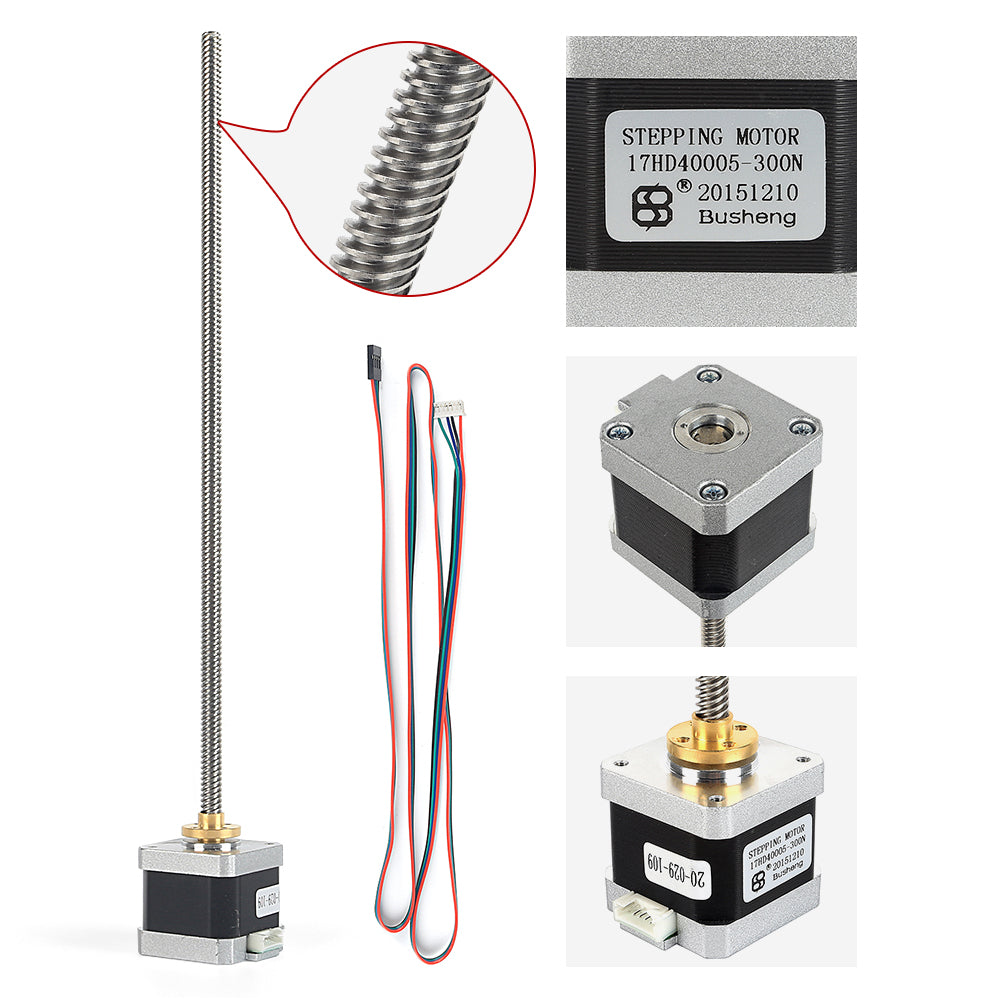

NEMA 17 Stepper Motor M8 Z axis with 265mm Lead Screw

brand: SainSmart.com SKU: 101-91-134
$41.99
OVERVIEW
With this motor you can easily build XYZ axis for your 3D printer or CNC project. Or use it for any other actuator purpose.
SPECIFICATION
  • Size: 42 x 42mm
  • Rated current 1.68A
  • Step Angle:1.8±5%
  • DegreeVoltage: 6.16V DC
  • Current: 0.7A/phase
  • Holding torque:400mN.m Min
  • Phase Resistance:8.8±10% Ω(20℃)
  • Phase Inductance:18±20%mH(1kHz 1V rms)
  • Rotor torque:57g.cm2
  • Weight:275g Ref.
  • Insulation resistance:100MΩ Min.(DC 500V)
  • Insulation class:B(130℃)
  • Shaft match with 5mm pulleys.
  • 2 Phase
WHAT'S IN THE PACKAGE
  • 1x NEMA 17 stepper motor with lead screw
  • 1x Include screw nut
  • 1x wire
