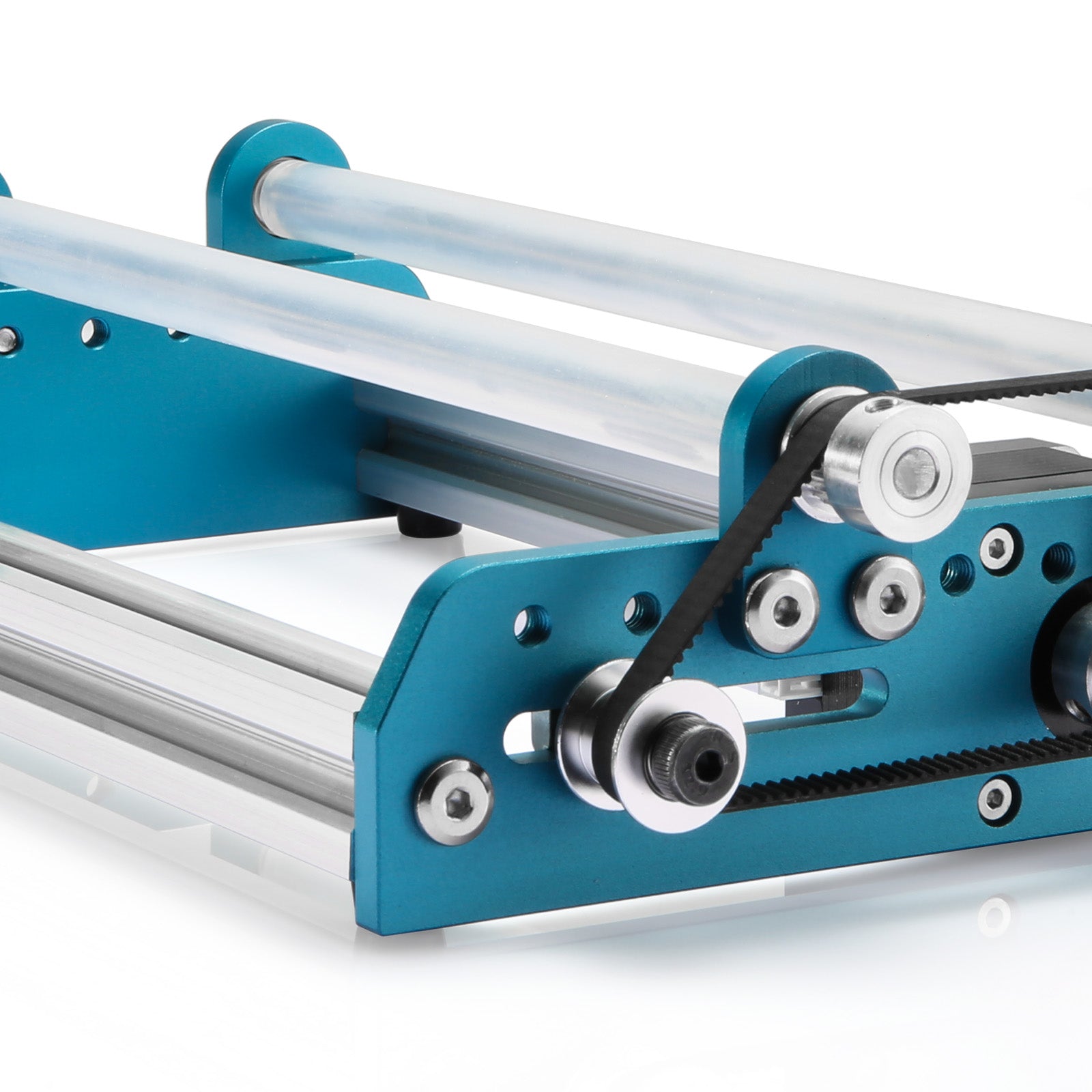

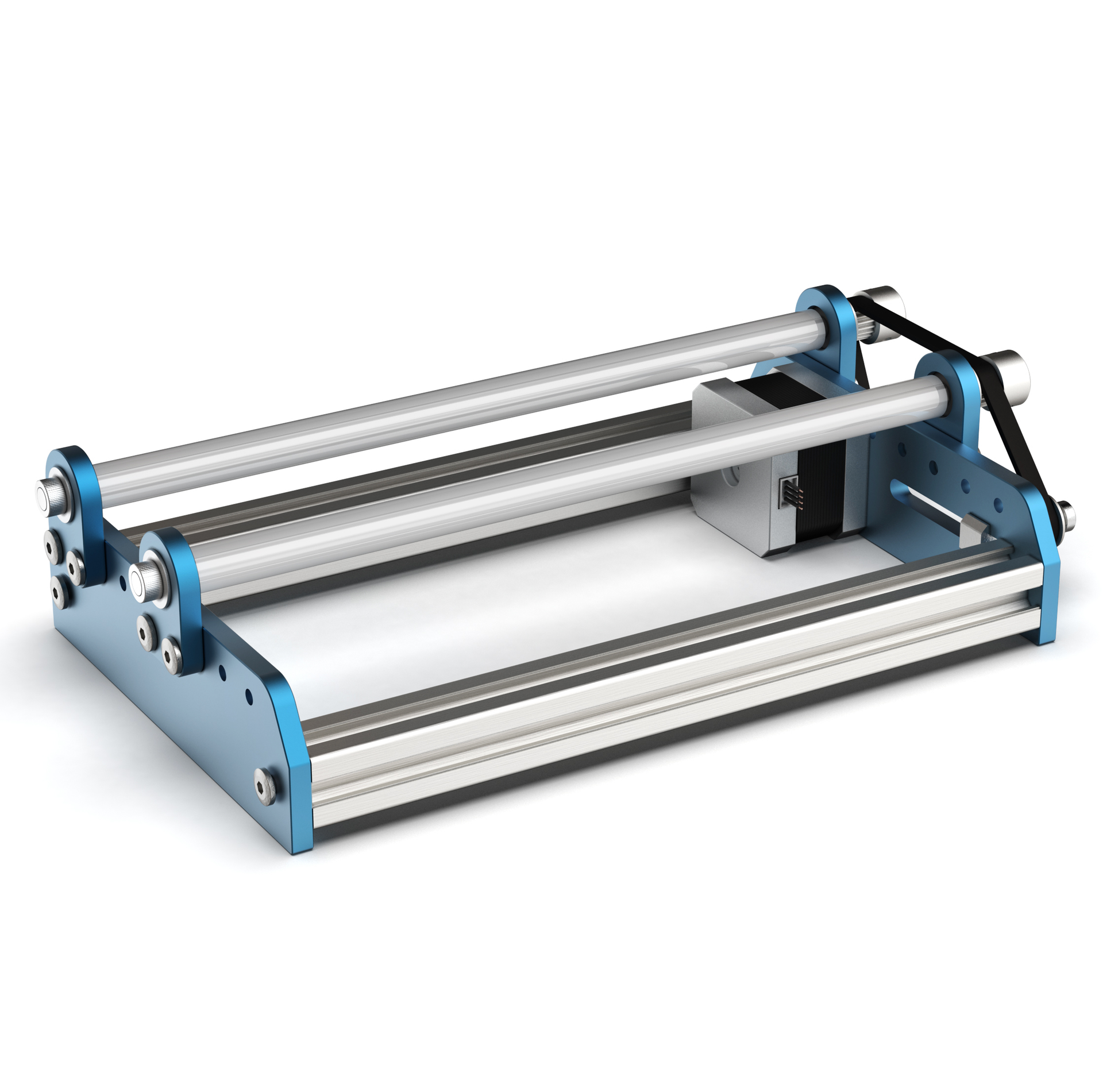

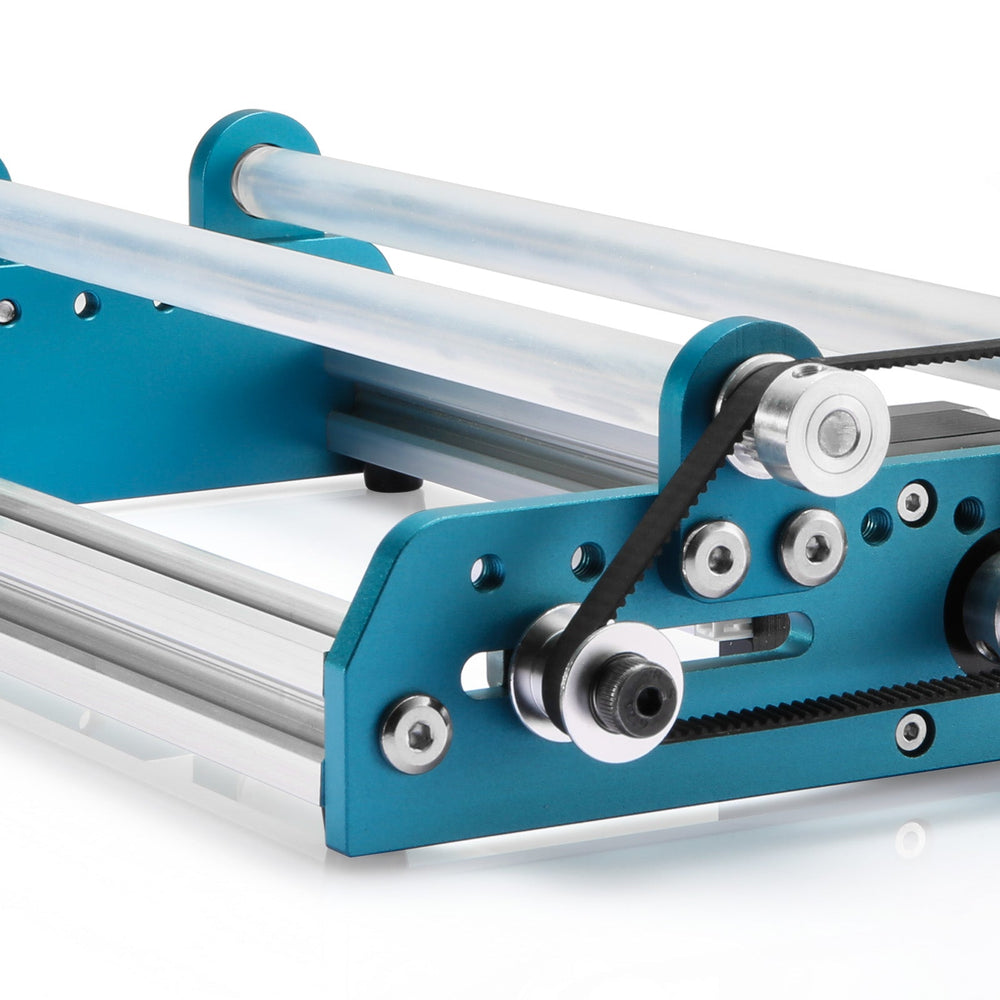

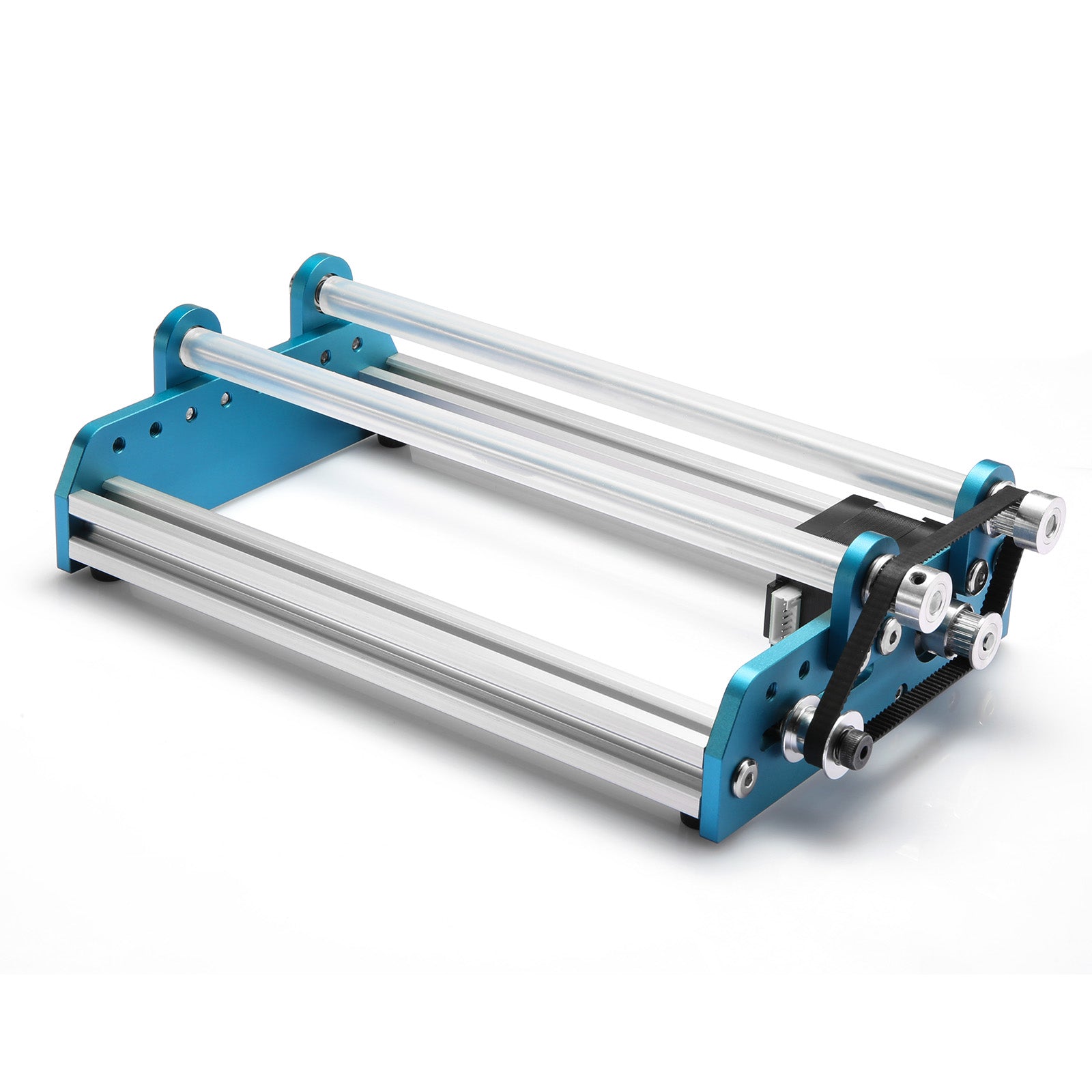

[Discontinued] [Open Box] Laser Rotary Roller for Engraving Cylindrical Objects

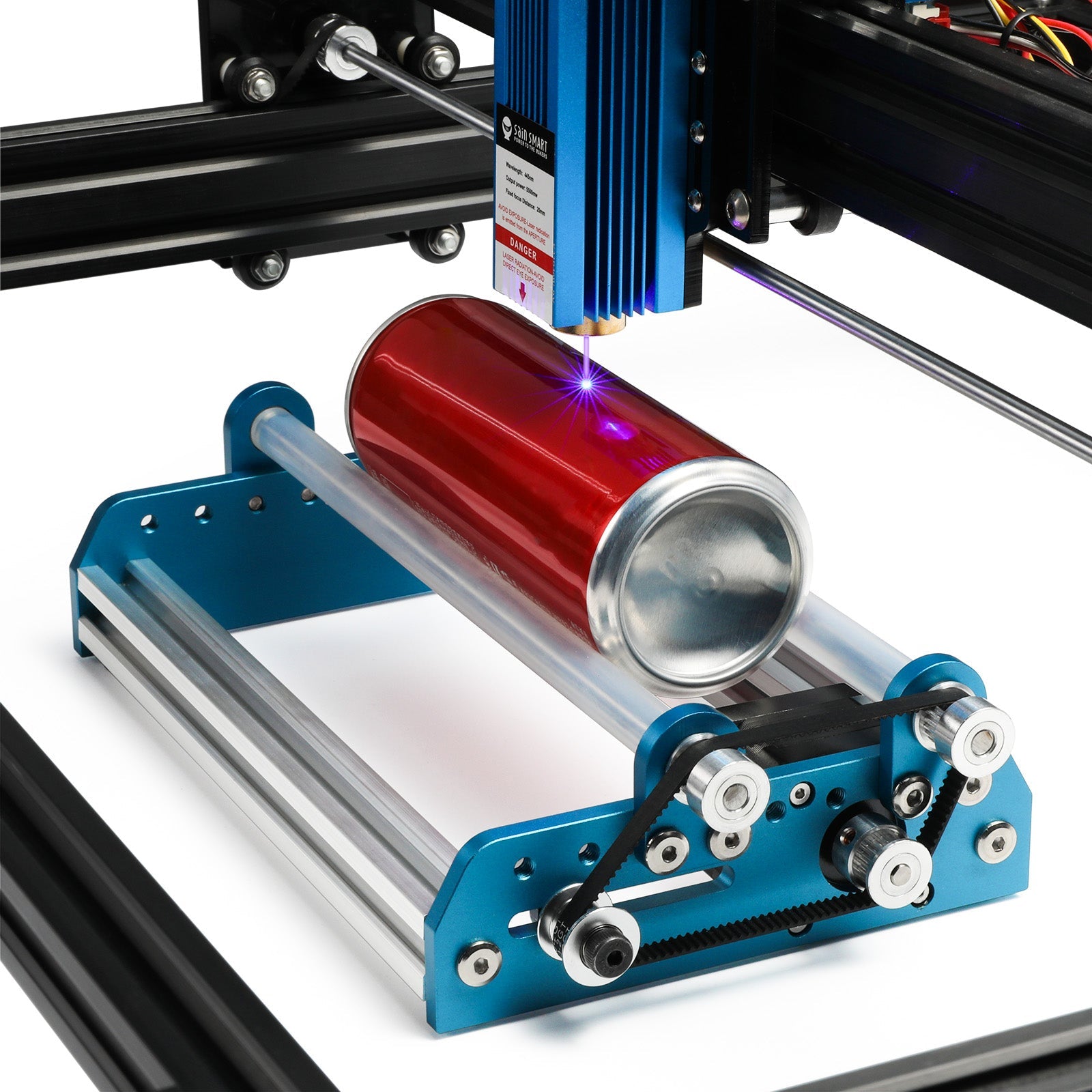

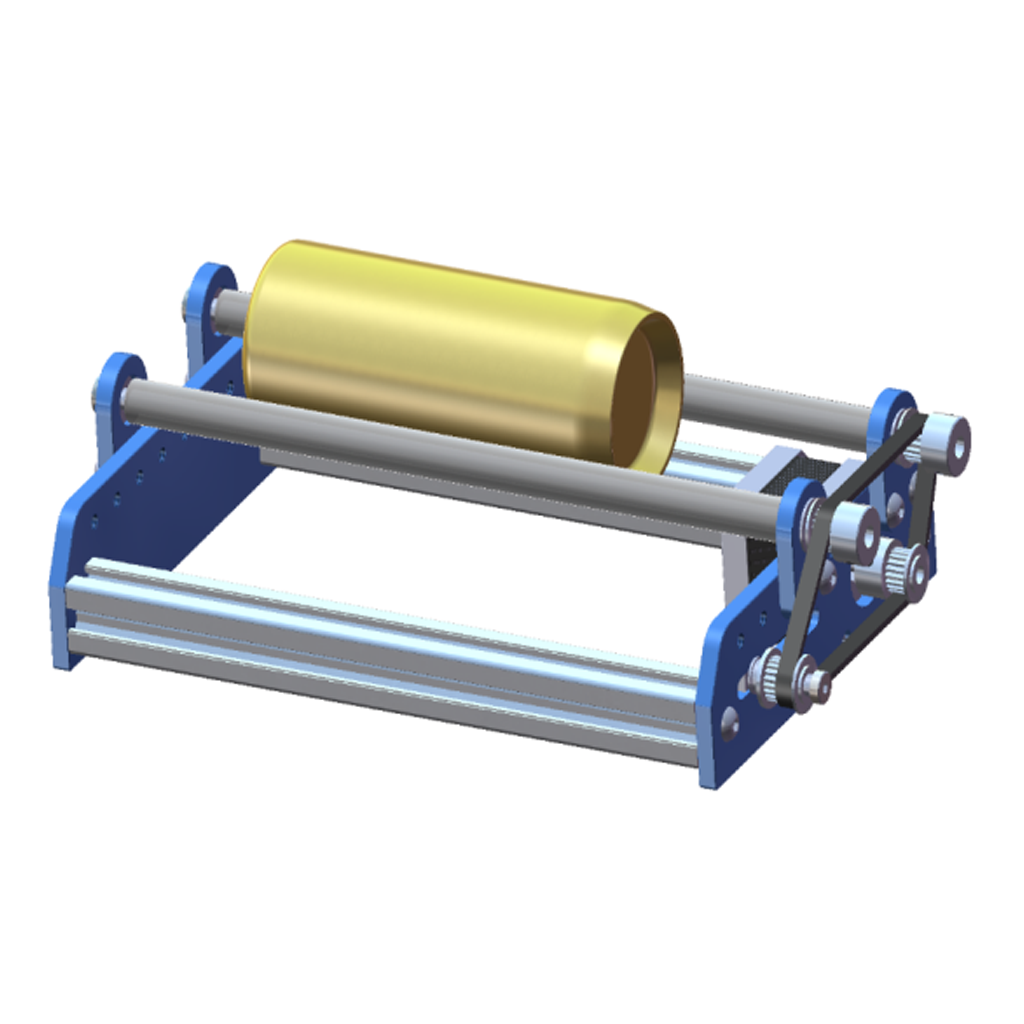

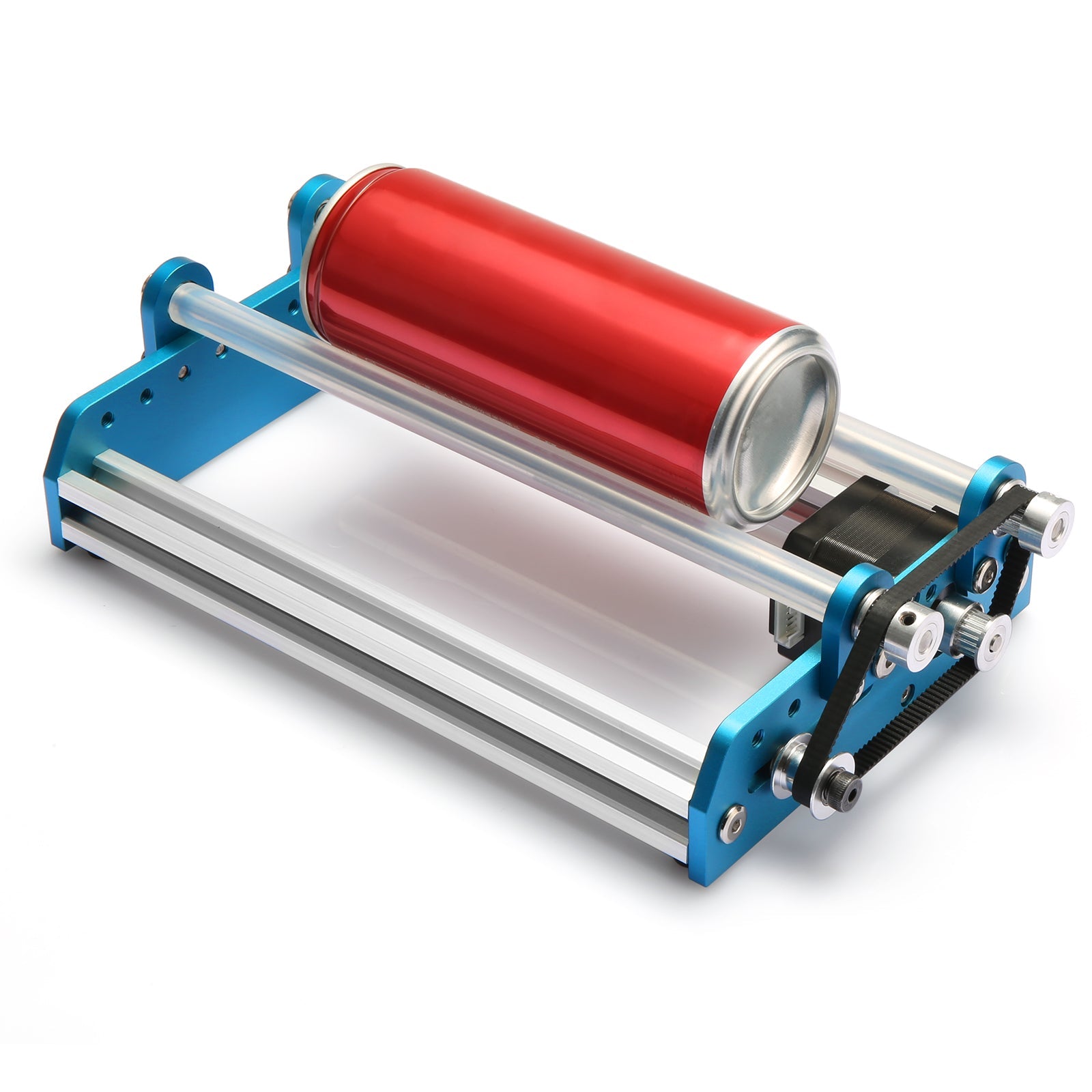

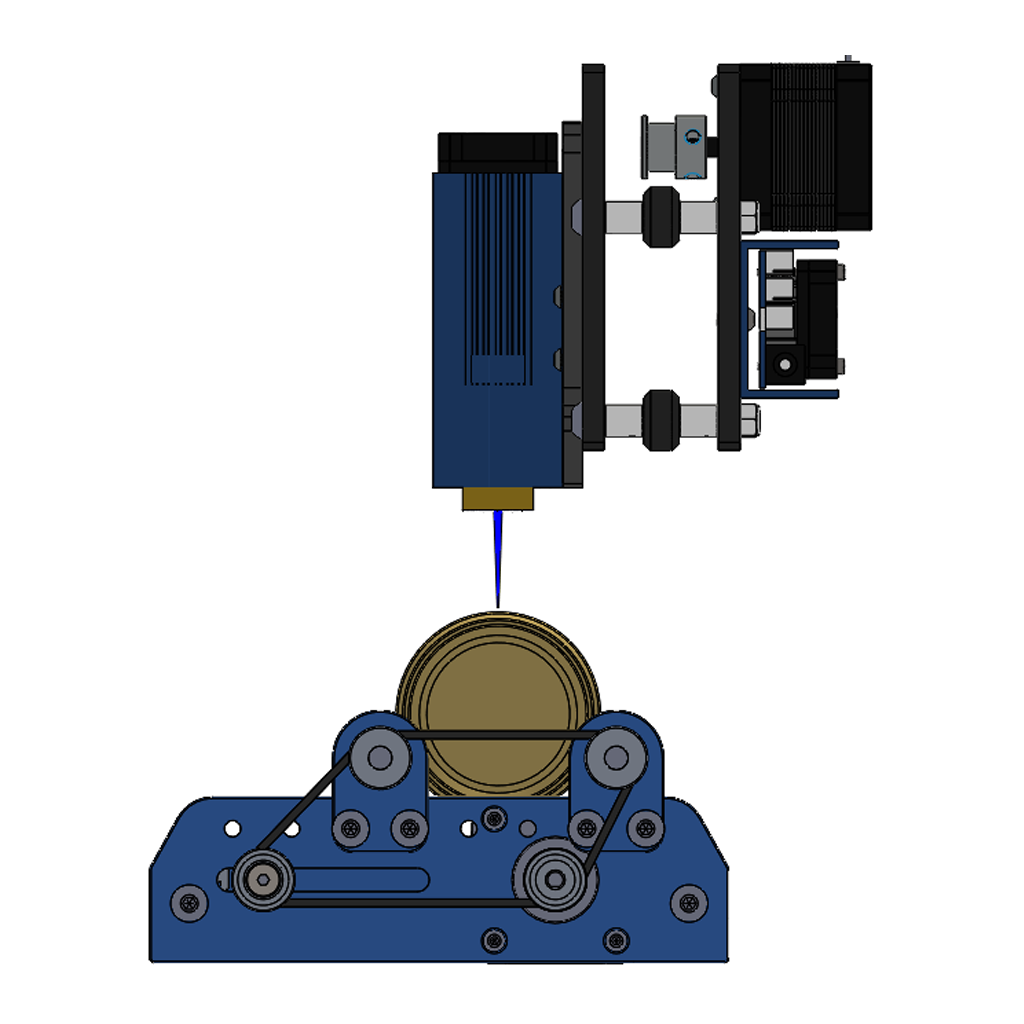

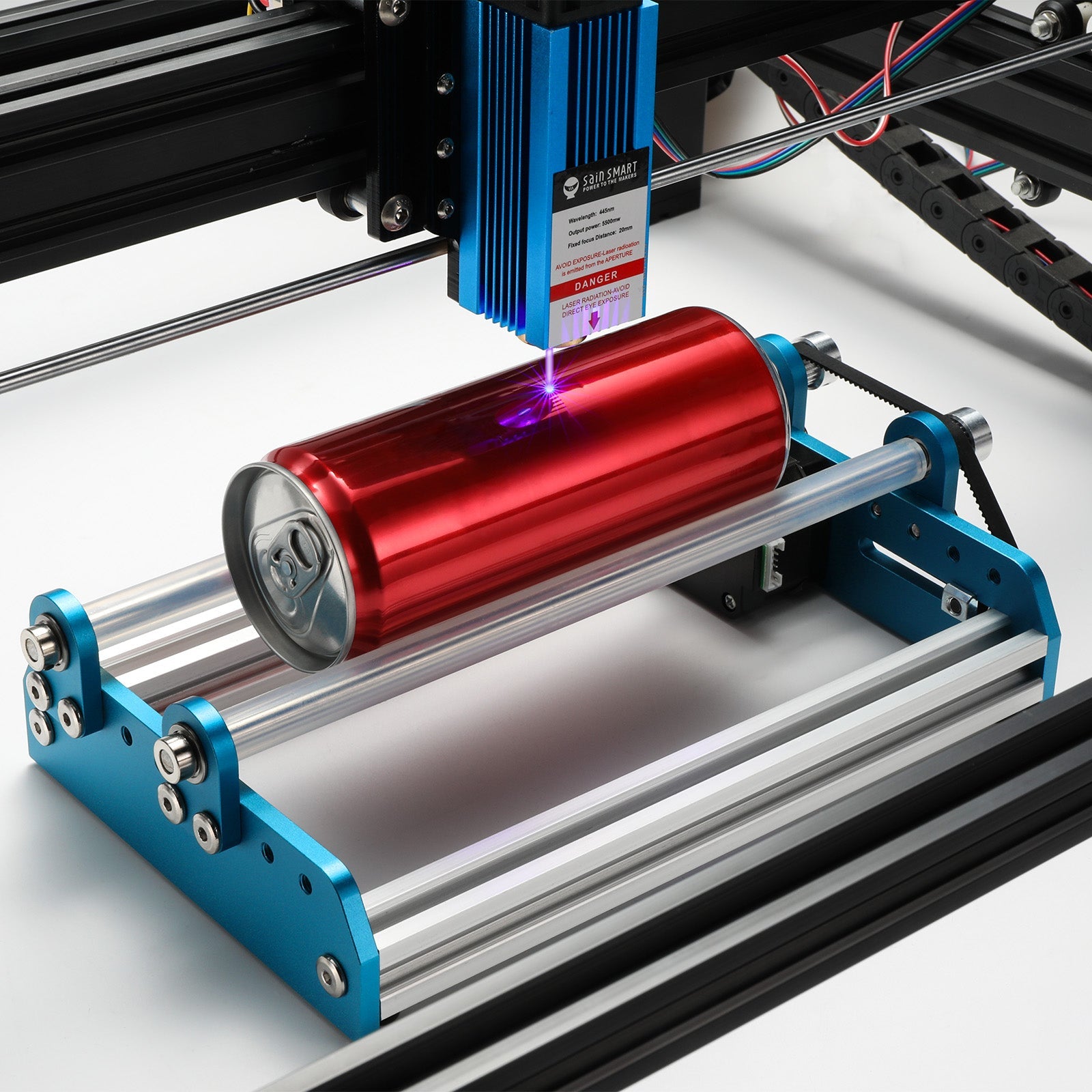

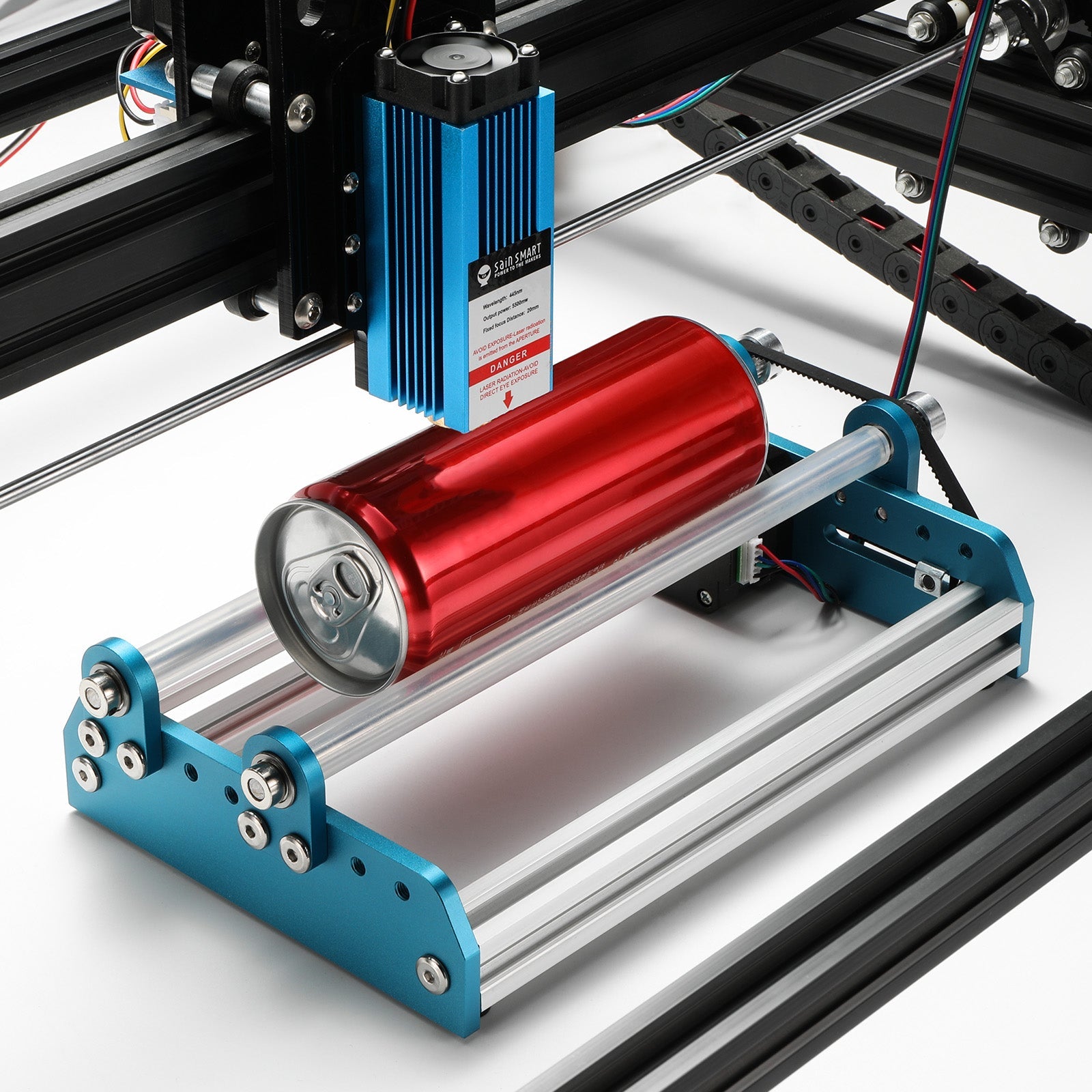

The Genmitsu Laser Rotary Roller is easy to set up requiring the proper software. The kit is plug and play and can be used to engrave cylindrical objects like kettles and cups.

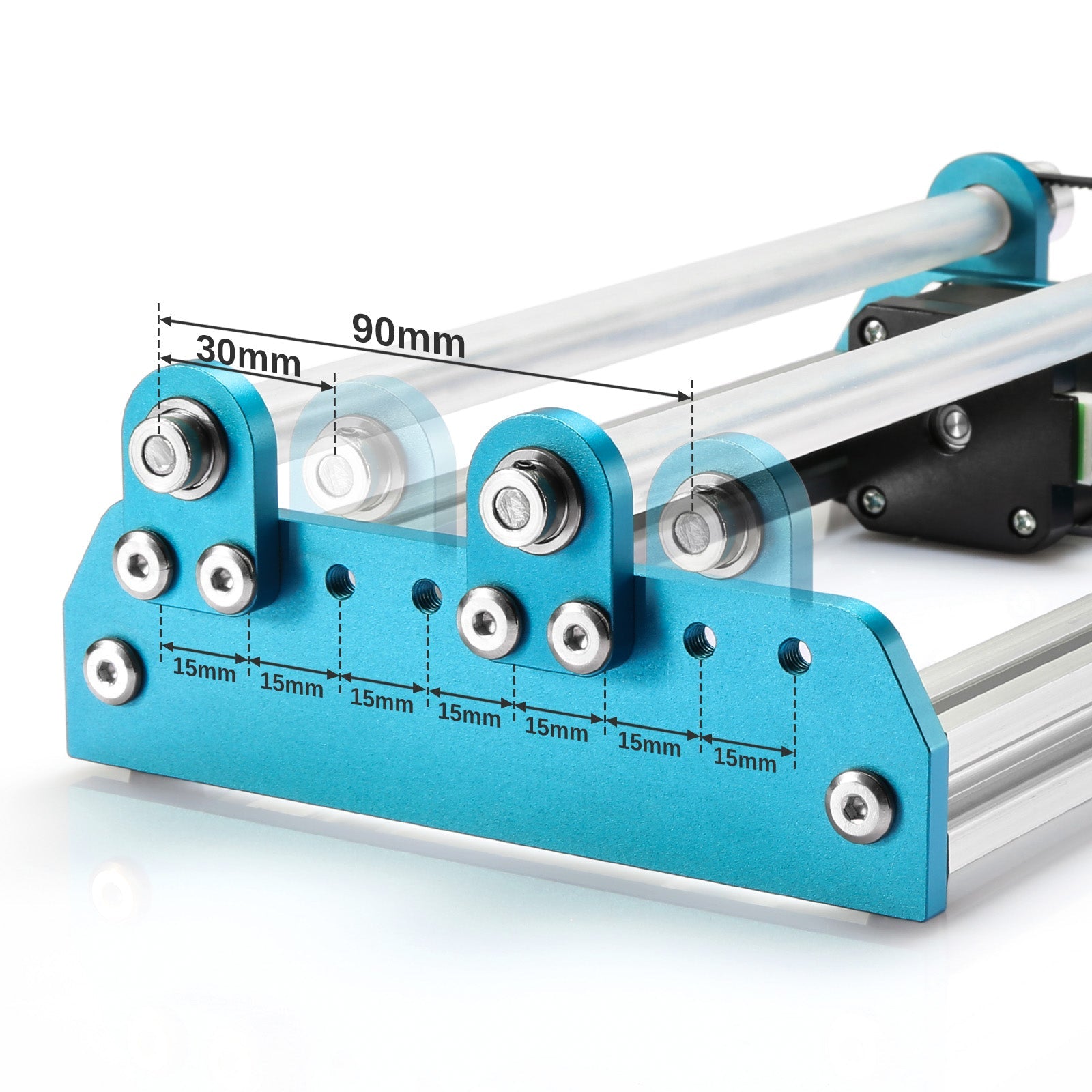

Width Adjustment: 5 Roller Positions. Each gear is 15mm. The adjustable range is 30-90mm wide.

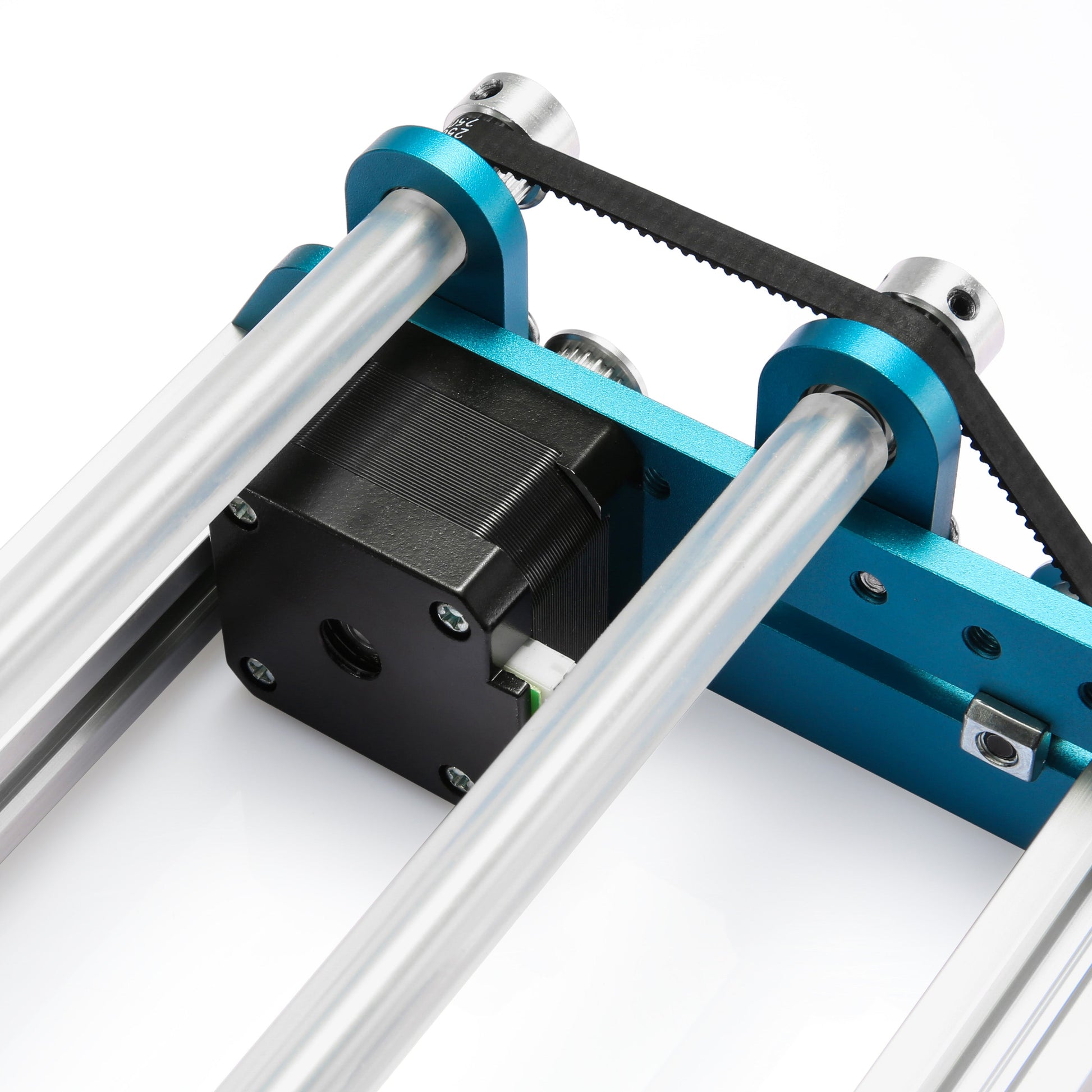

Motor: NEMA17 34mm Stepper Motor.
Supported Dimensions: Cylinder diameter 22-125mm, length 20-220mm (material length/material diameter should be over 1.0).

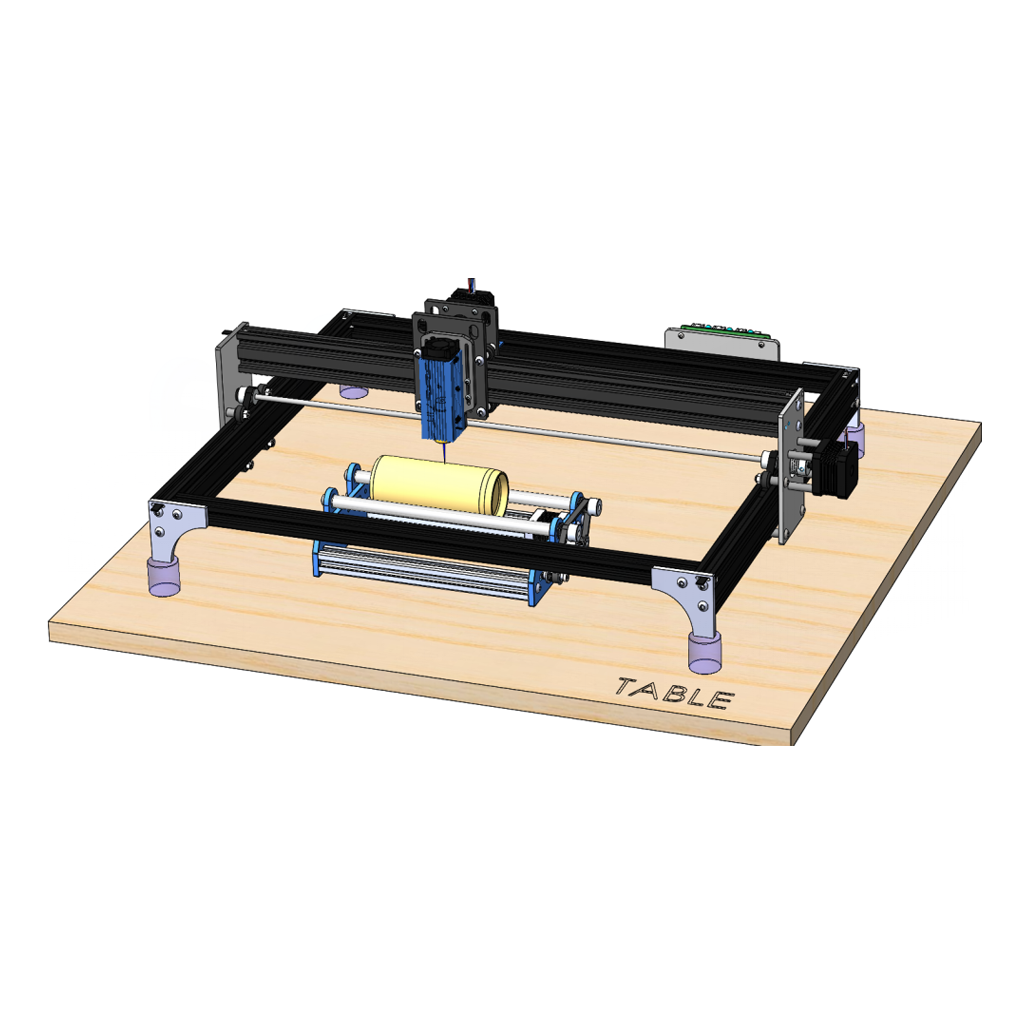

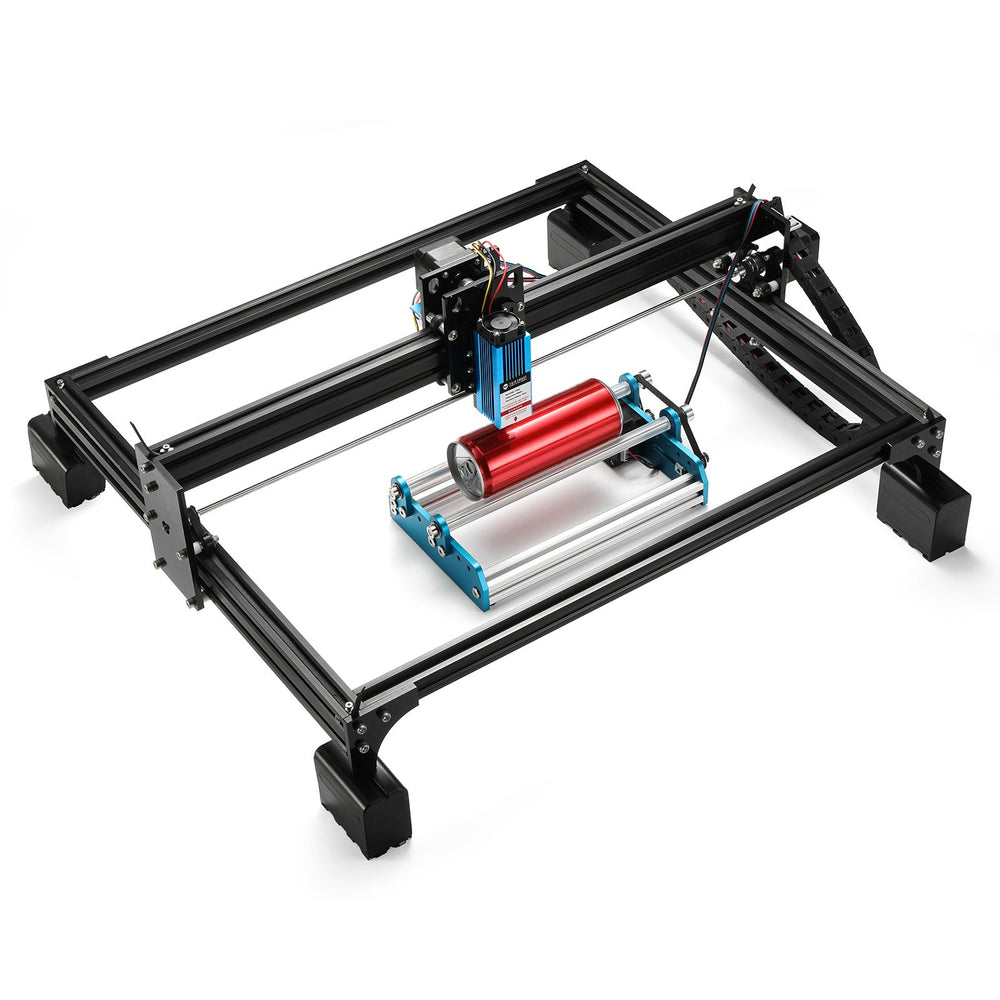

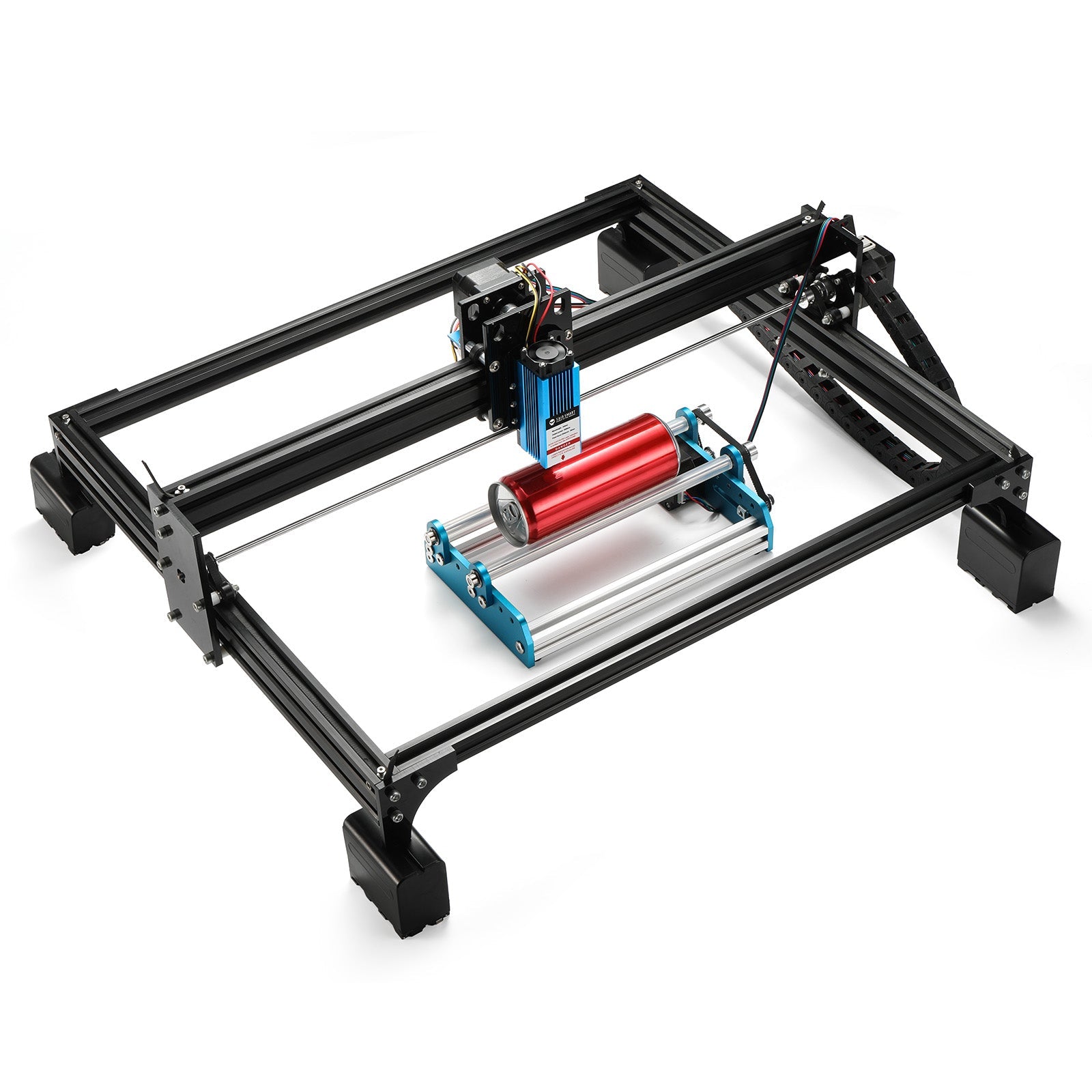

Compatible Laser Engravers: Genmitsu and most other kinds of Desktop Laser Engravers where you can adjust the Z height or reposition the base to accommodate the rollers required clearance.
❓ How to Use Your Rotary Axis for the LE5040 with LaserGRBL？
Ship to USA only. Final Sale. 6-month Warranty. Details
Motor: NEMA17 34mm Stepper Motor
Pulse parameter setting: 84PULSE/mm
Maximum load: 5 kg
Phase current: 1.3A

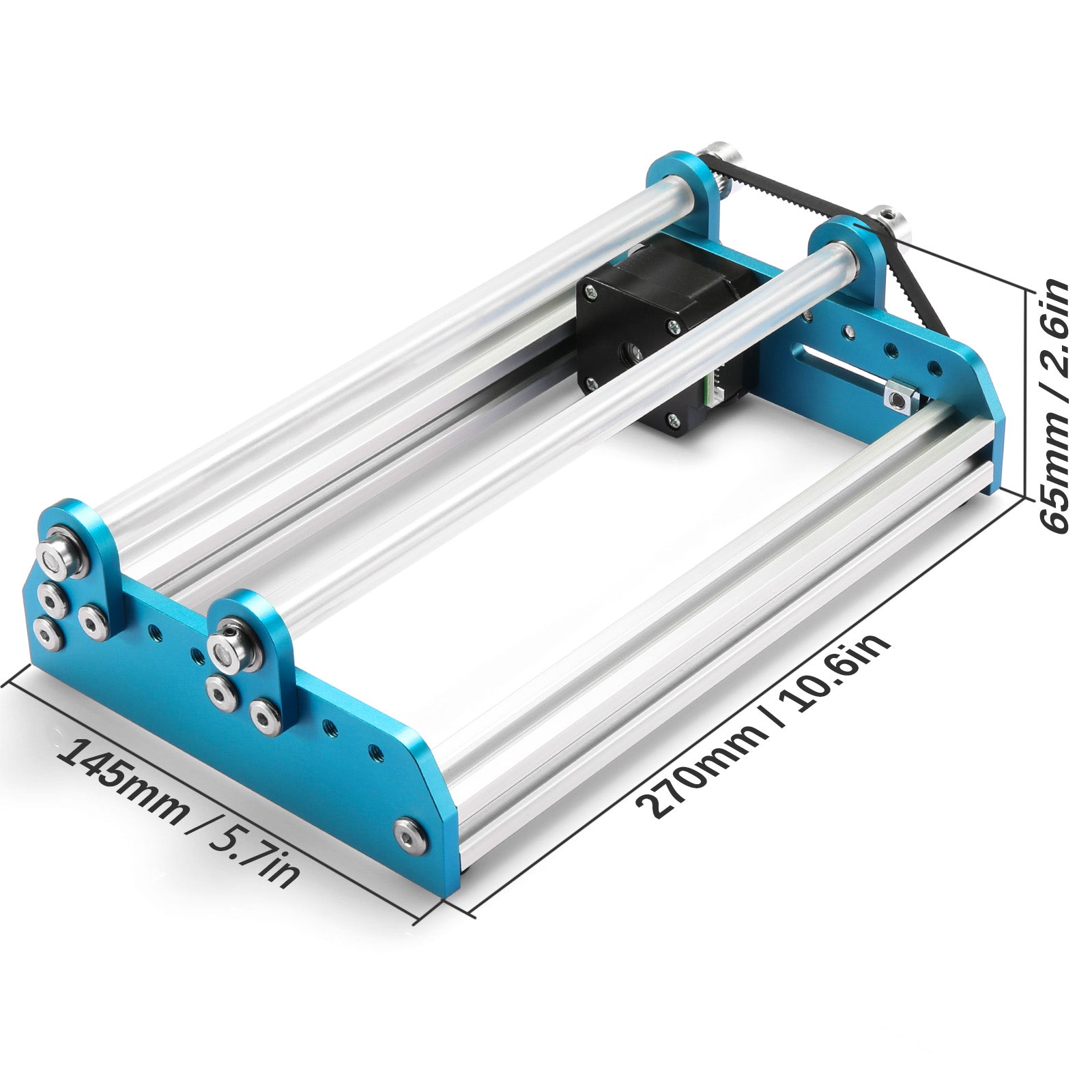

External dimensions: 270 mm * 145 mm * 65 mm

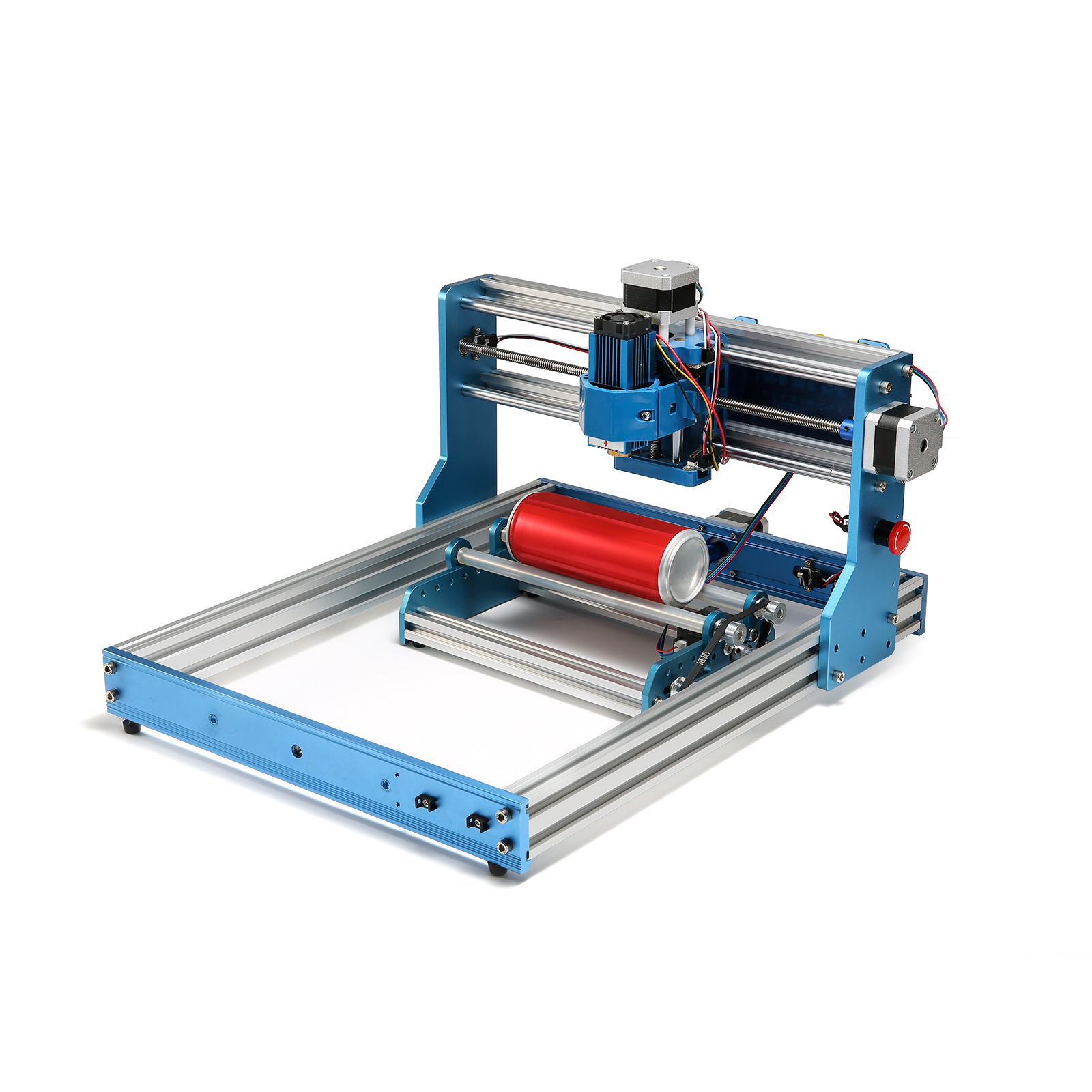

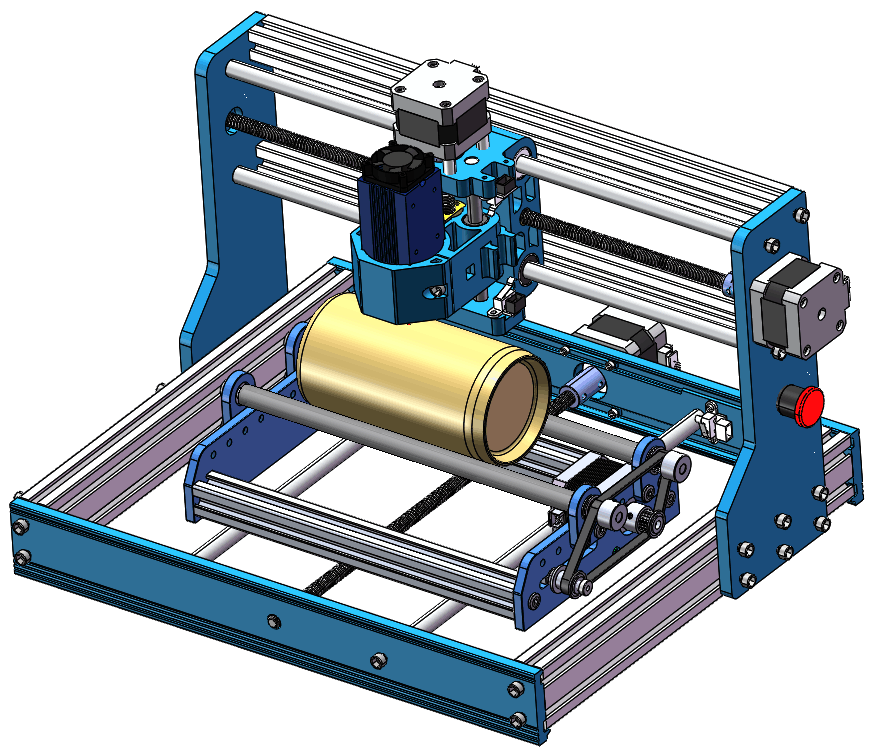

The laser rotary roller is able to work with the 3018-PRO and 3018-PROVer series CNC router. Before using this, please disassemble the aluminum plate.
1 x Genmitsu Laser Rotary Roller Engraving Module
