Brand: Genmitsu

[Open Box] MC40A, 1/8" Shank, CNC Cutter Milling Carving Bit Set, 40-PCS

[Open Box] MC40A, 1/8" Shank, CNC Cutter Milling Carving Bit Set, 40-PCS

SKU:  101-61S-MC40A*SEC
Regular price $24.99
-28% Regular price $34.99 Sale price $24.99
Save $10.00
Shipping calculated at checkout.
Ship to
  • 101-61S-MC40A*SEC
  • 101-61S-MC40A*SEC
  • 101-61S-MC40A*SEC
  • 101-61S-MC40A*SEC
Please check the necessary options first
I agree to the item is not eligible for exchange or return. Details

High Quality: The Genmitsu end mills are made of ultra-fine 0.2μm tungsten carbide steel alloy that can withstand continuous machining for 800 minutes. Moreover, its Nano Blue Coating /Titanium Coating, with its high hardness and heat resistance, enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.

2-Flute Spiral Flat Nose & Ball Nose End Mills: Shank Diameter: 3.175mm, Cutting Diameter: 3.175mm, Cutting Length: 17mm, Overall Length: 38mm.

Two End Mill Sets: Shank Diameter: 3.175mm, Cutting Diameter: 0.8 - 3.0mm (0.8/1.0/1.2/1.4/1.6/1.8/2.0/2.2/2.5/3.0mm), Cutting Length: 17mm, Overall Length: 38mm, with Nano blue and Titanium coating.

Applicable Materials: Widely used in various materials including plastics, aluminum, circuit board, wood, and other precision parts processing.

Wide Compatibility: The MC40A end mills are compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines. Just make sure you select the correct-sized collet for your device.

View full details
Genmitsu MC40A CNC Cutter Milling Carving 40-PCS Bit Set
Genmitsu MC40A CNC Cutter Milling Carving 40-PCS Bit Set

Genmitsu MC40A

40pcs End Mills CNC Router Bits



  • 10 x Spiral Flat Nose End Mills, 2-Flute
  • 10 x Spiral Ball Nose End Mills, 2-Flute

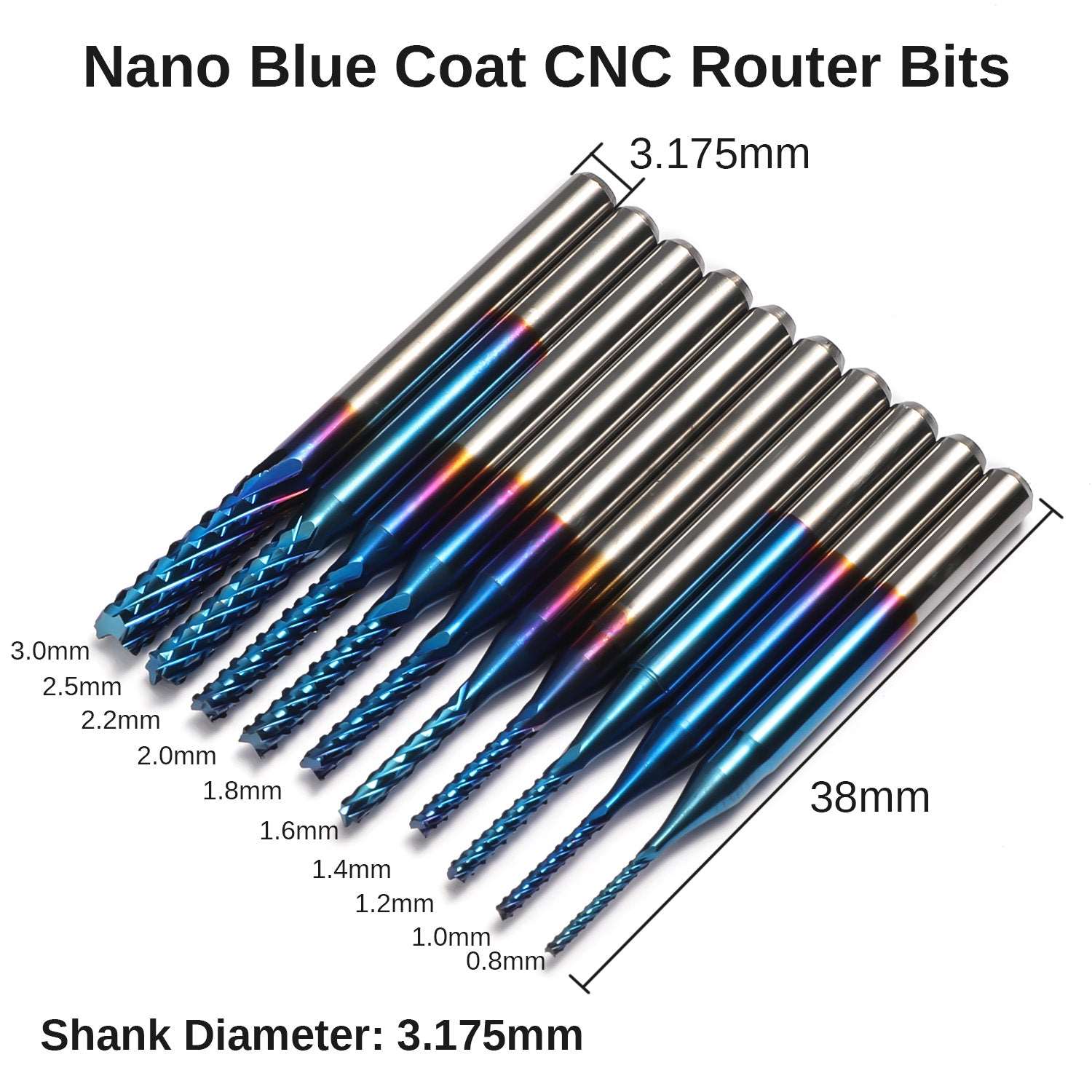

  • 10 x Nano Blue Coating End Mills (different cutting diameter: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm)

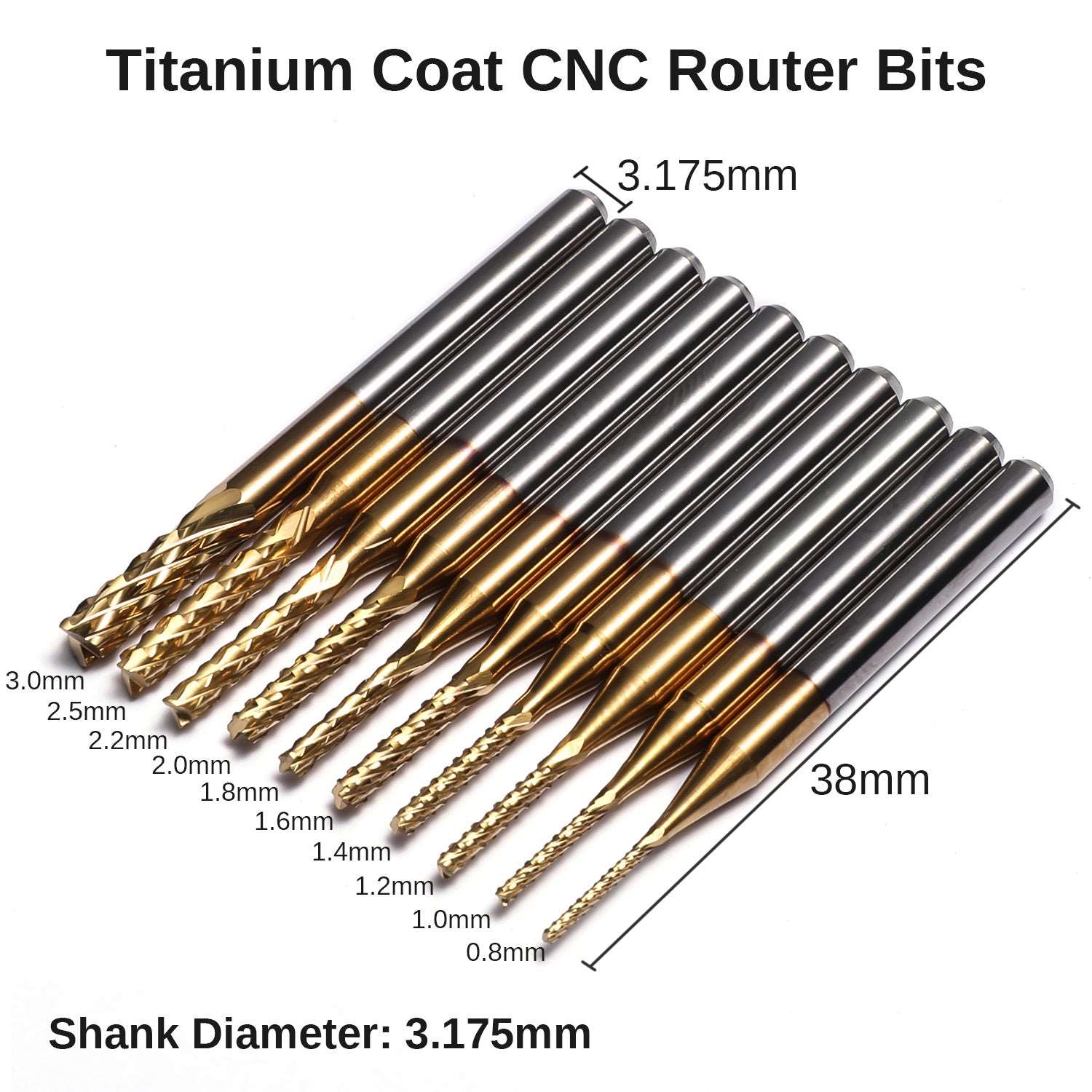

  • 10 x Titanium Coating End Mills (different cutting diameter: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm)
  • Material: Carbide
  • Surface: Nano Blue Coating
  • Radius: R0.25, R0.5, R0.75, R1.0mm
  • Shank Diameter: 3.175mm
  • Cutting Length: 15mm
  • Overall Length: 40mm
Genmitsu MC40A CNC Cutter Milling Carving 40-PCS Bit Set
  • What project are you undertaking?
  • What are you cutting? Is it hard or soft wood? Is it stainless steel, fiberglass, MDF, acrylic, or aluminum?
  • In case you’re new to CNC routing and you want a multi-purpose bit, go for two-flute spiral bits since they cut a wide range of materials, including plastics, aluminum, foam, and wood.

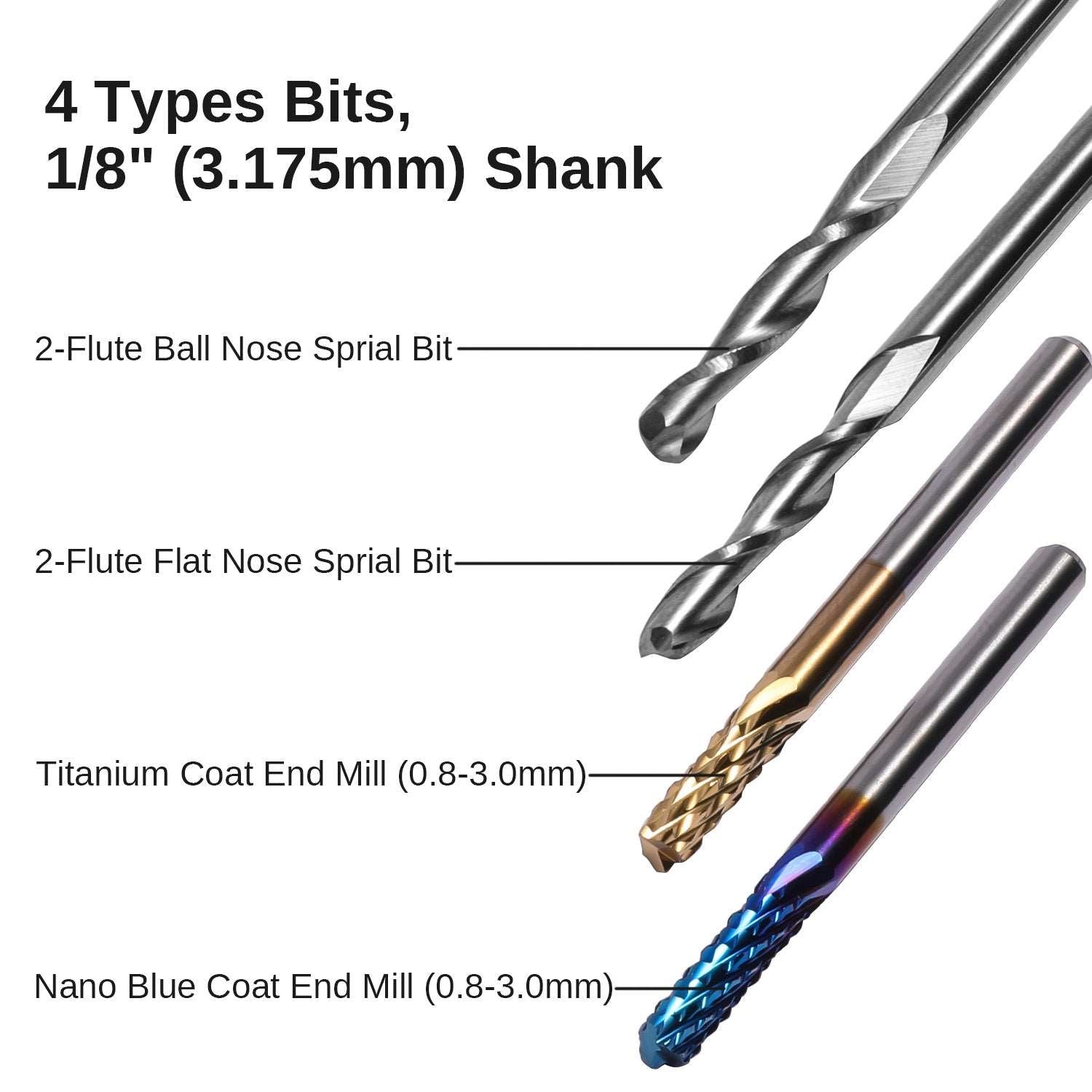

4 types of bits, 3.175mm shank

Cost-Effective Set

The MC40-U01 end mill set includes 4 type bits: spiral flat nose bits, ball nose bits, Nano Blue Coat end mills and Titanium Coat end mils. It's a very cost-effective set to meet your all needs in engraving work.

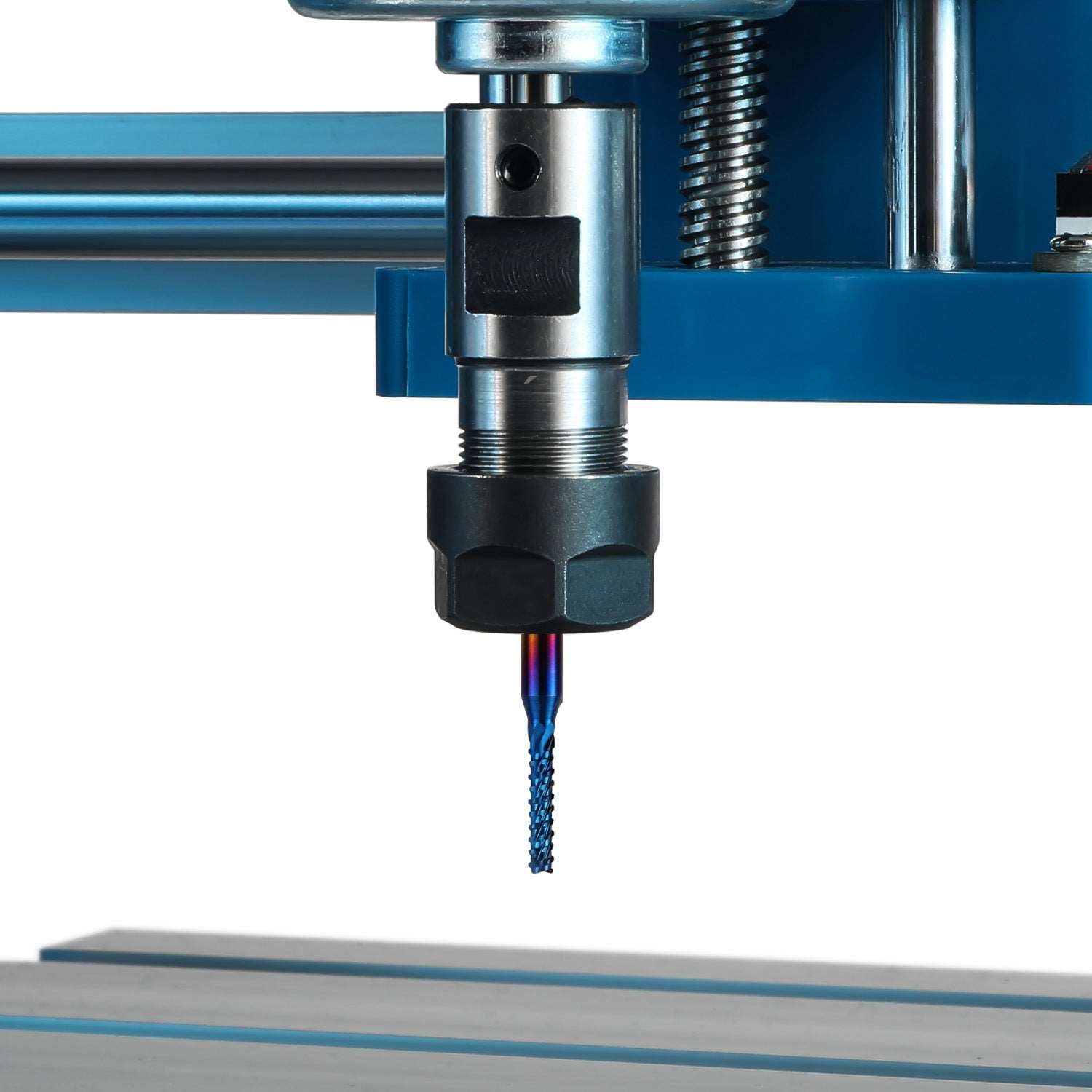

milling bits in the CNC router

Wide Application

Widely used in various materials including plastics, aluminum, circuit board, wood, as well as other precision parts processing. They are compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines.

Milling Carving 40-PCS Bit Set

High Quality

It's Nano Blue Coating /Titanium Coating with high hardness and heat resistance enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.

Specifications

  • Material: Tungsten Carbide Steel Alloy
  • Surface: Nano Blue Coating/Titanium Coating
  • Shank Diameter: 1/8'' (3.175mm)
  • Cutting Diameter: 0.8-3mm, 3.175mm
  • Cutting Length: 17mm
  • Overall Length: 38mm

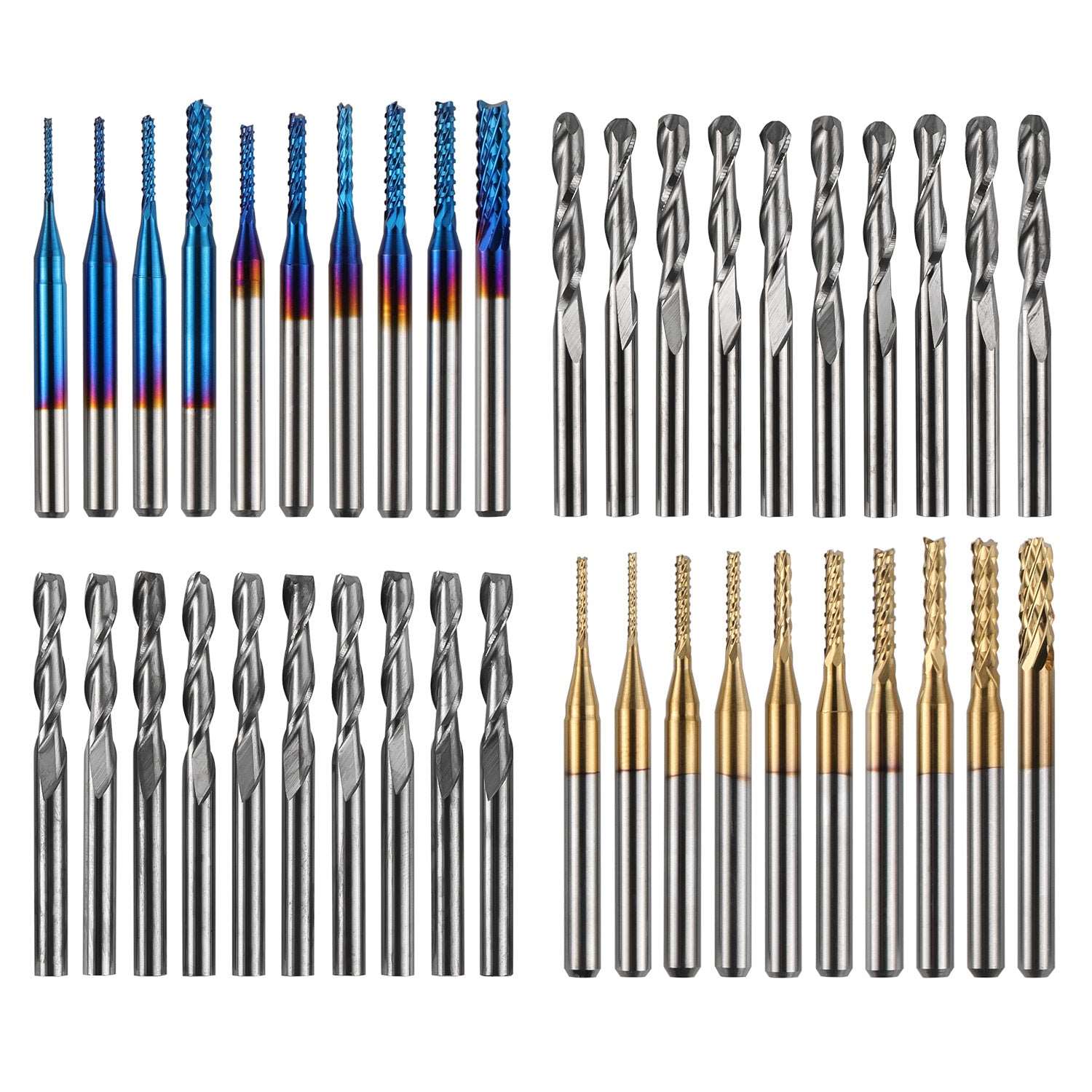

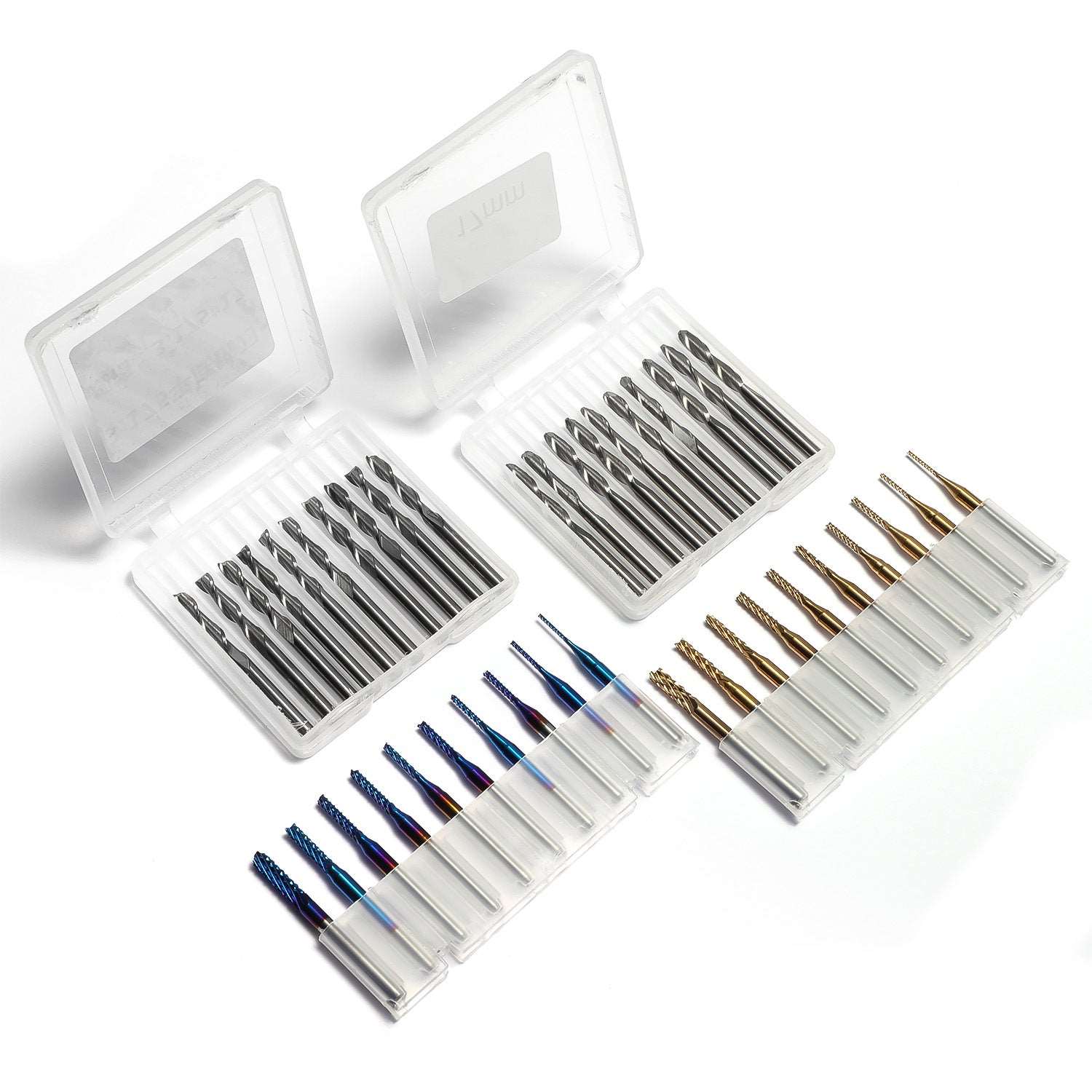

What's in the box

  • 10 x Spiral Flat Nose End Mills, 2-Flute
  • 10 x Spiral Ball Nose End Mills, 2-Flute
  • 10 x Nano Blue Coating End Mills (different cutting diameters: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm)
  • 10 x Titanium Coating End Mills (different cutting diameters: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm)
