Brand: SainSmart SKU: 101-10-160*SEC

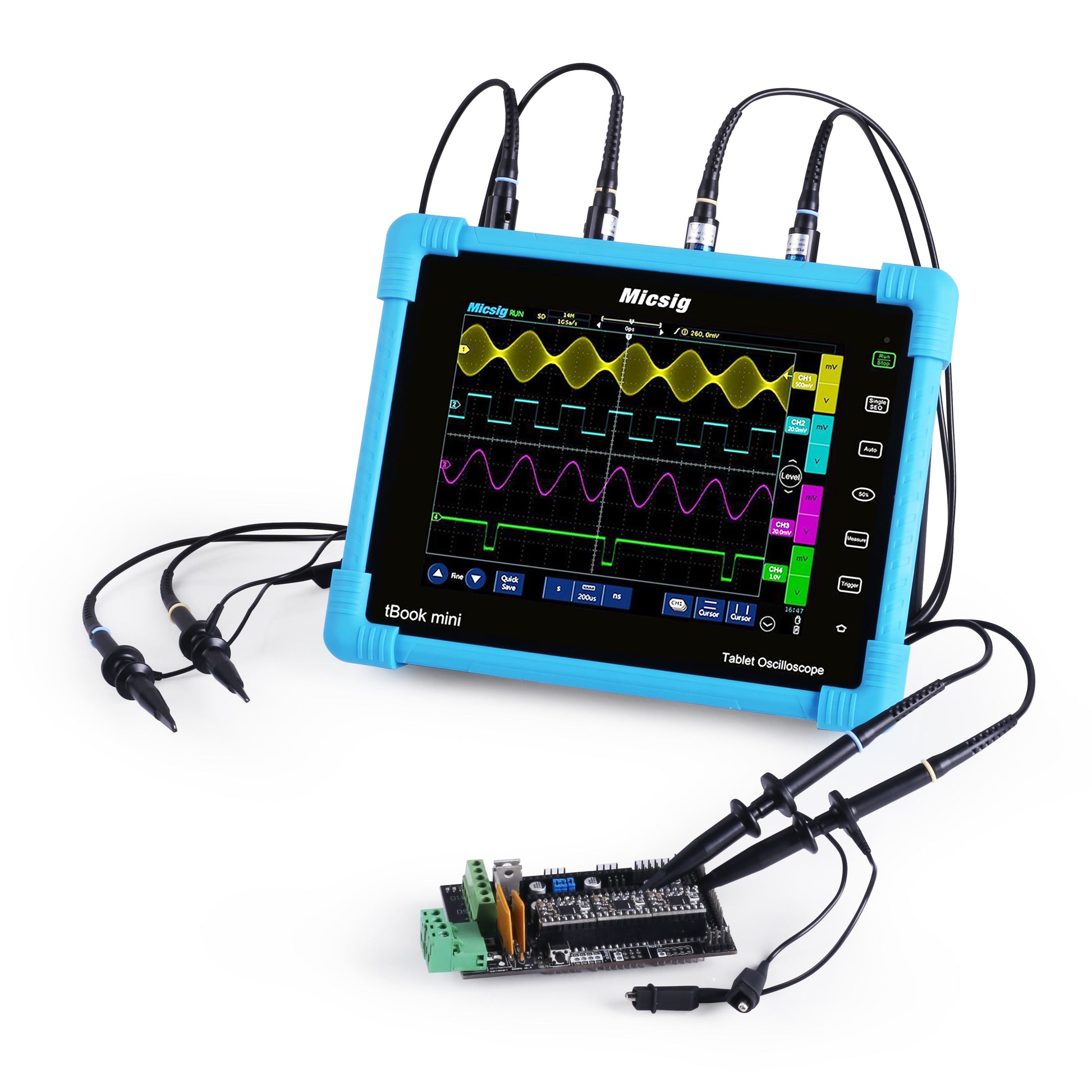

[Open Box] Micsig Digital Tablet Storage Oscilloscope 100MHz 4CH TO1104

SKU: 101-10-160*SEC Variants ID: 40045381746767
$455.99 $599.99
Save $144.00
Free Shipping

28 Mpts Memory Depth and ZOOM-Technology

The Micsig TO1000 series provides more accuracy and details of waveforms with 28Mpts memory depth and a ZOOM technology. The tBook mini can record a longer time period also.

Lower noise

Lower noise floor is less than 1mV help you to get more accurate measurements

31 Types of Auto Measurements

There are 31 auto measurements for the user to choose from on the measure selection page.
The tBook mini can measure and show 5 parameters simultaneously.

Multi-Level Intensity Grading Display

"Multi-Level Grading Intensity" display, extensive signal characteristics with a very large number of measurement values can also be displayed completely.

Full Touch control

The full-touch tablet of the tBook mini series turns it into a very compact oscilloscope.
In addition to the 7500 mAh battery, it is an ideal mobile handheld measurement device.

Please check the necessary options first
I agree to the item is not eligible for exchange or return.
Ship to USA only. Final Sale. 6-month Warranty. Details

28 Mpts Memory Depth and ZOOM-Technology

The Micsig TO1000 series provides more accuracy and details of waveforms with 28Mpts memory depth and a ZOOM technology. The tBook mini can record a longer time period also.

Lower noise

Lower noise floor is less than 1mV help you to get more accurate measurements

31 Types of Auto Measurements

There are 31 auto measurements for the user to choose from on the measure selection page.
The tBook mini can measure and show 5 parameters simultaneously.

Multi-Level Intensity Grading Display

"Multi-Level Grading Intensity" display, extensive signal characteristics with a very large number of measurement values can also be displayed completely.

Full Touch control

The full-touch tablet of the tBook mini series turns it into a very compact oscilloscope.
In addition to the 7500 mAh battery, it is an ideal mobile handheld measurement device.


DESCRIPTION

If you can’t purchase your favorable oscilloscope due to low budget, tablet oscilloscope tBook mini TO1104 is a real good choice. You absolutely cannot miss it. Compared with traditional bench oscilloscope, tBook TO1004 unique & fast touch operation, super & clear display screen, supporting to store and view pictures locally, one shortcut key to save waveform rapidly, Li-ion battery provide you cost-effective oscilloscope choice.

tBook mini TO1104 integrates all of advantages in one instrument: super low budget, rapid response, easy operation, technology UI and abundant features.



OVERVIEW VIDEO



SPECIFICATION
  •     Model: TO1104
  •     Bandwidth: 100MHz
  •     Input Channel: 4
  •     Sample rate: 1GSa/S
  •     Memory depth: 28Mpts
  •     Max capture rate: 80,000 wfm/s
  •     Bandwidth limitation: 20MHz, high pass, low pass

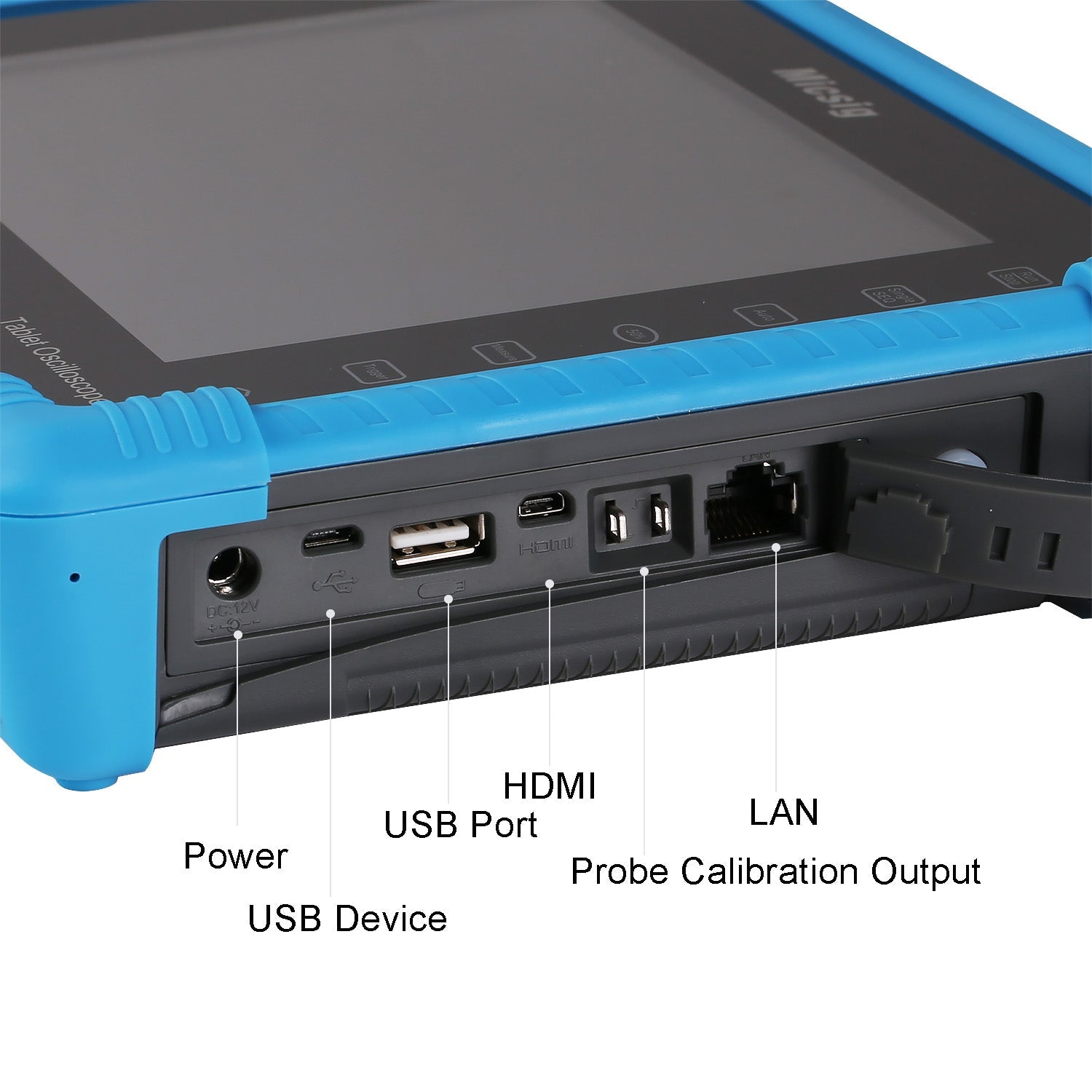

  •     Interface: Wifi, LAN, HDMI,USB Host, USB Device, GND, DC Power, Trigger out
  •    Screen: 8 inches TFT LCD 800*600 pixels display resolutionï¼?4*10 display range

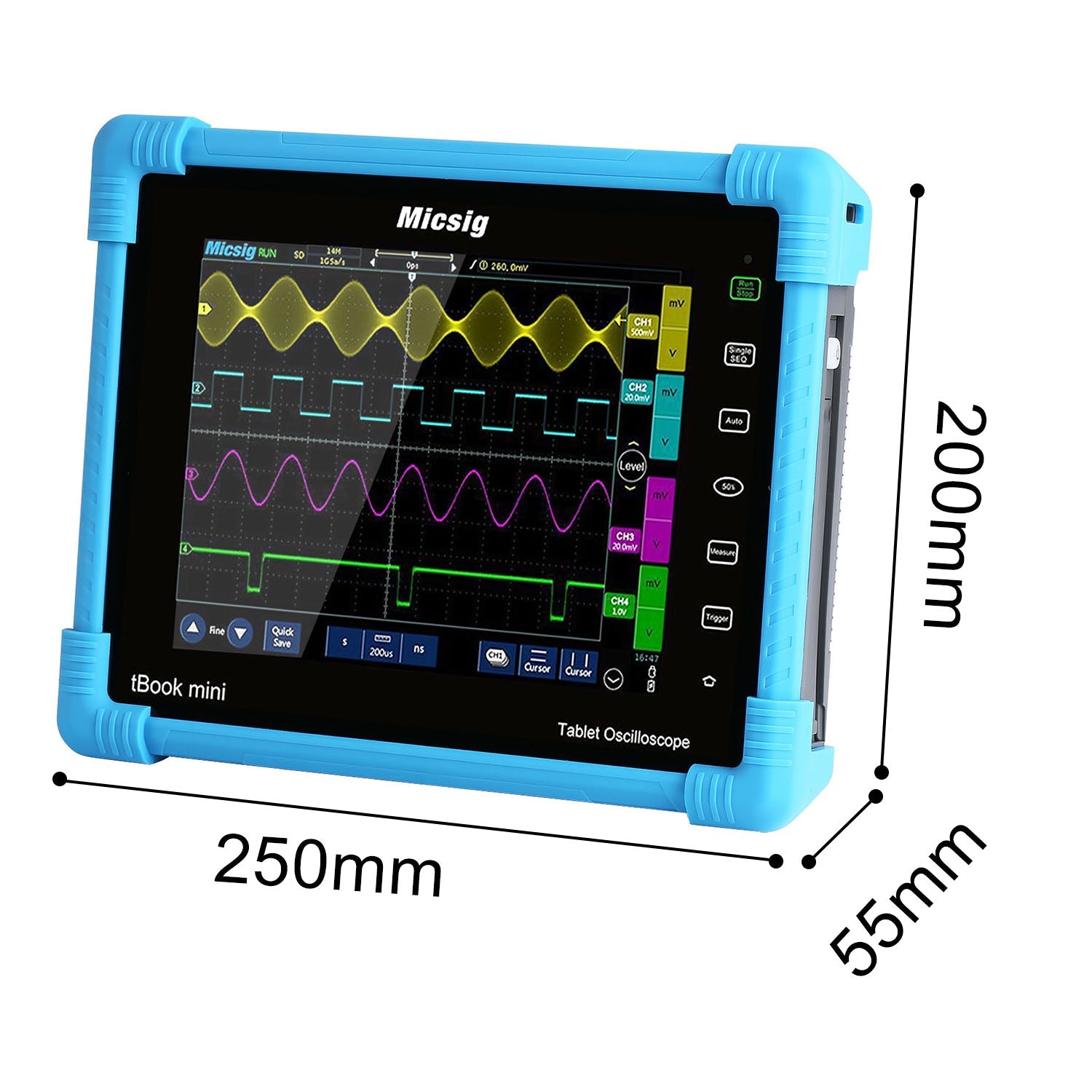

  •     Dimension: 250*210*55mm
  •     Battery: 8000mAh Li-ion battery
  •     Sampling Modus: Normal, average, peak detect, envelope
  •     Mathematics: +, -, *, / und FFT (Fast Fourier Transform)

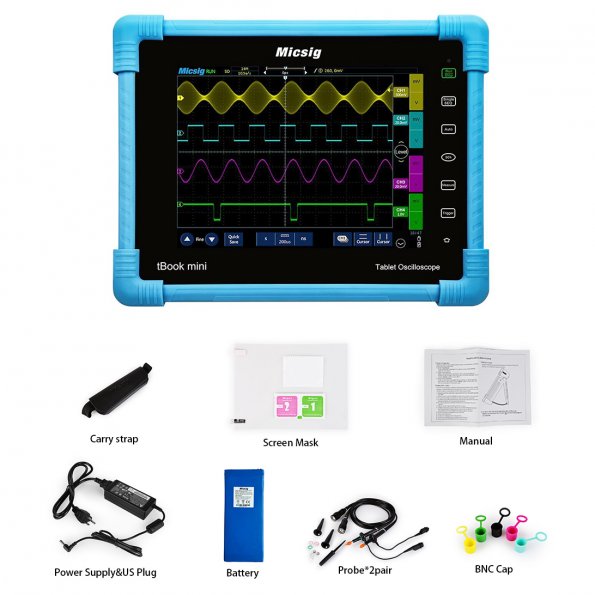

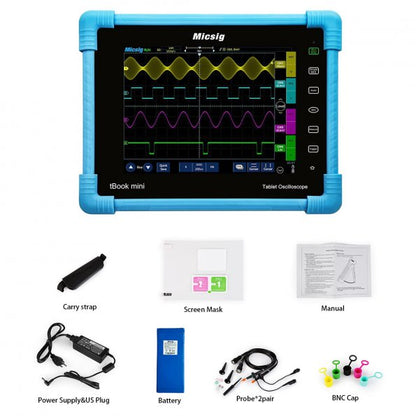

WHAT'S IN THE PACKAGE
  • 1 x TO1104 Digital Tablet Oscilloscope

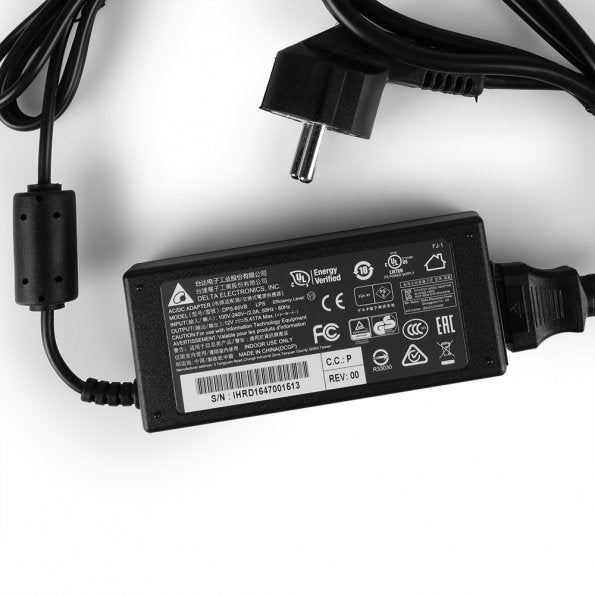

  • 1 x Power Supply
  • 1 x Manual
  • 4 x Probe
  • 5 x BNC Cap
  • 1 x Battery
  • 1 x Carry strap
  • 1 x Screen Protector
