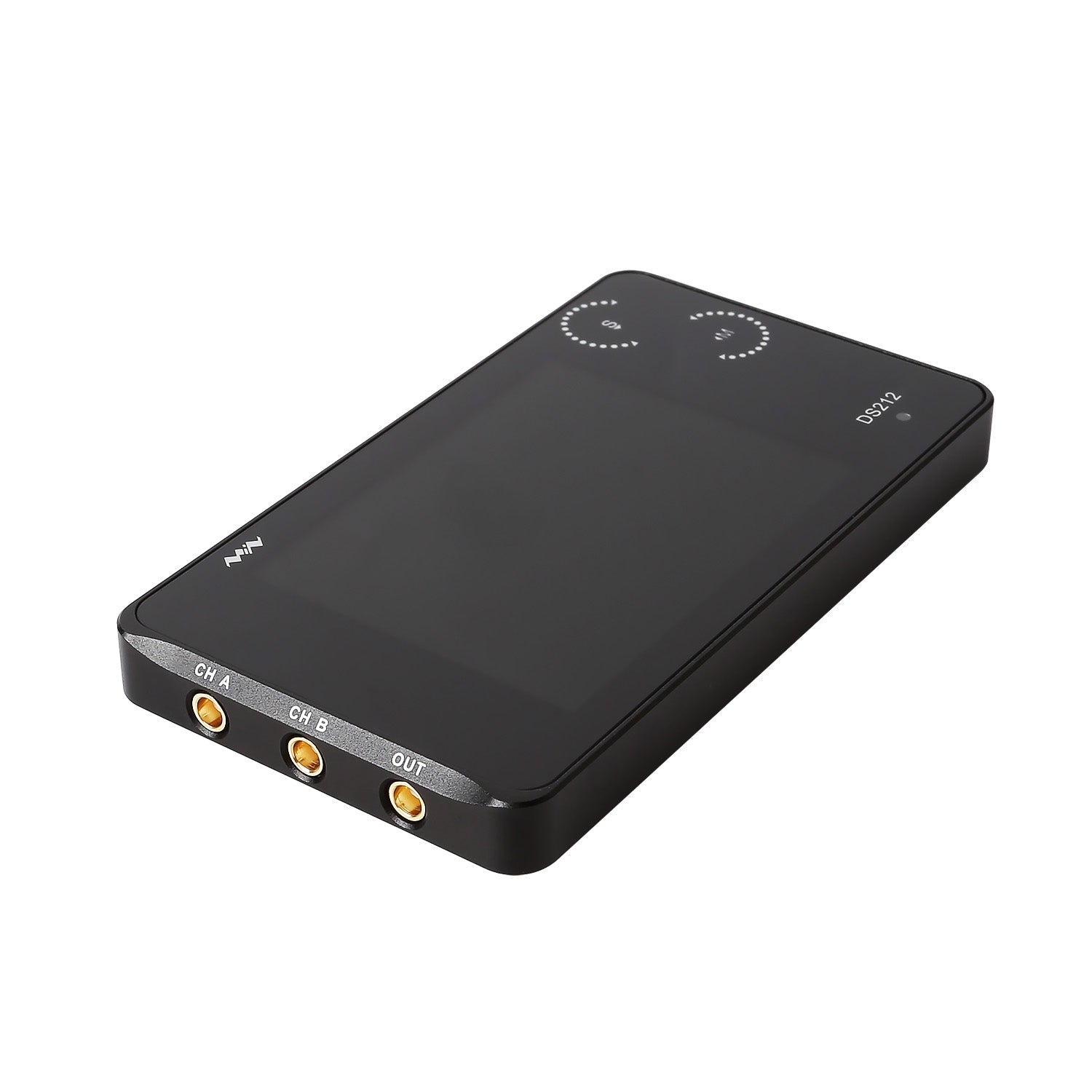

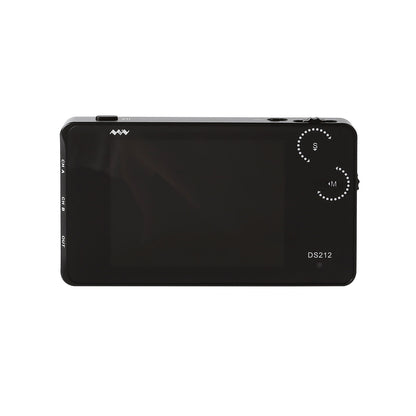

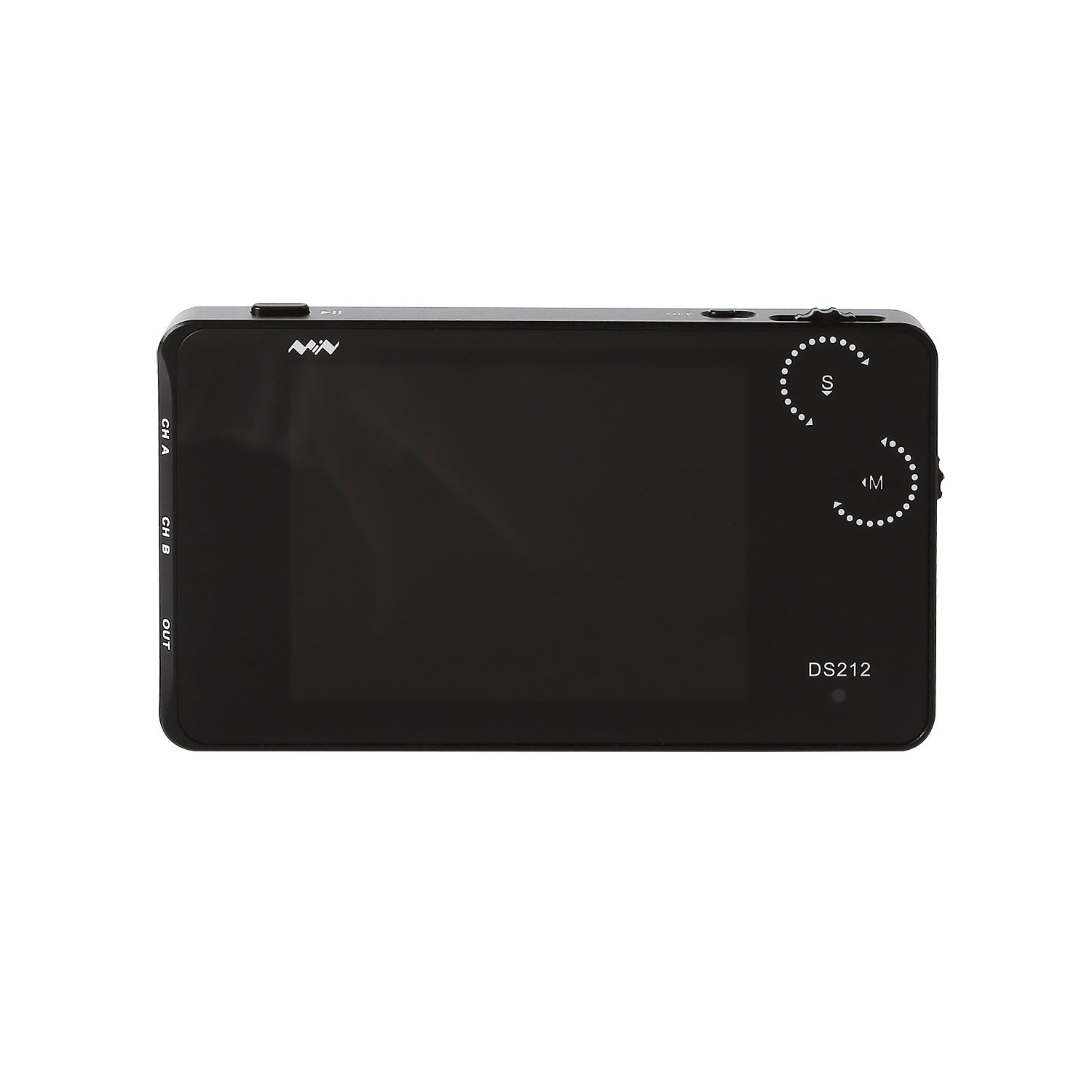

[Discontinued] [Open Box] SainSmart DSO212 2-CH Handheld Mini Digital Oscilloscope

[Discontinued] [Open Box] SainSmart DSO212 2-CH Handheld Mini Digital Oscilloscope

SKU:  101-10-600*SEC
1 review
$69.99
-36% $109.99 $69.99
Save $40.00
Shipping calculated at checkout.
  • 101-10-600*SEC
Please check the necessary options first
I agree to the item is not eligible for exchange or return. Details

DS212 is a 2-channel digital oscilloscope. It is in a new design - two gear for controlling, very convenient for testing. It supports USB flash disk storage and USB charging. It is widely applicable in the academic experiment, electronic maintenance, electronic engineering tasks, etc.

  • New design - two gear for controlling, very convenient for testing.
  • Pocket-size and lightweight.
  • Chargeable lithium battery, 4 hours' working duration.

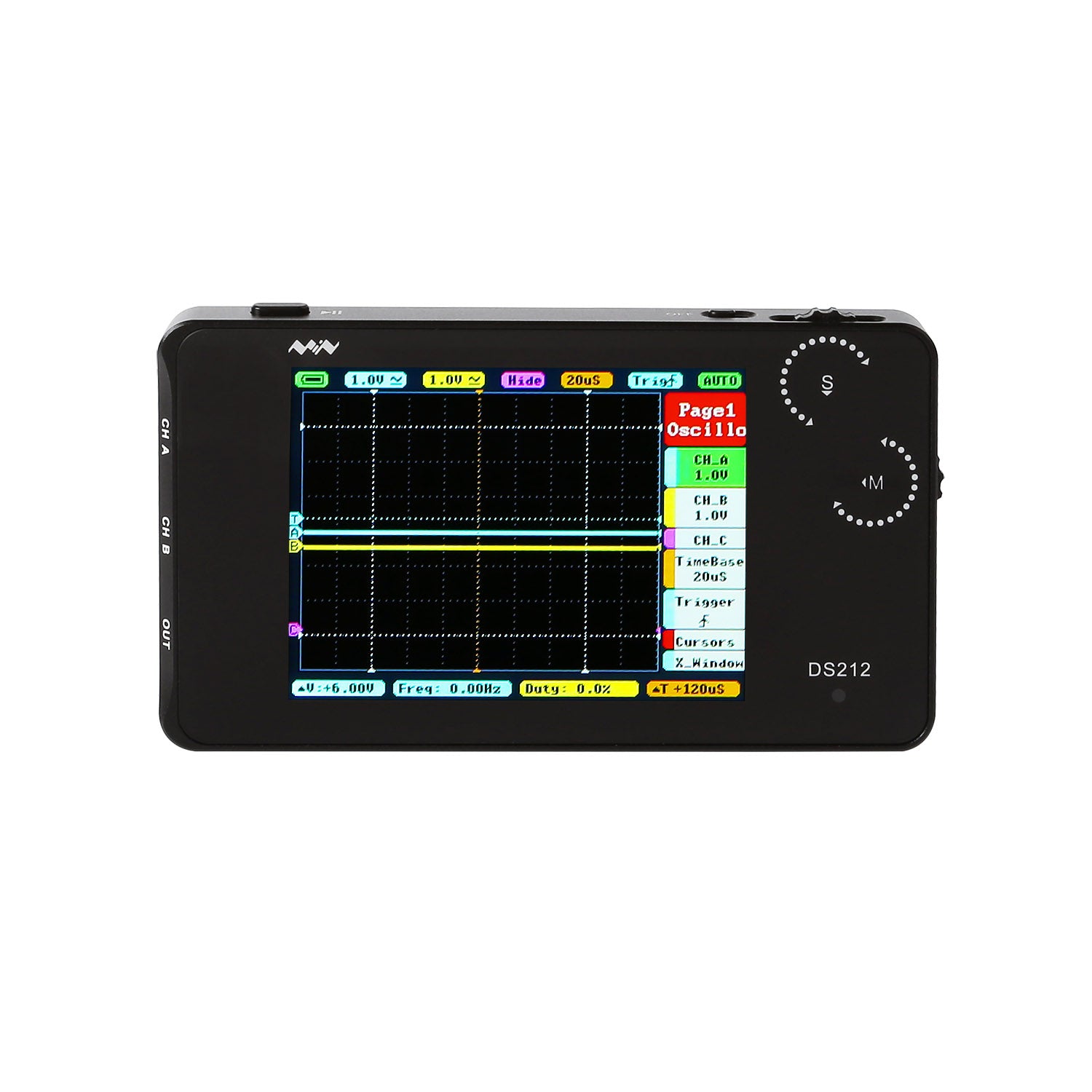

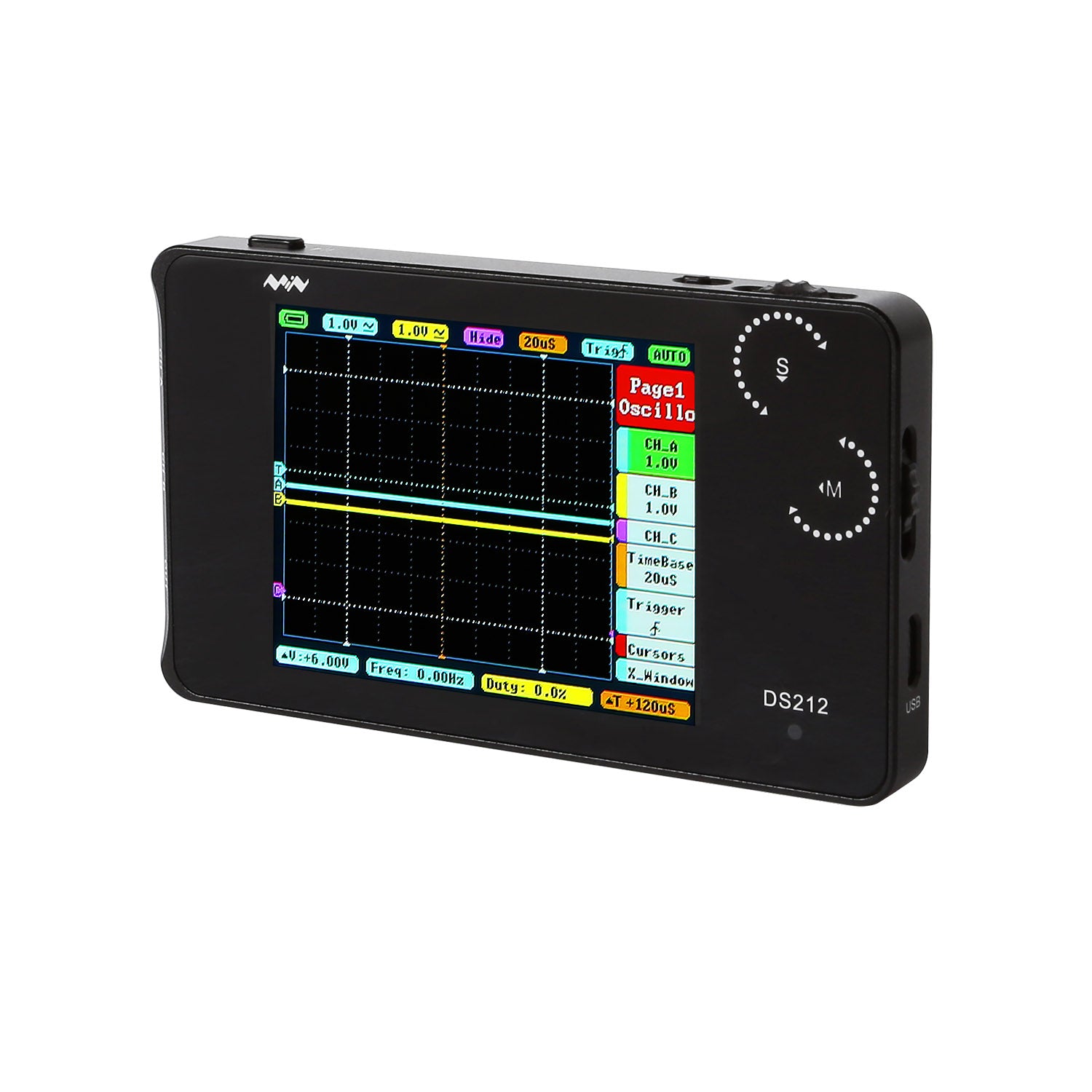

  • Equipped with 320*240 color display.
View full details

DSO Series:

Model DSO Nano (DSO211) DSO Note II (DSO202) DSO 212 DSO Quad (DSO203)
MCU STM32F103VC STM32F303VC STM32F303VC STM32F103VE
ADC MCU internal ADC MCU internal ADC MCU internal ADC AD9288
Channels Analog channel 1 + 1 internal channel 2 analog 2 analog 2 analog, 2 digital
Analog Bandwidth 200KHz 1MHz 1MHz 8MHz
Max Sample Rate 1MSa/s 10MSa/s 10MSa/s 72MSa/s
Maximum Memory Depth 8K 8K 8K 4K
Horizontal Sensitivity 1uS/Div~2S/Div(1-2-5sequence step) 1uS/Div~2S/Div(1-2-5sequence step) 1uS/Div~2S/Div(1-2-5sequence step) 0.1uS/Div~1S/Div(1-2-5sequence step)
Vertical Sensitivity 20mv/Div~10V/Div(1-2-5sequence step) 20mv/Div~10V/Div(1-2-5sequence step) 20mv/Div~10V/Div(1-2-5sequence step) 50mv/Div~10V/Div(1-2-5sequence step)
Input Resistance 1MΩ 1MΩ 1MΩ 1MΩ
Coupling DC / AC DC / AC DC / AC DC / AC
Auto Adjustment Mode AUTO_FIT AUTO_FIT AUTO_FIT NO
Calculation Waveforms -A, RecA, A + RecA -A,-B,A+B,A-B RecA,RecB,RecC -A,-B,A+B,A-B RecA,RecB,RecC -A,-B,A+B,A-B RecA,RecB,RecC
Storage  8MB USB flash disk memory  8MB USB flash disk memory  8MB USB flash disk memory  8MB USB flash disk memory
APP Installed 1 2 2 4
Operation buttons button,touch area buttons,scrollers buttons,scrollers
USB Interface Micro USB Micro USB Micro USB Mini USB
Battery 500mAh 500mAh 500mAh 1000mAh
Screen Size 2.8inch 2.8inch 2.8inch 3.0inch
Screen Resolution 320 × 240 320 × 240 320 × 240 400 × 240
Open Source Application layer Open-Source
FUNCTION
  • Rising/Falling edge trigger
  • Store file as BMP, DAT, BUF, or CSV format
  • Math waveforms:-A,-B,A+B,A-B,Rec A,RecB,RecC
  • Synchronous mode: Auto, Normal, Single, None, Scan
  • Inbuilt 8MB U disk storage for waveform data and images
  • Modes of vertical precise, horizontal precise measurement and triggering threshold
  • Auto Measurement: frequency, cycle time, duty cycle, DC RMS voltage/Vpp /Vmax/Vmin/Vavg
  • Inbuilt Signal Generator: Sine/Square/Triangle/Sawtooth wave



SPECIFICATION
  • Max sample rate: 10MSa/s
  • Analog bandwidth: 1MHz
  • Max sample memory depth: 8K
  • Analog input impedance: 1MΩ

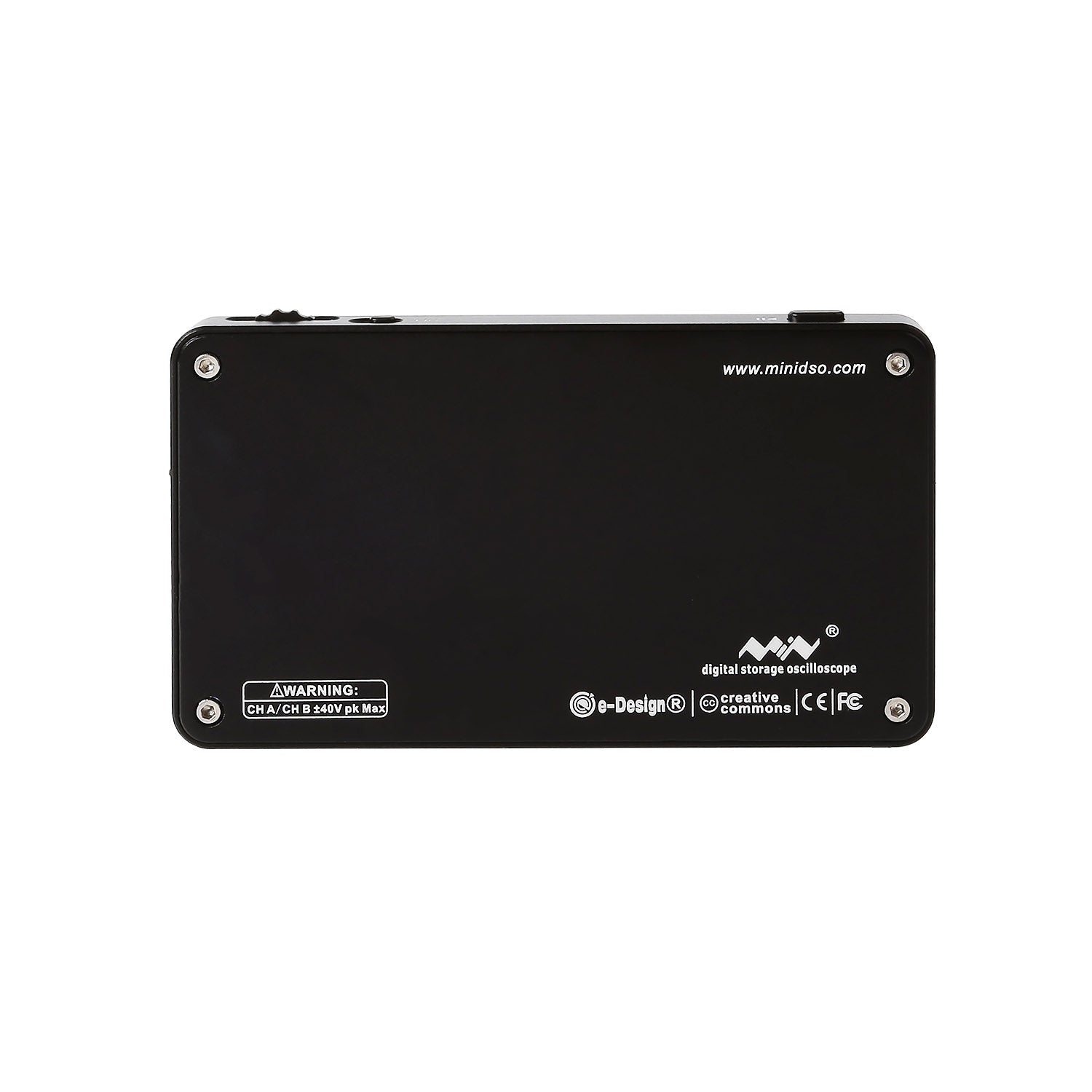

  • Max input voltage: ±40V(X1 probe)
  • Coupling:AC/DC
  • Vertical sensitivity: 20mv/Div~10V/Div (1-2-5 sequence step)
  • Horizontal sensitivity: 1uS/Div~2S/Div(1-2-5 sequence step)
  • Dimension: 100mm X 56.5mm X 10.7mm
  • Weight: 95g
  • Case side thumbwheel control
  • Screen: 2.8" Full Color TFT LCD Display (320X240 pixels)
  • Recharging through Micro USB port
  • Internal 500mAh Lithium battery
  • Compliant with EU/USA certification CE/FCC

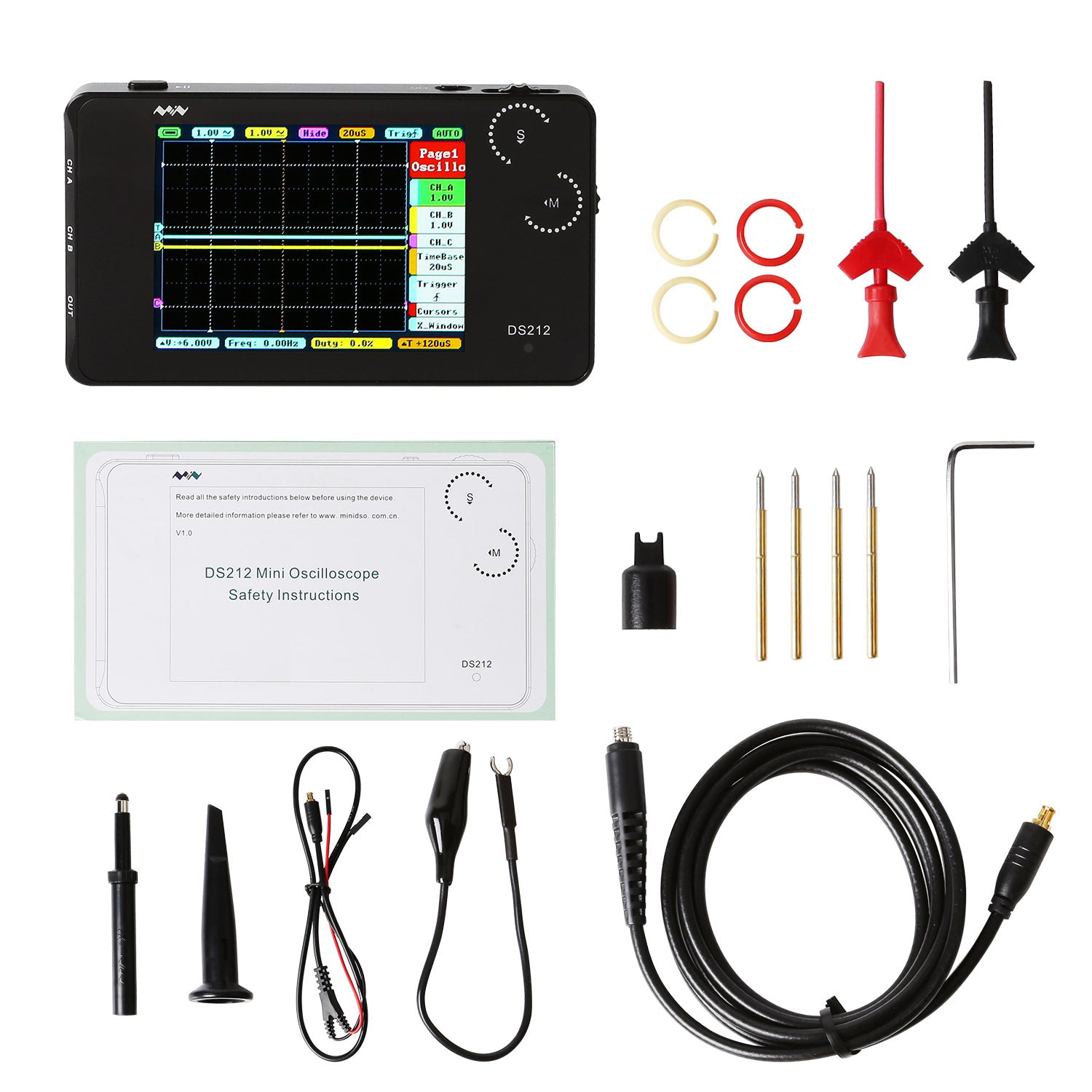

WHAT'S IN THE PACKAGE
  • 1* DS212 mini oscilloscope
  • 2* x1x10 probe
  • 1* Allen wrench
  • 1* Data cable
  • 1* Manual
  • 1* Warranty card
