Features:
- high resolution : 128X64 ( and 12864LCD the same resolution , but the unit area of the pixel OLED screen more )
- ultra-wide viewing angle : more than 160 ° ( maximum viewing angle display a screen )
- ultra-low power consumption : Normal display 0.06W ( far below the TFT display )
- wide supply range : DC 3V-5V ( without any changes directly compatible with common 3.3V and 5V power supply system )
- industrial grade : Operating temperature range -30 ? ~ 70 ?
- ultra-small size : (L ) 27.8MM * ( W ) 27.3MM * ( thick ) 4.3MM
- support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC
- with chip select signal CS , you can achieve multiple SPI or IIC devices on the same bus to work
- compatible with 3.3V and 5V control chip I / O level ( without any set directly compatible )
- OLED screens inside the driver chips : SSD1306
Pin Description:
- GND: Power ground
- VCC: 3.3V or 5V power supply
- D0: CLK clock
- D1: MOSI data
- RST: Reset
- DC: data / command
- CS: chip-select signal
Package include:

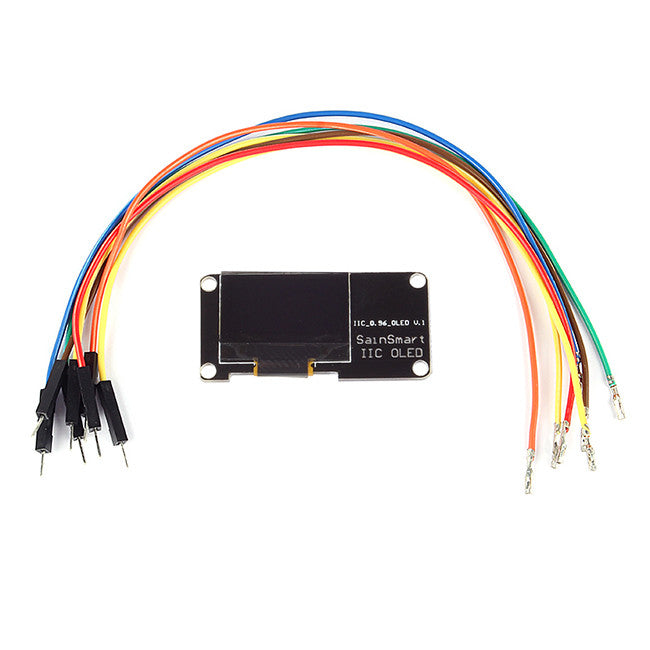

- 1x SainSmart 0.96" I2C IIC Serial 128X64 Blue OLED for Arduino UNO MEGA2560
