DDS140 PC-Based USB Digital Oscilloscope + Logic Analyzer Module [EU only]

brand: SainSmart SKU: 101-10-C01
$109.99 FREE SHIPPING
  • Site engineer travel to debug
  • AE engineers diagnose equipment and solve the problem for customer on-site
  • Electronics Engineer develop tools, save money and desktop space
  • The ideal partner of electronic enthusiasts for their amateur making
  • Automatic test equipment for production
  • Only ships to European countries

If you're looking for A USB Oscilloscope that supports win10, click:

VDS1022 25MHz 2+1 Channel PC USB Oscilloscope, MIT USB Isolation

Only 2 in stock. Order now!

If you're looking for a USB Oscilloscope that supports win10, click:

VDS1022 25MHz 2+1 Channel PC USB Oscilloscope, MIT USB Isolation

DESCRIPTION

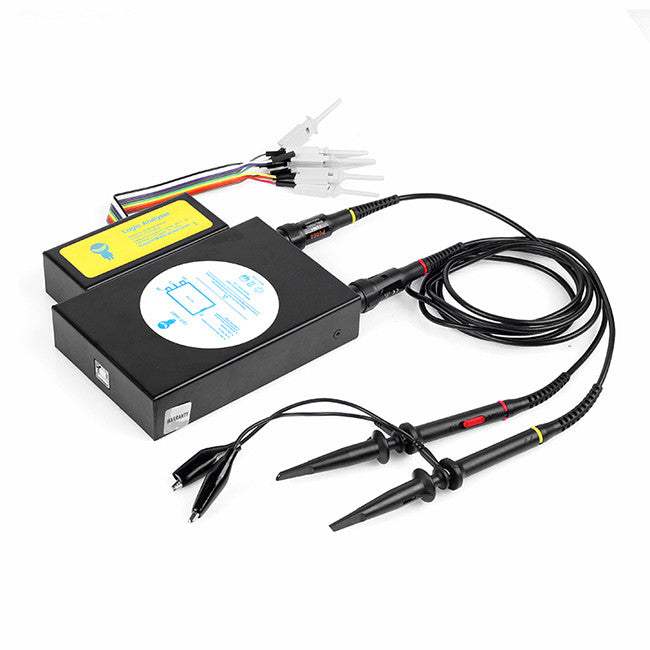

DDS-140 is a medium-performance oscilloscope. It can be extended to achieve oscilloscope, signal generator and logic analyzer triple main functions by inserting different sub-modules. The highlighting advantages are the optional modular structure and high performance price ratio. When you do not want to spend a high price to buy a traditional oscilloscope, a signal generator and a logic analyzer .This product will be a good choice.

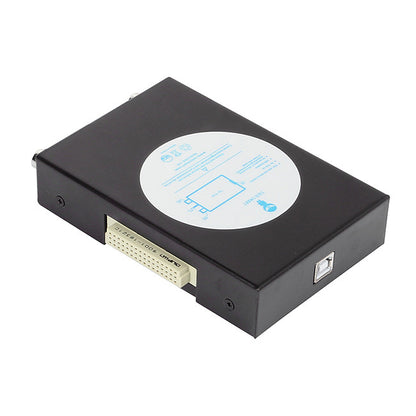

DDS-140 body take operation of traditional oscilloscope operation and part function of display transfer drawing into the computer by the software to achieve. As long as the DDS-140 device via USB cable into your compute, it will form a complete oscilloscope test system after running the software.



Hardware Features:

  • Optional signal generator function
  • Optional logic analyzer function
  • Real-time sampling rate up to 200M hz
  • Recommended input: 1 ~ 30M hz
  • 10kV ESD protection
  • 10 times over voltage protection
  • DC-coupled and AC-coupled input
  • Computer USB supply power directly
  • 1K HZ square wave signal output

Software features:

  • Support XP~Win8 series of operating system
  • Open source of software interface could be combined with the third party software
  • Waveform recording and continuous playback as well as specified frame playback functions by frame-by-frame
  • Input channel arithmetic and FFT analysis
  • Anti-aliasing features of waveform drawing to reduce rendering errors further
  • Memory unction of user personalization settings
  • The rapid completion of the mouse to control the trigger function settings



Application:

  • Site engineer travel to debug
  • AE engineers diagnose equipment and solve the problem for customer on-site
  • Electronics Engineer develop tools, save money and desktop space
  • The ideal partner of electronic enthusiasts for their amateur making
  • Fault diagnosis equipment for repair personnel Demonstration Teaching Laboratory aids of colleges and Universities
  • Automatic test equipment for production

Typical Characteristics:

    Model

    Hantek6082BE

    Hantek6052BE

    Hantek6022BE

    SainSmartDDS120

    SainSmartDDS140

    Price

    $250

    $190

    $72

    $100

    $115

    Channel

    2 Channels

    Bandwidth

    80MHz

    50MHz

    20MHz

    20MHz

    40MHz

    Input Impedance

    1MΩ 25pF

    Max. Sample rate

    250MSa/s

    150MSa/s

    48MSa/s

    50MSa/s

    200MSa/s

    Coupling

    AC/DC/GND

    Vertical resolution

    8Bit

    8Bit

    8Bit

    Gain range

    10mV-5V, 9Steps

    ±5V,±50V,±500V,

    ±5V,±50V,±500V,

    DC accuracy

    ±3%

    ±3%

    ±3%

    Timebase range

    4ns-1h, 38 Steps





    Vertical adjustable

    Yes

    Input protection

    Diode clamping

    X-Y

    Yes

    EXT. input

    Yes

    No

    No

    No

    Trigger Mode

    Auto, Normal and Single

    Trigger Slope

    +/-

    Trigger level adjustable

    Yes

    Trigger Type

    Rising edge, falling edge

    Trigger Source

    CH1, CH2, EXT

    CH1, CH2

    Pre/Post trigger

    0-100%

    Buffer size

    10K-64KB/Channel

    1M





    Sampling selection

    Yes

    Waveform Display

    port/line, waveform average, persistence, intensity

    Network

    Open/Close

    Vertical mode

    CH1, CH2, Dual, ADD

    Cursor measurement

    Yes

    Math

    FFT, addition, subtraction, multiplication, division.

    Cursor

    Frequency, Voltage

    Accessories

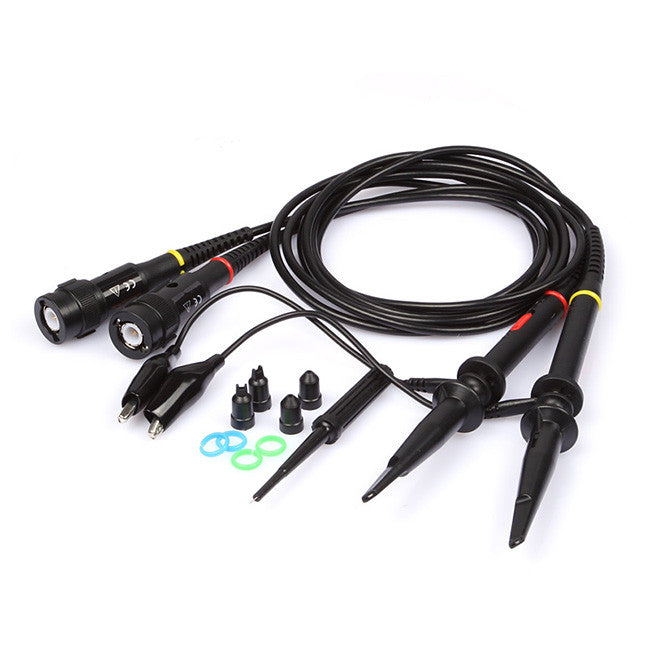

    S/W CD, probes, manual, USB cord

    Logic Analyzer:



    Entry

    Detail

    Number of Channels

    8 channels

    Input Level

    3.3V/5v TTL/CMOS Logic level compatible

    Maximum sampling rate

    100M HZ

    Memory Depth

    32K per channel

    Output Bias

    Software adjustable

    Size

    10cm x 4cm x 2.5cm

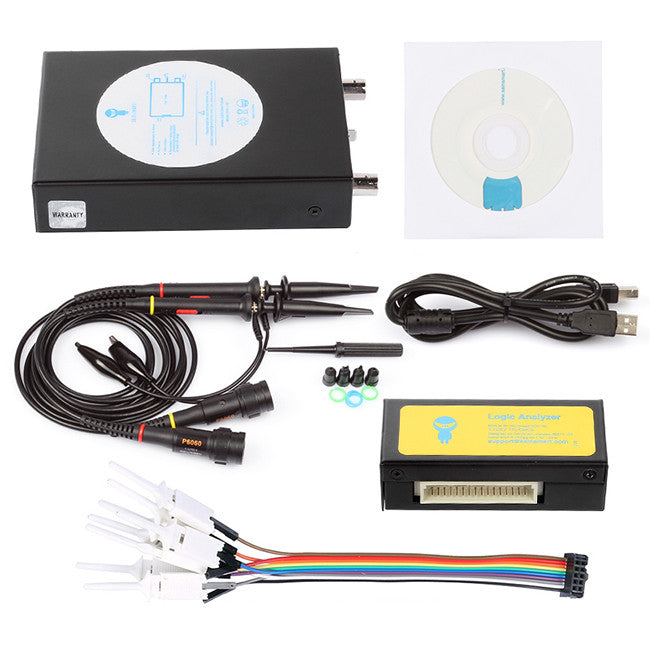

    WHAT'S IN THE PACKAGE

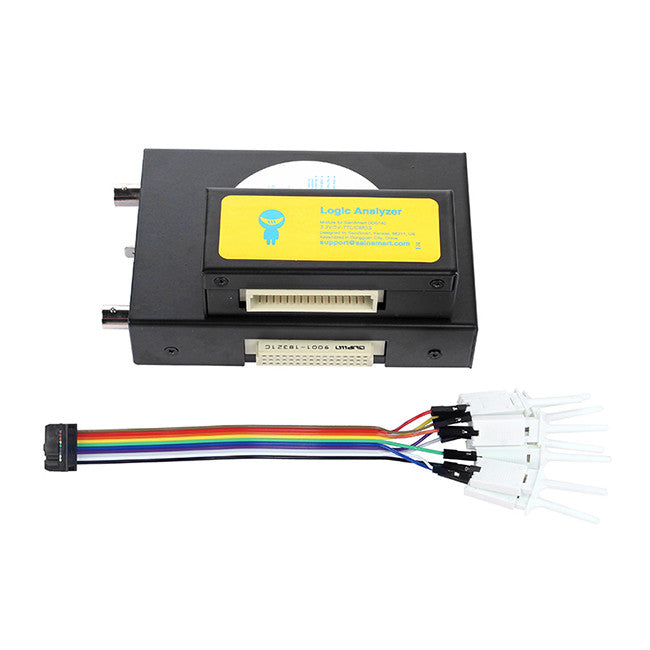

    • 1x SainSmart DDS140

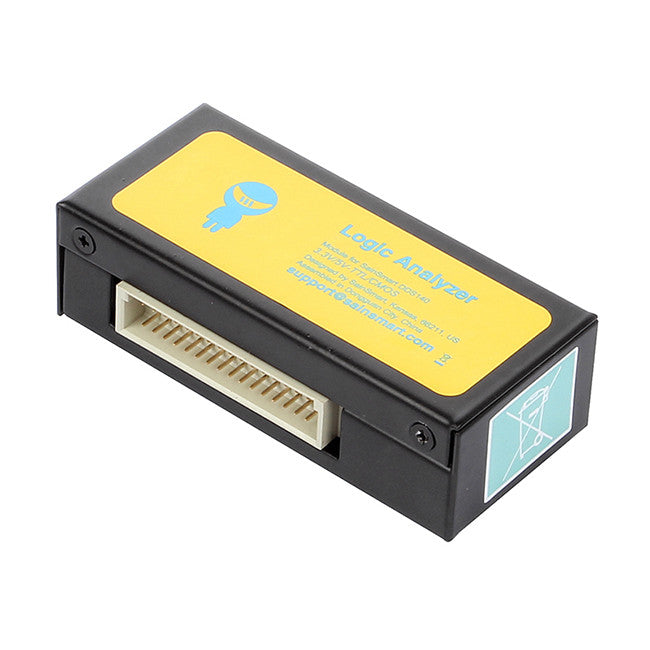

    • 1x SainSmart Logic Analyzer



    DOCUMENT



    BM_Manual_Hardware.pdf
    DDS140.zip
    Demo.zip
    Driver_Win7_64.zip
    Driver_Win8.zip
    Driver_XP_Win7.zip
    Manual_Software(140522).pdf
    dotnetfx20.exe
