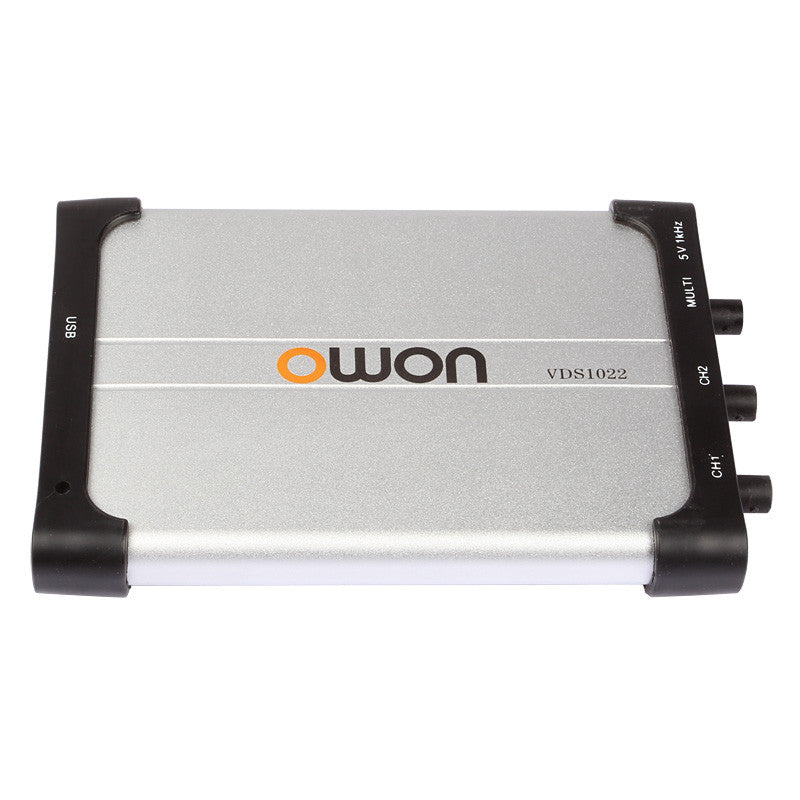

VDS1022I 25MHz 2+1 Channel PC USB Oscilloscope, MIT USB Isolation

brand: OWON SKU: 101-10-501
$106.99 FREE SHIPPING

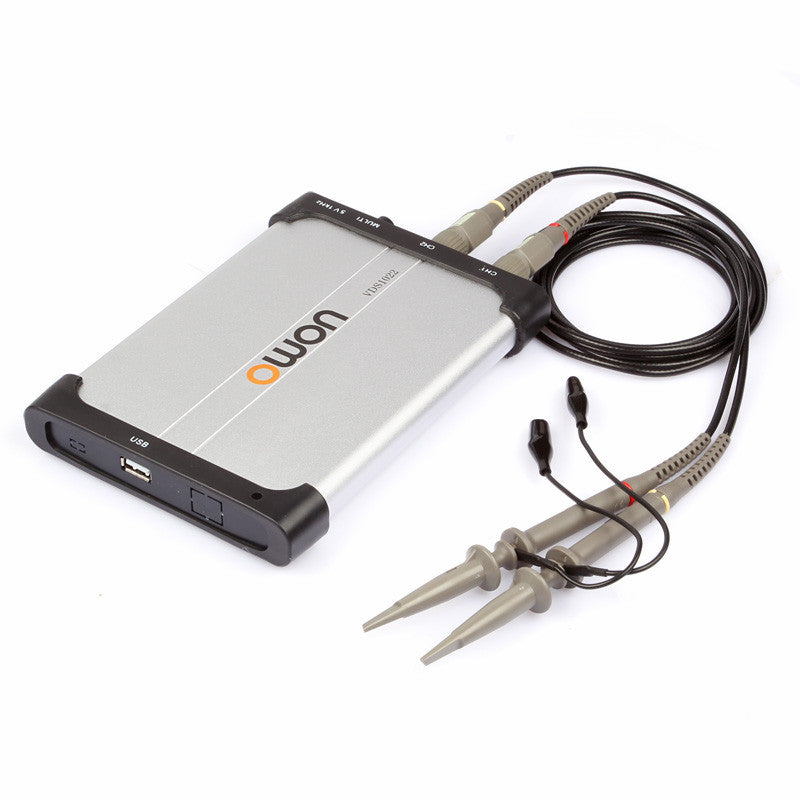

OWON witnesses the new-born USB oscilloscope working on PC - OWON VDS series oscilloscope in the new era. Especially for engineers. OWON VDS PC oscilloscope attracts more eyesight from the market upon with its ultra-thin body design - only 18mm of body depth, which is much portable, and its USB powering facilitates mobile tests under powerless conditions to the largest degree.

  • Up to 100MHz bandwidth, and max 1GS/s real-time sample rate, 10M record length
  • Friendly UI : FFT, or X-Y, and waveform 2 views displayed, on the same screen
  • Multi-trigger option : edge, video, slope, pulse, and alternate
  • USB isolation - less signal inference, more PC protection. USB bus powering, and LAN remote control (optional)
  • Ultra-thin body design, easy portability
DESCRIPTION

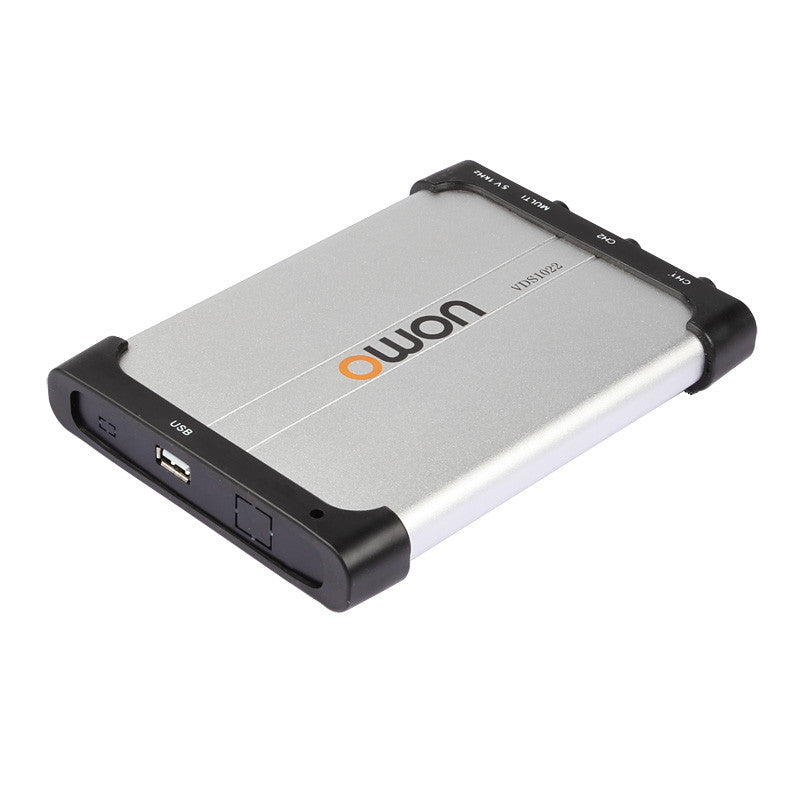

  1. Ultra-thin body design, easy portability

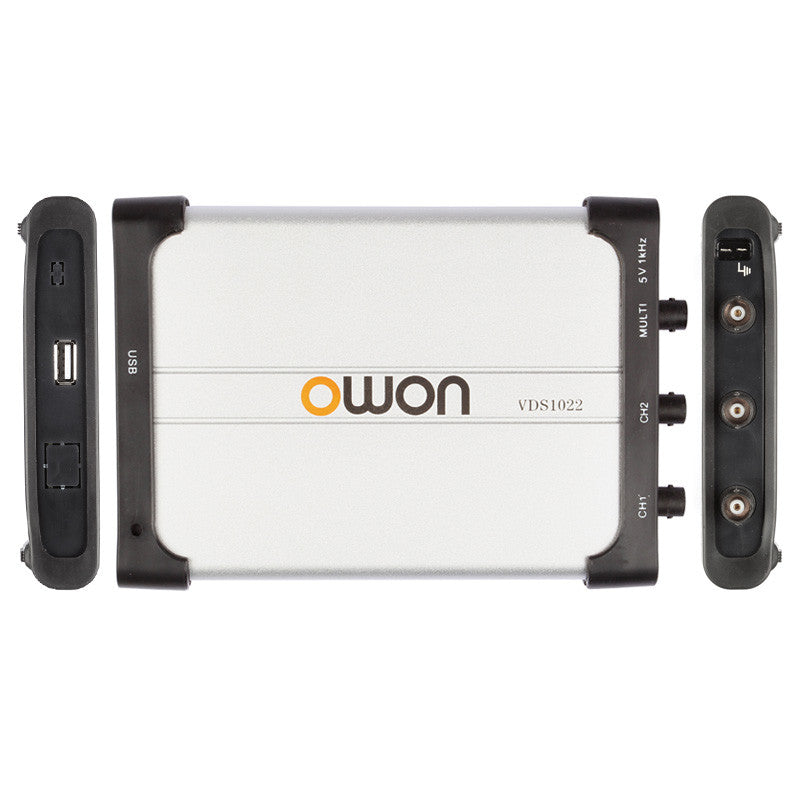

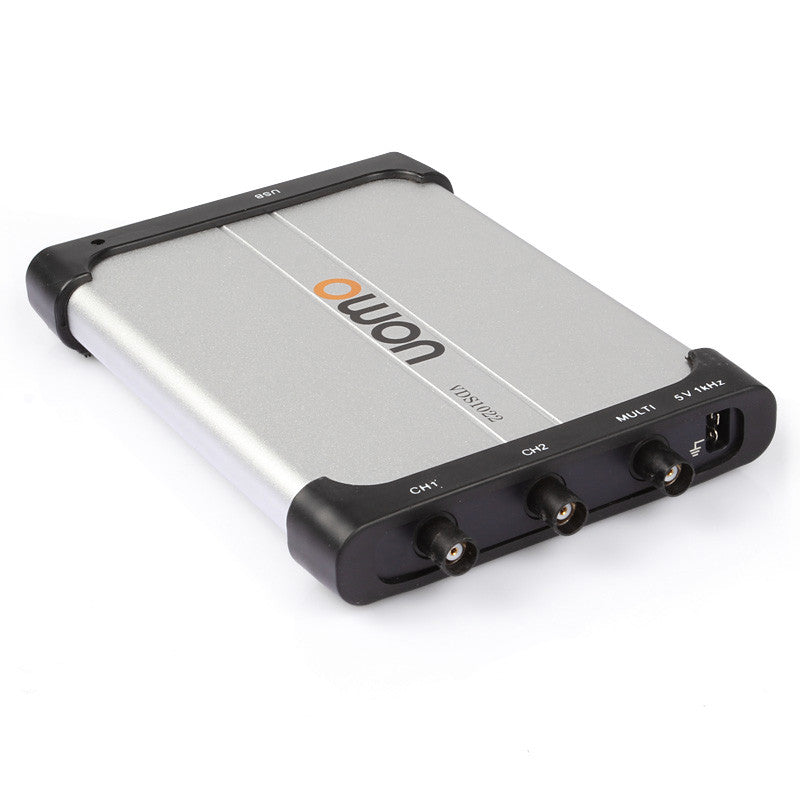

  • RS232 port (optional)
  • USB port : power supplying via USB bus, communicating with PC
  • LAN port (optional) : remote control

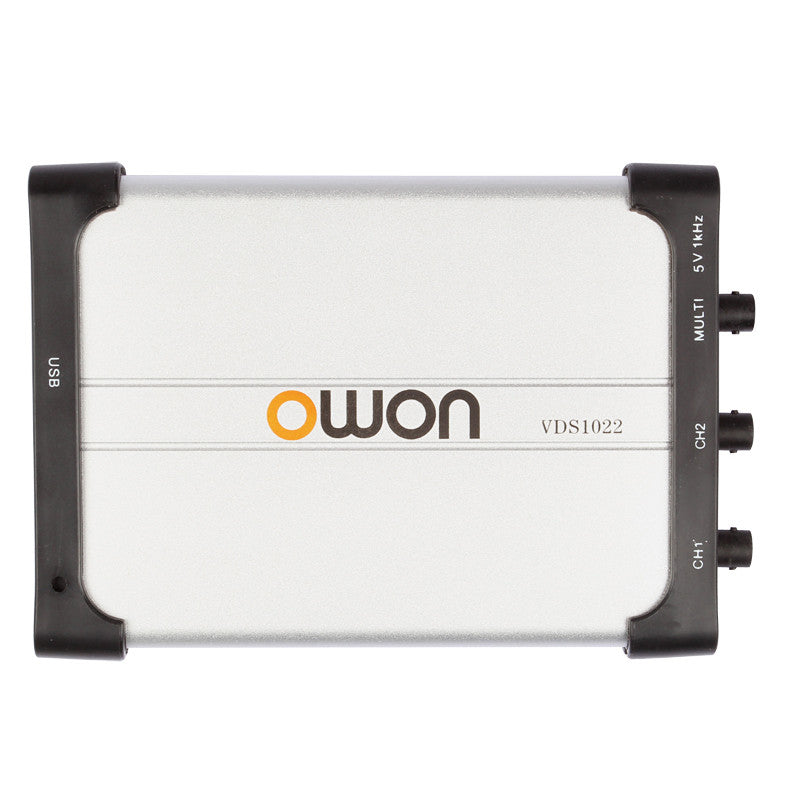

  • Channel 1 signal input
  • Channel 2 signal input
  • EXT trigger input, trigger output, or Pass/Fail output
  • probe compensation : measurement signal (3.3V/1KHz) output

Note : When communicating with PC via LAN, the oscilloscope should be powered by adapter.



  1. Record length up to 10M

Various record length option, max 10M.



  1. Multi-trigger option

Edge, Video, Slope, Pulse, and Alternate



  1. X-Y mode, FFT mode  with  waveform displayed on the same screen



SPECIFICATION
  • Bandwidth: 25MHz
  • Channel: 2+1 (multi)
  • Sample Rate: 100MS/s
  •  Horizontal Scale (s/div): 5ns/div~100s/div, step by 1~2~5
  • Rise Time: <=14ns
  •  Record Length: 5K
  •  Input Coupling: DC AC GND
  •  Input Impedance: 1MΩ+-2%,in parallel with10Pf+-5pF
  • Channels Isolation: 50Hz : 100 : 1, 10MHz : 40 : 1
  • Max Input Voltage: 400V (PK - PK) (DC+AC, PK - PK)
  •  DC Gain Accuracy: +-3%
  •  DC Accuracy: Average>=16: +-(3% reading + 0.05div) for ?T
  •  Probe Attenuation Factor: 1X, 10X, 100X, 1000X
  •  LF Respond (AC, -3dB): >=5Hz (at input, AC coupling, -3dB)
  •  Sampling Rate / Relay Time Accuracy: 150ps
  •  Interpolation: sin(x) / x
  •  Interval (?T) Accuracy (full bandwidth):
  • Single: +-(1 interval time + 100ppm × reading + 0.6ns),
  • Average >16: +-(1 interval time + 100ppm × reading + 0.4ns)
  •  Vertical Resolution (A/D): 8 bits resolution (2 channels simultaneously)
  •  Vertical Sensitivity: 5mV/div~5V/div
  • Communication Interface: USB 1.1

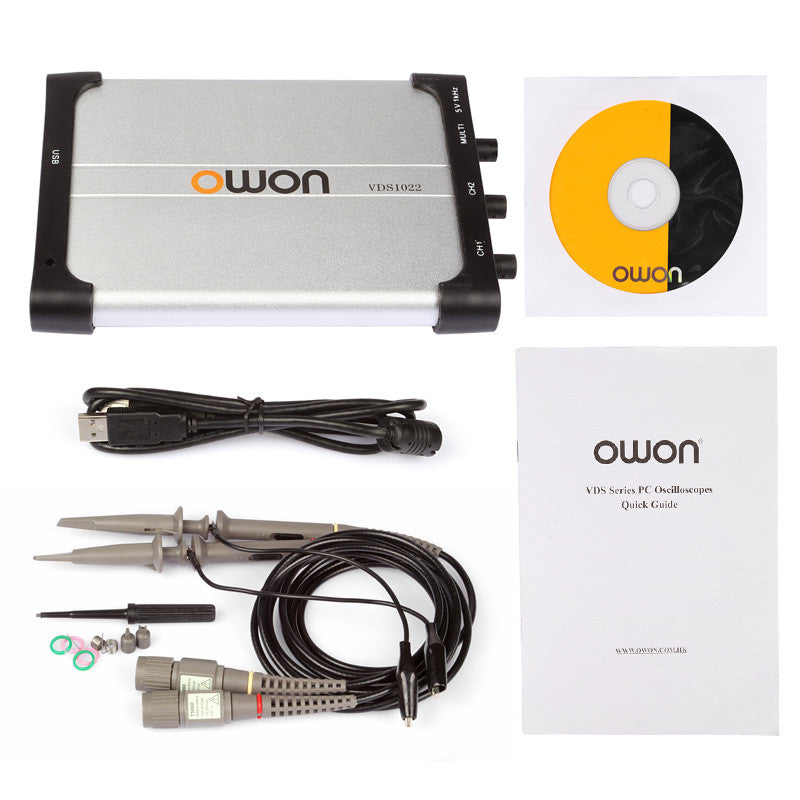

WHAT'S IN THE PACKAGE

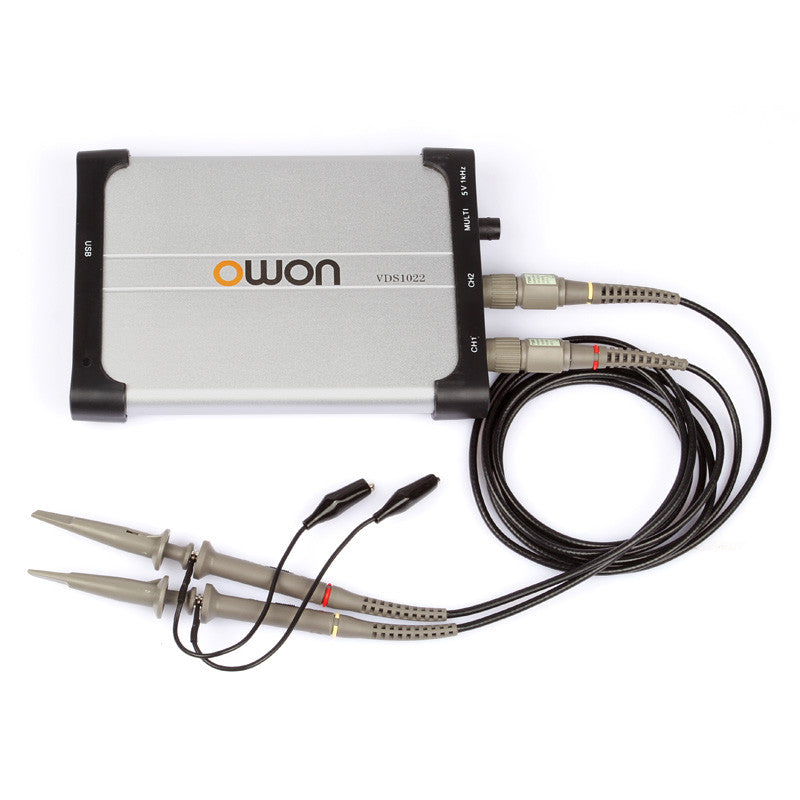

  • 1x VDS1022I Oscilloscope

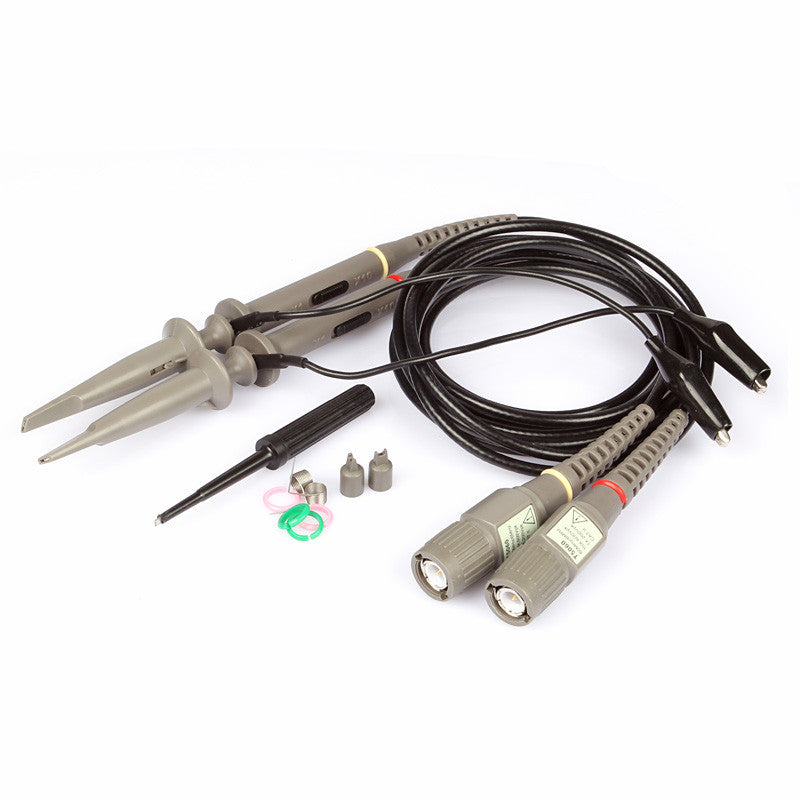

  • 2x Probe
  • 1x USB Cable
  • 1x Power Cord
  • 1x CD( Mannual,etc.)
