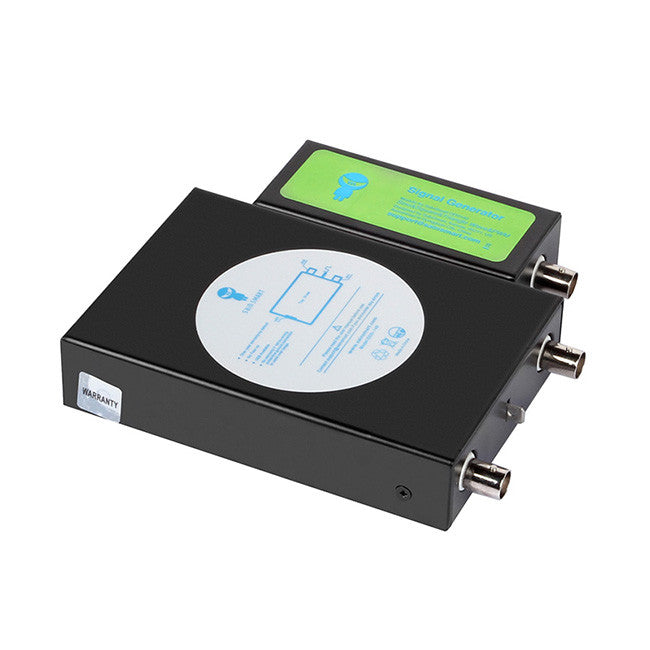

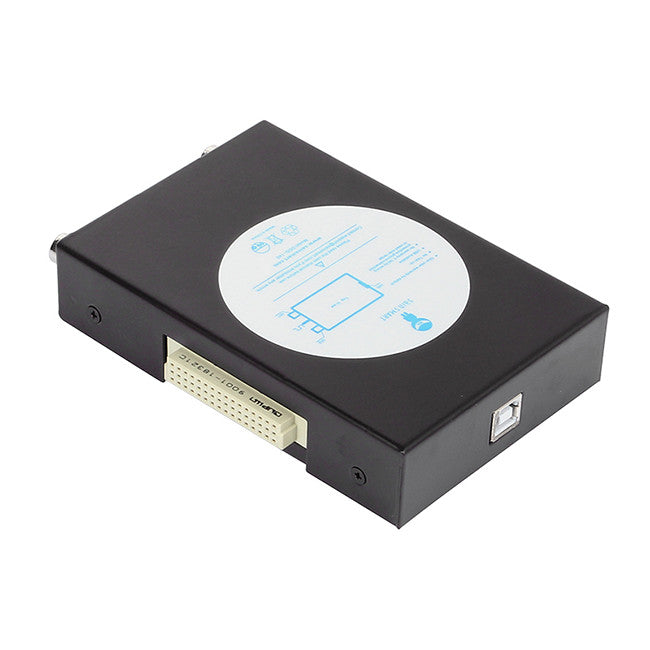

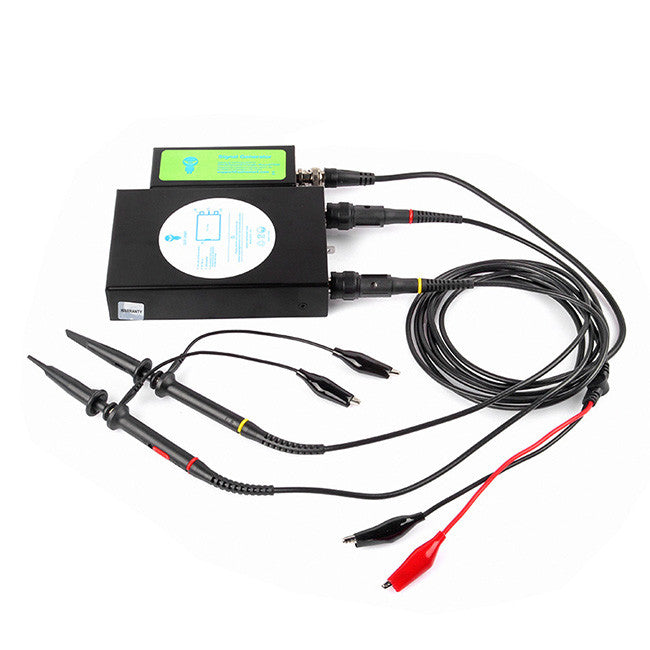

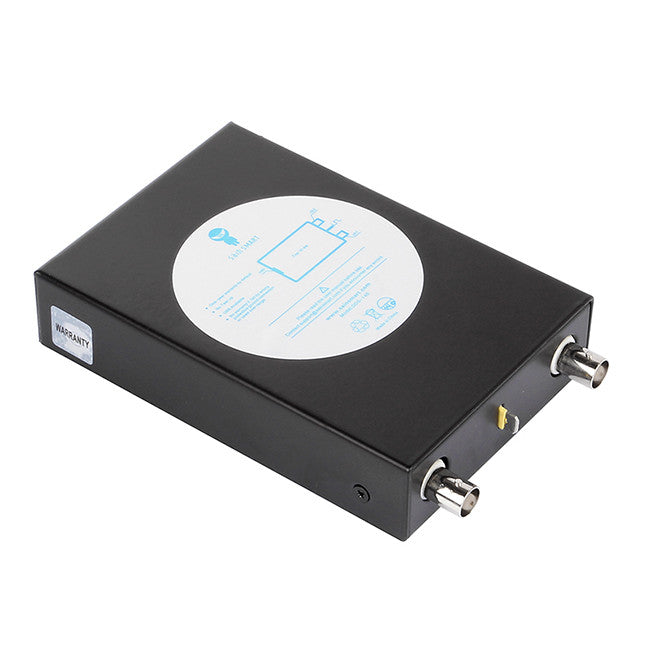

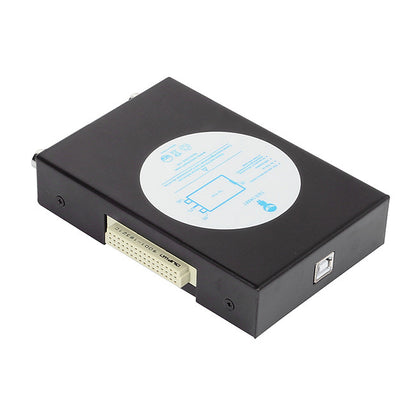

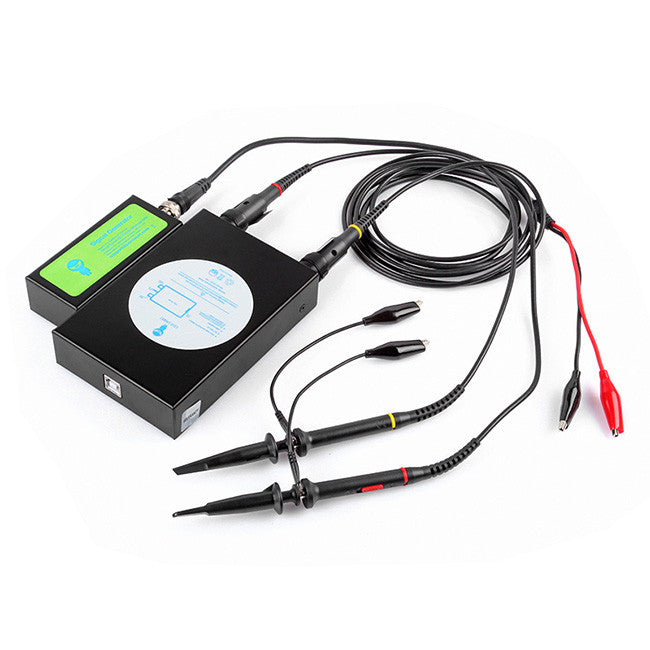

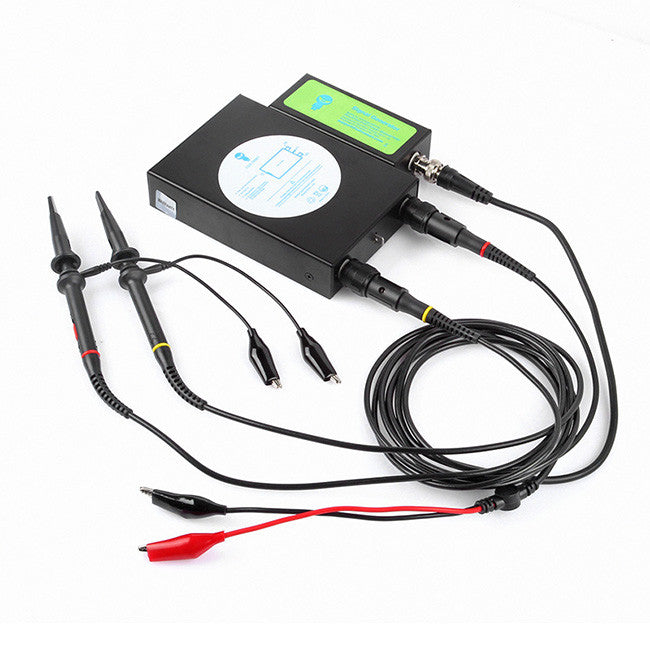

DDS140 PC-Based USB Digital Storage Oscilloscope+Signal Generator

brand: SainSmart SKU: 20-010-C01
$119.99 FREE SHIPPING

NOTE: ONLY ship to US shipping address

Oops, 0 In Stock

If you're looking for A USB Oscilloscope that supports win10, click:

VDS1022 25MHz 2+1 Channel PC USB Oscilloscope, MIT USB Isolation

DESCRIPTION

DDS-140 is at the top of its class. It can be extended to achieve oscilloscope, signal generator and logic analyzer triple main functions by inserting different sub-modules. The highlighting advantages are the optional modular structure and high performance price ratio. When you do not want to spend a high price to buy a traditional oscilloscope, a signal generator and a logic analyzer .This product will be a good choice.
DDS-140 body take operation of traditional oscilloscope operation and part function of display transfer drawing into the computer by the software to achieve. As long as the DDS-140 device via USB cable into your compute, it will form a complete oscilloscope test system after running the software.



Hardware Features:

  • Optional signal generator function
  • Optional logic analyzer function
  • Real-time sampling rate up to 200M hz
  • Recommended input: 1 ~ 30M hz
  • 10kV ESD protection
  • 10 times over voltage protection
  • DC-coupled and AC-coupled input
  • Computer USB supply power directly
  • 1K HZ square wave signal output



Software features:

  • Support XP~Win8 series of operating system
  • Waveform recording and continuous playback as well as specified frame playback functions by frame-by-frame
  • Input channel arithmetic and FFT analysis
  • Anti-aliasing features of waveform drawing to reduce rendering errors further
  • Memory unction of user personalization settings
  • The rapid completion of the mouse to control the trigger function settings



      Application:

      • Site engineer travel to debug
      • AE engineers diagnose equipment and solve the problem for customer on-site
      • Electronics Engineer develop tools, save money and desktop space
      • The ideal partner of electronic enthusiasts for their amateur making
      • Fault diagnosis equipment for repair personnel Demonstration Teaching Laboratory aids of colleges and Universities
      • Automatic test equipment for production



      Typical Characteristics:

        Model

        Hantek6082BE

        Hantek6052BE

        Hantek6022BE

        SainSmartDDS120

        SainSmartDDS140

        Price

        $250

        $190

        $72

        $100

        $115

        Channel

        2 Channels

        Bandwidth

        80MHz

        50MHz

        20MHz

        20MHz

        40MHz

        Input Impedance

        1MΩ 25pF

        Max. Sample rate

        250MSa/s

        150MSa/s

        48MSa/s

        50MSa/s

        200MSa/s

        Coupling

        AC/DC/GND

        Vertical resolution

        8Bit

        8Bit

        8Bit

        Gain range

        10mV-5V, 9Steps

        ±5V,±50V,±500V,

        ±5V,±50V,±500V,

        DC accuracy

        ±3%

        ±3%

        ±3%

        Timebase range

        4ns-1h, 38 Steps





        Vertical adjustable

        Yes

        Input protection

        Diode clamping

        X-Y

        Yes

        EXT. input

        Yes

        No

        No

        No

        Trigger Mode

        Auto, Normal and Single

        Trigger Slope

        +/-

        Trigger level adjustable

        Yes

        Trigger Type

        Rising edge, falling edge

        Trigger Source

        CH1, CH2, EXT

        CH1, CH2

        Pre/Post trigger

        0-100%

        Buffer size

        10K-64KB/Channel

        1M





        Sampling selection

        Yes

        Waveform Display

        port/line, waveform average, persistence, intensity

        Network

        Open/Close

        Vertical mode

        CH1, CH2, Dual, ADD

        Cursor measurement

        Yes

        Math

        FFT, addition, subtraction, multiplication, division.

        Cursor

        Frequency, Voltage

        Accessories

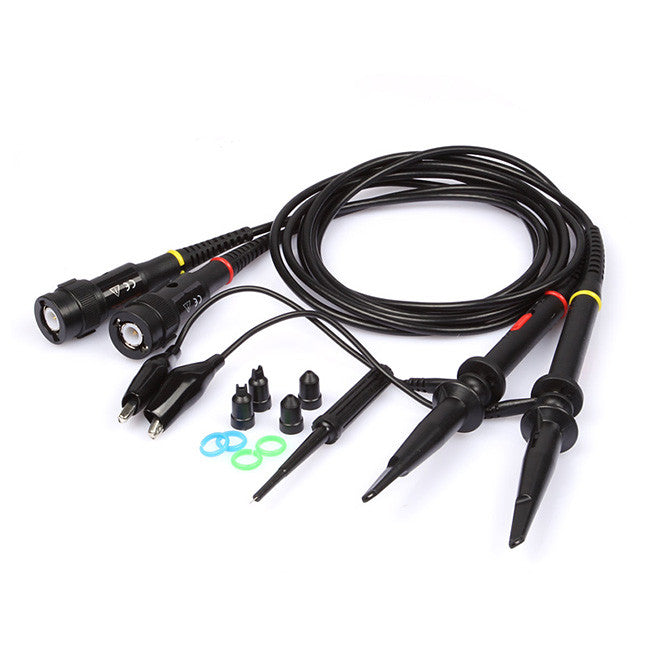

        S/W CD, probes, manual, USB cord

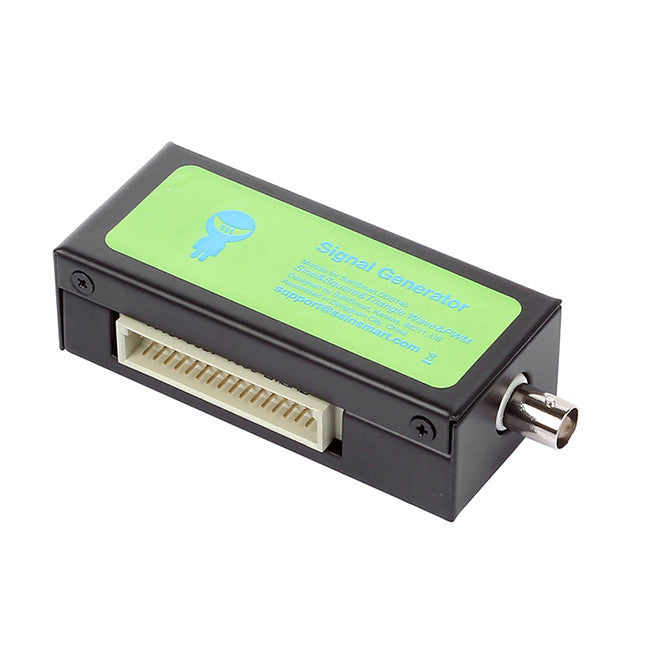

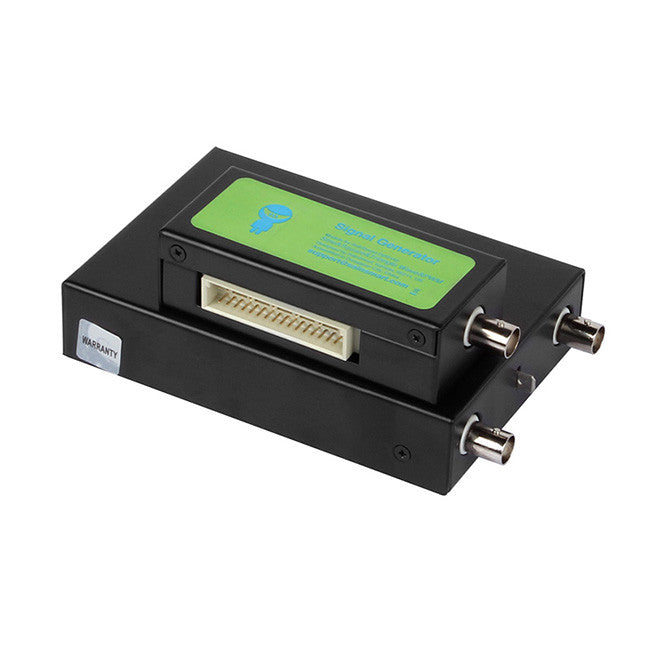

        Signal Generator:

        Signal generator module provides one BNC connector Signal output:

        Entry

        Detail

        Waveform Type

        Square wave, sine wave, triangle wave, PWM

        Output amplitude

        Software adjustable output range-4V ~ +4 V

        Output frequency

        1 ~ 20M HZ (sine wave) continuously adjustable, PWM output frequency limit 20K HZ

        Output bandwidth

        5M HZ (Sine wave)

        Output Bias

        Software adjustable

        Duty

        Software adjustable PWM output duty cycle, 10% of the ladder

        Size

        10 cm X4 cm X2.5 cm

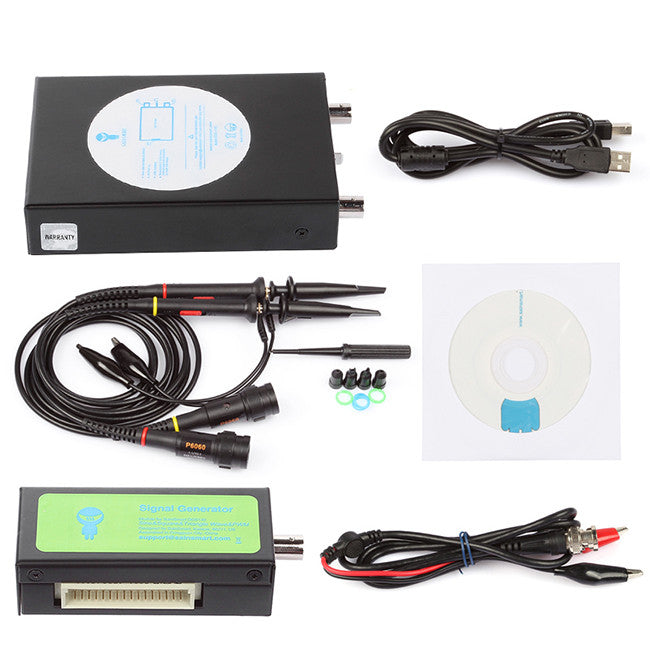

        WHAT'S IN THE PACKAGE
        • 1x SainSmart DDS140
        • 1x Signal Generator for DDS-140
