SainSmart DSO138 2.4" TFT Digital Oscilloscope Kit DIY parts 1Msps +Probe

brand: SainSmart SKU: 101-10-105
$19.99
Oops, 0 In Stock



Description:
This is SainSmart DSO138 2.4" TFT 1Msps Digital oscilloscope kit for DIY. It's easy to solder. Perfect for students to identify elements, inline elements welding, soldering SMD components training. And you could also easily develop a secondary development kit based on SainSmart DSO138. For example, it can be changed to voltmeter, data loggers, and so on.



  • highest real-time sampling rate : 1Msps
  • Accuracy : 12Bit
  • Sampling buffer depth : 1024 bytes
  • Analog bandwidth : 0 - 200KHz
  • Vertical sensitivity : 10mV / Div - 5V / Div ( 1-2-5 progressive manner )
  • Adjustable vertical displacement , and with instructions
  • Input impedance : 1MΩ
  • Maximum input voltage : 50Vpp (1: 1 probe ), 400Vpp (10: 1 probe )
  • Coupling modes include DC / AC / GND
  • Horizontal time base range : 10μs / Div - 50s / Div ( 1-2-5 progressive manner )
  • With automatic , conventional and single -shot mode , easy waveform capture the moment
  • Available rising or falling edge trigger
  • Adjustable trigger level position , and with instructions
  • Observable trigger waveform before ( negative delay )
  • Can always freeze the waveform display (HOLD function )
  • Comes 1Hz /3.3V square wave test signal source

Package List:

  • 1 x DSO138 2.4" TFT Digital Oscilloscope Kit DIY parts 1Msps

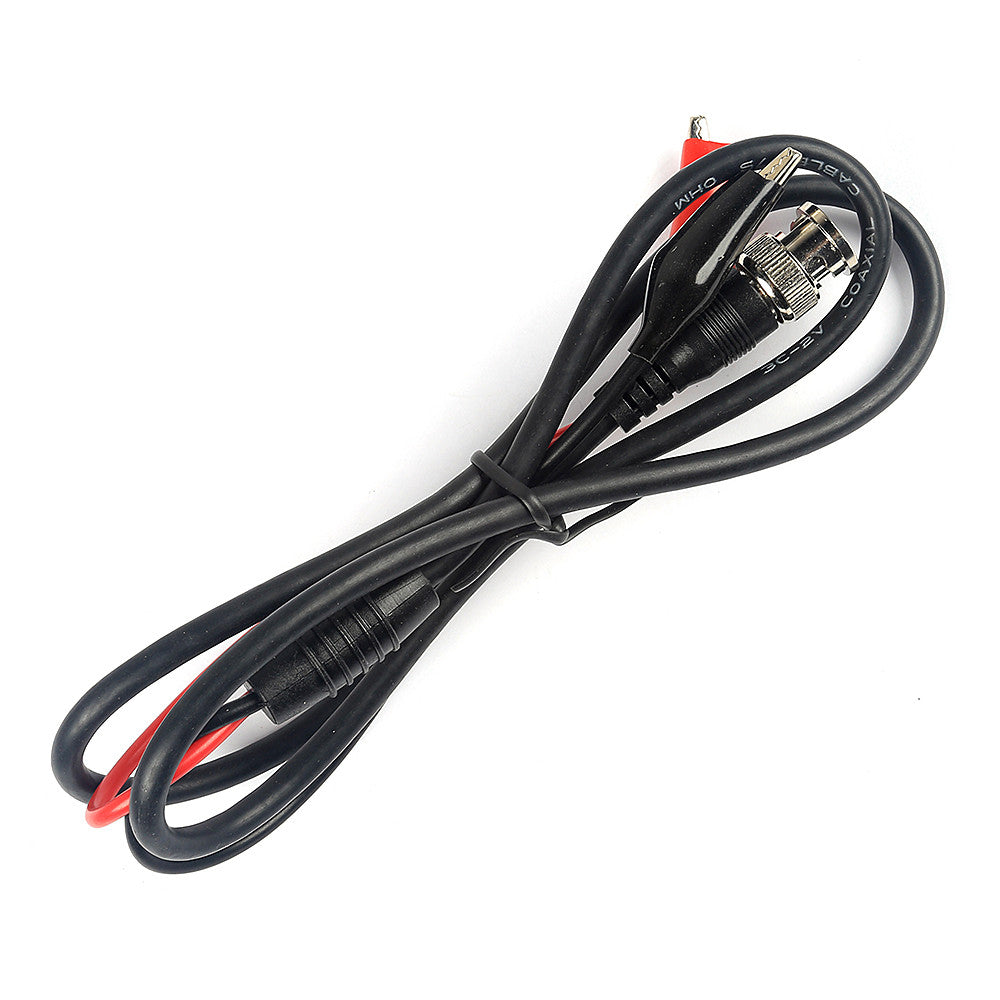

  • 1 x Probe

Note: 9V DC power supply required. Not included.



Documents:
Comes with complete detailed descriptive instructions including schematics, production guidance, troubleshooting methods, etc., making a high success rate. Please download here: Manuals
