Sainsmart DUE SAM3X8E Cortex-M3 Starter kit For Arduino

brand: SainSmart SKU: 20-013-302 Variants ID: 45100498068
$43.59
Oops, 0 In Stock

Descripition:

The Sainsmart DUE starter kit has more than 16 projects for the beginners. This is the new SainSmart DUE Starter Kit, developed specially for those beginners who are interested in Arduino. You will have a complete set of Arduino's most common and useful electronic components. What's more. We will offer you a detailed tutorial including project introduction and their source code.You may learn about Arduino through using these basic projects. This kit will help you control the physical world with sensors.

due

due

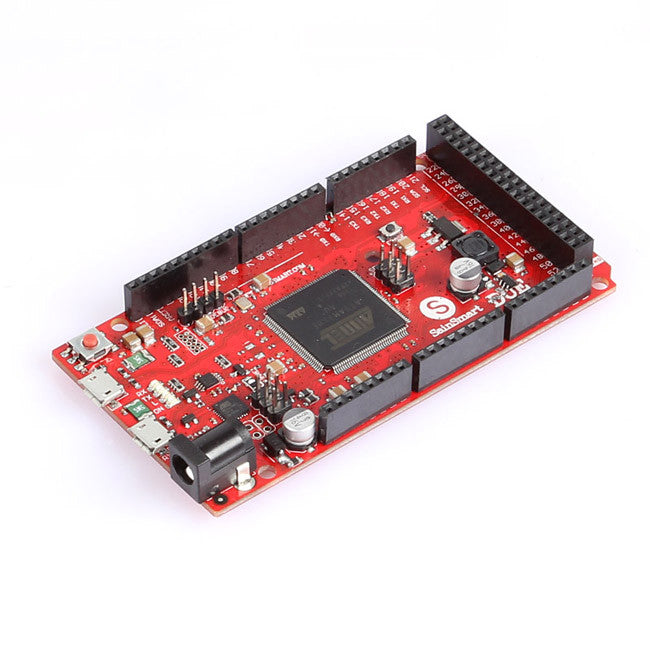

The SainSmart Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU (datasheet). It is the first SainSmart board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

Unlike other SainSmart boards, the SainSmart Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.

The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all SainSmart shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.

The Due follows the 1.0 pinout:

  • TWI: SDA and SCL pins that are near to the AREF pin.
  • The IOREF pin which allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V.
  • An unconnected pin, reserved for future use.

Feature:

Microcontroller   AT91SAM3X8E
Operating Voltage   3.3V
Input Voltage (recommended)   7-12V
Input Voltage (limits)   6-20V
Digital I/O Pins   54 (of which 12 provide PWM output)
Analog Input Pins   12
Analog Outputs Pins   2 (DAC)
Total DC Output Current on all I/O lines   130 mA
DC Current for 3.3V Pin   800 mA
DC Current for 5V Pin   800 mA
Flash Memory   512 KB all available for the user applications
SRAM   96 KB (two banks: 64KB and 32KB)
Clock Speed   84 MHz

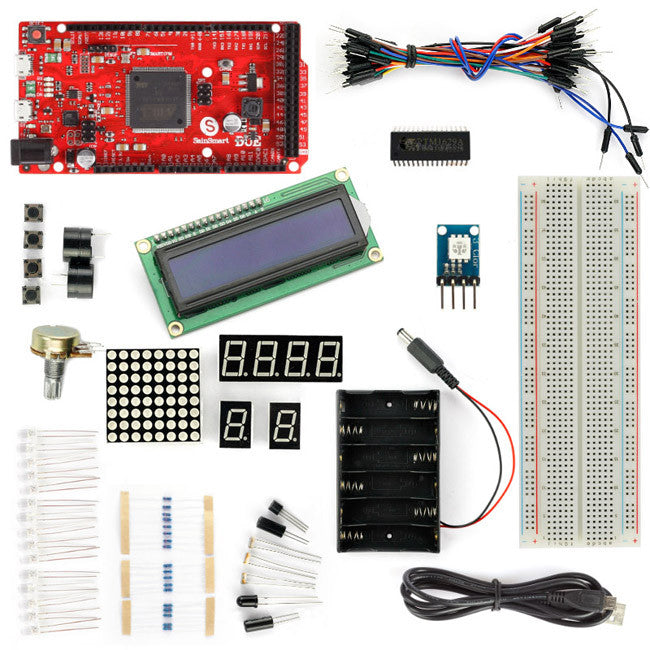

Package list:

1x SainSmart Due board

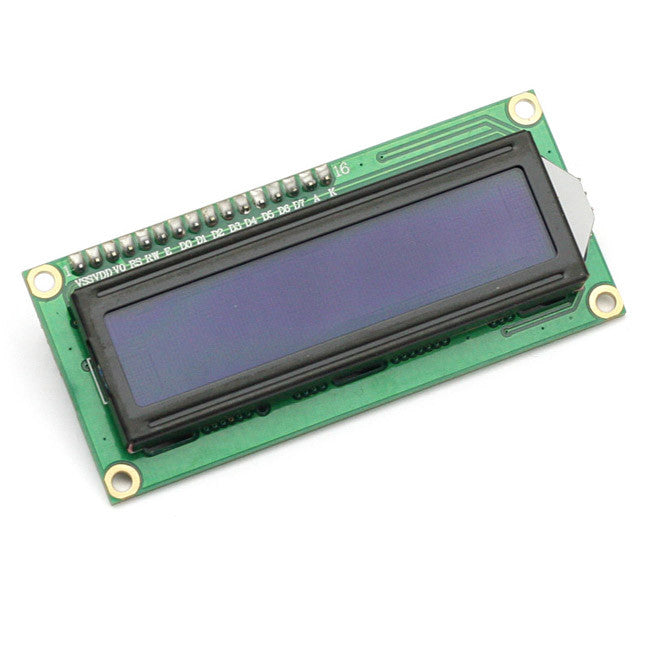

1x 1602LCD

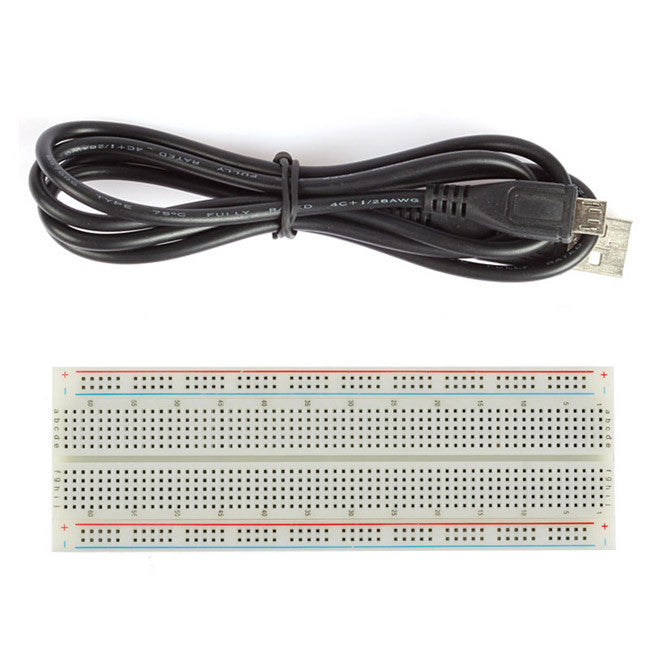

1x  USB Cable

1x  Buzzer

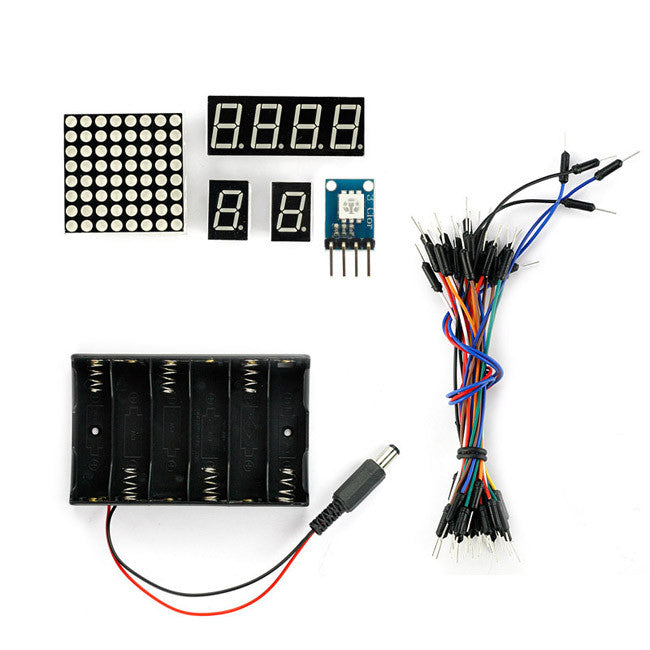

1x  Nixie Tube

1x  Temperature Sensor

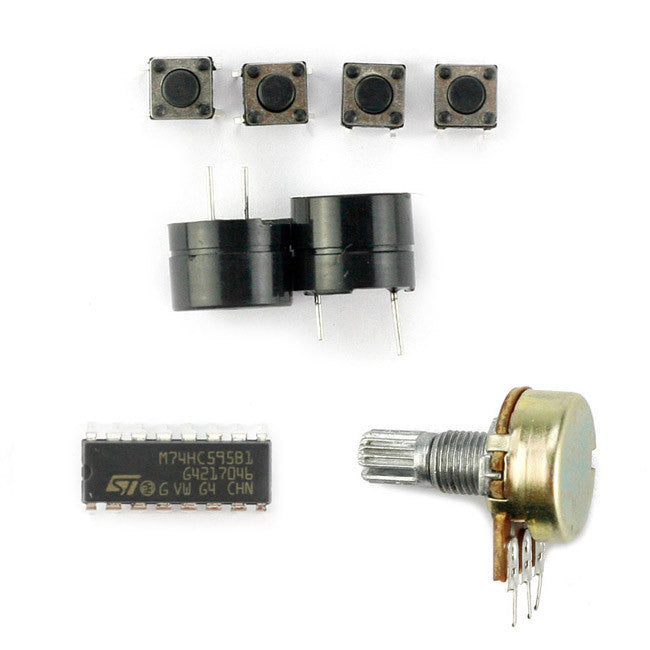

1x  74HC595
1x  Infrared Remote Control

1x  Infrared Receiver
1x  Photoresistor
1x  Potentiometer

2x  Tilt sensor

4x  Pushbuttons

1x  RGB

1x  Flame Sensor

1x  Cell Box

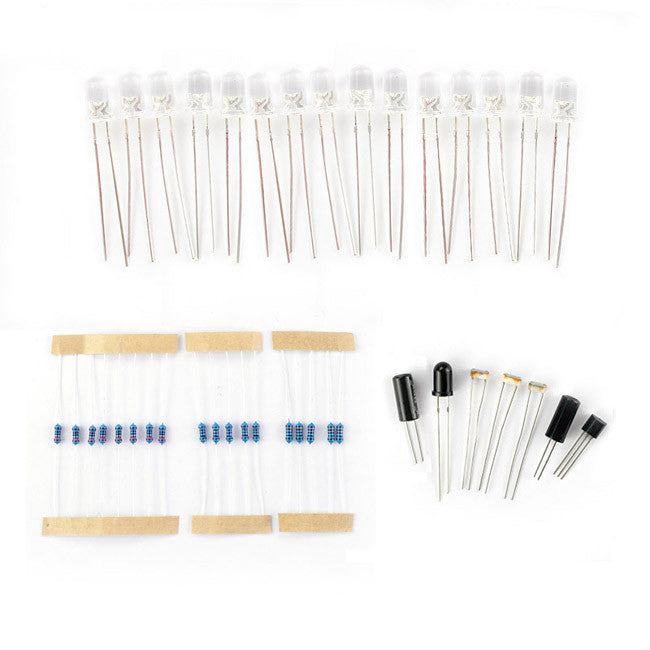

6X  Resistors

1X  Breadboard & Jumper wires

3X LEDs

Tutorials (more than 60 pages)
