Brand: Genmitsu SKU: 101-60-70SF17

SF17, 1/8" Shank, Flat Nose, 2 Flute, Upcut, 3.175mm Cutting, 10 Pcs

SKU: 101-60-70SF17 3 reviews Variants ID: 39351087530063
$16.99 $19.99
Save $3.00

  • High Quality: Nano Blue Coating for extended tool life and performance. Perfect for Roughing operations, slots and more.
  • Efficient Cuts: The 2-Flute Upcut Straight Router Bits have a mirror polish and large chip space which produces smooth cutting and fast chip-removal.
  • Cutting Edge Diameter (CED): 3.175mm (1/8") approx. Sharp cutting edge, milling, hole and plate edge, clean surface, neat, no glitches.
  • Suitable Material: Suitable for MDF, PVC, Acrylic, wood, solid wood, chipboard, plywood, organic board, core board, etc. Widely used for cutting/ engraving/ carving/ grooving/ slotting/ drilling/ hollowing/ positioning/ roughing / milling.
  • Application: Perfect for 3D relief sculpturing, cutting, engraving, slotting, milling, etc. Compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines. To learn more about how to choose the right bits to meet your needs, please find the Comparison Chart (CNC Bits Buying Guide) at the Product Guides and Documents Section below.
  • SainSmart Genmitsu CNC Router Bits Value Kit Now Available in Store. Learn More.
Apply this coupon, get exlcusive 20% off*.

Valid 8.15-8.21, 2022 (PDT), more deals click here.

CODESSM11 COPY
Ship to
USA
  • High Quality: Nano Blue Coating for extended tool life and performance. Perfect for Roughing operations, slots and more.
  • Efficient Cuts: The 2-Flute Upcut Straight Router Bits have a mirror polish and large chip space which produces smooth cutting and fast chip-removal.
  • Cutting Edge Diameter (CED): 3.175mm (1/8") approx. Sharp cutting edge, milling, hole and plate edge, clean surface, neat, no glitches.
  • Suitable Material: Suitable for MDF, PVC, Acrylic, wood, solid wood, chipboard, plywood, organic board, core board, etc. Widely used for cutting/ engraving/ carving/ grooving/ slotting/ drilling/ hollowing/ positioning/ roughing / milling.
  • Application: Perfect for 3D relief sculpturing, cutting, engraving, slotting, milling, etc. Compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines. To learn more about how to choose the right bits to meet your needs, please find the Comparison Chart (CNC Bits Buying Guide) at the Product Guides and Documents Section below.
  • SainSmart Genmitsu CNC Router Bits Value Kit Now Available in Store. Learn More.

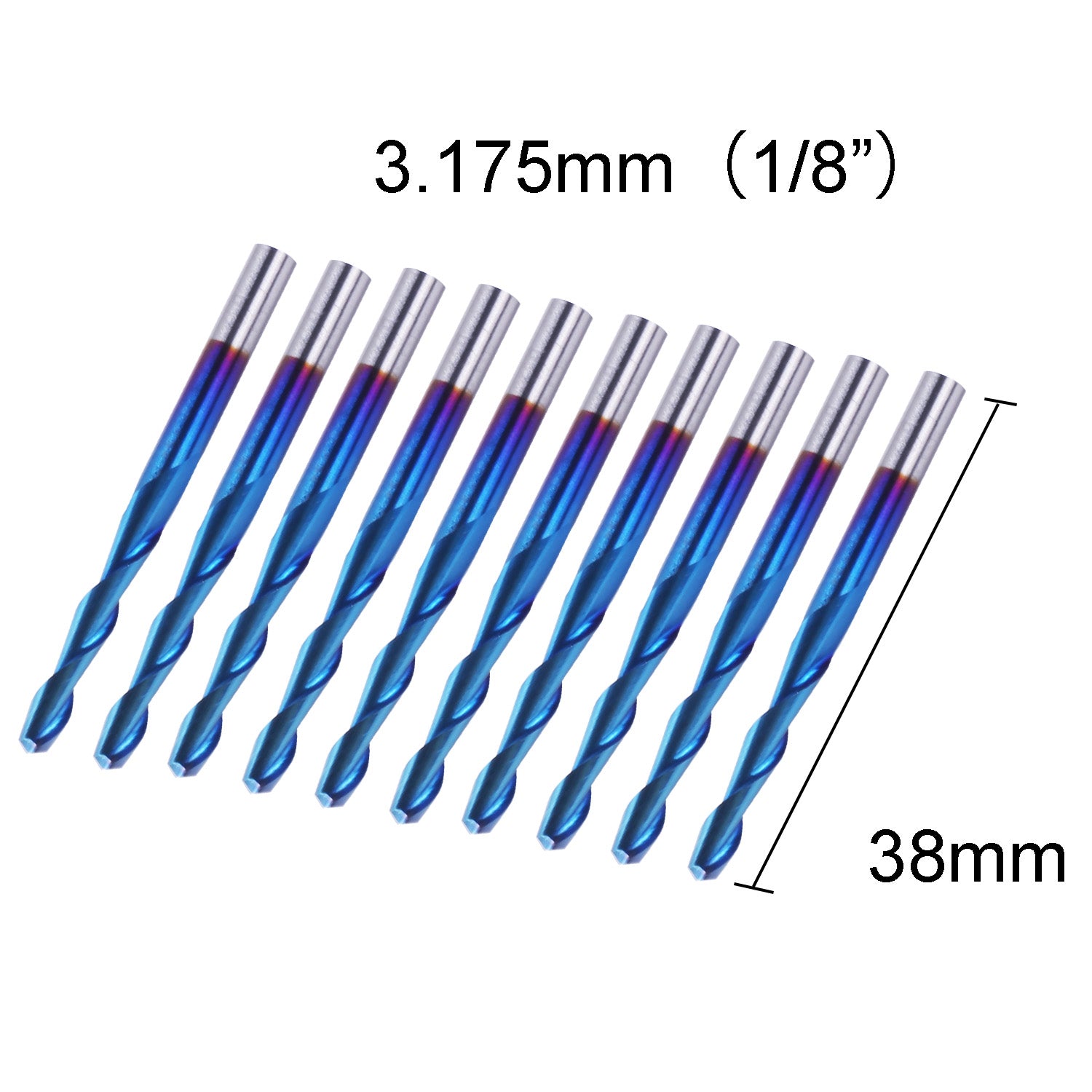

SPECIFICATION
  • Shank Diameter: 3.175mm
  • Cutting Edge Length: 17mm
  • Overall Length: 38mm
  • Cutting Edge Diameter: 3.175mm; 10Pcs

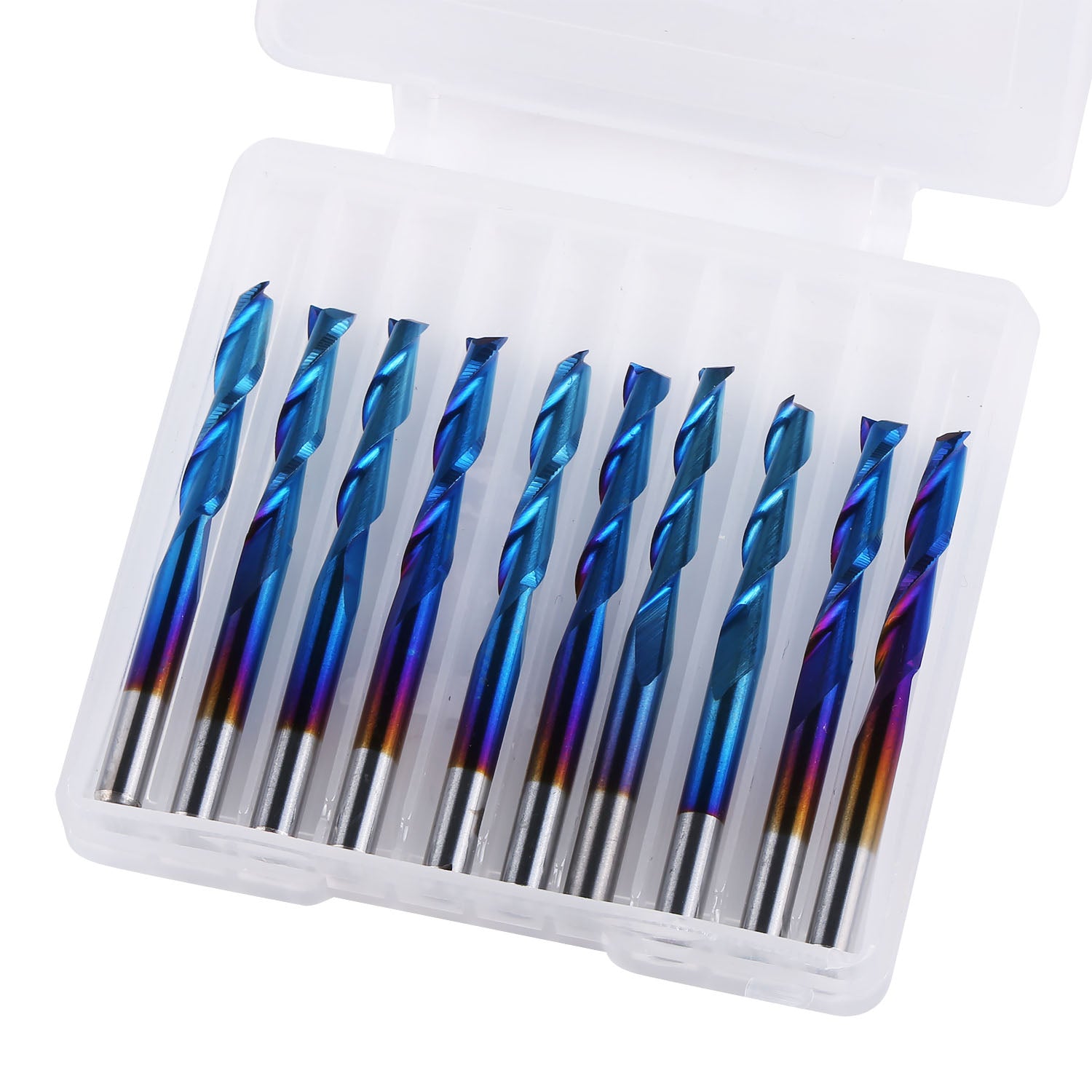

WHAT'S IN THE PACKAGE
  • 1 x Set (10Pcs Nano Blue Coat 2 Flute Flat Nose End Mill CNC Router Bits)



1/8" Shank Spiral Upcut

Size optional

  • Cutting Edge Diameter (CED): 3.175mm (1/8") approx.
  • Advantage: Sharp cutting edge, milling, hole and plate edge, clean surface, neat, no glitches.
  • Application: Perfect for 3D relief sculpturing, cutting, engraving, slotting, milling, etc.

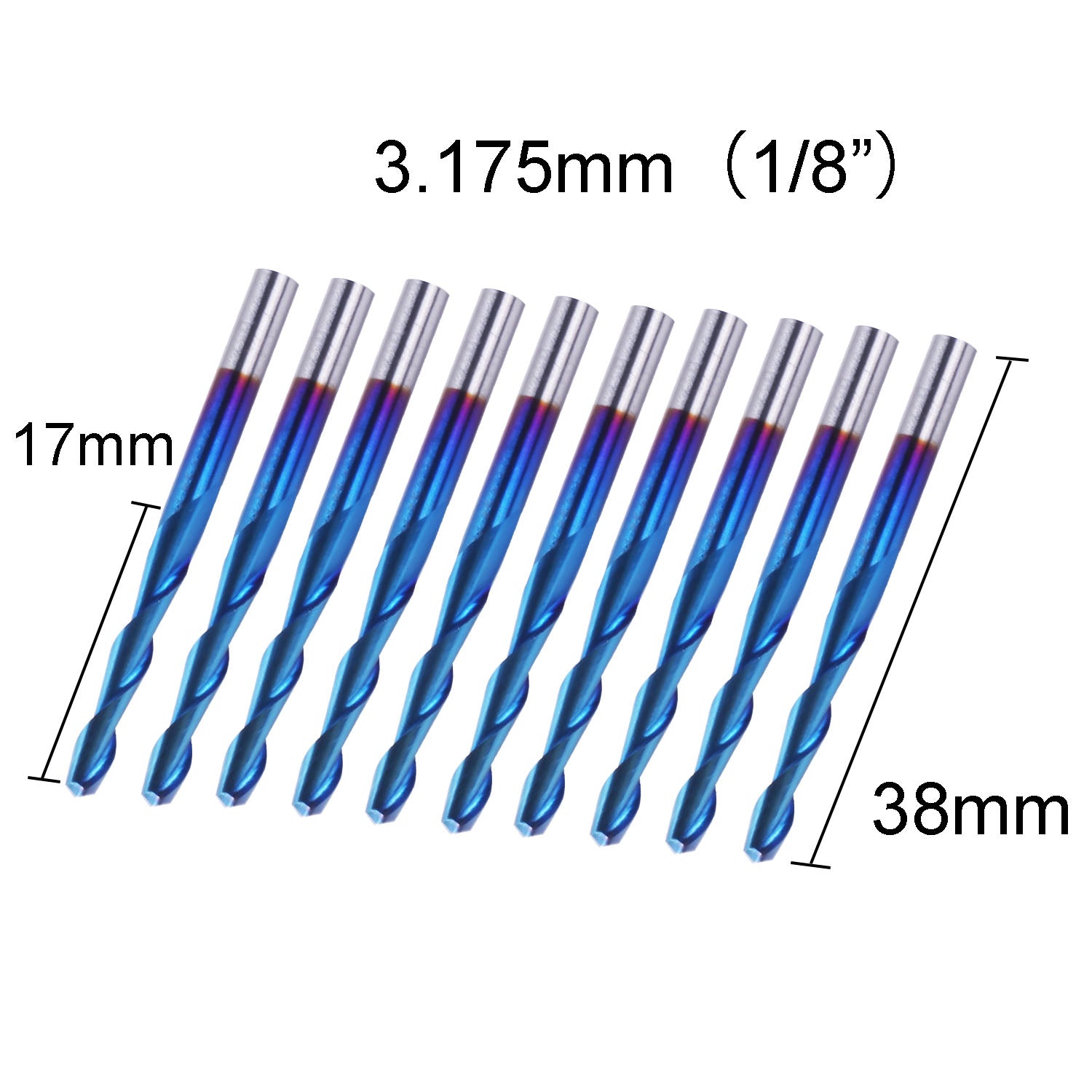

SPECIFICATIONS

  • Shank Diameter: 3.175mm
  • Cutting Edge Length: 17mm
  • Overall Length: 38mm (Tolerance: ±1-2mm)
  • Cutting Edge Diameter: 3.175mm; 10Pcs
  • Cut type: Upcut
  • Innovative Nano Blue Coat
  • Chemical Composition: Ni-La203



Physical Characteristics:

1. Enhance the hardness of the bits.
2. Reduce the frictional resistance coefficient of the bits at high speed to improve the smoothness of the machined surface.
3. Increase the heat dissipation performance of the bits to avoid the influence of the crystal structure change due to excessive
temperature.
4. Reduce the phenomenon of chipping of the cutting edge. Enhance the elasticity of the bits. The impurities of the workpiece
can be elastically skipped to avoid damage to the cutting edge.
5. Extend service life.
6. Since the carbide bit has high hardness and is relatively brittle, the machine speed range should be controlled during use.



WHAT'S INCLUDED?

1 x Set (10Pcs Nano Blue Coat 2 Flute Flat Nose End Mill CNC Router Bits)

Customer Reviews
5.0 Based on 3 Reviews
5 ★
100%
3
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
JC
12/24/2021
John C.
United Kingdom United Kingdom

Superb Cuts

Really impressed at quality of cuts , clean cut walls & smooth, flat cut base. Really tempting to try more agressive cuts than what I'm used to, handles 1.25mm cut pass no bother. Does what it says on the tin, can't ask more than that!!

10/14/2021
Anonymous
United States United States

1/8" (3.175mm) End Mills...

These End mills work good for the type of work that I am currently doing. I use them to machine 12.0" x 12.0" x 0.064" thick Aluminum plate on my Axiom AR4 PRO and AR8 PRO machines...

Y
05/10/2021
YVES
France France

Fraise 2 dents

Parfaites pour usinage metaux tendre (alu ou cuivre). Utilisées avec une 3018PROVER
