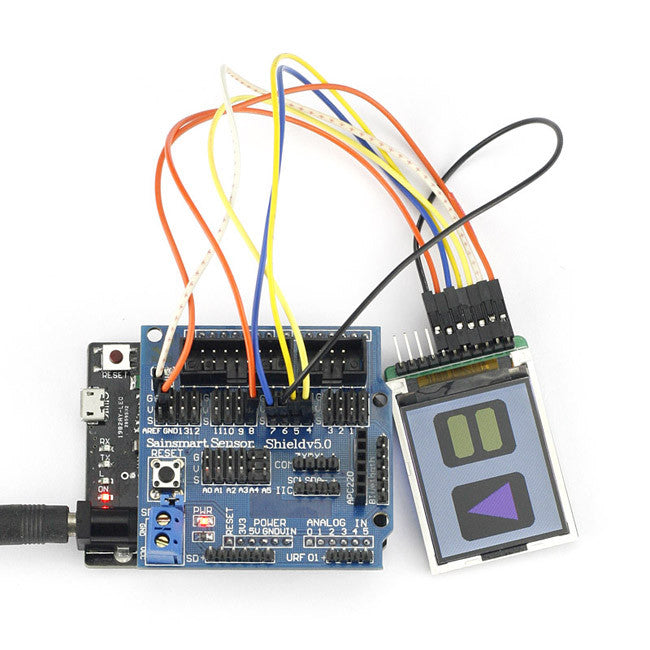

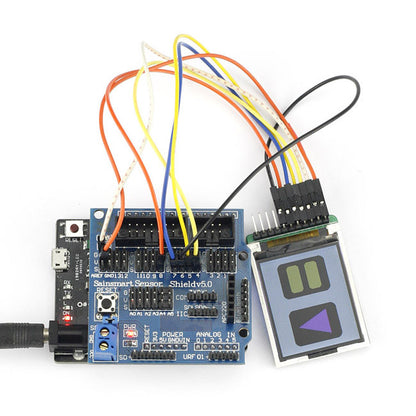

Sainsmart Leonardo R3+1.8''LCD Display +Sensor Shield V5 Module For Arduino Robot

brand: SainSmart SKU: 20-011-D15
$35.99
Oops, 0 In Stock

SainSmart Leonardo R3 Improved Version Board

The SainSmart Leonardo is a microcontroller board based on the ATmega32u4 . It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Microcontroller

ATmega32u4

Operating Voltage

5V

Input Voltage (recommended)

7-12V

Input Voltage (limits)

6-20V

Digital I/O Pins

20

PWM Channels

7

Analog Input Channels

12

DC Current per I/O Pin

40 mA

DC Current for 3.3V Pin

50 mA

Flash Memory

32 KB (ATmega32u4) of which 4 KB used by bootloader

SRAM

2.5 KB (ATmega32u4)

EEPROM

1 KB (ATmega32u4)

Clock Speed

16 MHz



SainSmart SensorShield Module V5:

  • Ready to  plug & play.
  • It can connect to various modules like sensors, servos, relays, buttons,potentiometers
  •  Each functional module has buckled port with VCC,GND and Output, which has corresponding port on the Sensor Shield, connectedwith a plain 2.54mm dual-female cable you may start playing already. Buckledbrick cables are like cement for bricks, make the connections easier, secureand more professional looking.


SainSmart 1.8" Serial TFT LCD Display:

  • Display Mode: 1.8" TFT SPI Interface, Transmissive, Normally white;
  •  Display Color: 262K colors;
  •  Backlight Type: LED
  •  Resolution: 128W * 160H Dots
  •  Board Size: 5.00 x 3.4cm
  •  View Area: 28.03W * 35.04H mm
  •  Dot Size: 0.06W * 3 * 0.18H mm
  •  Dot Pitch: 0.18W * 0.18H mm
  •  Viewing Angle: 6 o'clock
  •  SPI Bus interface
  •  IC Driver: ST7735R
  •  5V/3.3V TTL logic Compatible, can be used in 5V/3.3V IO Arduino systemdirectly

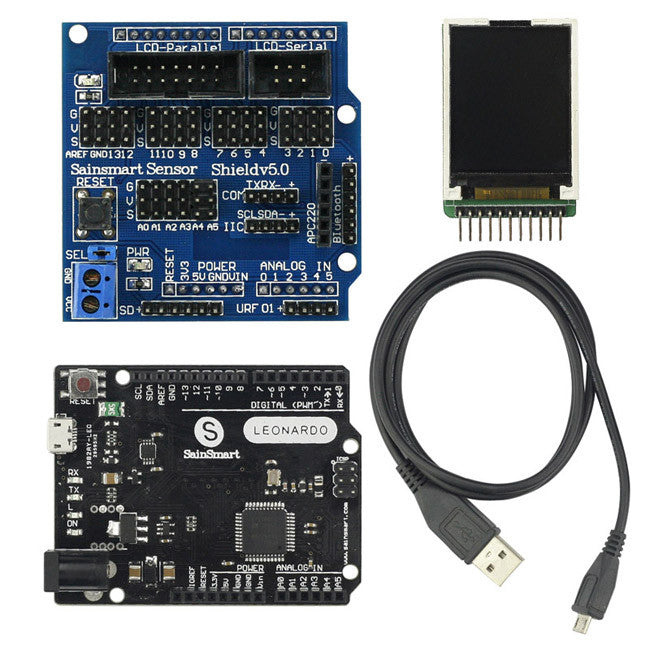

Package List:
1x SainSmart Leonardo R3
1x SainSmart SensorShield Module V5
1x SainSmart1.8" Serial TFT LCD Display
1x USB Cable
