SainSmart MEGA, ATmega2560 + SainSmart Sensor Shield V5+IIC 1602 Y-G Module Display For Arduino Robot

brand: SainSmart SKU: 20-011-C41 Variants ID: 45100119380
$37.95
Oops, 0 In Stock


SainSmart MEGA 2560 Board for Arduino:
This is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.


SainSmart Sensor Shield V5 has the COM and I2C (IIC) ports separated, so that both ports can be utilized at the same time to increase the possibilities of use. It allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers and so on. Just plug & play. Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already.

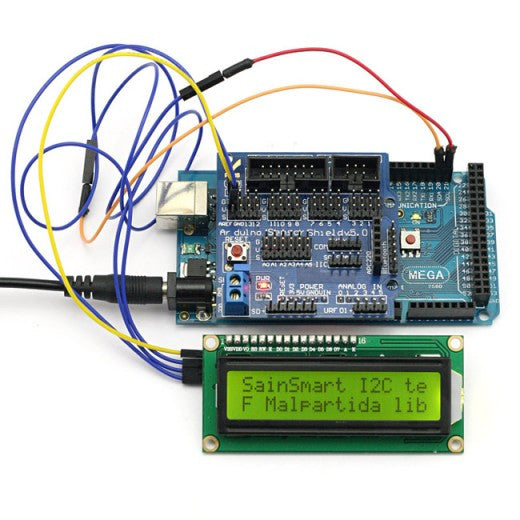

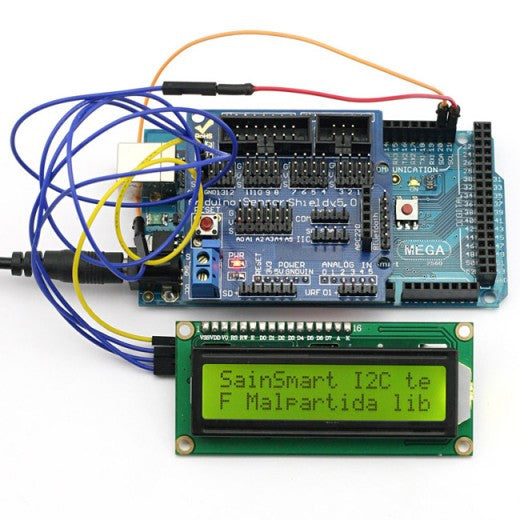

The SainSmart IIC LCD1602 is another great yellow-green backlight LCD display. As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface LCD module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
