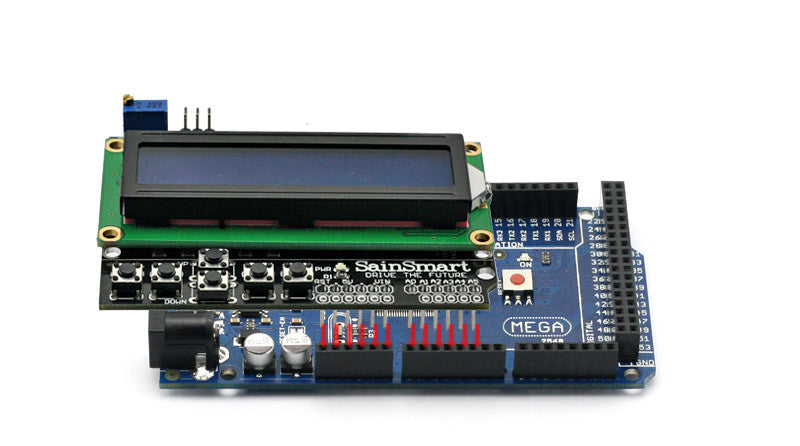

![[Discontinued] SainSmart Mega2560+1602 LCD Keypad Shield Kit For ATMEL ATMEGA8U2 AVR](http://www.sainsmart.com/cdn/shop/products/img_2665.jpg?v=1499266068&width=1445)

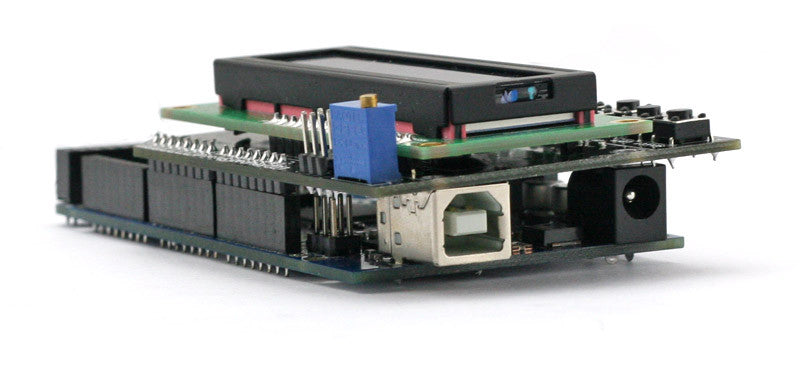

![[Discontinued] SainSmart Mega2560+1602 LCD Keypad Shield Kit For ATMEL ATMEGA8U2 AVR](http://www.sainsmart.com/cdn/shop/products/img_2674.jpg?v=1499266068&width=1445)

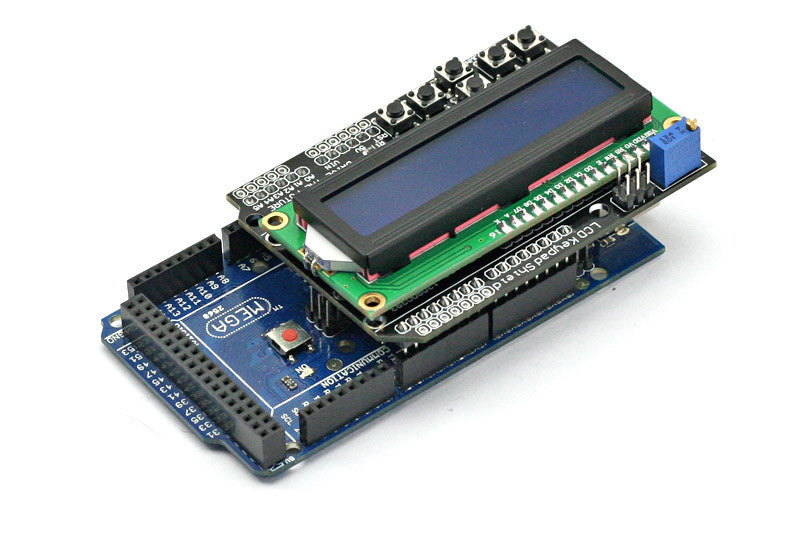

![[Discontinued] SainSmart Mega2560+1602 LCD Keypad Shield Kit For ATMEL ATMEGA8U2 AVR](http://www.sainsmart.com/cdn/shop/products/img_2708.jpg?v=1499266068&width=1445)

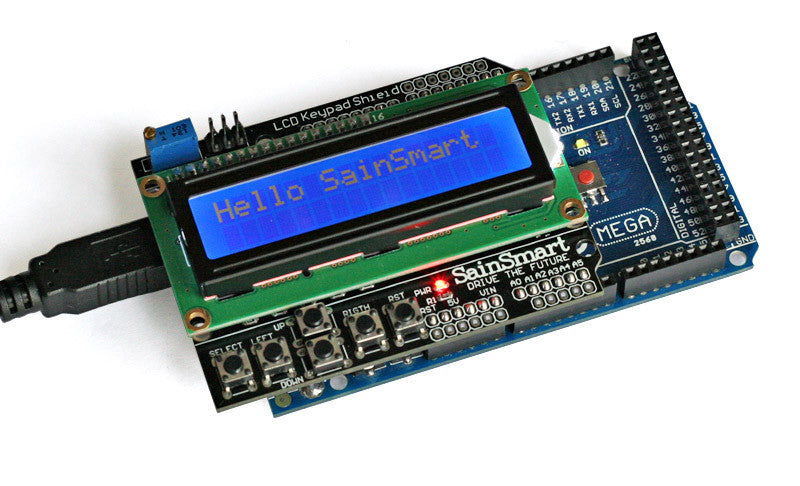

![[Discontinued] SainSmart Mega2560+1602 LCD Keypad Shield Kit For ATMEL ATMEGA8U2 AVR](http://www.sainsmart.com/cdn/shop/products/img_2668.jpg?v=1499266068&width=1445)

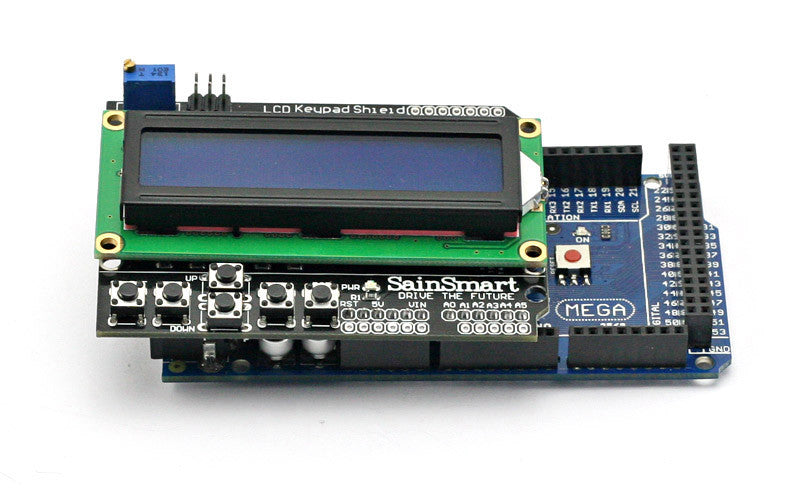

![[Discontinued] SainSmart Mega2560+1602 LCD Keypad Shield Kit For ATMEL ATMEGA8U2 AVR](http://www.sainsmart.com/cdn/shop/products/img_2680.jpg?v=1499266068&width=1445)
Feature:
SainSmart 1602 LCD Keypad Shield:
- This is a 16x2 LCD Keypad module for Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board.
- Blue Backlight with white words, adjustable backlighting.
- 4 Bit LCD Library
- 100% brand new and high quality
SainSmart Mega2560:
| Microcontroller | ATmega2560 |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Input Voltage (limits) | 6-20V |
| Digital I/O Pins | 54 (of which 14 provide PWM output) |
| Analog Input Pins | 16 |
| DC Current per I/O Pin | 40 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 256 KB of which 8 KB used by bootloader |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 16 MHz |
Package List:
1x SainSmart Mega2560
1x SainSmart 1602 LCD Keypad Shield
