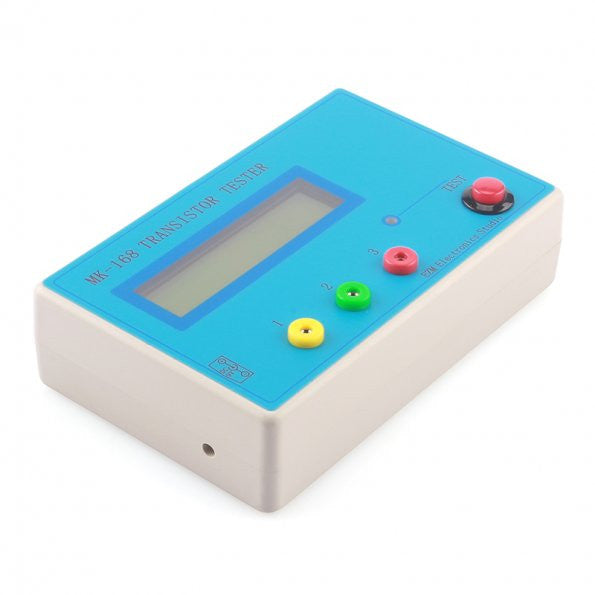

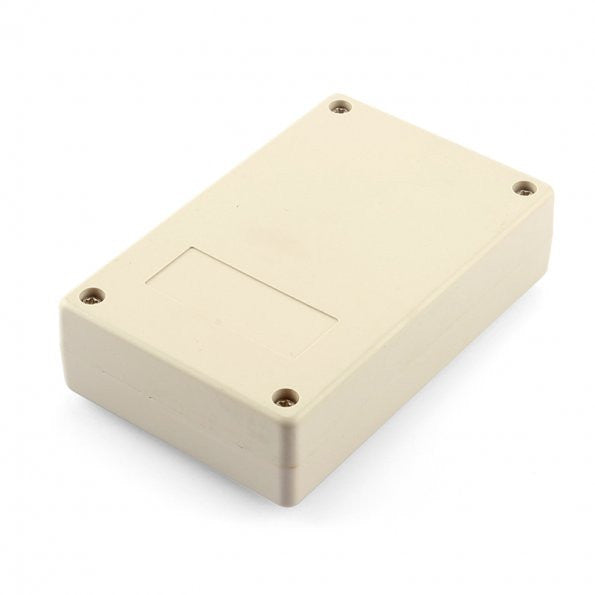

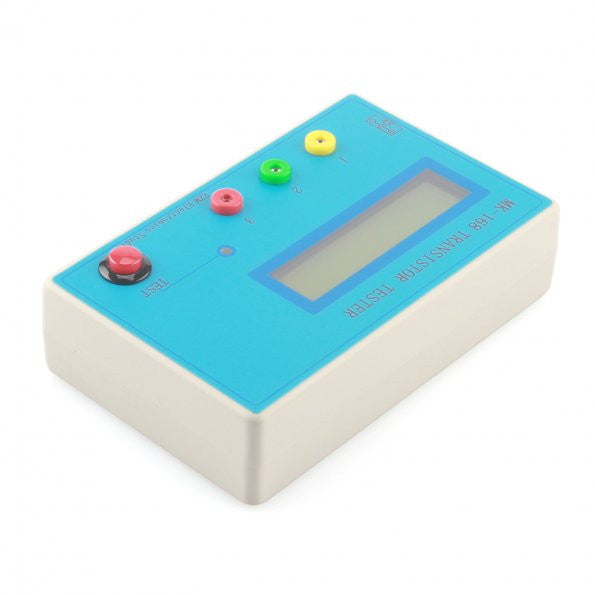

SainSmart Transistor Tester Diode Triode Capacitance ESR Meter MOS PNP NPN + Clip + Socket

brand: SainSmart SKU: 101-92-126
$20.00
Oops, 0 In Stock

Specifications:

  • One -button operation, automatic shutdown .
  • Only 20nA shutdown current.
  • Automatically detect NPN, PNP bipolar transistors , N -channel and P -channel MOS FET, JFET , diodes , two diodes, thyristors small power unidirectional and bidirectional thyristor.
  • Automatic identification components pin arrangement .
  • Measuring bipolar transistor current amplification factor and base - emitter threshold voltage.
  • Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors.
  • Can detect bipolar transistors and MOS transistors protection diodes.
  • Measuring the gate MOS FET threshold voltage and the gate capacitance.
  • Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4 . Resistance symbol on both sides shows the pin number. So you can measure the potentiometer. If the potentiometer wiper is not transferred to an extreme position , we can distinguish the middle and both ends of the pin.
  • Resistance measurement resolution is 0.1 ohms , 50M ohms can be measured .
  • Can measure capacitance of 30pF-100mF , resolution 1pF.
  • 2uF more capacitors can simultaneously measure the equivalent series resistance ESR values. The two can be displayed with a decimal value , resolution 0.01 ohms.
  • Can be in the correct order and the diode symbol display two diodes , and gives the diode forward voltage.
  • LED is detected as a diode forward voltage higher . Combo of the LED is identified as two diodes.
  • Eeverse breakdown voltage is less than 4.5V Zener diode can be identified.
  • can be obtained with a single measurement rectifier bridge connection.

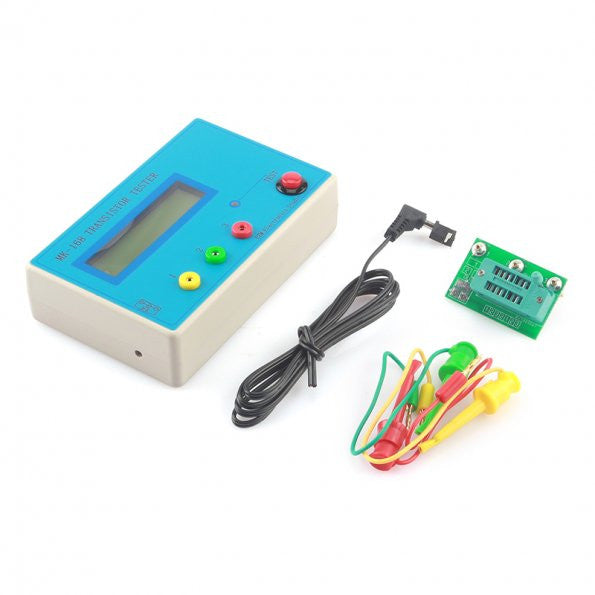

Package List:

  • 1 x Transistor Tester Diode Triode Capacitance ESR Resistance Meter

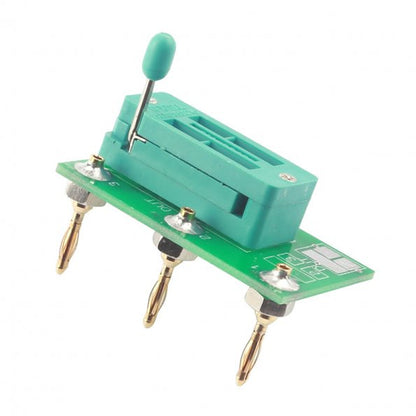

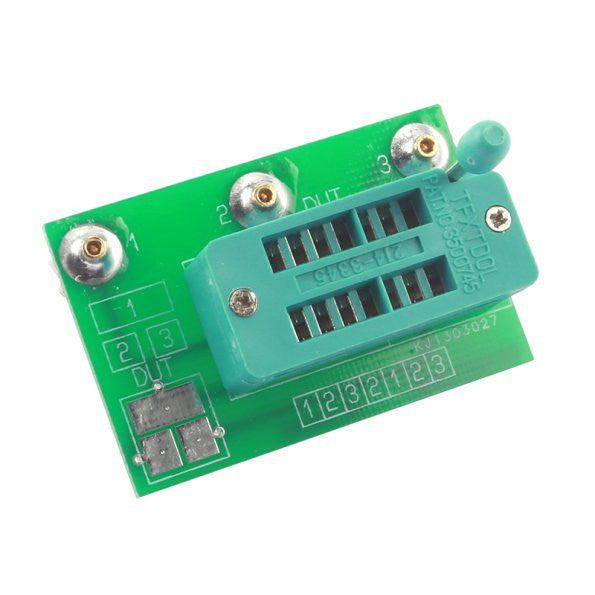

  • 1 x Socket
  • 3 x Test Clips
