SainSmart.com
Brand: Genmitsu

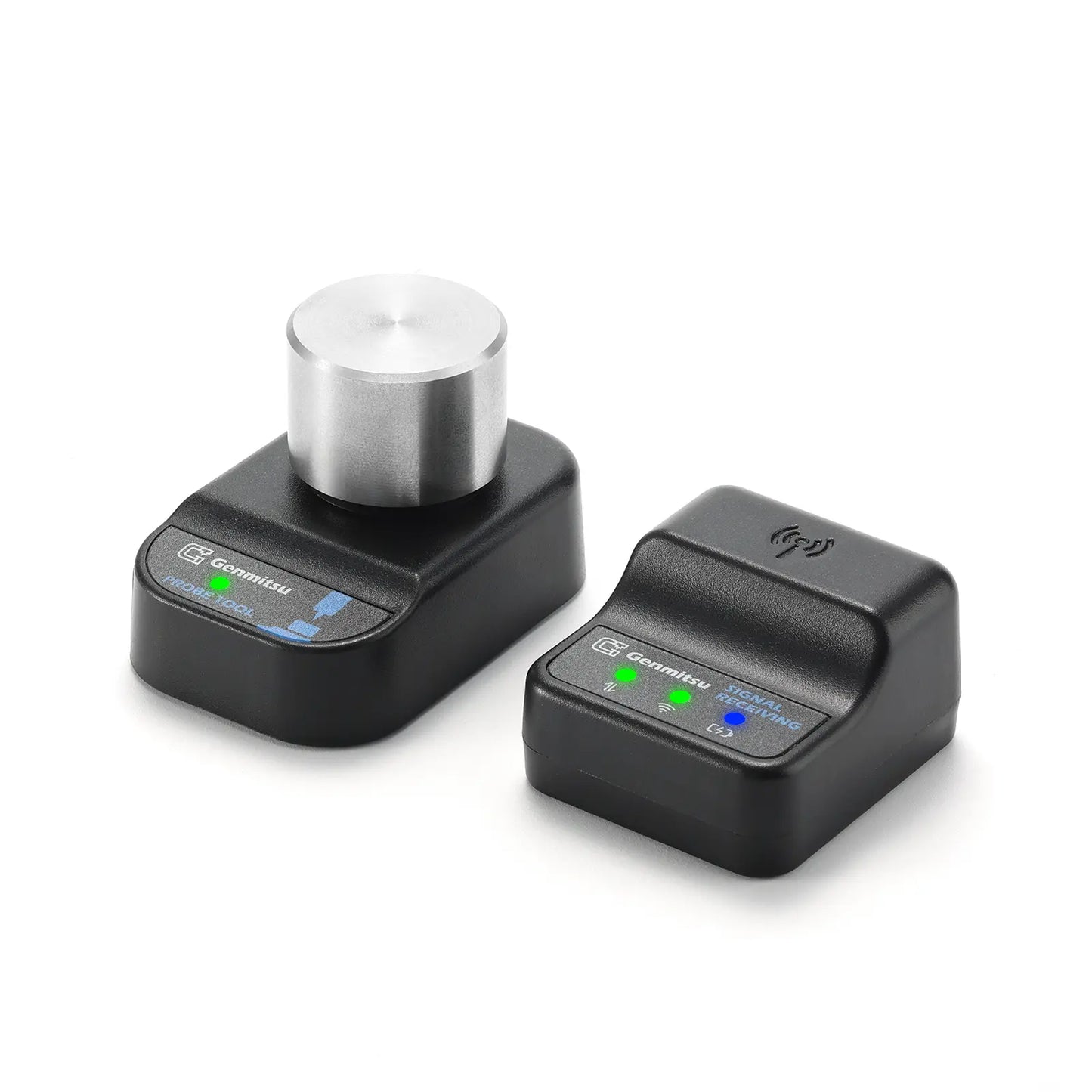

Wireless Z-Axis Probe Tool Setter for CNC Router Machine, Tool Setting Touch Probe with 3-Pin Cable DC 5–24V, 0.02mm Accuracy, GRBL & Mach3 & Genmitsu APP Compatible

Wireless Z-Axis Probe Tool Setter for CNC Router Machine, Tool Setting Touch Probe with 3-Pin Cable DC 5–24V, 0.02mm Accuracy, GRBL & Mach3 & Genmitsu APP Compatible

SKU:  101-63-WZ5
$49.99
-Liquid error (snippets/price line 166): divided by 0 $49.99
Shipping & Tax calculated at checkout.
Ship to
  • 101-63-WZ5
  • 101-63-WZ5
  • 101-63-WZ5
  • 101-63-WZ5
  • 101-63-WZ5

Automated Z-Axis Tool Setting: The Genmitsu Z-axis probe enables your CNC machine to automatically find the surface zero point within 0.02mm accuracy, guaranteeing perfect first-layer results every time

Seamless Genmitsu Fit: Comes with a 200mm XH2.54 3-pin terminal cable designed for Genmitsu CNC routers: 3020-PRO MAX V2; 3020-PRO Ultra; 4040 RENO; 4040-PRO; 4040-PRO MAX; 3030-PROVer Max and 3030-PROVer Ultra. No cutting or soldering required

Universal DIY Compatibility: Includes a 3-pin open header cable for connecting to most GRBL and Mach3 control boards. Note: Operates on Normally Open (NO) logic.

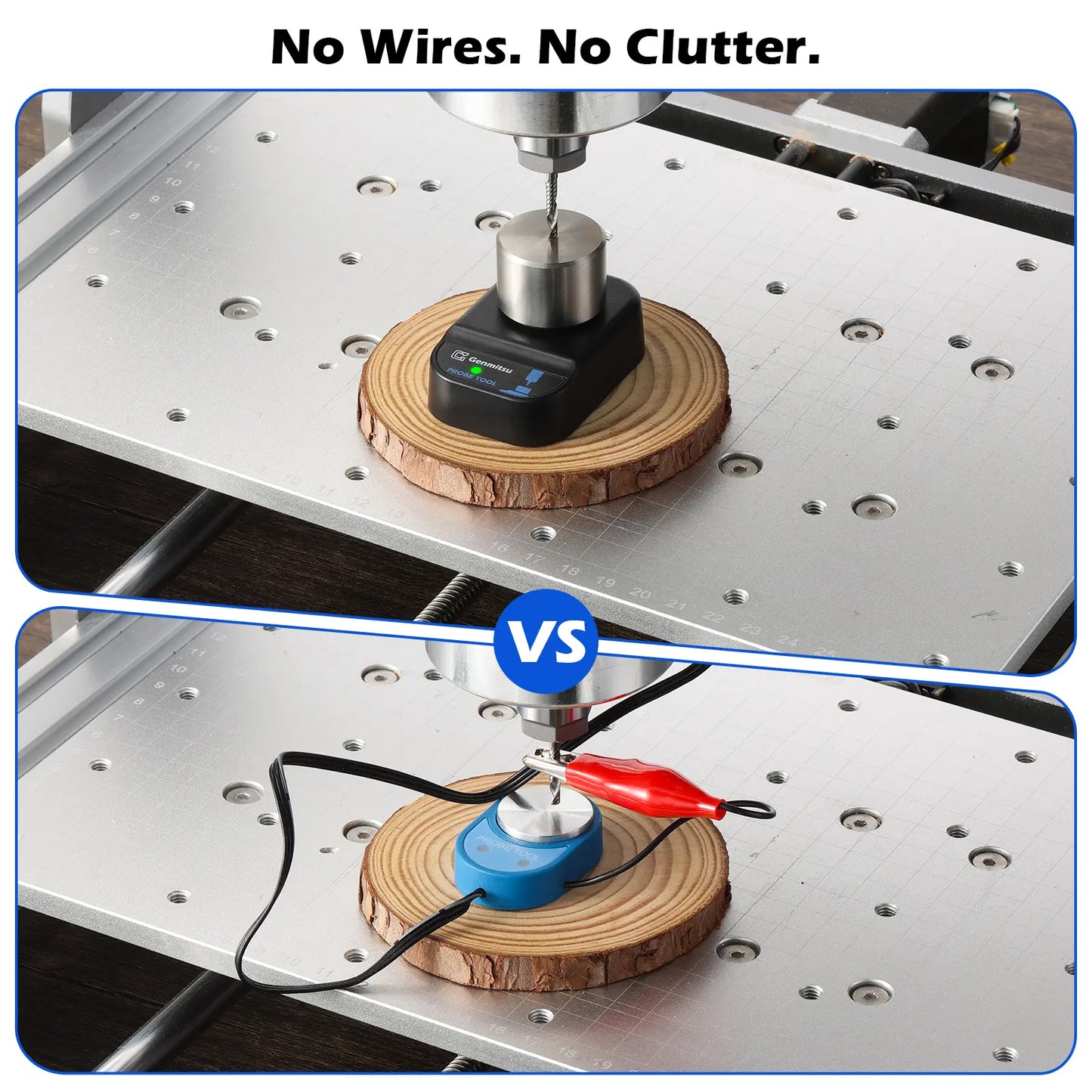

Wireless Freedom: Enjoy a clean desktop with stable wireless transmission (up to 20m range), eliminating messy cables and alligator clips. It works perfectly on both conductive (metal) and non-conductive materials (wood, acrylic, plastic), greatly simplifying your tool-changing workflow.

Safety Design: The built-in spring under the touch plate structure absorbs impact to prevent router bit breakage, ensuring safe operation.

Long Life: Powered by a CR2032 battery for up to 3,000 uses. The stainless steel contact surface ensures lasting durability and wear resistance for heavy use.
View full details

Wireless Z-Axis Probe Tool Setter for CNC Router Machine | SainSmart

Product Description

Upgrade your workflow with the Genmitsu Wireless Z-Axis Tool Setter. Designed for desktop CNC routers, this high-precision touch probe offers 0.02mm accuracy and a 20m Bluetooth range for cable-free operation. It features a durable stainless steel plate and a safety spring to prevent tool damage. Includes cables for specific Genmitsu models and a universal 3-pin open header for GRBL/Mach3 systems (5-24V). Efficiently powered by a CR2032 battery for 3,000 sets. Perfect for precise milling.



Wireless Z-Axis Probe Tool Setter for CNC Router Machine | SainSmart

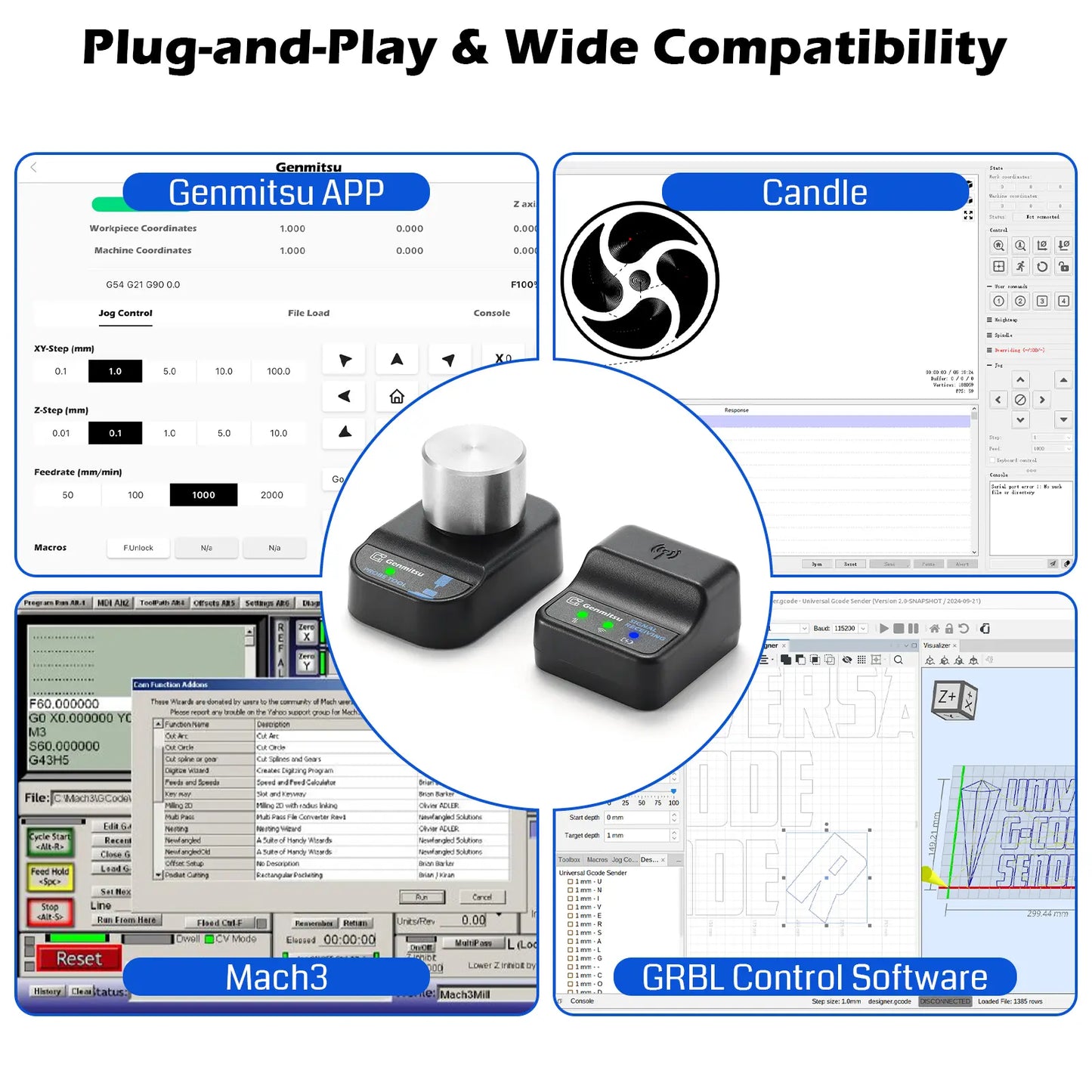

Software Compatibility

The wireless tool setter can be controlled directly from the Genmitsu App, Candle, UGS, and other GRBL or Mach3-based CNC control software.
Wireless Z-Axis Probe Tool Setter for CNC Router Machine | SainSmart

Simple Operation

A built‑in signal light shows probe status at a glance, lighting up whenever the touch probe is active or triggered.
Wireless Z-Axis Probe Tool Setter for CNC Router Machine | SainSmart

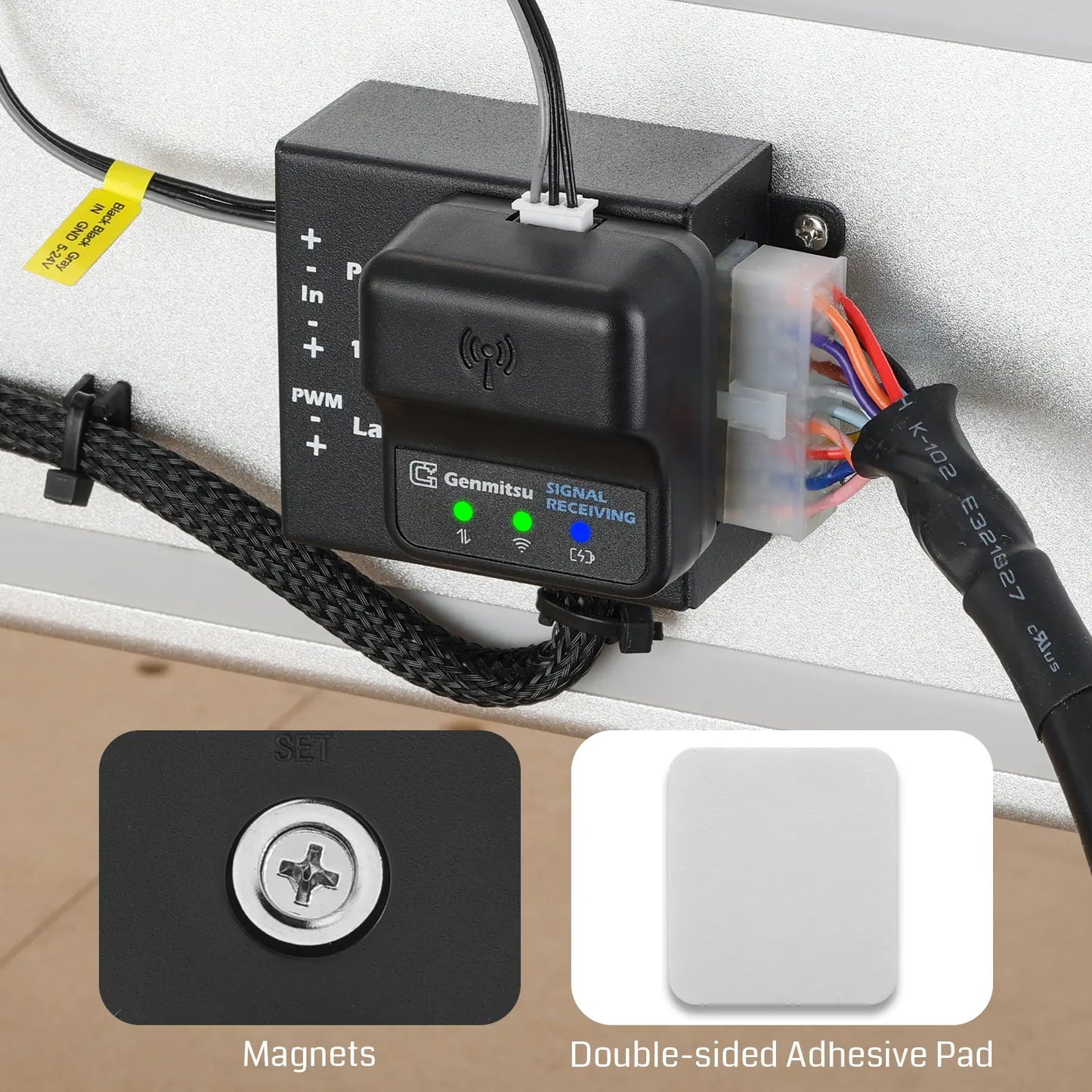

Flexible Installation

The wireless receiver has a rear magnet for quick mounting on metal surfaces, plus included double‑sided tape for attaching it almost anywhere.
Wireless Z-Axis Probe Tool Setter for CNC Router Machine | SainSmart

Plug-and-Play

Quick setup with plug-and-play design and step-by-step instructions—no complex wiring needed.

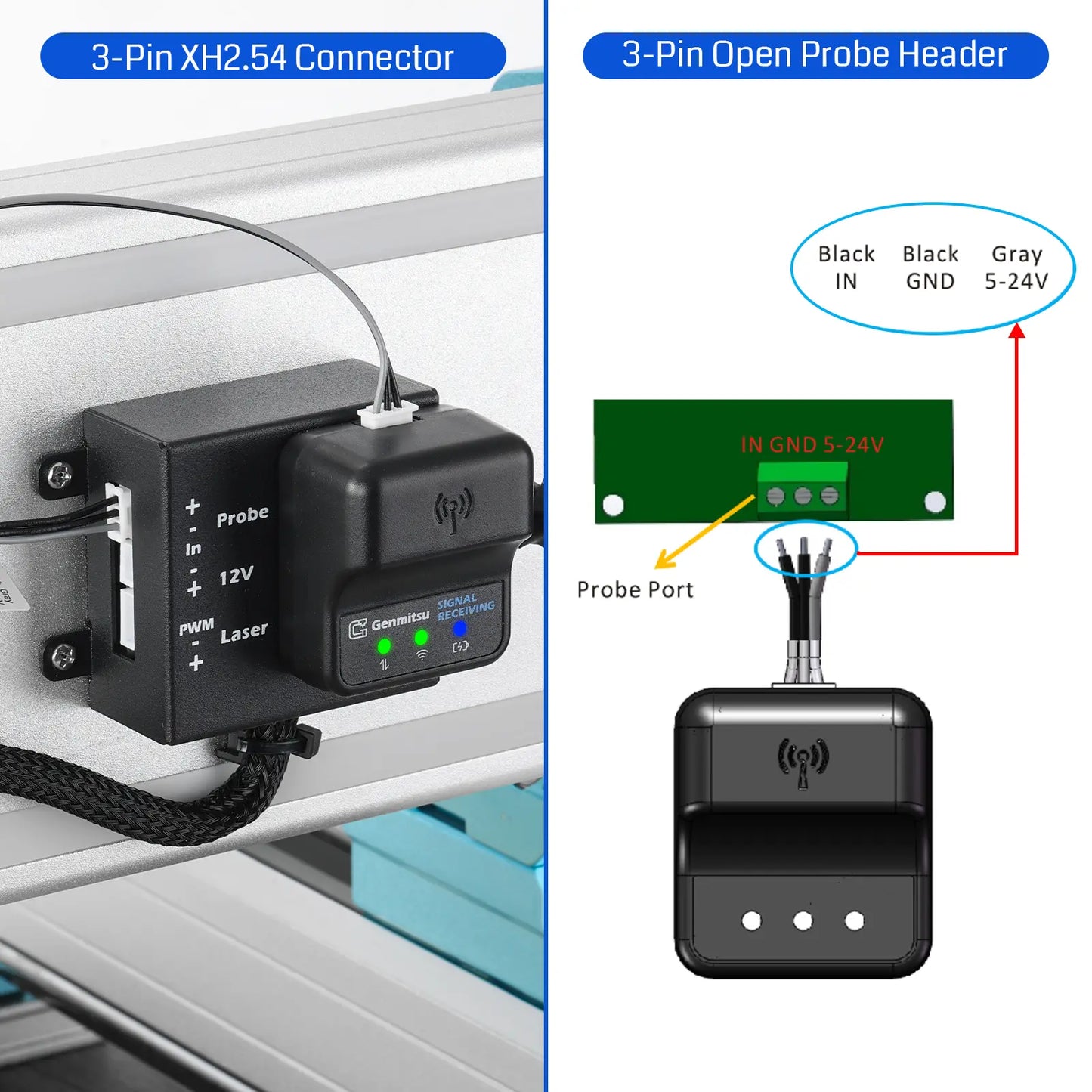

Use the Universal Cable to Connect

Compatible with a 3-pin open Z-probe port and different from the wiring sequence mentioned above.

Note: The actual wiring sequence should align with the probe interface pinout of your control board. Users must adjust accordingly based on their specific control board configuration. The probe interface voltage must remain within the range of 5-24V; exceeding this range may damage the device!

Wireless Z-Axis Probe Tool Setter for CNC Router Machine
Wireless Z-Axis Probe Tool Setter for CNC Router Machine

Easy Set Up on Software

GSender and UGS:
Input the height value into "Z Thickness" directly.

Genmitsu APP:
Input the height value into parameter.

Candle:
Enter the following code into the "Probe command":

G21 G91 G38.2 Z-50 F50;
G92 Z38.25 — Input the height value
G1 G90 Z40.000 F200; — The lift height of the Z-axis after probing
G91 G38.2 Z-50.000 F20;
G92 Z38.25 — Input the height value
G1 G90 Z45.000 F200 — The lift height of the Z-axis after probing

Specifications

Probe Tool Module
Operating Voltage DC 5V - 24V
Operating Current Average 100mA, Typical 30mA
Wireless Range 20 Meters
Maximum Supported Load 24V / 500mA
Signal Receiving Module
Operating Voltage DC 2.4V - 3.6V
Battery Type CR2032
Battery Capacity 20mA
Probing Cycles per Full Battery Approximately 3,000 (varies depending on battery condition)
Wireless Range 20 Meters
Repeatability Accuracy 0.02mm
Compatibility
XH2.54-3 Pin Terminal Cable Genmitsu 3020-PRO MAX V2; 3020-PRO Ultra; 4040 RENO; 4040-PRO; 4040-PRO MAX; 3030-PROVer Max; 3030-PROVer Ultra
3-Pin Open Header Cable (Gray: 5-24V, Black: GND, Black: IN) for connecting to most GRBL and Mach3 control boards. Note: Operates on Normally Open (NO) logic

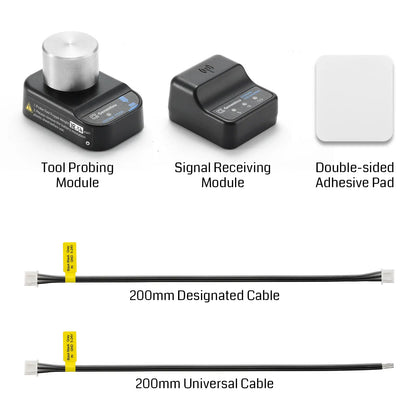

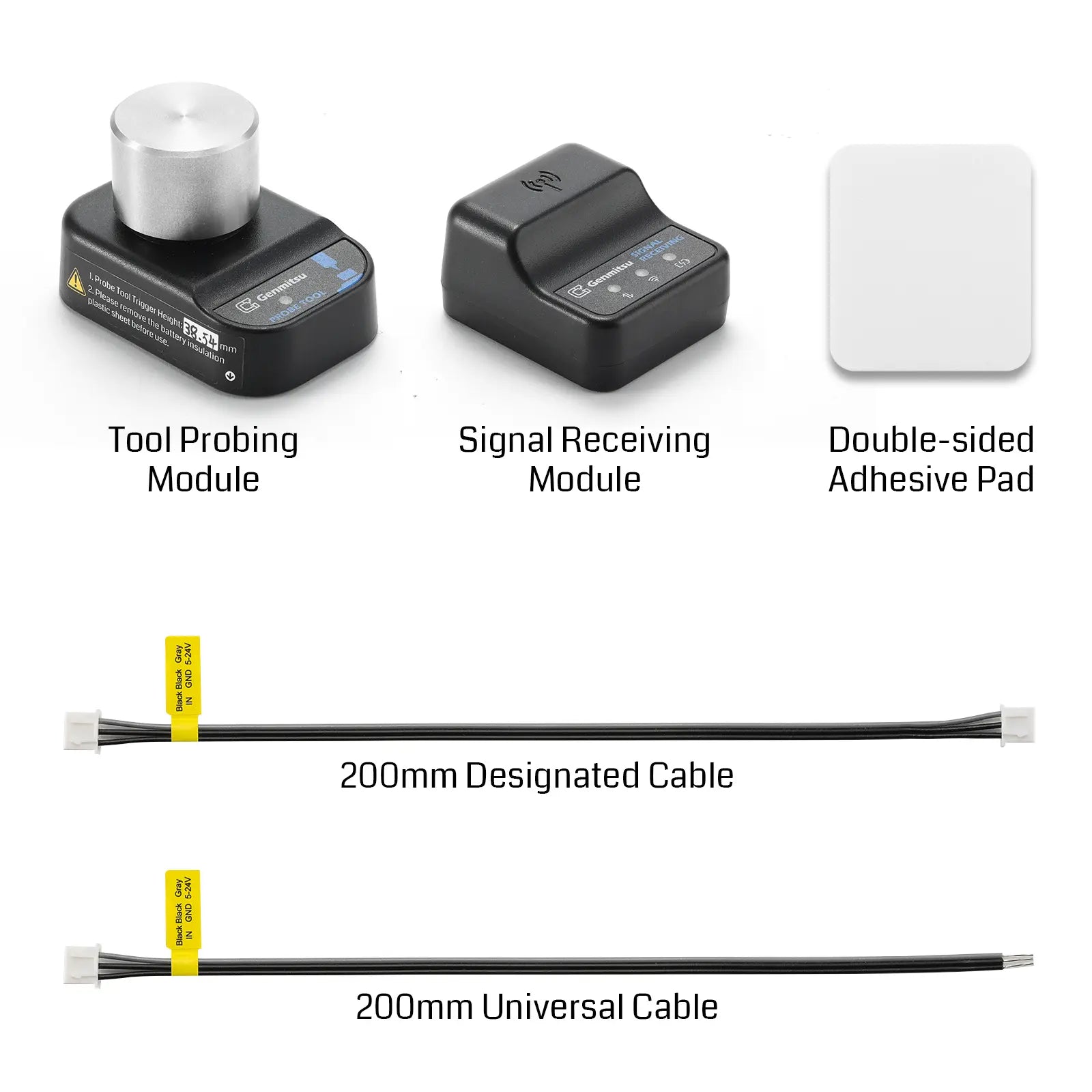

What's in the box

  • 1 x Probe Tool Module
  • 1 x Signal Receiving Module
  • 1 x 200mm XH2.54-3 Pin terminal cable
  • 1 x 200mm 3-Pin open header cable
  • 1 x Double-sided Adhesive Pad
  • 1 x User Manual
