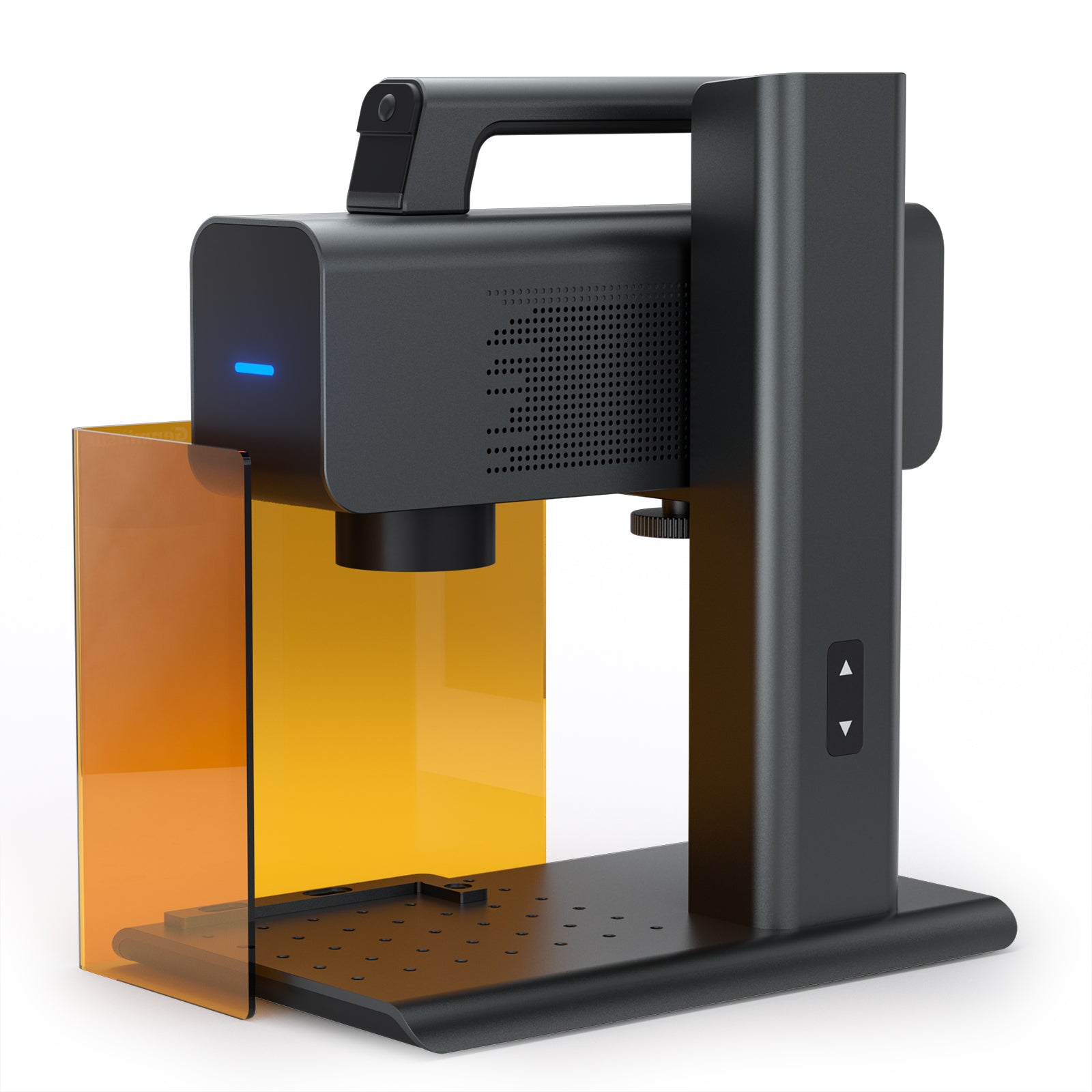

Z5-1 Fiber Laser Machine, 4K Marking Resolution, Fast Metal Marking
Brand: Genmitsu SKU: 101-60-FBLZ5-AJ

Z5-1 Fiber Laser Machine, 4K Marking Resolution, Fast Metal Marking

SKU: 101-60-FBLZ5-AJ 8 reviews Variants ID: 40506767540303
$1,199.00 $1,499.00
Save $300.00

Ship to
USA

Metal & Plastic Marking: Operating on the 1064 nm wavelength the Z5-1 can process all types of metal (from tin to titanium) and a wide range of plastics with clear high contrast marks, not burns. Add a professional touch to your products and projects without damaging the surface of your goods.

Precise & Incredible Speed: With up to 10,000 mm/s marking speed, 0.001mm resolution laser spot focus, and equivalent 4K resolution precision, the Z5-1 can recreate images, or mark the smallest objects with clear detail.

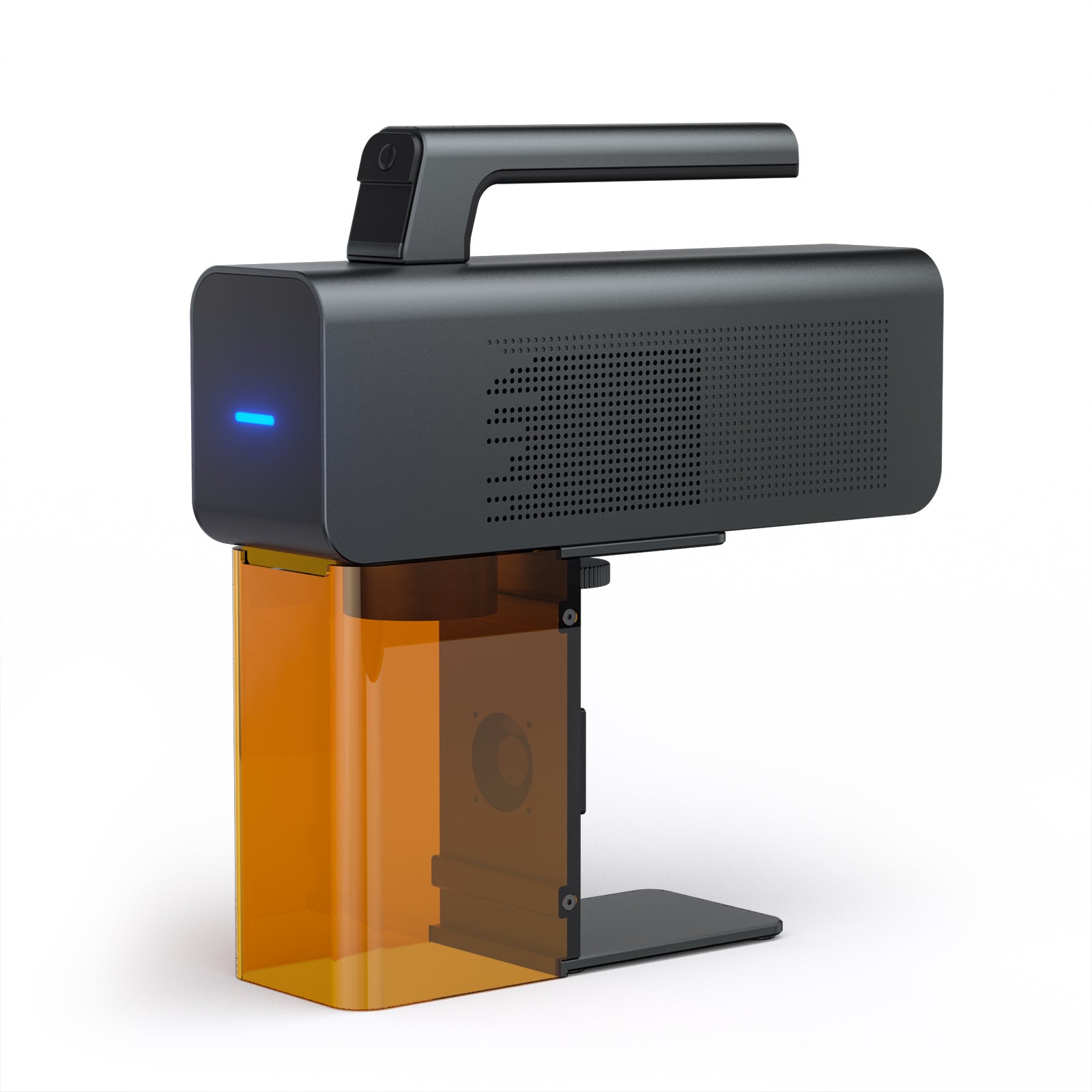

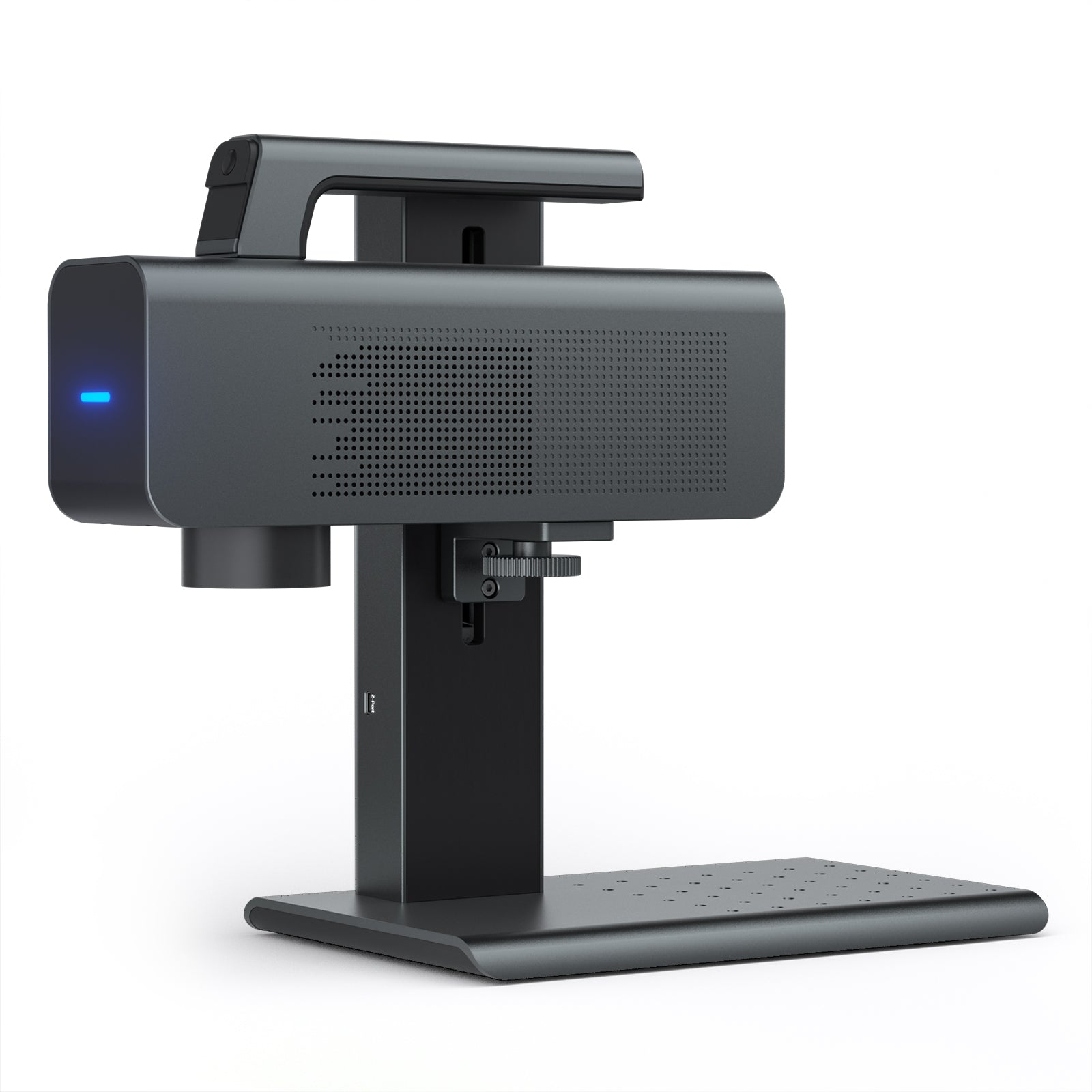

Compact Size and Portable: Unlike bulky, traditional industrial fiber engravers, the Z5-1 is only 4.3kg(9.5lb). Operates in 2 configurations, either with the portable Shield + Mount to mark on any surface or Attached to the motorized Z Stand for repeat operations.

Dual Preview Modes: Z5-1 Quick preview lets you see the result before engraving, and adjust the position of your design on the fly. You can preview the overall pattern position or pattern outline. No more frustration with mismarked designs.**Preview outline is for Vector based graphics or Text.  For Images, the preview will be an outline of the work area.

Custom Software Provided: Supports Windows XP, Windows VISTA, Windows 2003, Windows 7, Windows 10, and Windows 11. Support PLT, DXF, BMP, JPG, JPEG, and other image files.

Genmitsu Z5-1 Fiber
Laser Engraver

Engraving
Accuracy
0.001mm

Marking Speed
10,000mm/s

2W Fiber Laser

Live Engrave Preview

One Click Repeat Marking

Safety Protection

Electric lift

Engraving
Accuracy
0.001mm

Engraving Accuracy
0.001mm

Marking Speed
10,000mm/s

One Click Repeat
Marking

2W Fiber Laser

2W Fiber Laser

Live Engrave Preview

Marking Speed
10,000mm/s

One Click Repeat Marking

Live Engrave
Preview

Safety Protection

Free Safety
Accessories

Electric lift

Electric lift

Perfect for Texturing & Marking
Operating on the 1064 nm wavelength the Z5-1 can process all types of metal (from tin to titanium) and a wide range of plastics with clear high contrast marks not burns. . Add a professional touch to your products and projects without damaging the surface of your goods. Breaking the material limitation of other laser engravers, and no damage to the materials.
High Precision and Marking Efficiency
Z5-1 helps to perfect image reproduction with up to incredibly fast marking speeds and down to a 0.001mm engraving accuracy creates stunning 4K images and crisp lines. Easy 2-Dot IR Focus, Simply raise or lower your Laser till the Focus dot beams become one for quick and easy focusing.

  • Marking Speed

    10,000mm/s

  • Engraving Accuracy

    0.001mm

Red Light Preview Mode
Position and Mark with less guessing. Trace Outline will show you the exact path the laser will travel, this is perfect when working in Vector design mode. When recreating images, you can preview the work area outline.

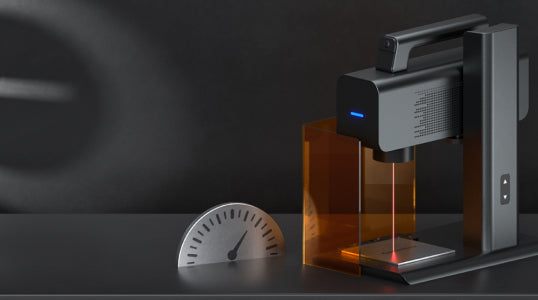

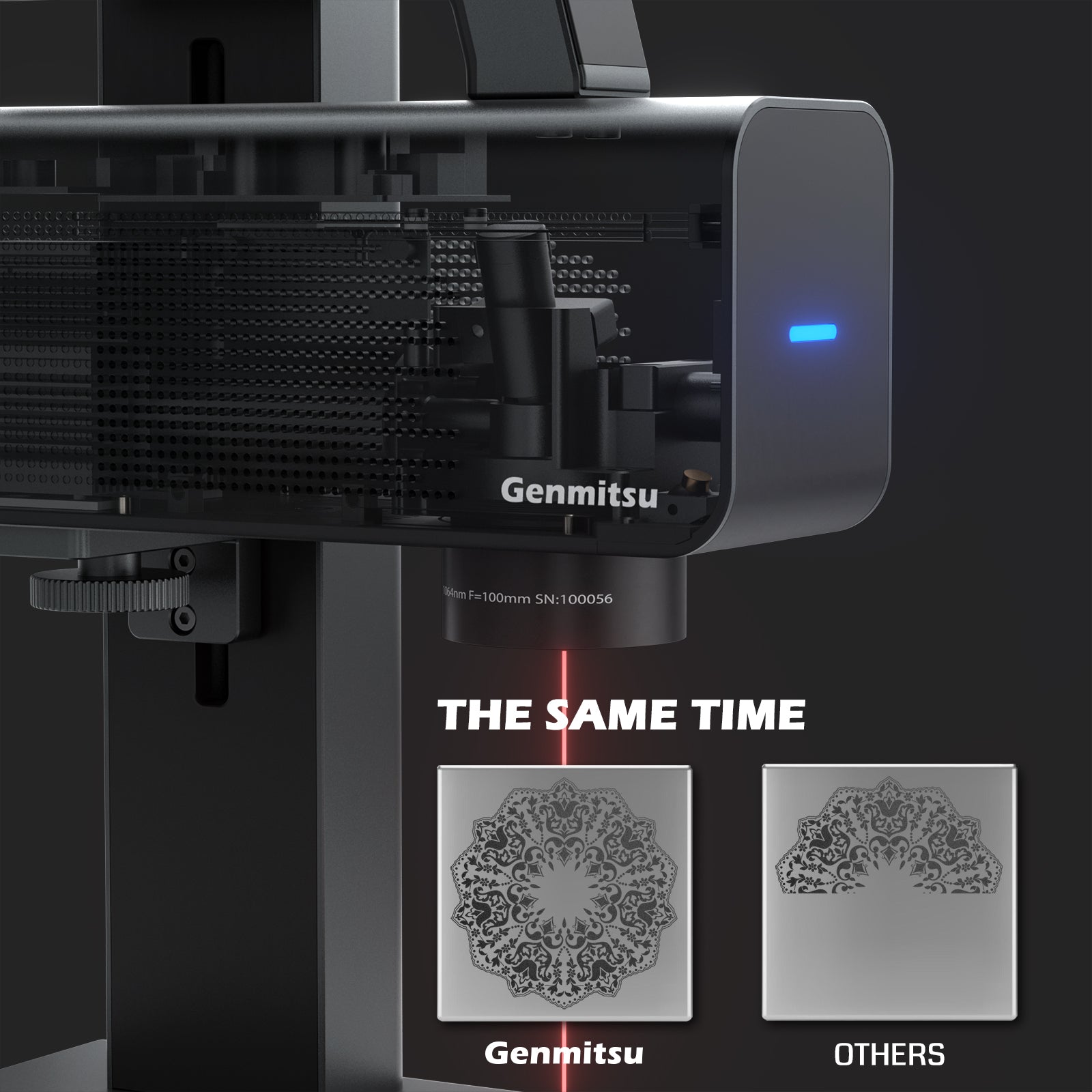

Faster Marking Speed
Z5-1 VS other blue light laser engraver, using the same settings: 100% laser power output and 90% laser speed.
Metal
Sheet
70% Faster
Z5-1 Finished in 30s
Proceed to 28% in 30s
More Features

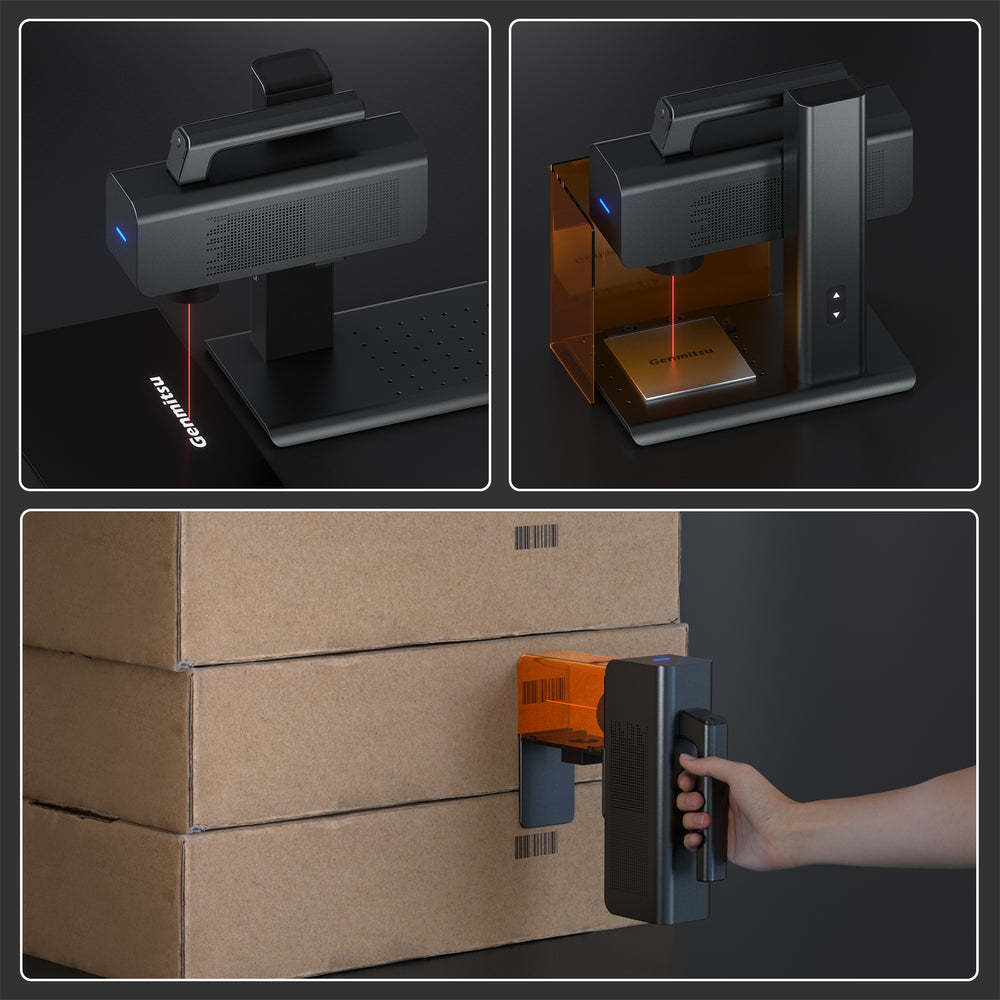

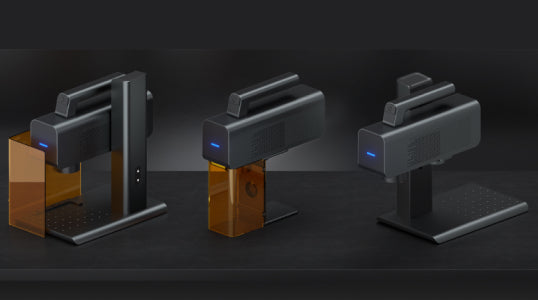

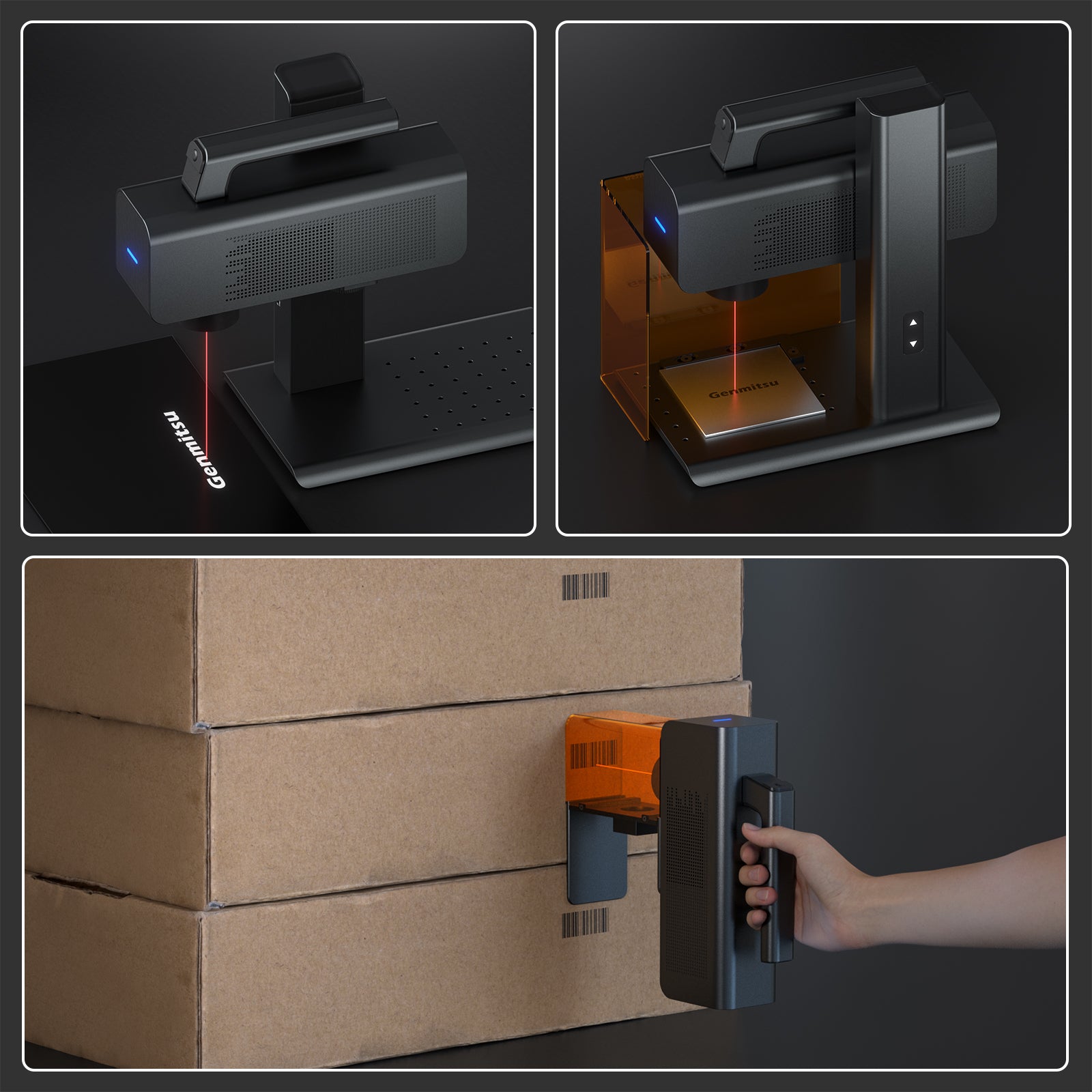

  • Three Modes

    Desktop, handheld, and reverse mode selectable. Easy to cope with different items in different scenes.

  • Long Lifespan Laser

    Average 100,000-hour lifespan and maintenance free. Buy and save from care.

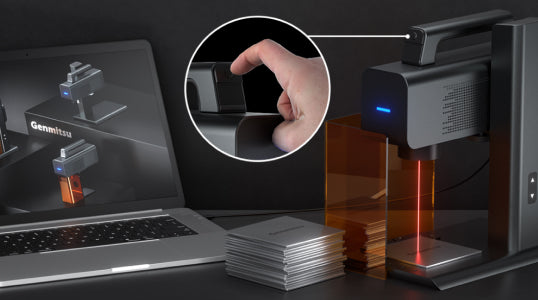

  • One Click Repeat

    Efficient Batch Engraving With Adjustable Positioning Fixture. Began your small-business from this button.

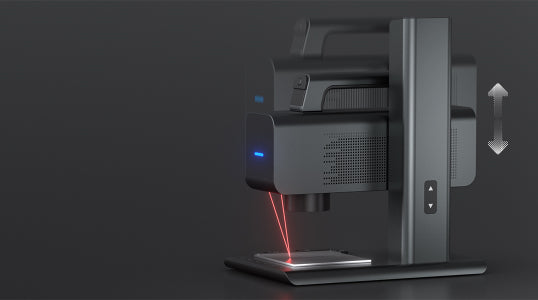

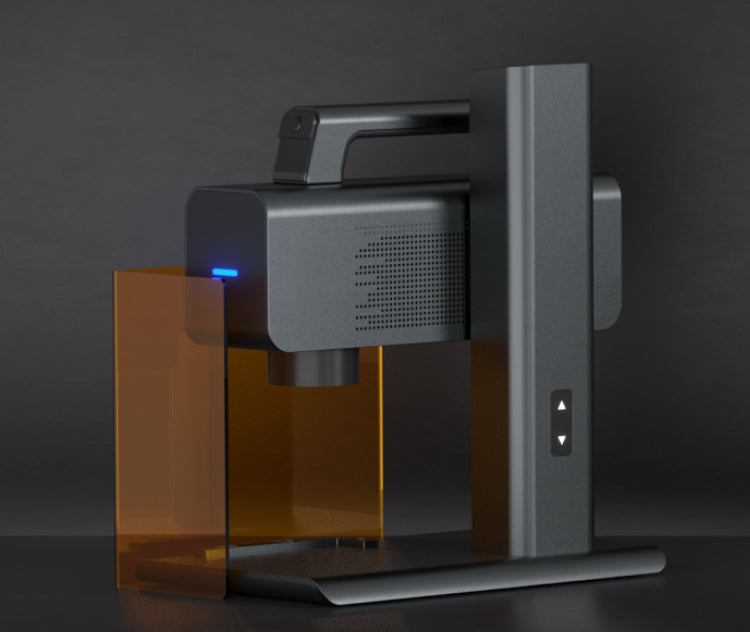

  • Electric Lift

    Electric lift, easy to operate and more accurate focus.

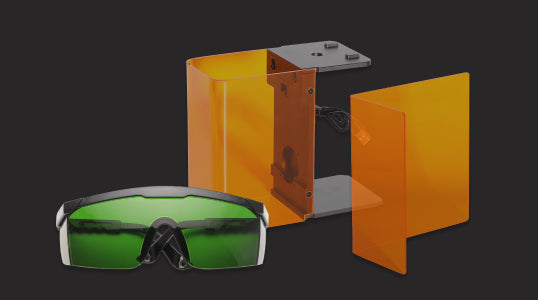

  • Safety Protection

    We care about your safety and equip you with movable laser protection shield and goggle.

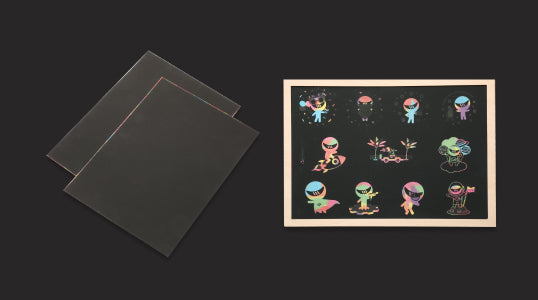

  • Free Scratch Art Paper

    Two free scratch art paper to make your laser work colorful and impressive.

Specifications
  • Material:

    High Strength Anodized Aluminum

  • Laser Focus:

    Dual Red Dot Motorized Focusing

  • Laser Head:

    1064 nm Fiber Laser

  • Laser Power:

    ≥ 2W (FDA Certificated)

  • Max Speed:

    10,000mm/s

  • Suggest Marking Speed:

    100-400mm/s

  • Connecting Interfaces:

    Type-C Port for PC

  • Support OS:

    Windows

  • File Formats:

    JPEG/BMP/GIF/PLT/PNG/DXF

  • Power Supply:

    12V/10A

  • Cooling:

    Forced Air Cooling

  • Engraving Area:

    7cm×7cm (2.76”×2.76”)

  • Engraving Accuracy:

    0.001mm

  • Suggest Engraving Materials:

    Metal, Opaque Plastic, Materials with Lacquered Finish

  • Laser Unit Size:

    190×286×313mm (7.48”×11.26”×12.32”)

  • Package Size:

    55×32.5×18cm (21.65”×12.80”×7.09”)

  • Machine Weight:

    4.32kg

  • Package Weight:

    5.9kg

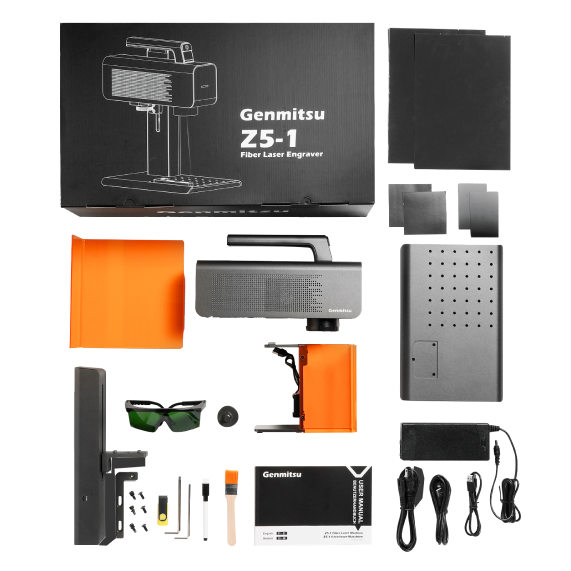

What is in the box?

1x Laser Module

1x Electric Lifting Stand

1x Baseboard

1x Positioning Plate

1x Fixing Knob

1x Handheld Support Module With Air Fan

1x Acrylic Laser Protective Shield

1x DC 12V/10A Power Supply

1x USB Drive

1x 500mm Length USB Cable For Electric Lifting Stand

1x 1500mm Length USB Cable For PC

1x Goggles

2x Scratch Art Paper, Test Cards, Draft Pieces

1x Screw sets, Allen Wrench, Marker Pen, Brush

1x User Manual

Customer Reviews
4.0 Based on 8 Reviews
5 ★
38%
3
4 ★
25%
2
3 ★
37%
3
2 ★
0%
0
1 ★
0%
0
Customer Photos
i
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
RS
09/02/2023
Robert S.
United States United States

Awesome machine!

The software that came with it will take a learning curve but from reading the manual there is huge amount of things to make a task easy and setup quickly. Editing and creating is simple. This laser is incredibly fast! A line of text about 20 letters about 1/8 in tall with infill took about 3 seconds. I did one of the sample pictures and that took about a minute for 2 in square. I can't wait to see what else I can do with this machine!

SainSmart.com Z5-1 Fiber Laser Machine, 4K Marking Resolution, Fast Metal Marking Review
Was this helpful?  0    0
EW
06/30/2023
Eric W.

Easy to use and set up.

This machine feels and looks like good quality. It is very easy to use. The software is also easy to use. I have seen a lot of reviews saying the software is difficult to use. This is not true. If you are smart, It is very easy to use and set up. Pro tip: Take the lens cap off. It is the same color as the machine and will not laser engrave anything if you leave it on .

Was this helpful?  0    0
DK
05/17/2023
Daniel K.

Powerful unit for 2watt galvo. Works great. Software is the downside.

This is an amazing product. I was blown away comparing it to my x20 diode laser. High detail fast etching. Im not able to get it to etch wood just yet if capable. But great product. Things id love to see improvement on this or next model. External controller to connect to a phone app. Mac support Ability to use battery pack with a sd card or memory to make it just a little more handheld . Easy improvement would be a perameter table with all different types of materials. Its be great to have a picture of expected result and what settings to choose. The manual has some but its limited. Id love the etch range to be 100x100 vs 70x70 The software is where this seems to fall off big time but its better than the competetors by having it translated and mostly working as ive had it crash a few times. Lastly a grid should be etched on the cutplate so we know exactly where it can and cant etch. Pipe dream. A camera built in so you can timelapse and do augmented reality in the app so you can line up etching 100% and the ability to replace fans with wuieter ones. Its not too loud but its noticeable makingbit modular would be game changing.

Was this helpful?  0    0
