Making custom knife scales is a good example of what a desktop CNC router can do beyond signs, engraving, and basic 2D cutting. Starting with an existing knife blank, you can build a digital reference, test the fit with a prototype, and then machine a completely custom handle design.

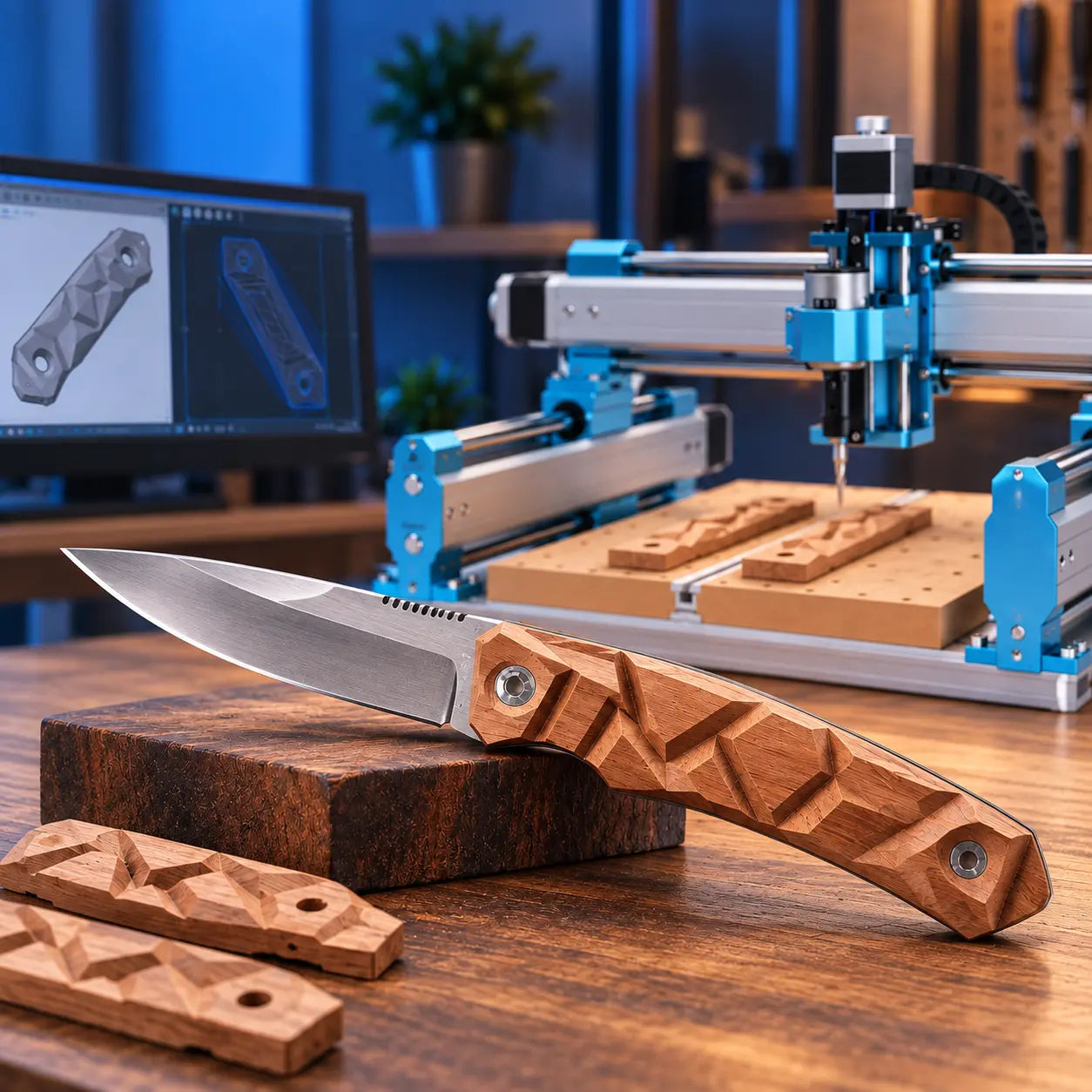

That is exactly what Afilab | Laboratorio del Filo did with an unused Remington knife blank. The blade was made in the USA and still showed visible machining marks, but it had no finished handle. Rather than installing an off-the-shelf replacement, Afilab designed and machined a new pair of wooden scales using a Genmitsu 4040-PRO CNC Router.

The project became Afilab's most complex CNC project to date and shows a practical workflow for turning a real-world object into a fitted, CNC-machined component.

How Do You Make Custom Knife Scales with a CNC Router?

The basic workflow used in this project can be broken into five stages:

1. Create an accurately scaled digital reference of the knife blank.
2. Design a simple prototype to test the dimensions and mounting holes.
3. Refine the handle geometry in Autodesk Fusion.
4. Simulate the CNC toolpaths before machining.
5. Machine the final scales using roughing and finishing tools.

The important part is that the final decorative design comes only after the critical dimensions have been verified. For fitted CNC components, confirming the basic geometry first can save time and material later.

Step 1: Create an Accurate Reference from the Knife Blank

The first challenge was getting the physical knife blank into a digital workspace.

Because Afilab did not have an original CAD model of the blade, a simple photographic reference was used instead. The knife blank was photographed next to a ruler, giving the image a known real-world measurement.

The image was then imported into Autodesk Fusion and scaled until the ruler in the photograph matched its actual dimensions.

Once the scale was correct, the outline of the handle area and the existing mounting-hole positions could be used as references for the new knife scales.

Why Use a Photograph as a CNC Reference?

This method can be useful when you want to reproduce or design around an existing physical part but do not have the original technical drawing or CAD file.

The photograph does not replace precise measurement for every project, but it can provide a practical starting point for establishing the overall profile and locating important features.

For Afilab's knife scales, the most important details were the outer shape of the handle area and the locations of the mounting holes.

Step 2: Make a Prototype Before the Final CNC Cut

Instead of immediately machining the finished tactical-style scales, Afilab first created a much simpler prototype.

The goal was not appearance. The prototype was used to answer two important questions:

• Does the overall scale shape match the knife blank?
• Do the mounting holes align with the existing pin locations?

The first attempt did not fit correctly.

That test was still useful because it revealed where the digital model needed to be corrected. After adjusting the dimensions, Afilab produced a second prototype that was almost perfect.

This iterative process is one of the biggest advantages of combining CAD with desktop CNC machining. Instead of discovering a dimensional error after hours of detailed finishing work, the critical fit can be tested using a simpler version first.

Step 3: Design the Final Knife Scales in Fusion

Once the basic fit was confirmed, Afilab returned to Fusion and developed the final scale design.

The finished model introduced geometric reliefs and angled surfaces that gave the handle a much more distinctive tactical appearance.

Although the final surface looks considerably more complicated than the original prototype, Afilab explained that the design itself was created with only a few relatively basic Fusion operations.

That is a useful lesson for CNC design: visually complex geometry does not always require an equally complicated CAD workflow. A small number of carefully planned operations can create detailed three-dimensional surfaces.

Step 4: Simulate the CNC Toolpaths Before Machining

Before sending the project to the CNC router, Afilab simulated the machining process in Fusion.

CAM simulation provides an opportunity to review the cutting sequence before any material is removed. For a fitted component such as a knife scale, this is particularly important because a small error in the profile or mounting-hole location may prevent the part from fitting the original blank.

Simulation can also help verify:

• Machining order
• Tool movement
• Cutting areas
• Clearances
• Whether the final geometry matches the intended design

Combined with the earlier physical prototype, simulation added another verification step before the final material was machined.

Step 5: Machine the Knife Scales with the Genmitsu 4040-PRO

Afilab machined the scales using the Genmitsu 4040-PRO.

Three different CNC bits were used throughout the project, allowing different tools to handle the main machining operations and the finer details.

Using a Ball-Nose Bit for Fine Details

For the final detailed machining, Afilab used a 1.5 mm ball-nose bit.

The rounded profile of a ball-nose cutter makes it well suited to machining contoured surfaces and smaller three-dimensional reliefs. In this project, it was used to produce the finer geometric details across the scale surface.

The project illustrates how a desktop CNC router can be used for more than flat engraving. With an accurate CAD model and a planned machining strategy, the same machine can produce fitted parts, prototypes, contoured surfaces, and small custom components.

Why Prototype CNC Parts Before Final Machining?

The prototype stage may be the most important part of this project.

A finished knife scale combines two different requirements: it needs to look good, but it also has to fit an existing physical object accurately.

By separating those problems, Afilab reduced the risk of the final machining process:

This type of workflow is useful for many CNC projects involving existing objects, not just knife handles. The same approach can be applied whenever a custom component needs to match an existing part accurately.

What CNC Makers Can Learn from This Project

1. Start with an accurate reference. A known measurement helps translate a physical object into CAD.
2. Test critical dimensions before adding detail. Verify the shape and mounting points with a simple prototype first.
3. Expect to revise the model. The first prototype does not need to be perfect to be useful.
4. Simulate before machining. CAM simulation provides another opportunity to identify problems before cutting.
5. Match the cutter to the operation. Larger operations and fine three-dimensional details may benefit from different CNC tools.
6. Build complexity gradually. Confirm the functional geometry before spending time on decorative surfaces.

From a Physical Part to a Custom CNC Component

What makes this project interesting is not simply the finished knife handle. It is the complete digital manufacturing workflow behind it.

Afilab started with a physical object that had no available CAD model, created a scaled digital reference, tested the dimensions with prototypes, refined the design in Fusion, simulated the machining process, and finally produced the scales on a desktop CNC router.

For makers interested in producing custom fitted parts, prototypes, or three-dimensional woodworking projects, the Genmitsu 4040-PRO CNC Router provides a platform for taking a design from Fusion to a physical part on the workbench.

Watch the Full Afilab Project

See how Afilab transformed the original unfinished blade into the completed project in From Forgotten Blade to Tactical Knife—CNC Machined.
