What Is ATC (Automatic Tool Change)?
If you've spent any time running a CNC router, you know the drill — literally. Mid-job, the machine stops, you walk over, manually swap the bit, re-zero the Z-axis, and start again. For a one-off project, that's manageable. For a shop running production jobs day after day, it's a bottleneck that quietly eats your time and margin.
ATC — Automatic Tool Change — solves this. An ATC-equipped CNC machine stores multiple cutting tools in a carousel or rack and swaps between them automatically during a job, following the G-code program. No manual intervention. No re-zeroing. The machine just keeps cutting.
The result: complex multi-tool jobs run start-to-finish without stopping. You can rough, detail, and finish in a single program. Your machine runs while you focus on the next job, the next customer, or the next design.
Why ATC Matters for Small Shops
ATC used to be an industrial-only feature — expensive, oversized, and out of reach for small businesses. That's changed. Today, ATC is the upgrade that separates a hobby machine from a production-capable shop tool. Here's what it unlocks:
- Faster cycle times — eliminate manual tool-change stops between operations
- More complex jobs — confidently quote multi-tool projects (roughing + V-carving + finishing in one run)
- Better repeatability — automatic tool setting means consistent results across every part
- Less operator fatigue — your machine does more; you do less standing and waiting
- Higher throughput — run longer programs unattended, batch more parts per shift
What Is the Genmitsu PRONAX ATC System?
The Genmitsu PRONAX line is built specifically for small businesses and serious makers who are ready to move beyond entry-level CNC. PRONAX machines are designed around one core idea: production-minded performance without industrial price tags or footprints
The PRONAX ATC system — powered by the NAX5 5-slot tool changer — brings true automatic tool change to a compact, shop-friendly CNC platform. Here's how the lineup breaks down:
PRONAX Spark 6090 — ATC Production Within Reach
The Spark 6090 is the entry point into PRONAX ATC. With a 600 × 900 mm working area, it's sized for sign shops, woodworking studios, and small manufacturers who need a larger platform for repeatable work. It's the machine for shops that have outgrown their desktop CNC and want a professional upgrade without overspending.
- Working area: 606 × 911 × 119 mm
- 2.2kW air-cooled spindle, up to 24,000 RPM
- Ball screw drive (X/Y: 1605 · Z: 1204) + HG20 linear rails
- Closed-loop NEMA24 motors, 3.5 N·m torque
- NAX5 5-slot ATC system compatible
- GRBL 1.1f controller, offline operation supported
- ±0.02 mm accuracy · ±0.005 mm repeatability
- Weight: 62.3 kg
PRONAX Forge 8080 — Larger Capacity for Daily Shop Output
The Forge 8080 steps up to an 800 × 800 mm working area for shops that need to handle bigger panels, furniture components, fixtures, and batch production parts. If your jobs are getting larger and manual tool changes are becoming a real bottleneck, the Forge is built for you.
- Working area: 804 × 810 × 120 mm
- 2.2kW air-cooled spindle, up to 24,000 RPM
- Ball screw drive (X/Y: 1605 · Z: 1204) + HG20 linear rails
- Closed-loop NEMA24 motors, 3.5 N·m torque
- NAX5 5-slot ATC system compatible
- GRBL 1.1f controller, offline operation supported
- ±0.02 mm accuracy · ±0.005 mm repeatability
- Weight: 68.5 kg

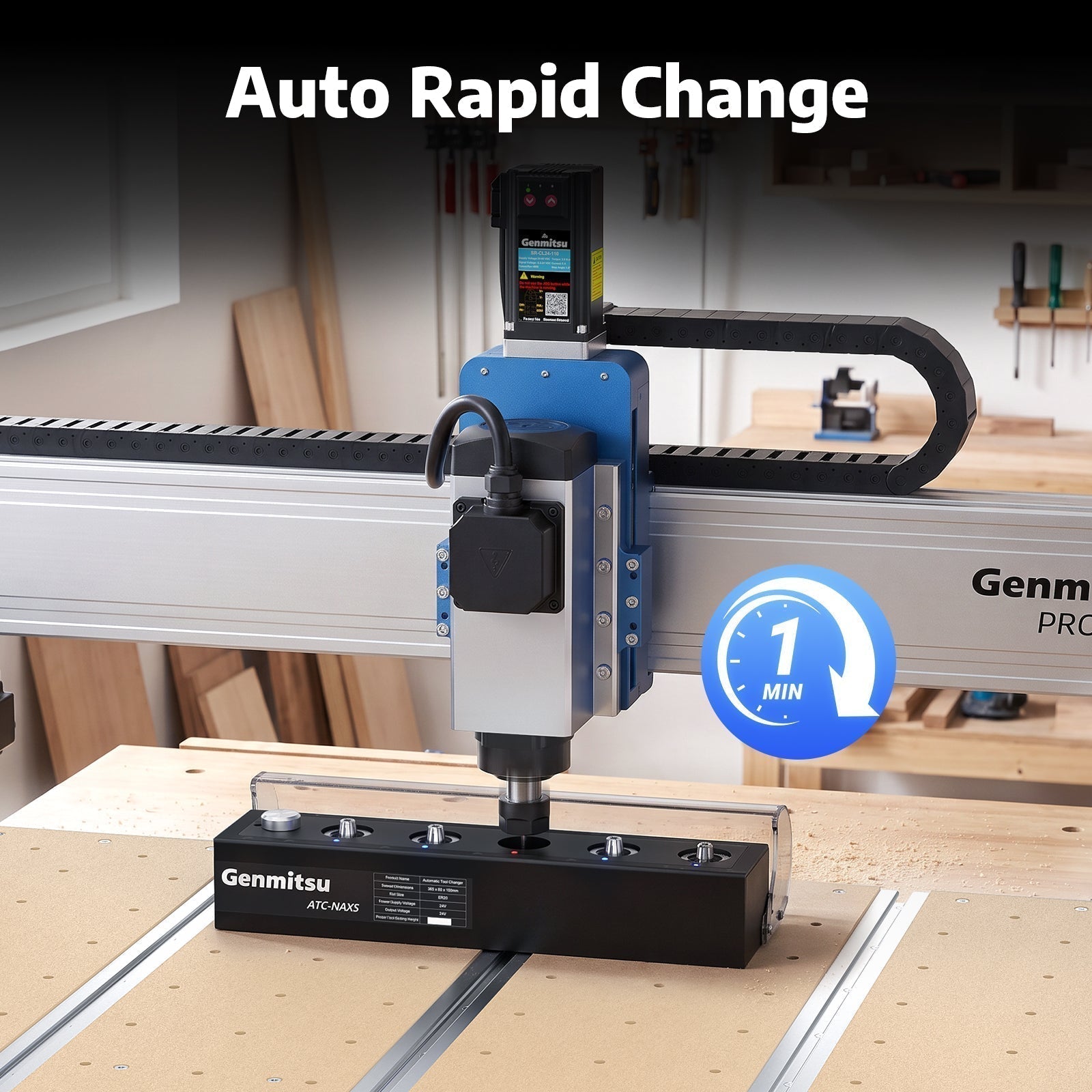

NAX5 ATC System — The Tool Changer Behind It All
The NAX5 is the 5-position automatic tool change box that powers the PRONAX ATC workflow. It holds up to 5 tools — roughing end mills, V-bits, finishing bits, whatever your job calls for — and swaps between them automatically. From roughing to finishing in one uninterrupted workflow.
Why Choose PRONAX?
There are plenty of CNC machines on the market. Here's why PRONAX stands out for small business production:
- True ATC at a small-shop price — industrial-grade tool changing without the industrial footprint or cost
- Full metal frame — rigid construction for consistent accuracy across long production runs
- Closed-loop motors — NEMA24 closed-loop steppers prevent lost steps and protect your work
- Semi-assembled, ready fast — assembly in under 30 minutes; you're cutting the same day
- Offline operation — run jobs without a tethered computer; free up your workstation
- Expandable platform — MPG handwheel, 4th axis, dust shoe, vacuum fixture all supported
- Software flexibility — works with Fusion 360, VCarve, gSender, and any standard G-code output
- Rated 4.8/5 stars — by verified buyers running real production work
Is PRONAX Right for You?
If you're running a sign shop, woodworking studio, custom parts business, or any small manufacturing operation — and manual tool changes are slowing you down — PRONAX is built for exactly where you are. It's the machine you buy when jobs are getting more complex, customers expect consistency, and you're ready to run a real production workflow.
Not sure which model fits your shop? Take our 30-second ATC challenge to test your knowledge and unlock an exclusive discount on your first PRONAX order.
