The High Pass / Low Pass filter function helps engineers rule out insignificant frequency so as to eliminate interference and observe the true state of the signal.
When measuring on multiple channels, users can have different labels for different sources to facilitate observation and reading.
Under the Color Temperature display, the trace occurrence is represented by different colors as opposed to changes in the intensity of one color. Red colors represent more frequently occurred events, while the blue represents less frequent ones.
High Waveform Update Rate
Waveform update rate up to 130,000 wfms/s, the STO1000 series can easily capture unusual or low probability events.
Powerful Trigger Functions
Support Edge, Pulse, Logic, N Edge, Runt, Slope, Timeout, Video and Serial trigger, most intuitive trigger, fast trigger source switching.
Serial Bus Decoding
Support UART, LIN, CAN, I²C, SPI serial bus decodings, display waveform, and data at the same time.
Universal Probe Interface (UPI)
Micsig UPI, which directly powers Micsig DP750 series differential probes or similar probes from other brands.

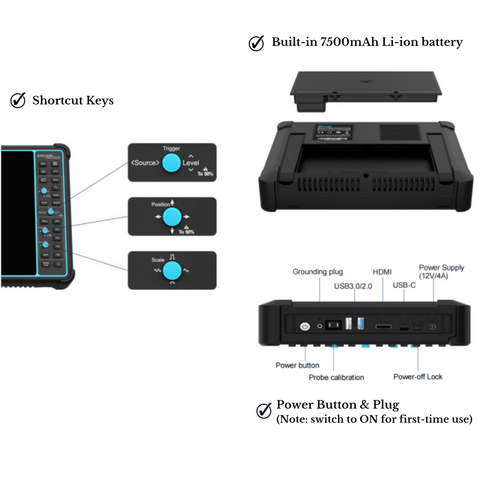

Integrated Control Panel
Innovative multifunction navigation buttons, deliver quick and accurate control.
Large 32GB Internal Storage
Allow users to store and access mass files, such as waveforms, screenshots, and recorded videos.

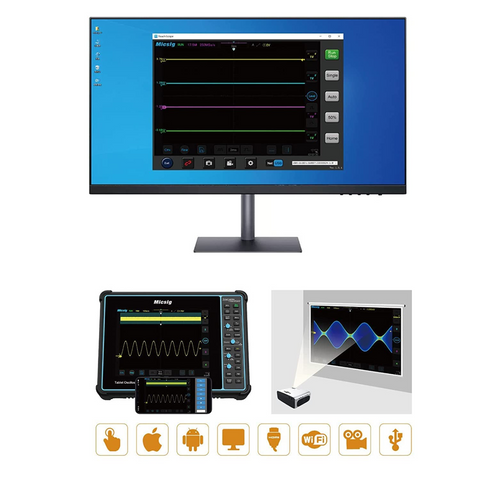

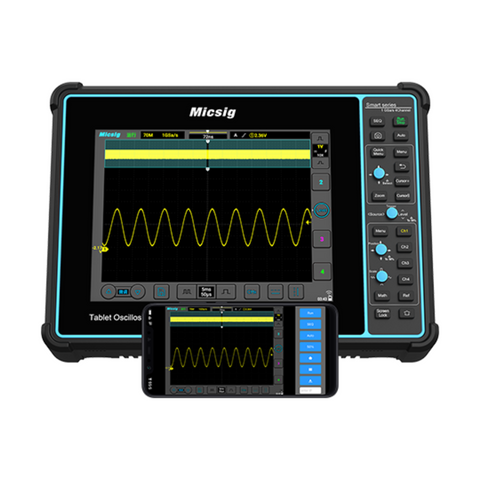

Support PC software + Mobile phone App (Android / iOS) remote control via connections of Wi-Fi, USB, able to access internet for an online upgrade, it also can be projected through HDMI port for demonstrations for training and education purpose.
