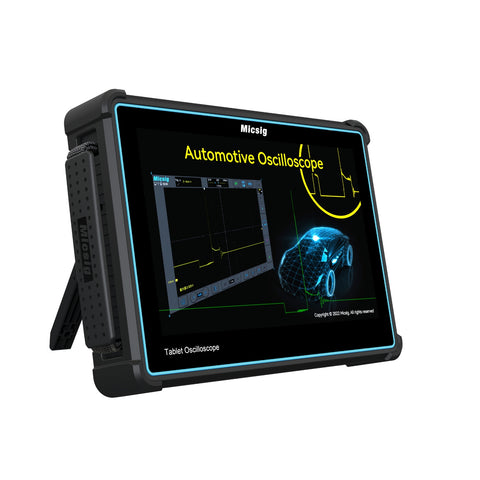

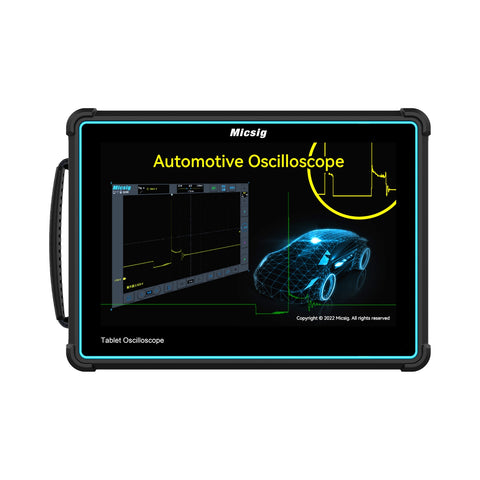

Micsig ATO-Series Automotive Tablet Oscilloscope 4 Channels 100MHz, ATO1004A

Micsig ATO-Series Automotive Tablet Oscilloscope 4 Channels 100MHz, ATO1004A

SKU:  101-10-ATO1004A
Regular price $999.99
-Liquid error (snippets/price line 93): divided by 0 Regular price Sale price $999.99
Free Shipping
Shipping calculated at checkout.
Option
Ship to

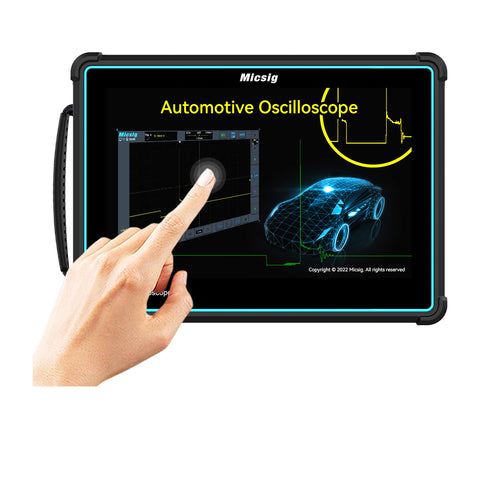

[Upgraded Touchscreen] Large 10.1-inch all-in-one touchscreen with 1280 x 800 resolution and 11x10 grid.

[Convenient Storage] Easily store waveforms, pictures, and videos with ease, with a maximum 110Mpts storage depth.

[Long Battery Life] Works without interruption with a 7.4V, 7500mAh battery, and supports up to 5 hours of continuous working battery life (varies by model and power consumption).

[Multiple I/O Ports] Includes Wi-Fi, Type-C, LAN, HDMI, USB Host/Device GND, and DC Power for easy connectivity to other devices.

[Various Diagnostic Tests] The ATO1004A supports the various automotive diagnostic test: ignition, sensors, actuators, networks, charging circuits, starter circuits, and communication tests. (including CAN, LIN, FlexRay, K, etc. ), and pressure test (cylinder pressure, intake, and exhaust pressure, fuel pressure, etc.)

View full details
Micsig Digital Automotive Tablet Oscilloscope ATO1004

The Micsig ATO1004 Automotive Oscilloscope is a a state-of-the-art digital oscilloscope with a large 10.1-inch LCD display and intuitive touch screen interface. Equipped with integrated automotive diagnostic software, this oscilloscope offers a comprehensive range of diagnostic tests specifically designed for the automotive industry.



  • Charging / Start Circuit Tests: Support 12V & 24V charging/start, Charging Ripple, Cranking Current, and other tests
  • Various Sensor Tests: Supports testing of ABS, Accelerator Pedal, Throttle Position, Fuel Pressure, Air Flow meter, Crankshaft, Camshaft, Knock, MAP, etc.
  • Actuators: One press to get signals, Fast and Easy. Support various Actuator tests: multiple fuel injector voltages and currents, fan control signals, variable valve timing, carbon canister solenoid valves, EGR solenoid valves, etc.
  • Ignition: Including Primary ignition, Secondary ignition, and combined Primary+Secondary ignition tests.
  • Combination Tests: Multiple channels of the oscilloscope can be measured together to perform a variety of combined tests, such as the combined test of the Crankshaft and the Camshaft, or the combined test of the Primary Ignition and the Fuel Injector Voltage, etc.
  • Network: CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and K line



Technical Specifications



Model

ATO1004

Bandwidth

100MHz

Analog channel

4

Rise Time

≤3.5ns

Max. Sampling Rate

1GSa/s

Max. Memory Depth

110Mpts

Waveform capture rate (Max)

78,000 wfms/s

Input sensitivity range

1mV/div ~ 10V/div

Bandwith Filter

20MHz、 Low Pass (to 30KHz)

Segmented Storage

Not Support

Input impedance

1MΩ

Timebase range

2ns/div ~ 1ks/div

Support Test

Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests

Bus decoding

UART、CAN、CAN FD、LIN、SPI、I²C

Interfaces

Wi-Fi、USB 3.0/2.0 Host、USB type-C、Grounding、HDMI、Trigger out

Storage

32GB

Display

10.1 Inch LCD capacitive touch display,1280*800 resolution,11*10 grids

Battery

7.4V、7500mAh Li-Ion battery / 5H lifetime

Size/Net weight

265*192*50mm / 1.9kg(with battery)



Comparsion


Micsig SATO1004

Micsig ATO1004

Internal Storage

32 GB

32 GB

Screen

8 inch

10.1 inch

Memory Depth

70 Mpts

110 Mpts

Operating System

Android

Android

Interfaces

Type C

Type C

Multi-function Probe Interface

UPI

UPI

Physical Button Control

Y

Full Touch Screen

Waveform Capture Rate (Max.):

130,000 wfms/s

78000 wfms/s

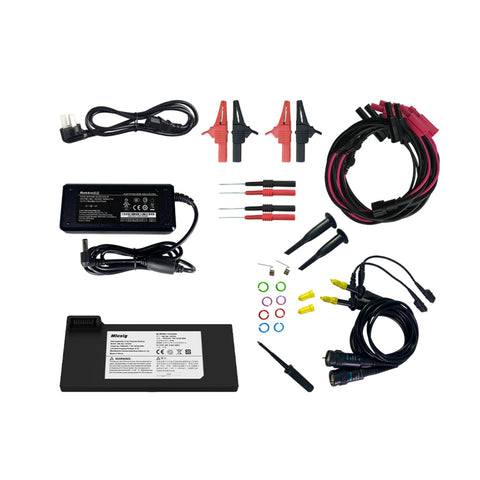

What's Inclued?
  1. 2 pcs for 10X standard probes (incl. grounding nut, grounding crocodile clip, standard rubber plug)
  2. 4 x BNC banana lines (4CH)
  3. 4 x alligator clips (4CH)
  4. 4 X Flexible needle (4CH)
  5. Power adapter (12V DC, 4A)
  6. Power cord
  7. Smart calibration certificate
  8. Smart packing list
  9. User Manual
