Brand: Genmitsu SKU: 101-63-X40-XFL10W

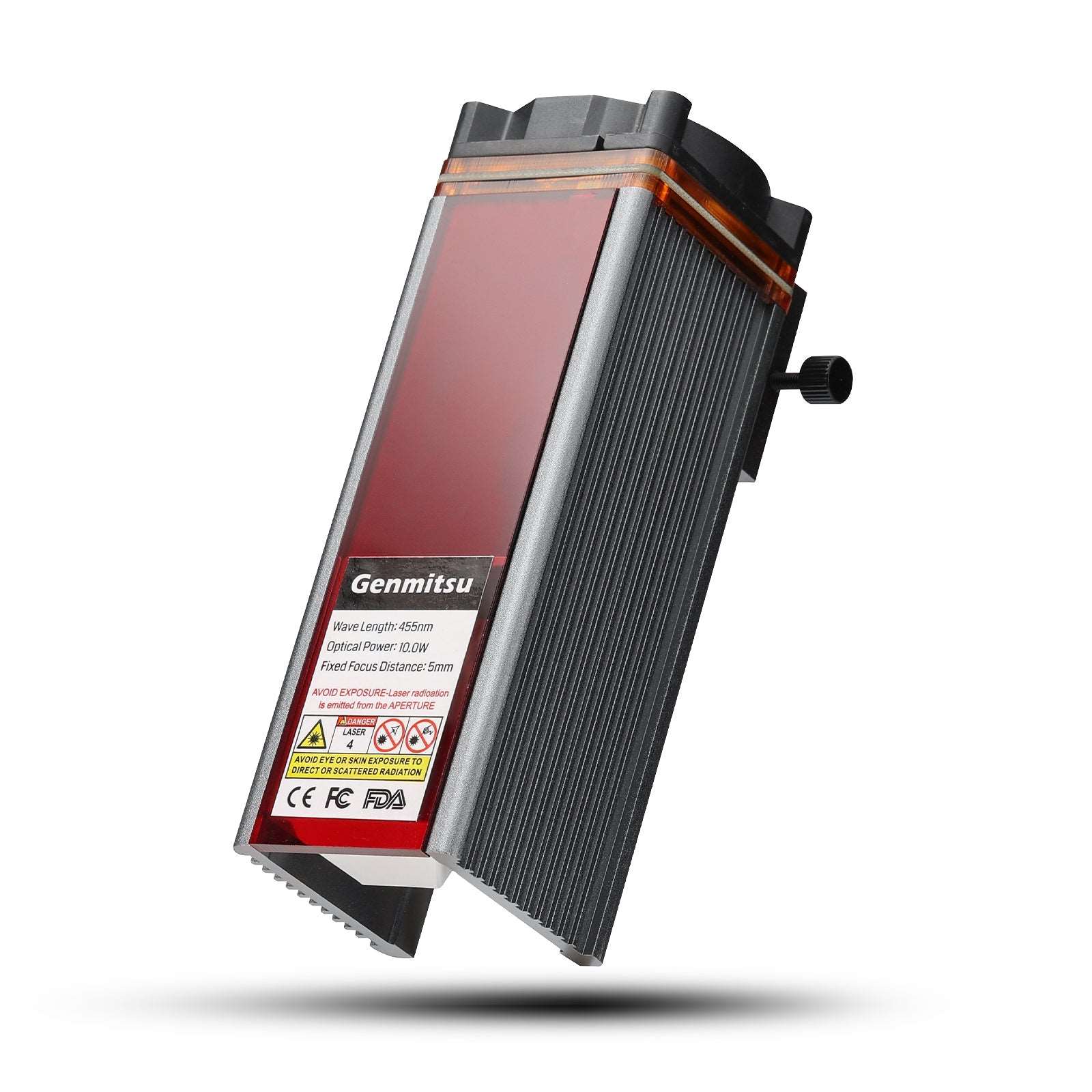

10W Laser Module For Jinsoku LC-40 Laser Engraver

SKU: 101-63-X40-XFL10W 4 reviews Variants ID: 40611240575055
$199.00
Free Shipping
Ship to
USA
  • Need More Power and Speed? Upgrade for your LC-40 5.5W machine! The LC-40 10W Compressed Spot Laser Module is an easy drop-in upgrade module. The best choice for getting the most out of your LC-40 machine.

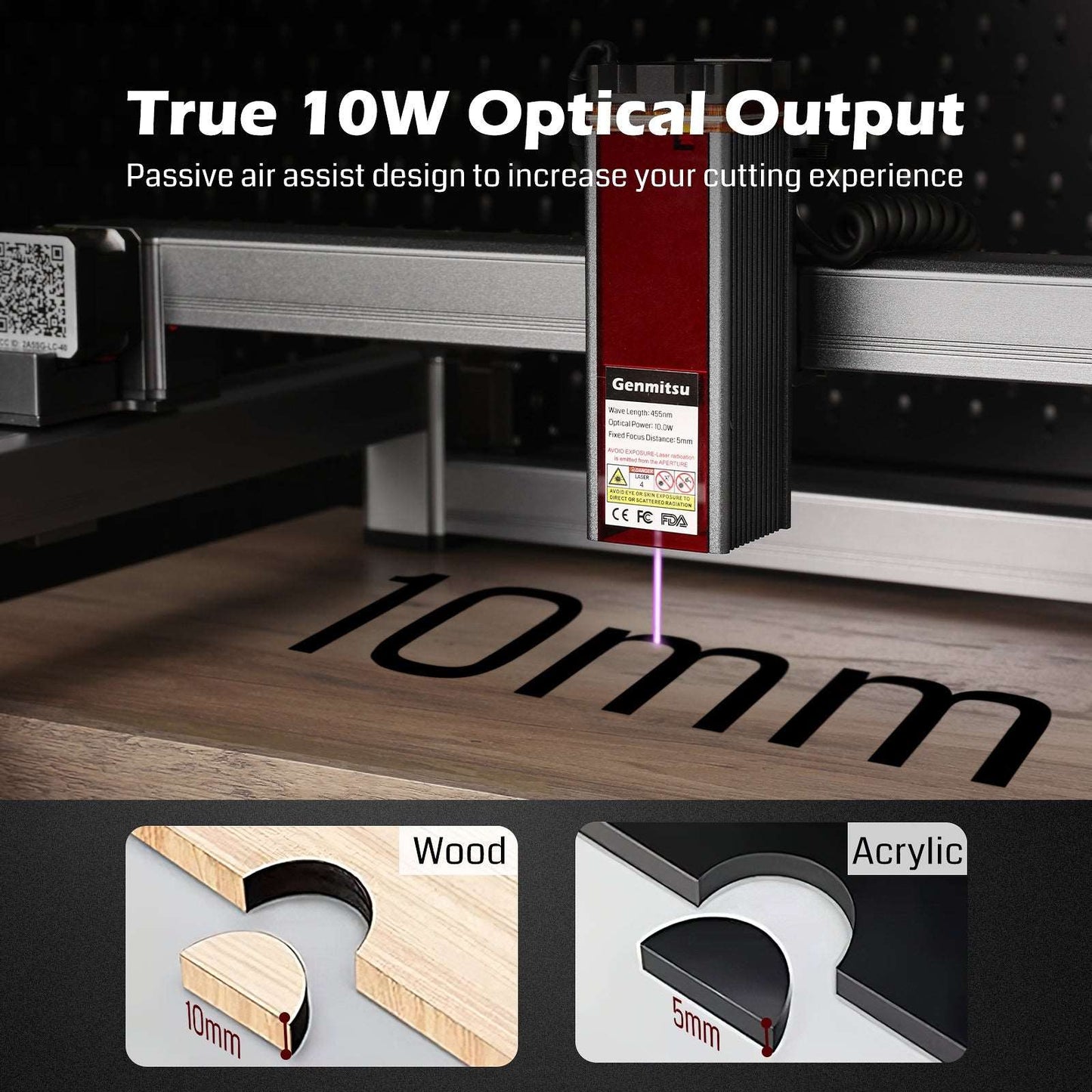

  • True 10W Optical Output: Adopting a laser spot compression technology, this new laser module has 10W continuous output power and increased detail capabilities. With higher power and performance than the standard 5W module, it allows you to cut thicker materials and get better results.
  • Higher Speed & Accuracy: Compressed spot technology enables an ultra-fine laser spot 0.08mm*0.06mm, this precision achieves higher engraving accuracy, cutting precision, and enables speeds up to 10200 mm/min. You can easily cut 10mm wood planks and 5mm acrylic sheets in one pass.

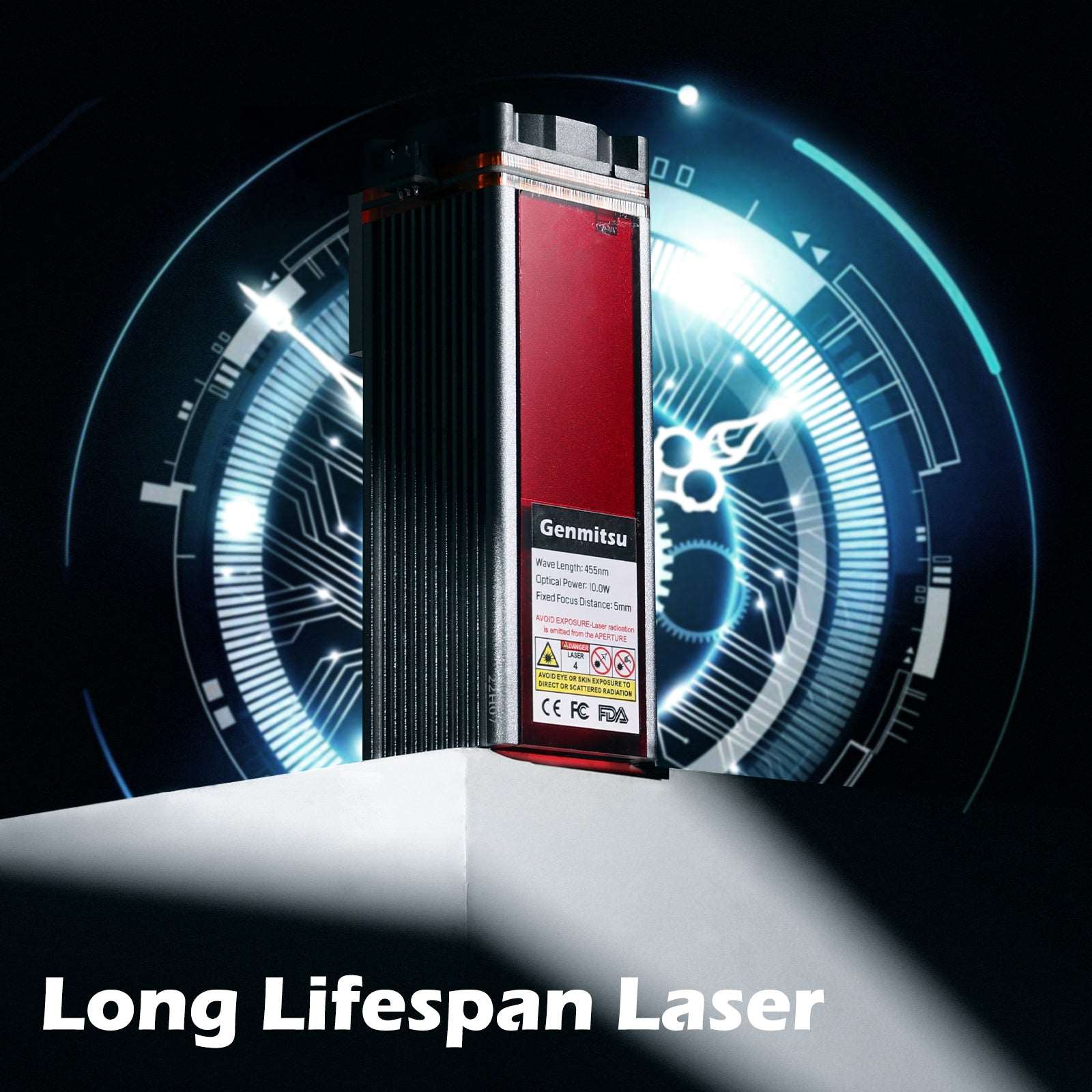

  • Long Lifespan: Fixed focus laser diode and upgraded heat dissipation design combined for a longer laser lifespan and high reliability.
  • Compatibility: Please notice that this laser module is designed for LC-40 5.5W machines only.




True Power and Performance

Work faster with more materials. The new LC-40 10W module will cut faster, deeper, and with more details.

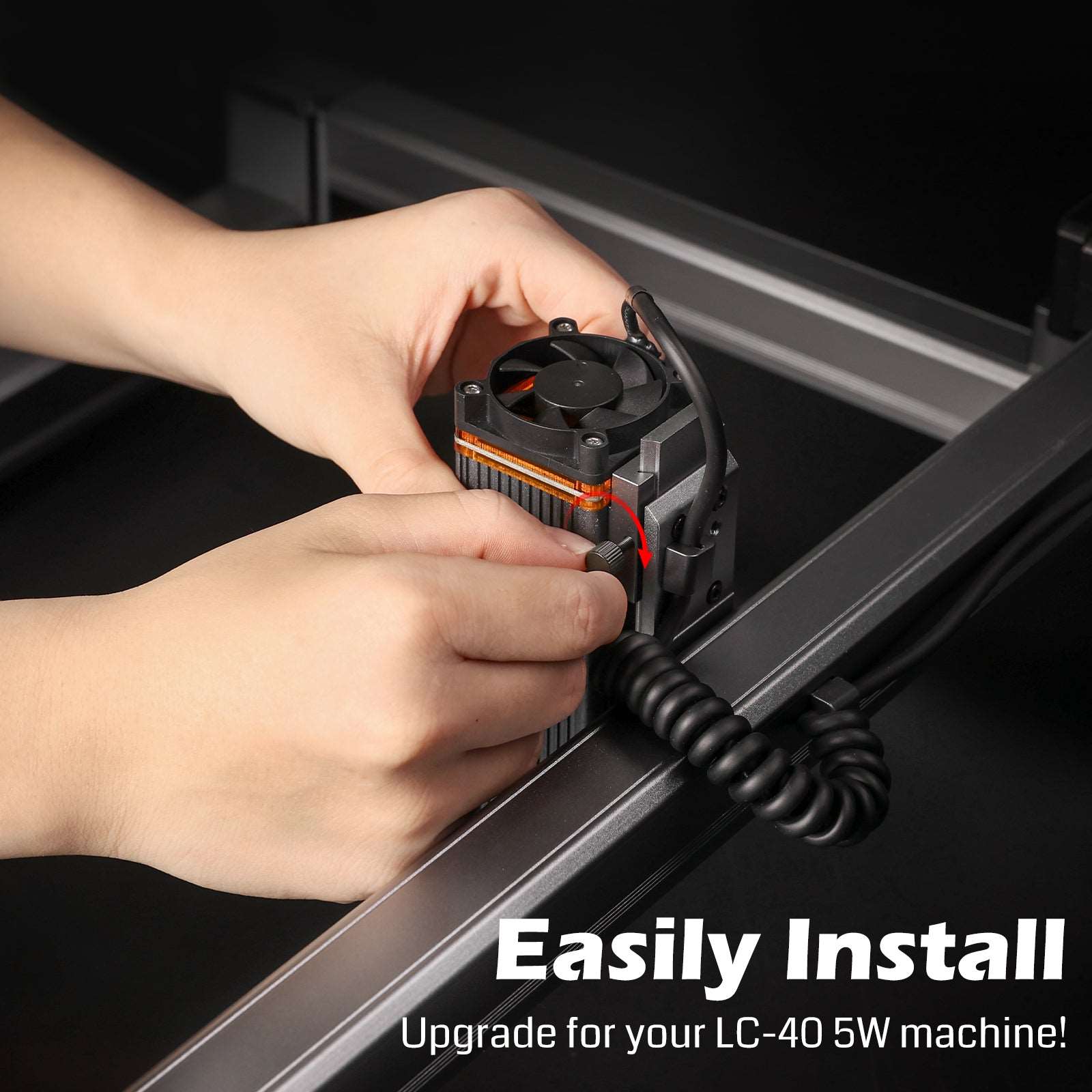

Easy to Upgrade

Swappable module, replace your LC-40 Laser with little effort and experience double the power output.



Improved Reliability

Upgraded heat dissipation and fixed focus configuration combined for longer life performance and reliability.



Passive Air Assist Design

Cleaner engravings with higher detail. The module also has a built-in UV shield for enhanced safety protection operation.



Best Warranty and Service

Experience the best customer service in the DIY Maker Industry, with support to keep your projects and your machine going.

SPECIFICATIONS

Jinsoku LC-40 Resource Download APP
Step by step to switch firmware.Adjust the belt tension
Machine Power<60W
Laser Electric Power10~20W (Standard);
20~40W (Upgradeable)
Laser Optical Power>4.5W (Standard);
>8W (Upgradeable)
Laser Wavelength455nm
Laser Service Time>10000H
Spot ShapePoint
Laser ControlPWM
APP Engraving Parameter Reference
Corrugated paperPower:25%, Speed: 100%
WoodPower: 70%, Speed: 100%.
Cork coastersPower: 40%, Speed: 100%.
PU leather coastersPower: 70%, Speed: 90%
Stainless SteelPower: 100%, Speed: 1%.
