[Discontinued] SainSmart DIY Kits 1Hz-50MHz Crystal Oscillator Frequency Counter Meter

Specification

• Frequency range: 1 Hz - 50 MHz
• Used to measure the oscillation frequency of the crystal.
• Five accuracy resolutions (e.g., 0.0050 kHz, 4.5765 MHz, 11.059 MHz).
• Automatic range conversion, without human intervention.
• Selectable power-saving mode: the display automatically turns off within 15 seconds if there is no significant change in frequency.
• Can use USB interface for power supply; can also use an external power supply or 9V battery.

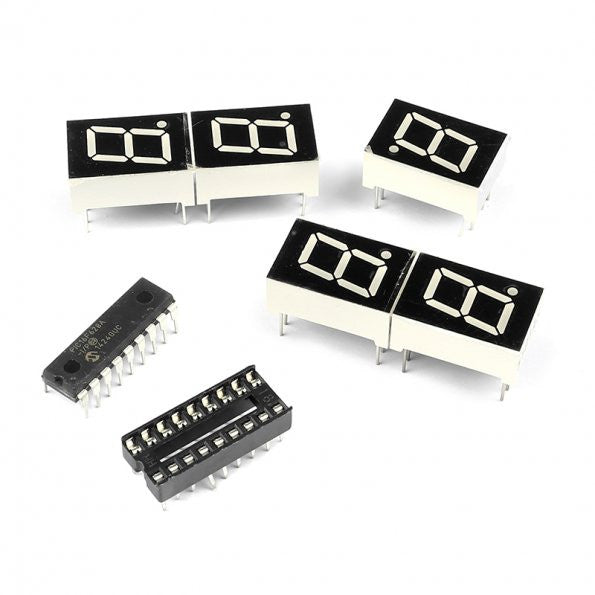

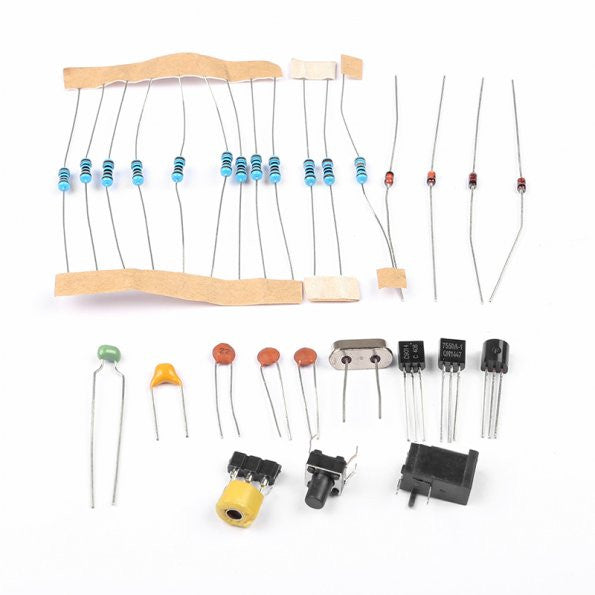

• Compact design with all DIP components for easy installation.

Note: DIY kits, not assembled.

Documents:
Click here to download the manual
