Brand: Genmitsu

[Discontinued] Air-assist Pump Kit for Laser Engraver & Laser Module

[Discontinued] Air-assist Pump Kit for Laser Engraver & Laser Module

SKU:  101-63-APUMP
5 reviews
Regular price $59.99
-Liquid error (snippets/price line 93): divided by 0 Regular price Sale price $59.99
Shipping calculated at checkout.
Ship to

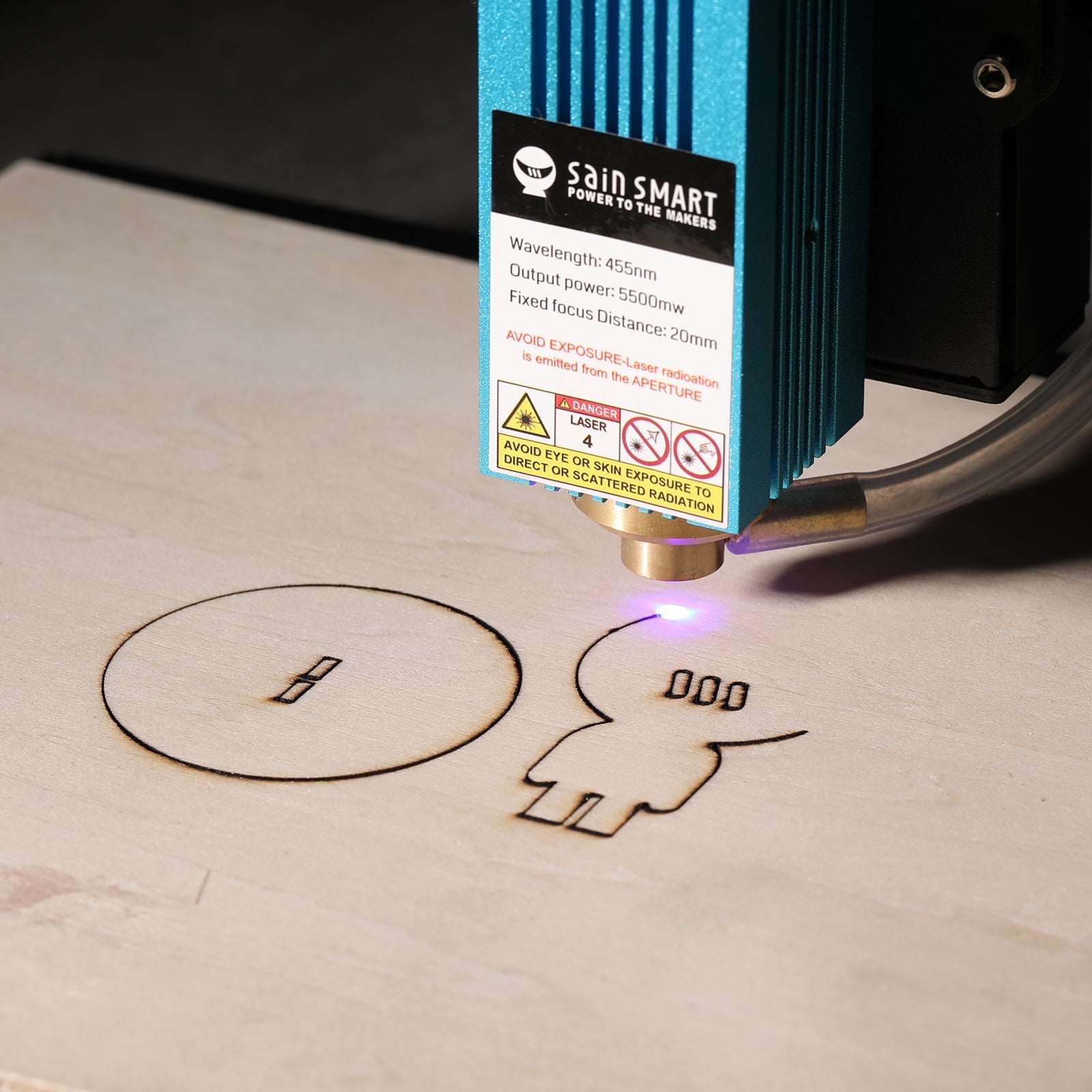

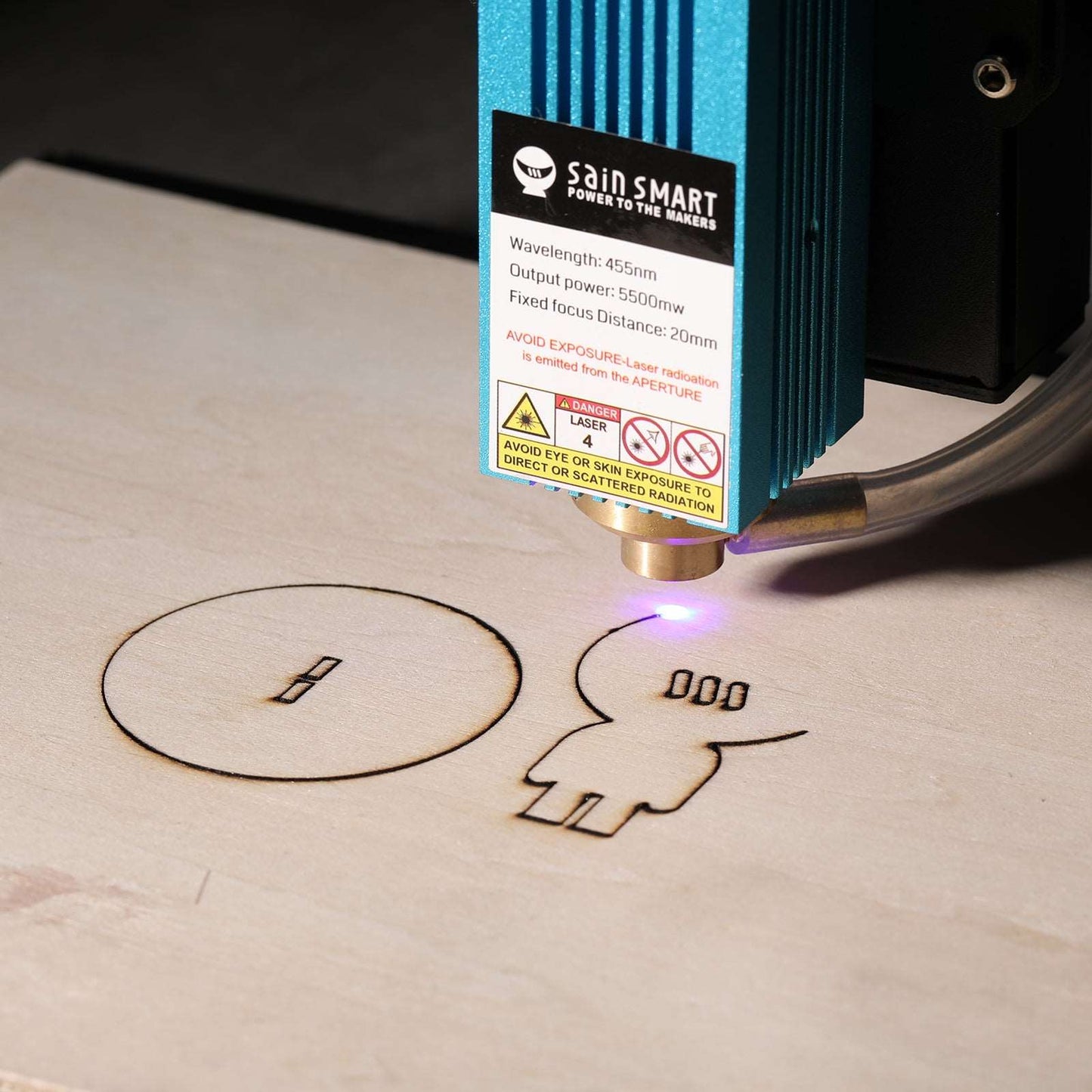

Cut Faster and Deeper: Equip an air-assist system on your laser engraver or laser cutter to enhance cutting by blowing residual smoke away from the workpiece for increased laser power and efficiency.

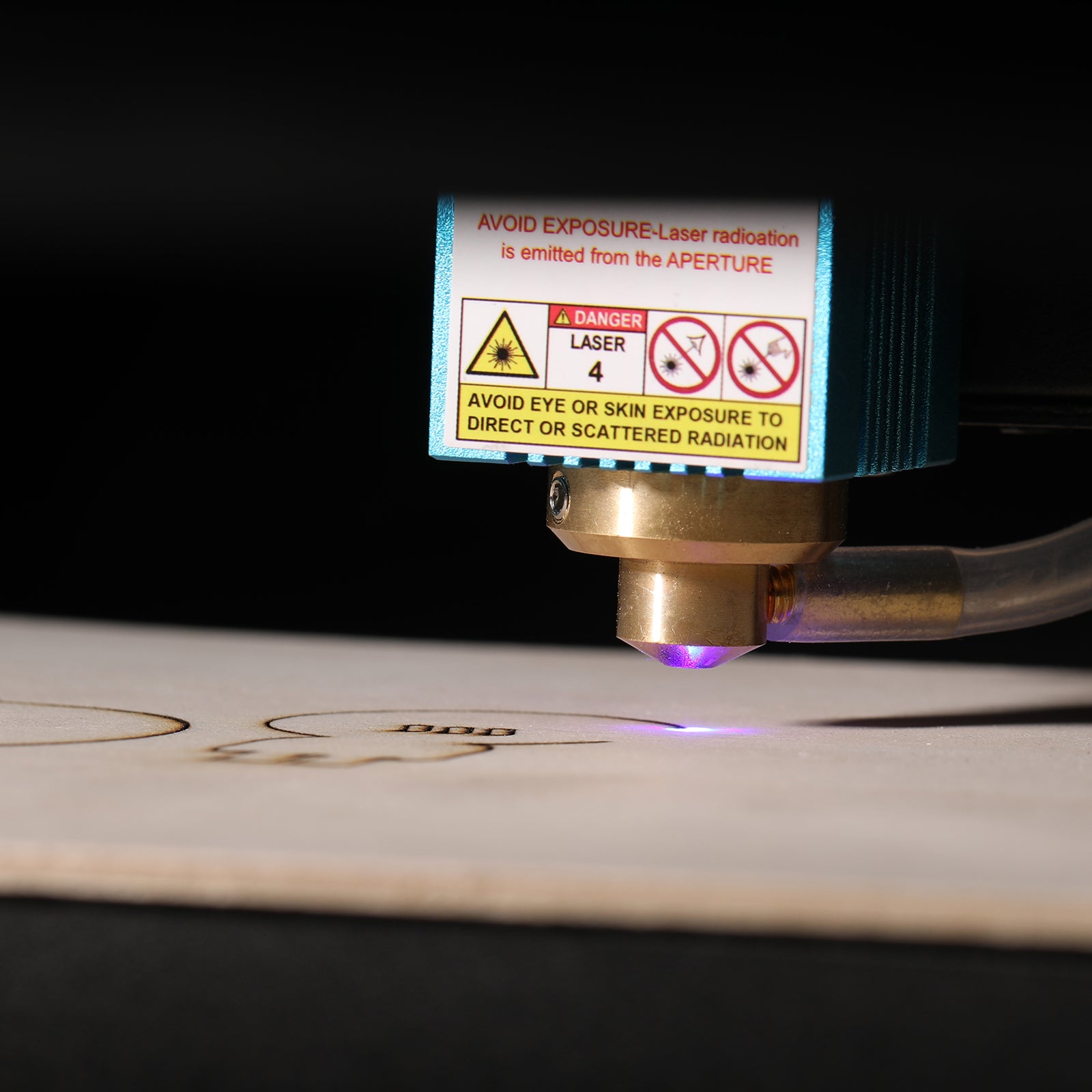

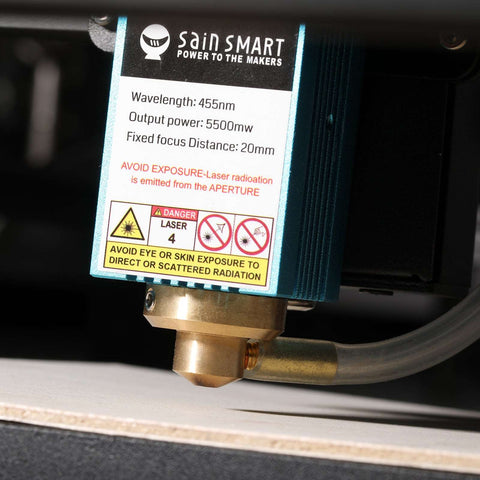

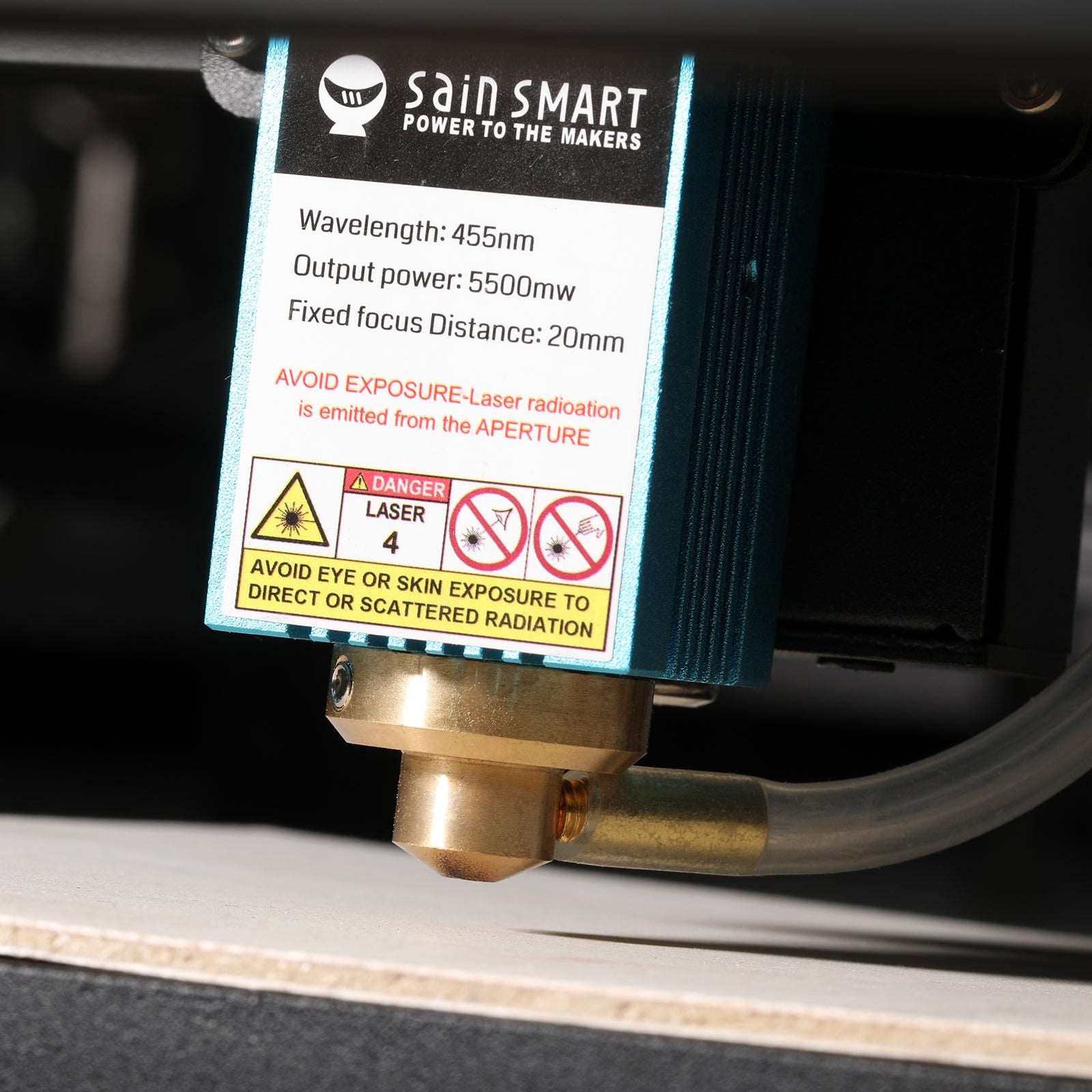

Better Lens Protection: The air assist nozzle can protect your laser lens from smoke residue buildup, improving its longevity and cutting efficiency.

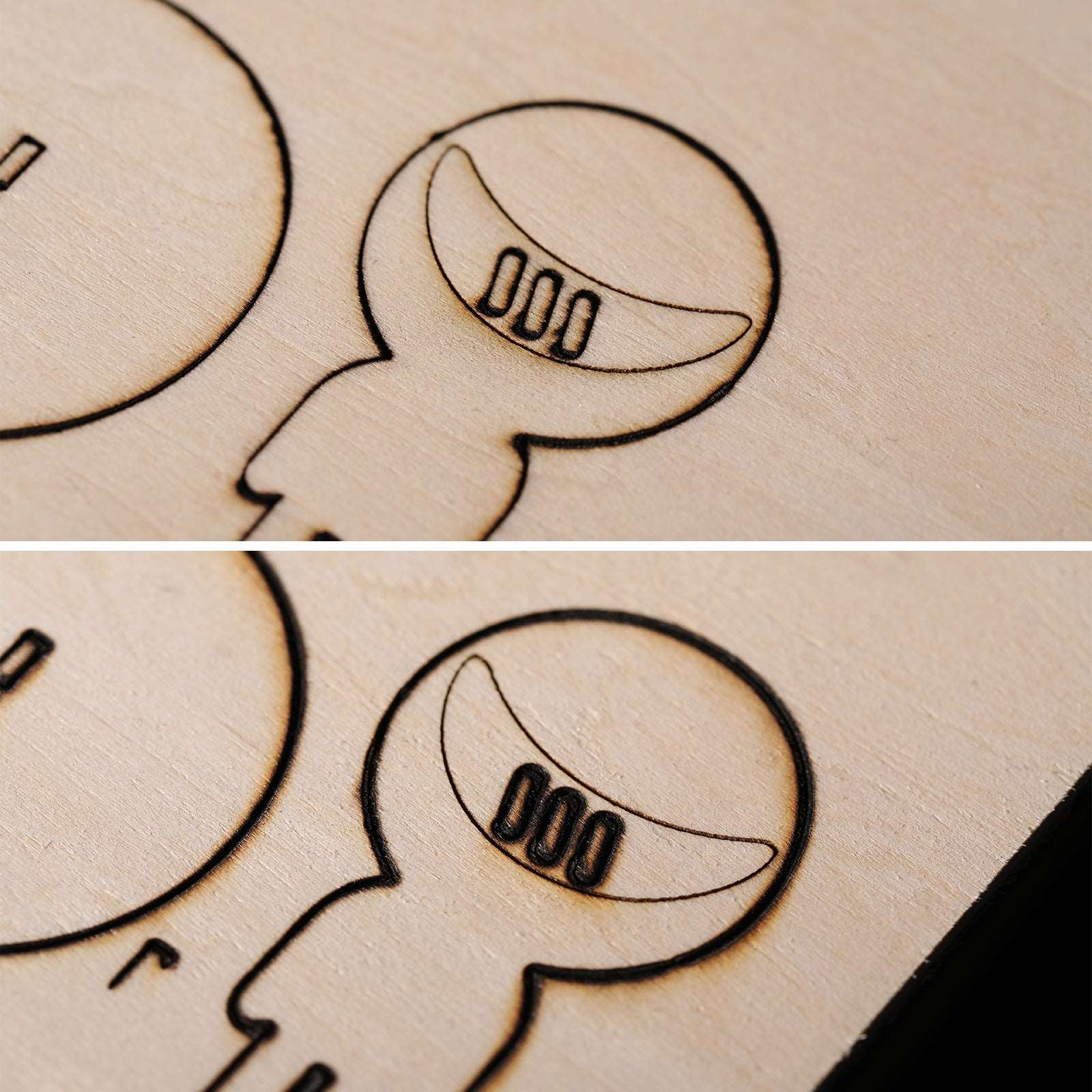

Clean and Smooth Finish: The air assist nozzle regulates the laser beam to be more precise and the airflow from the air pump helps cool down the heat generated, they combined to provide you a clean burn and cut finish.

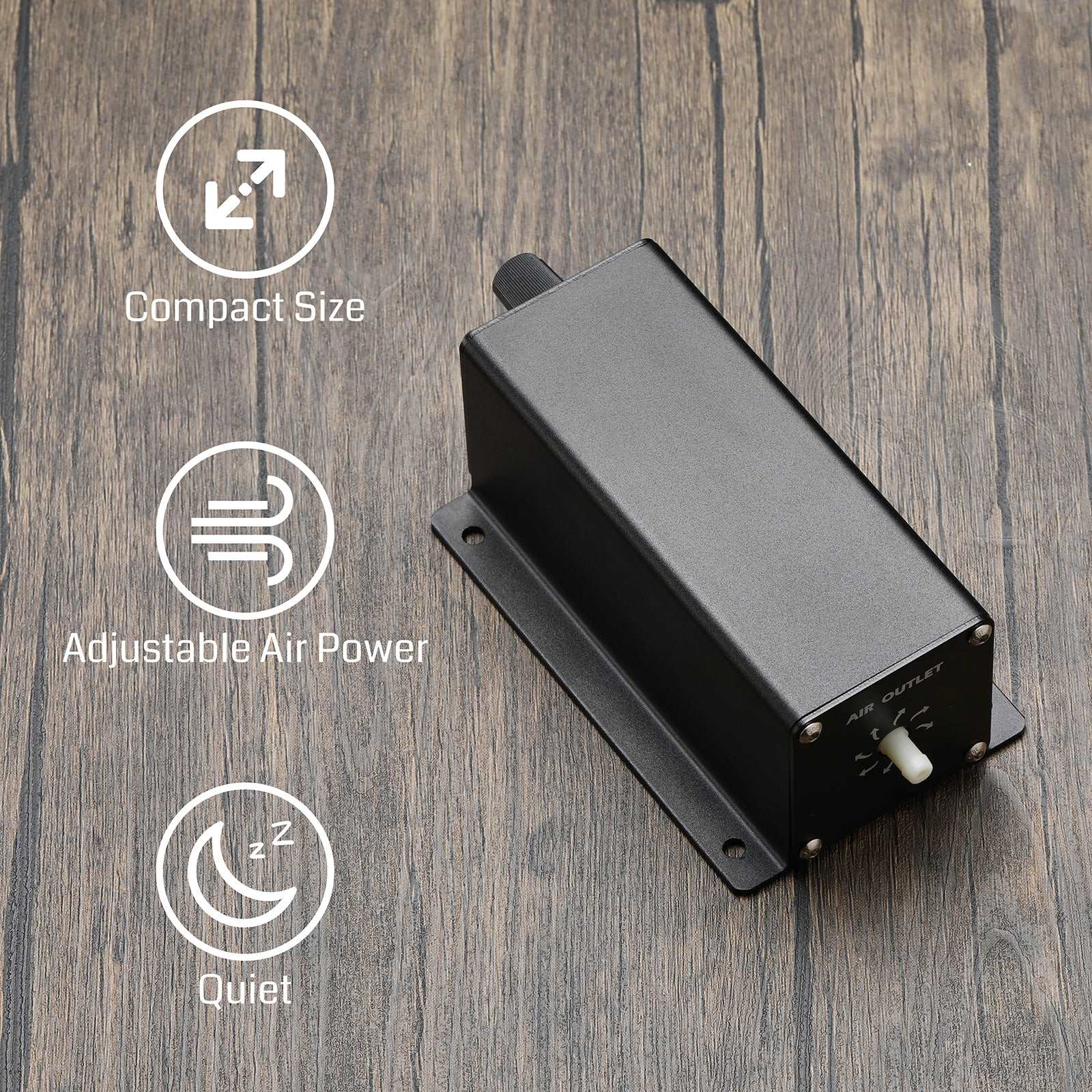

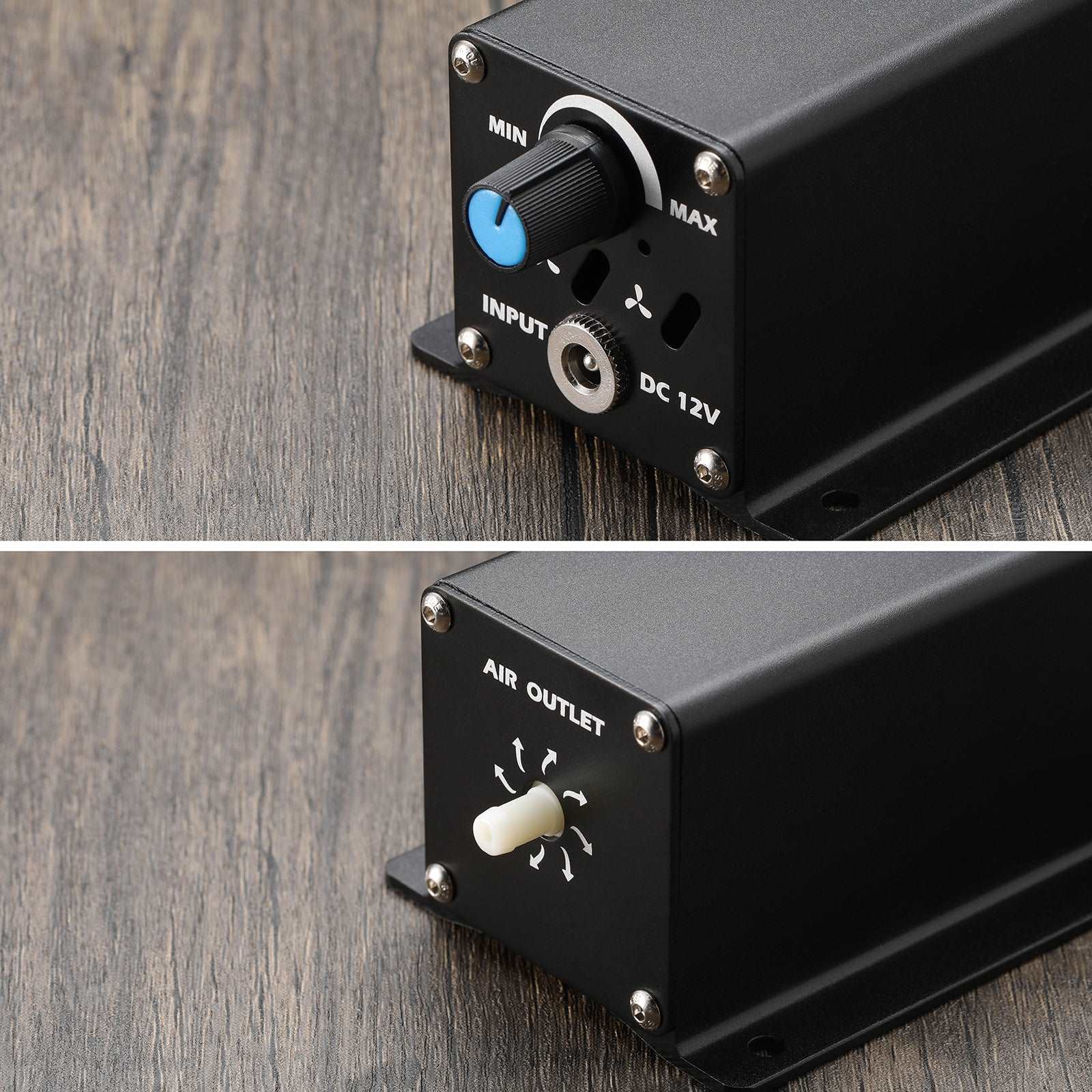

Adjustable Air Pressure: Find the optimal air pressure for your different working projects and tune it to the best with this Genmitsu air pump.

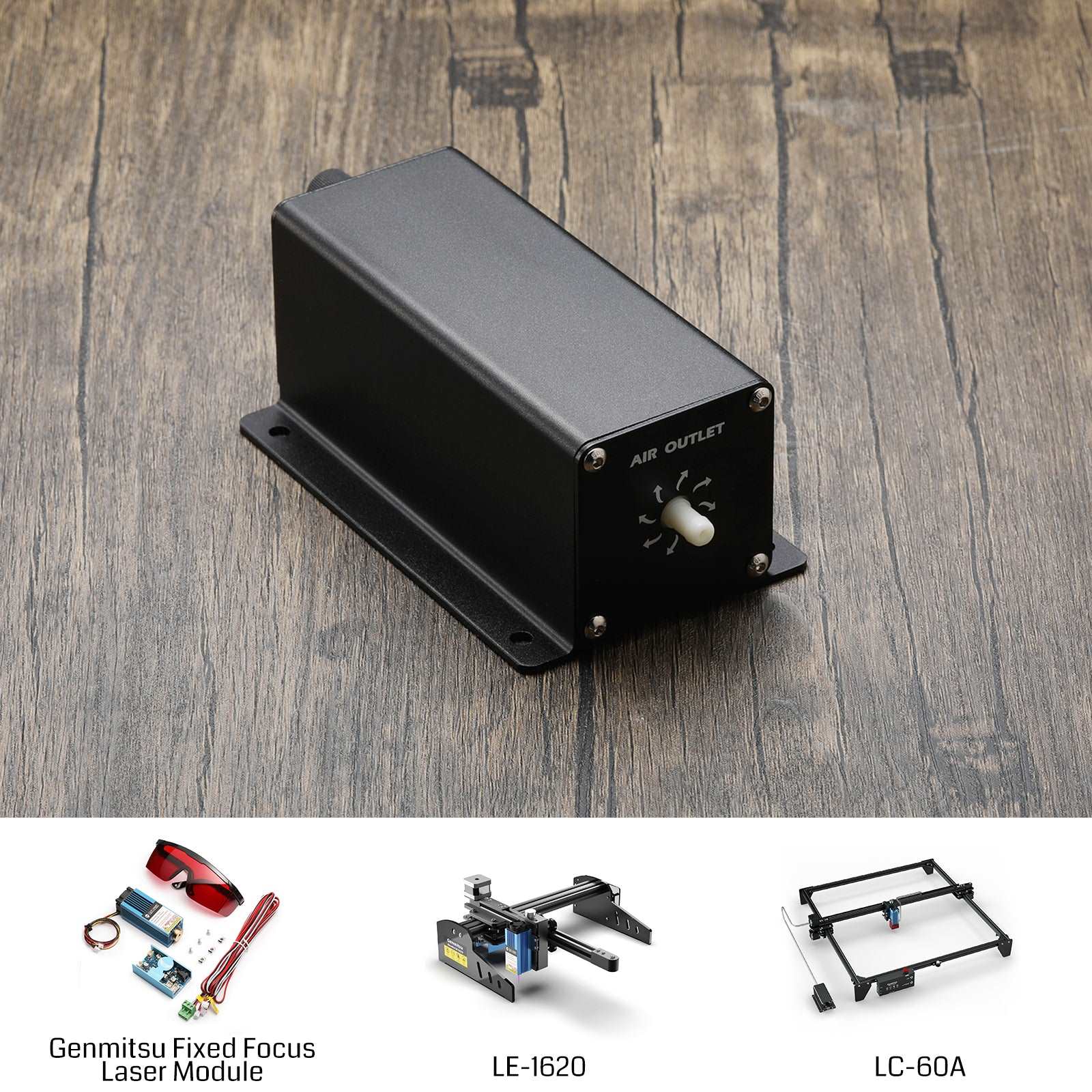

Compatibility: This air assist kit is compatible with Genmitsu Jinsoku LE-1620, LC-60A Laser Engraver and Genmitsu Fixed Focus Laser Upgrade Module. Please consult with SainSmart technical support if you are not sure wether this air pump is compatible with your machine.

View full details

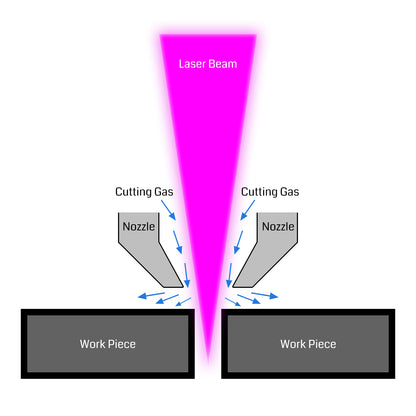

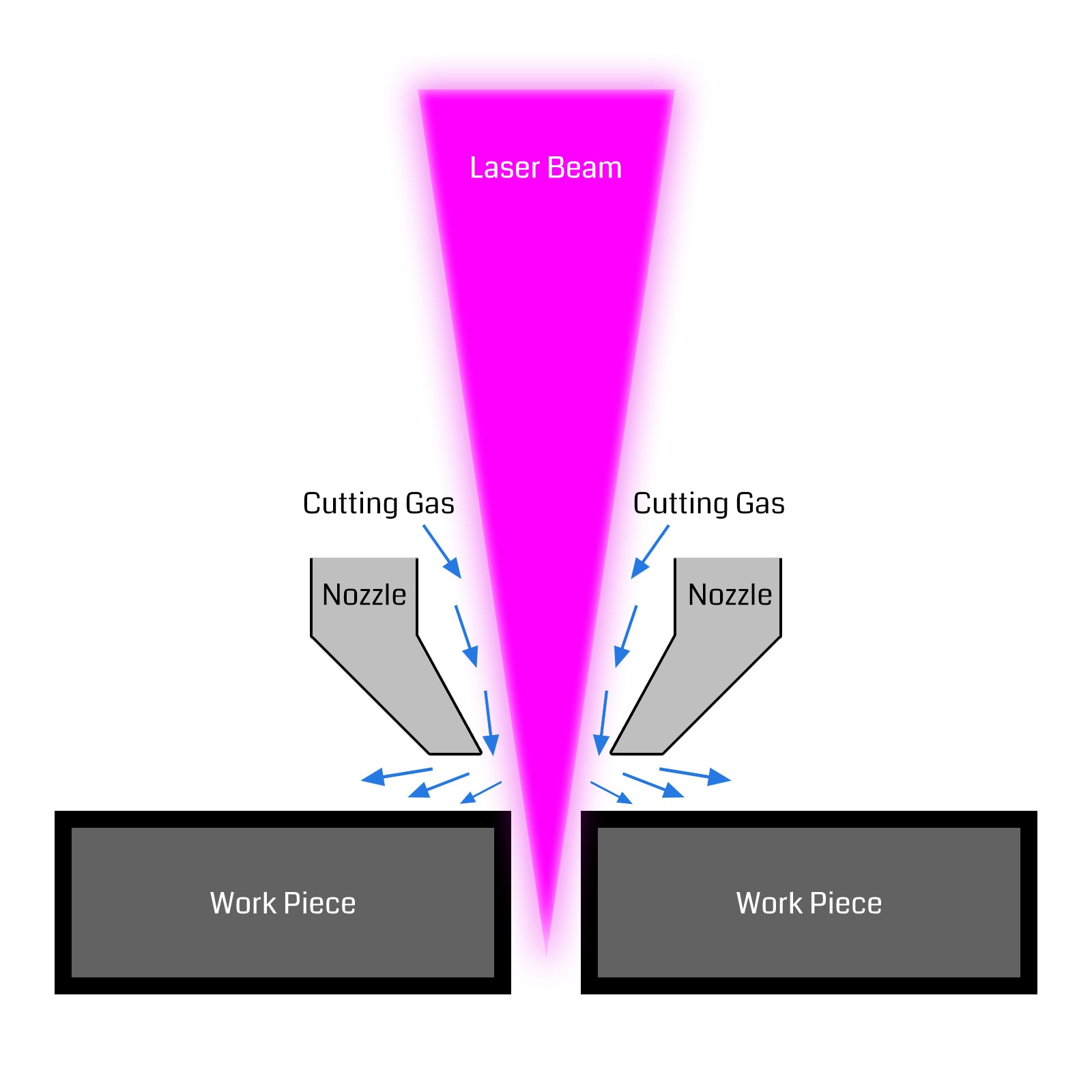

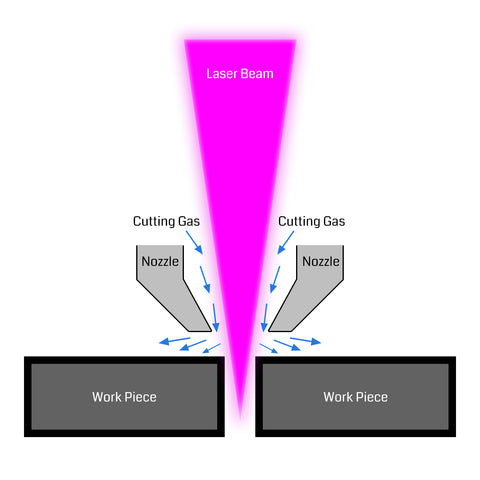

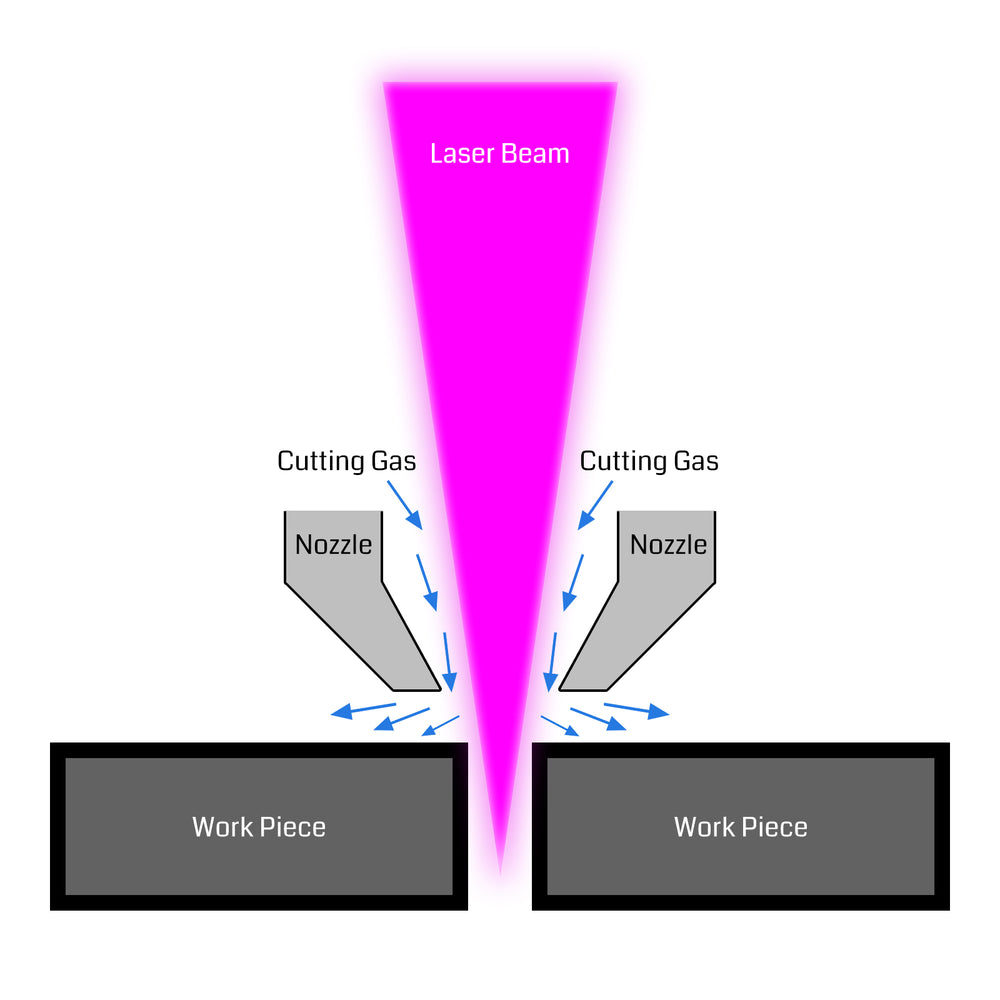

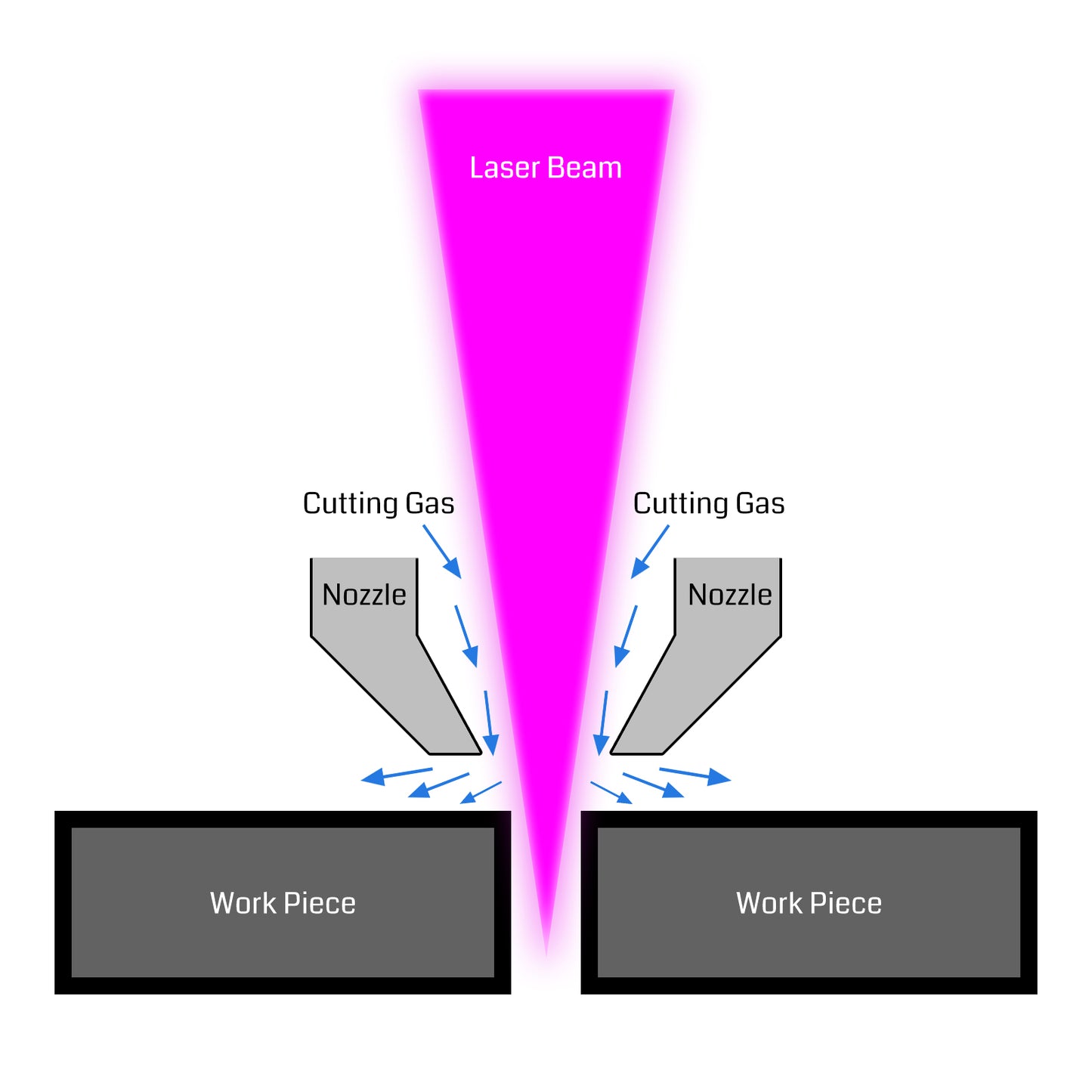

Why Air-Assist System is a must-have add-on for your laser engraver and cutter?

  1. It regulates the laser beam to be more precise and keeps your workpiece cool, so your engraving and cutting jobs will have a cleaner finish.
  2. It reduces the laser power loss by pushing smoke and residues away from the material, so your laser work can be done faster with an enhanced finish.
  3. It also protects your laser from residue buildup and overheating, improving the service life of your laser module.

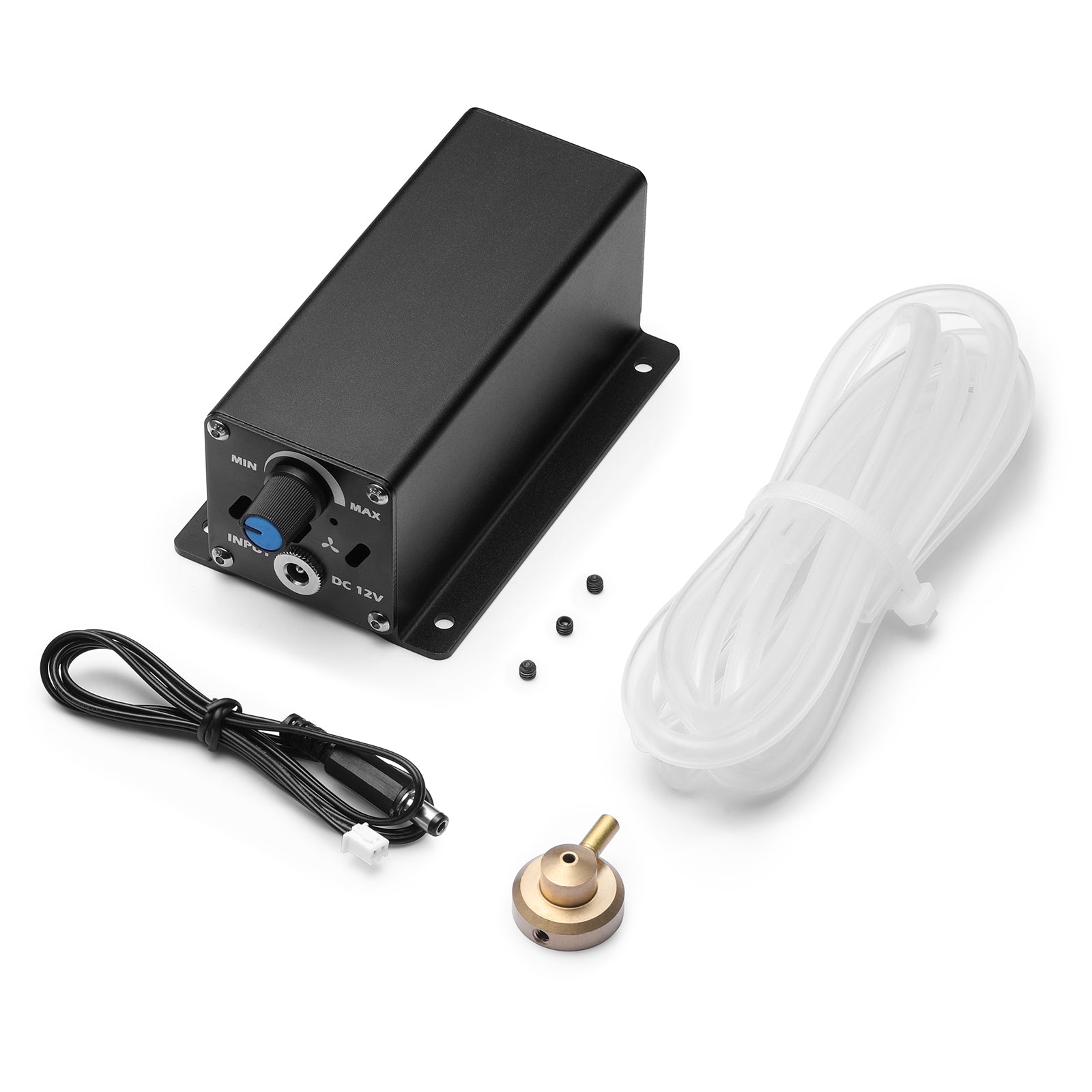

Specification:

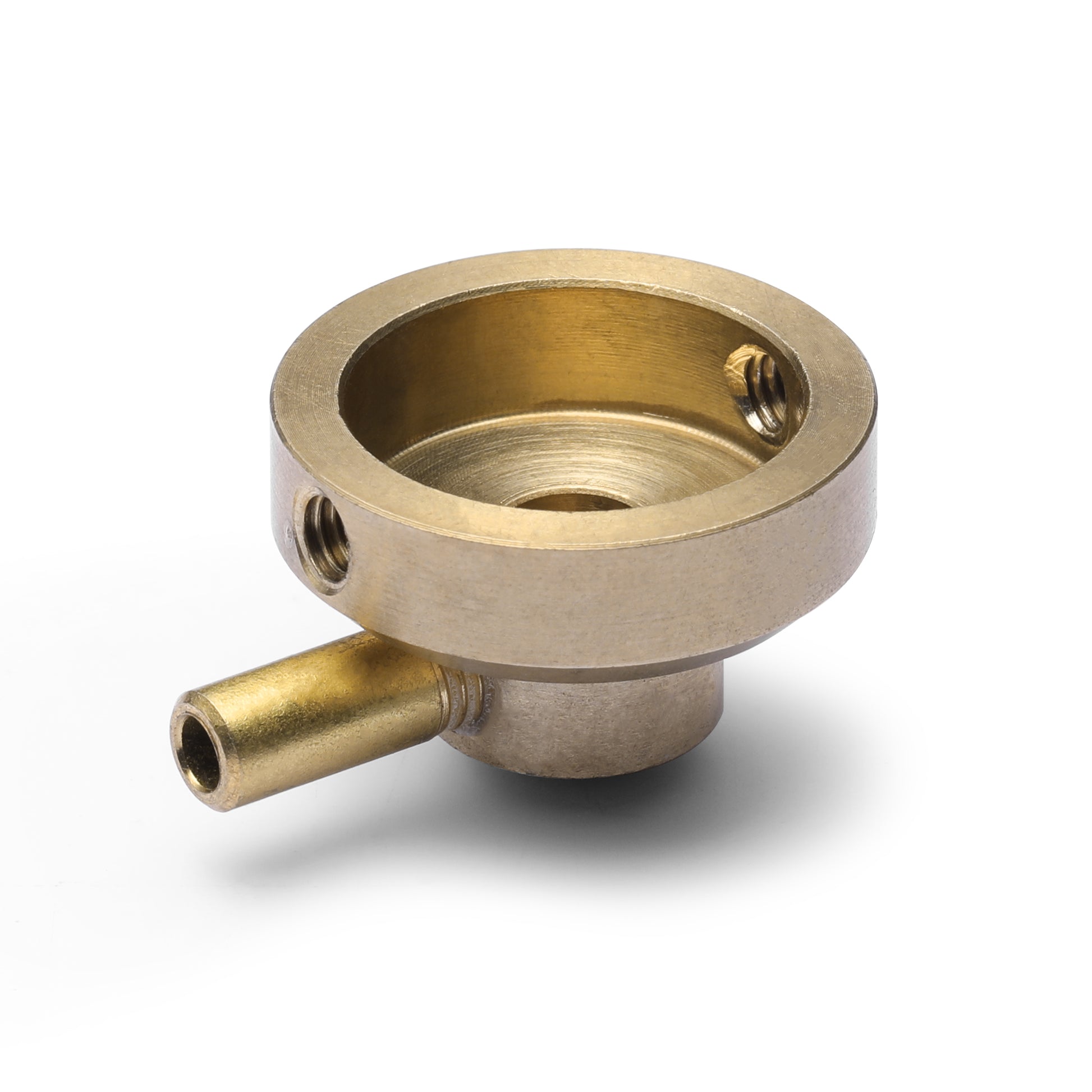

  • Nozzle diameter: 6mm
  • Recommended Hose Diameter: 5mm
  • Flow Rate: 8PLM
  • Power: DC12V
  • Rated Current 0.6A
  • Maximum Vacuum Pressure: -55KPa
  • Maximum Positive Pressure: 80KPa
  • Lifespan: ≥500hours

⚙️Compatibility

Jinsoku LC-60A

🔌 Plug the 2-Pin connectors to the mainboard.

✔️ The software can control the start and stop of the air pump.

Jinsoku LE-1620

🔌 Plug the 2-Pin connectors to the mainboard.

❌️ The software CANNOT control the start and stop of the air pump.

3018-PROVer/LE5040/Other Genmitsu machines

💡 Additional 12V input power supply is required to run the air pump on these machines.
💡 Power supply is suggested to be 12V 1A with DC5.5*2.5 interface.

❌️ The software CANNOT control the start and stop of the air pump.
