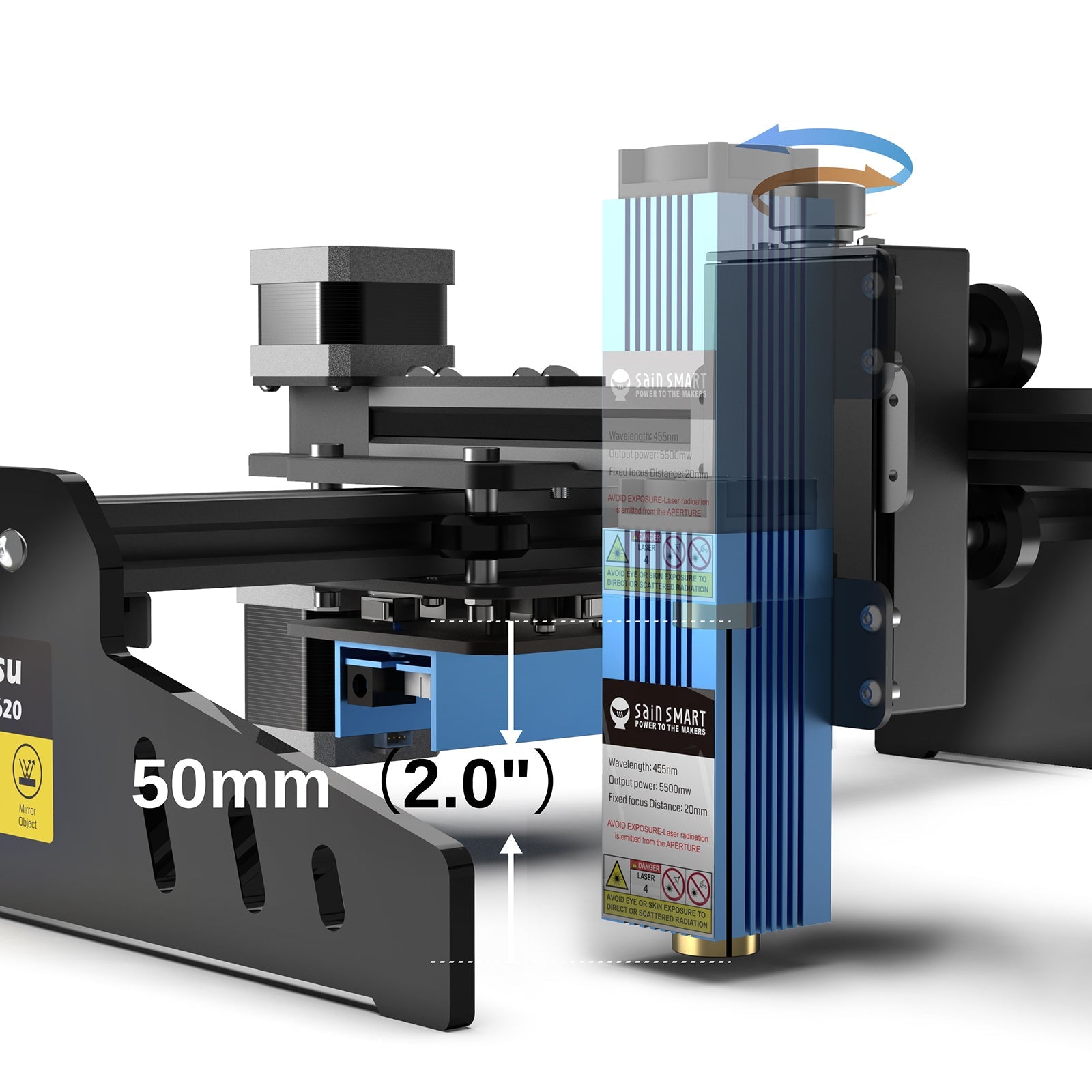

Height Adjustable Z-axis
You can easily adjust the height of the laser to fit in materials of different heights and thicknesses.

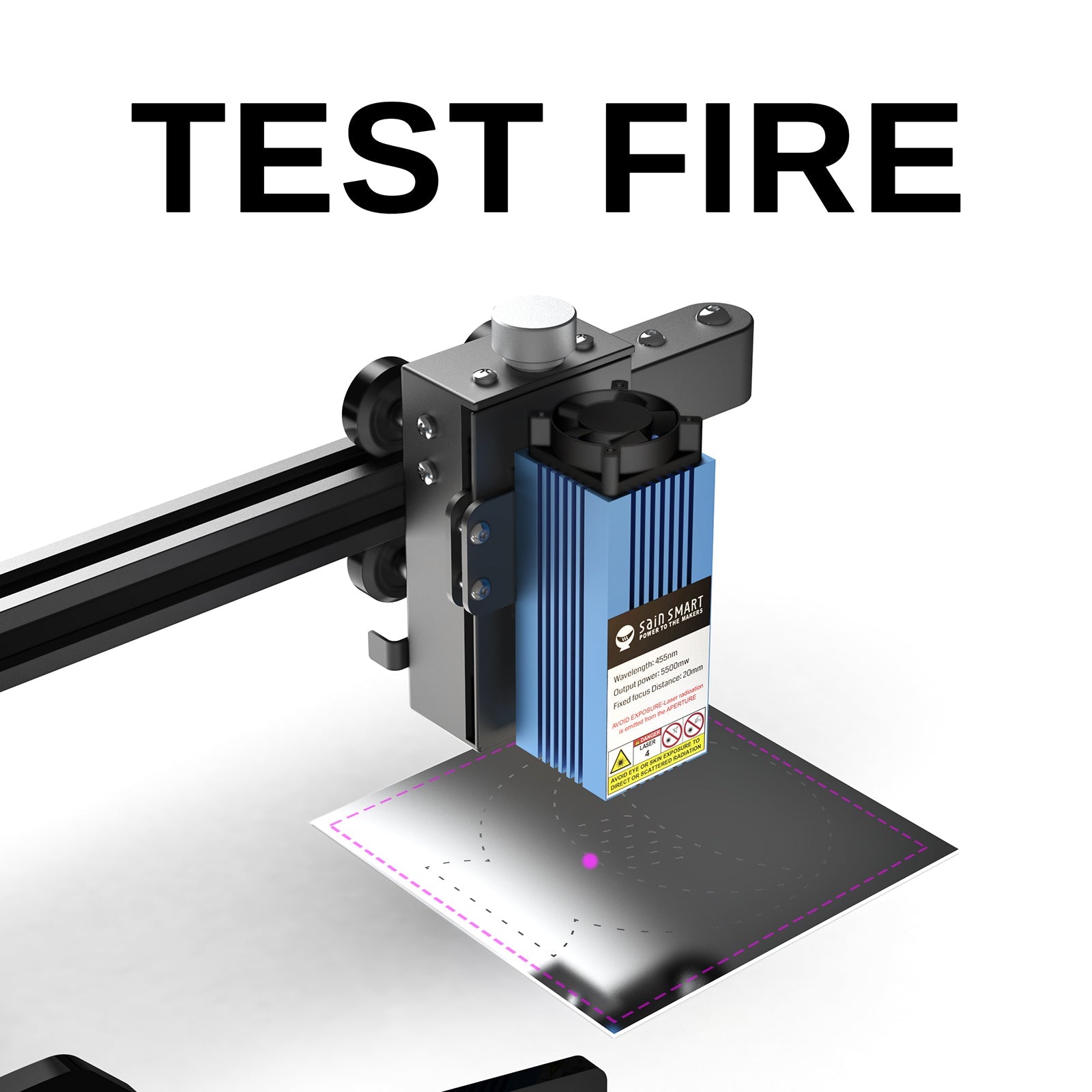

Test Fire Design
Get the most out of your stock material by accurately tracing your work area before you start your engraving/cut.

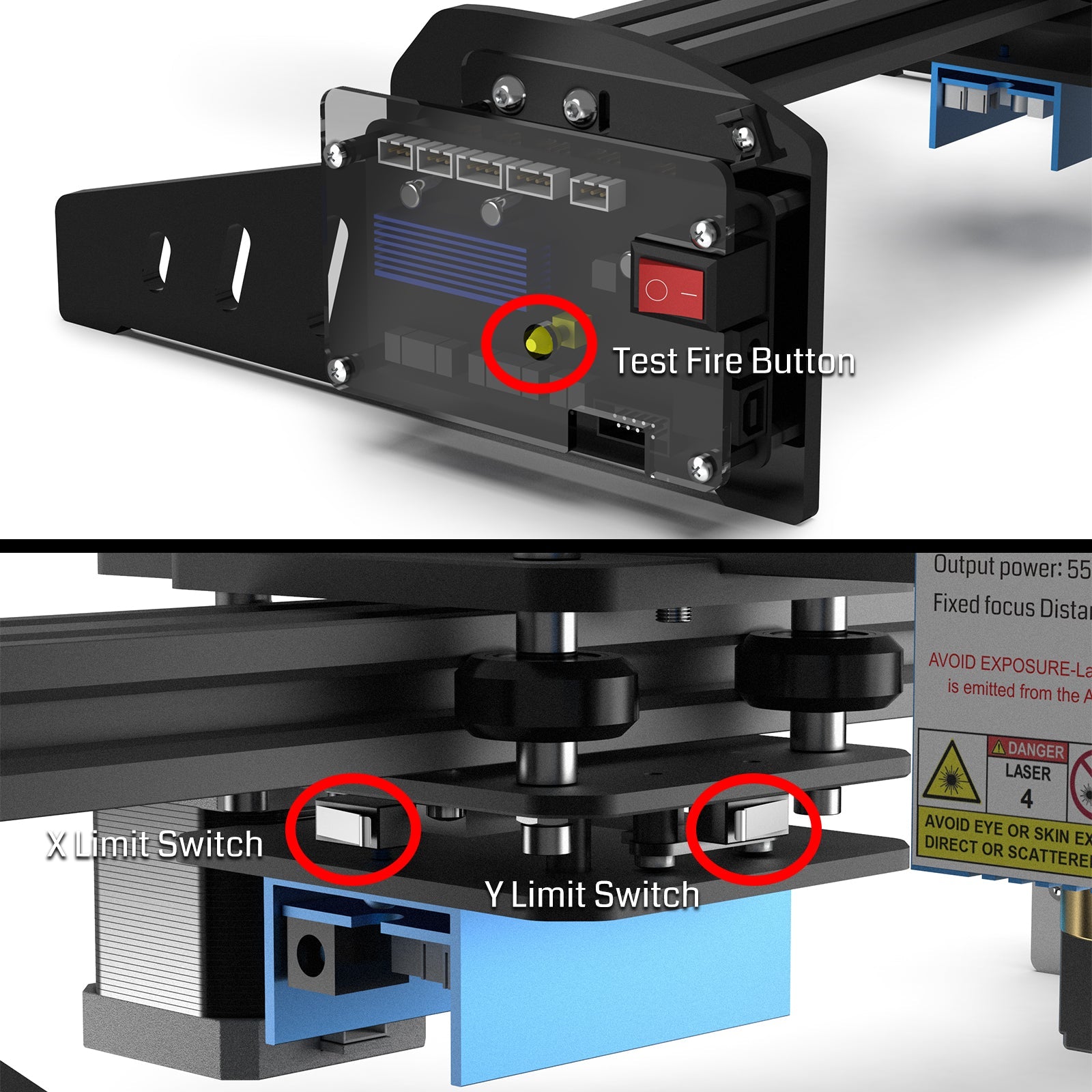

1. Press the button to test fire.
2. Long Press the button to return XY to zero.
3. Press it to pre-run the engraving area (avoid engraving beyond the engraving material). Press it again to turn it off.

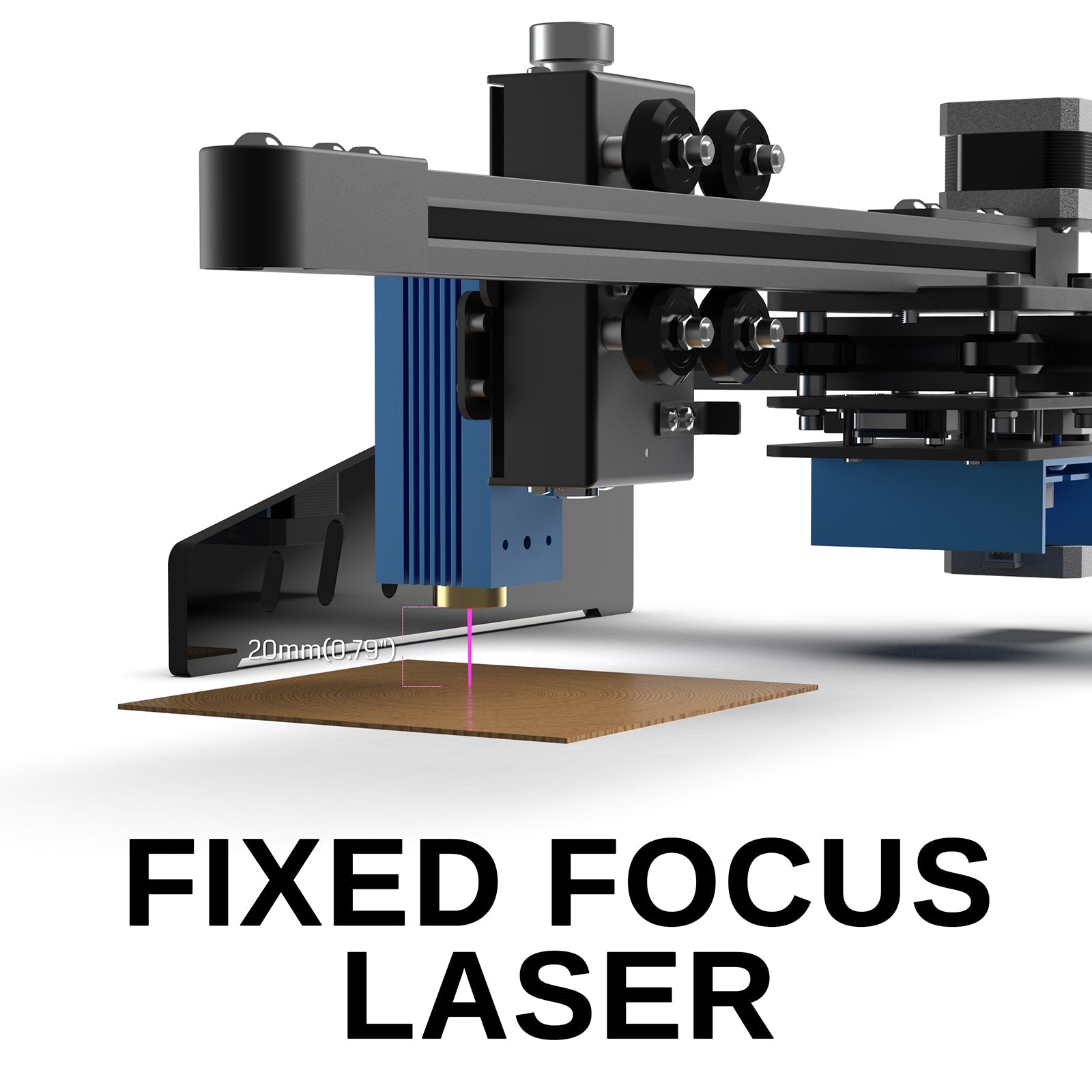

Powerful Laser Module
With 5500MW optical power, 20W input power, the fixed focus laser can not only prolong the service life of the laser head but also achieve maximum power. The drive and laser head are in-stalled sep-arately which reduces the weight of the single arm laser when engraving, making it more stable and easier to replace.
Applicable Materials
Bamboo
Ceramics
Dark Glass
Stainless Steel
MDF
Leather
Aluminum Alloy
Wood
Specification
-
Focal length of laser module:
20mm
-
Adjustable height of laser:
50mm
-

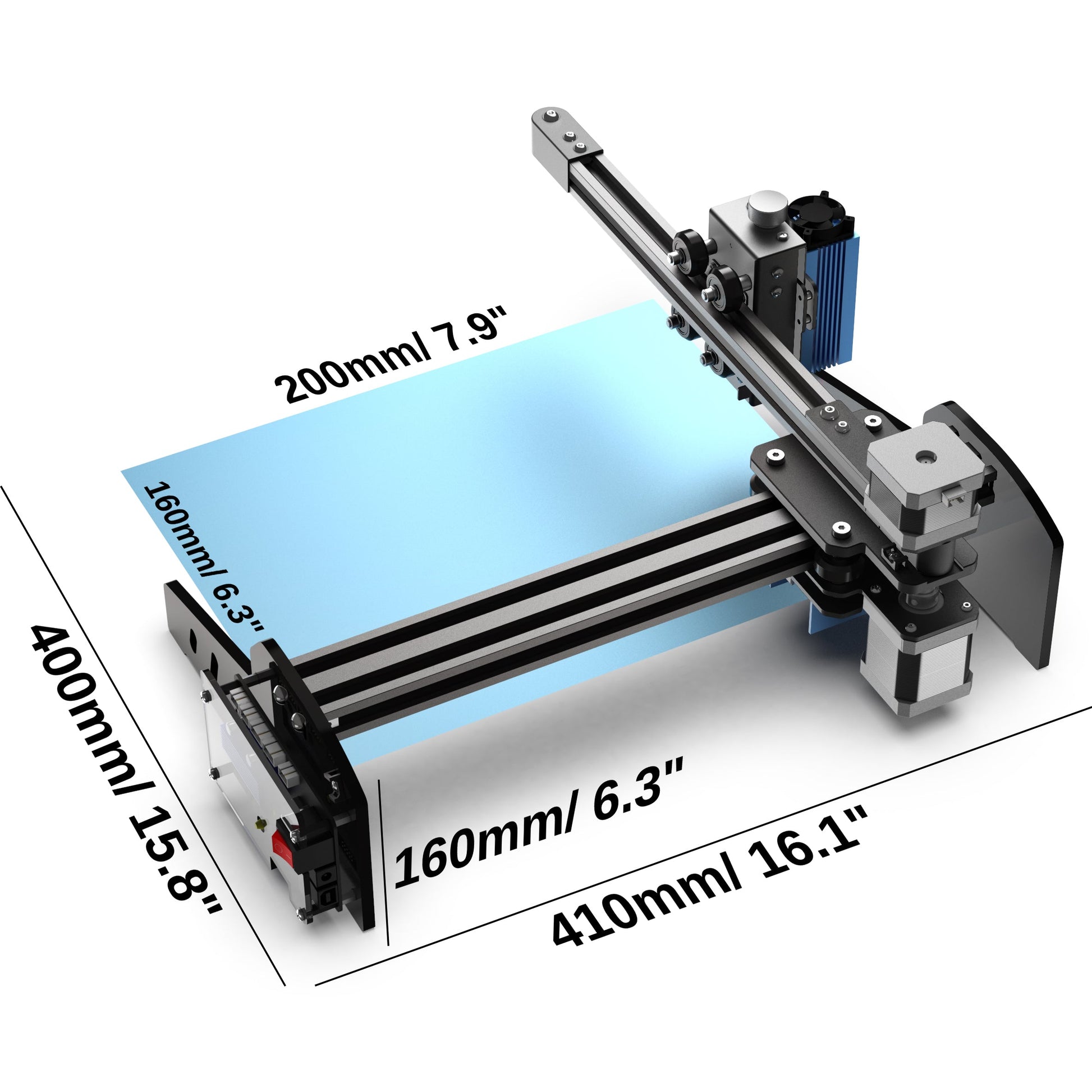

Working area:
200mm (Y) x 160mm(X)
-
Software:
GRBL firmware, compatible with Lightburn/laserGRBL etc.
-
Dimension after installation:
410mm x 400mm x 160mm
-
Supported OS:
Windows XP, 7, 8, 10, Mac OS, and Linux
-
Note:
Before engraving with aluminum, please use a marker pen to blacken the metal surface to be engraved.
Quick Start Guide User Manual
Which Laser Machine is right for you?
LE5040
500 x 400mm
19.7 x 15.7in
Working Area
5.5W Fixed Focus
Laser Power
-
Z-Axis Height
Goggles
Safety
-
Air-Assit
-
Test Fire
-
Auto Home
-
Limit Switch
Jinsoku LE-1620
200 x 160mm
7.9 x 6.3in
Working Area
5.5W Fixed Focus
Laser Power
50mm Adjustable
Z-Axis Height
Goggles
Safety
-
Air-Assit
Yes
Test Fire
Yes
Auto Home
Yes
Limit Switch
Jinsoku LC-60A NEW
600 x 600mm
23.6 x 23.6in
Working Area
5.5W Fixed Focus
Laser Power
50mm Adjustable
(Leg Extended 135mm)
Z-Axis Height
Laser Shield & Goggles
Safety
Yes
Air-Assit
Yes
Test Fire
Yes
Auto Home
-
Limit Switch
