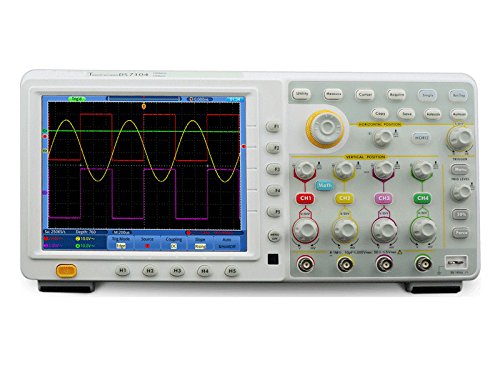

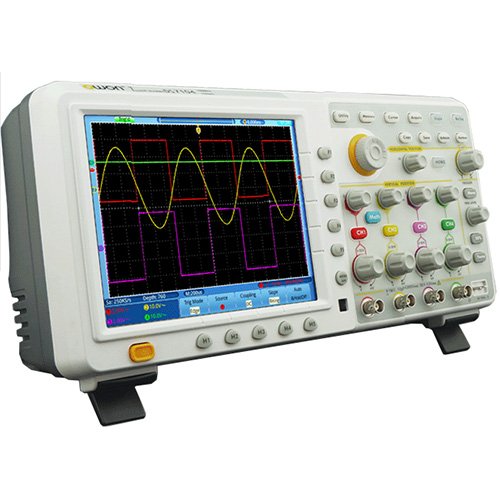

[Discontinued] Owon TDS7104 100MHz, 1GS/s, 7.6Mpts, 4 Channel Touch Screen Digital Serial Oscilloscope

SPECIFICATION

• Model:TDS7104
• Bandwidth:100MHz
• Channel:4
• Sample Rate:1GS/s
• Waveform Capture Rate: 50,000 wfms/s
• Display:8" color LCD
• Input Coupling: DC, AC, and GND
• Input Impedance:1MΩ ± 2%, in parallel with 10pF ± 5pF ; 50Ω ± 1%
• Probe Attenuation Factor:1X, 10X, 100X, 1000X
• Max Input Voltage:1MΩ input impedance : 400V (PK - PK) (DC + AC, PK - PK) ;50Ω input impedance : 5V (PK - PK) (DC + AC, PK - PK)
• Channel Isolation:50Hz：100：1 ; 10MHz：40：1
• Interpolation:sin(x)/x
• Record Length :7.6M
• Horizontal Scale (s/div):2ns/div - 100s/div, step by 1 - 2 - 5
• Interval (△T) Accuracy(full bandwidth): Single:±(1 interval time + 100ppm × reading + 0.6ns); Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns)
• Vertical Resolution (A/D):8 bits (4 channels simultaneously)
• Vertical Sensitivity: 2mV/div - 10V/div (at input)
• Analog Bandwidth:100MHz
• LF Respond (AC, -3dB):≥5Hz (at input, AC coupling, -3dB)
• Rise Time:≤3.5ns
• DC Accuracy:±3%
• Trigger Type:Edge, Pulse, Video, Slope
• Trigger Mode:Auto, Normal, Single
• Trigger Level Range:±6 division from the screen center
• Trigger level Accuracy (typical):±0.3 division
• Line / Field Frequency (video):NTSC, PAL, and SECAM standard
• Automatic Measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty
• Waveform Math:＋, －, ×, ÷, invert, FFT
• Waveform Storage :4 reference waveforms
• Bandwidth:full Bandwidth
• Phase Difference:±3 degrees
• Cursor Measurement:△V, and △T between cursors

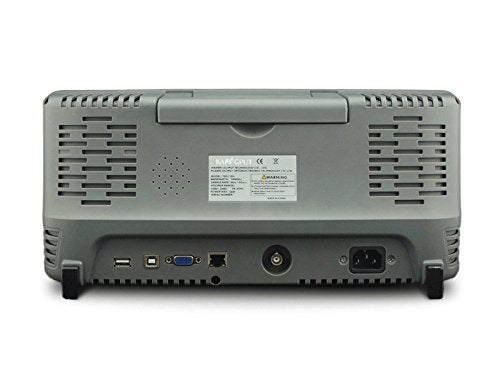

• Communication Port:USB host, USB device, VGA, LAN
• Power Supply:100-100-240 V AC,50/60Hz,CAT II
• Dimension (W×H×D):380*180*115(mm)
• Weight:1.5 kg

WHAT'S IN THE PACKAGE

1x Owon TDS7104 Touch Screen Digital Serial Oscilloscope
