[Discontinued] SainSmart 8 Channel controller USB HID Programmable Control Relay Module Kit
Brand: SainSmart SKU: 20-018-C09

[Discontinued] SainSmart 8 Channel controller USB HID Programmable Control Relay Module Kit

SKU: 20-018-C09 Variants ID: 45101343124
$31.35

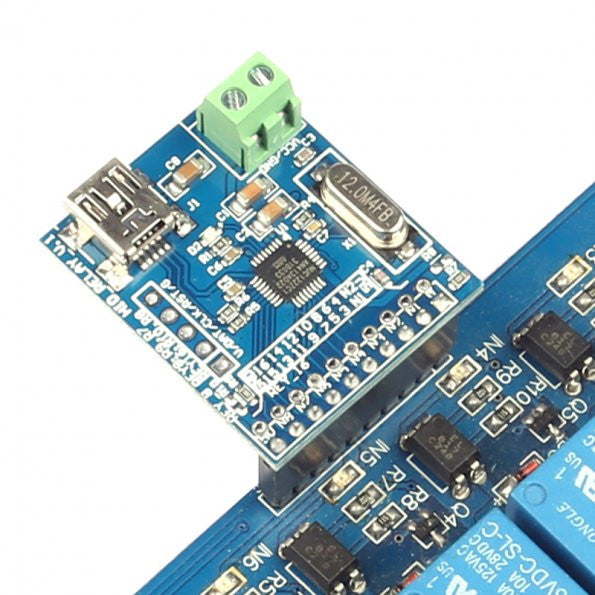

SainSmart 8 Channel Controller USB HID Programmable Control Relay Module


Overview:
This is the new SainSmart 8 Channel controller USB HID Programmable Control Relay Module. It works with 8 channel relay. What's more. We will offer you a detailed project introduction and their source code(Contact us via support@sainsmart.com). You may learn about USB HID Programmable Control Relay through using these basic projects. We also have the 8 channels relay in our store, you could search it from our store.

Application:

  • Robotics controll
  • Home automation
  • Power Supply Controll
  • Other



Here are some programmable codes for control command :

1. Connect the lower computer to PC, HID will be

USB_VID 0x0416
USB_PID 0x5020
HID_CMD_SIGNATURE 0x43444948

2. Open device connection, the Host computer read lower computer IO state (This state is 16BIT, each byte stands for one state, the lowest is number 1, IO )

3. The control command of the host computer:

Open the first relay IO:0X0001, Close the first relay IO:0X0000
Open the second relay IO:0X0002, Close the second relay IO:0X0000
Open the third relay IO:0X0004, Close the third relay IO:0X0000

Open the first three relays simultaneously:. 0x0007
Close the second one, open the first and third one: 0x0005

Each bit stands for IO state, 1 for open, 0 for close!


Manual link:
Download Link


Package List:
    1x SainSmart 8 Channel controller USB HID Programmable Control Relay Module
    1x SainSmart 8 Channel Relay
