[Discontinued] SainSmart GBS-8220 RGB/CGA/EGA/YUV to VGA Arcade HD Video Convert Board
Brand: SainSmart SKU: 27-015-100

[Discontinued] SainSmart GBS-8220 RGB/CGA/EGA/YUV to VGA Arcade HD Video Convert Board

SKU: 27-015-100 Variants ID: 45099986708
$34.99

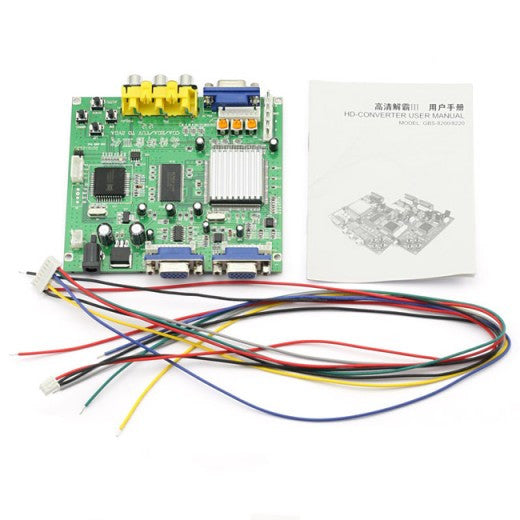

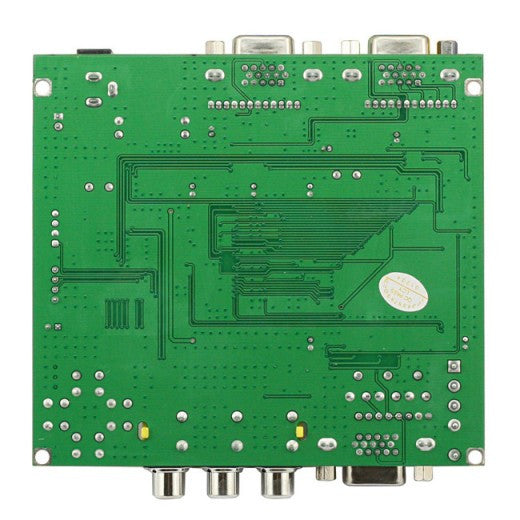

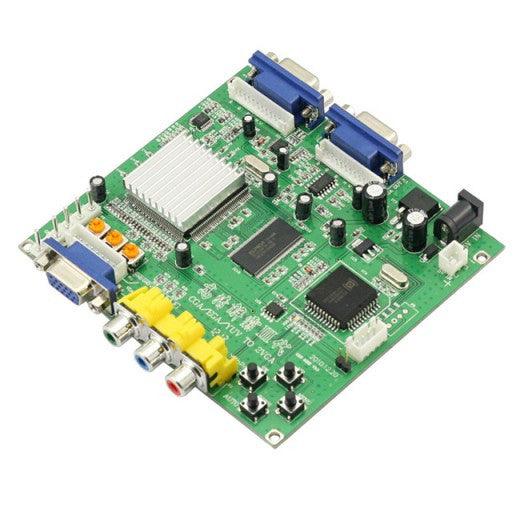

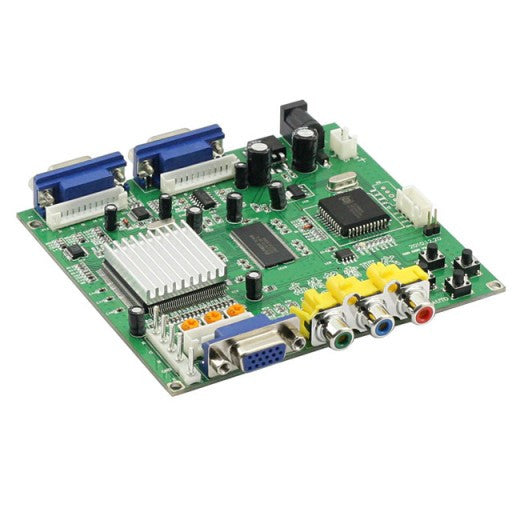

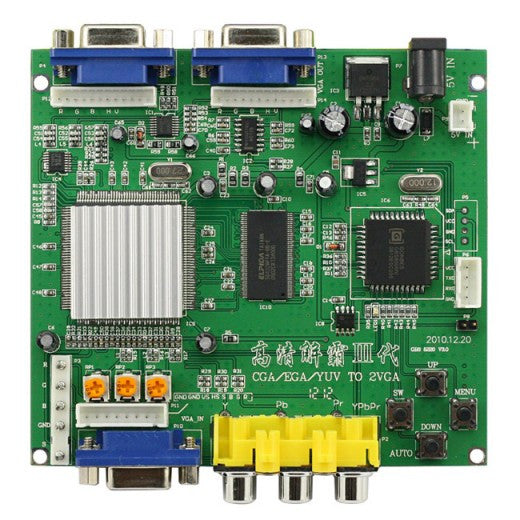

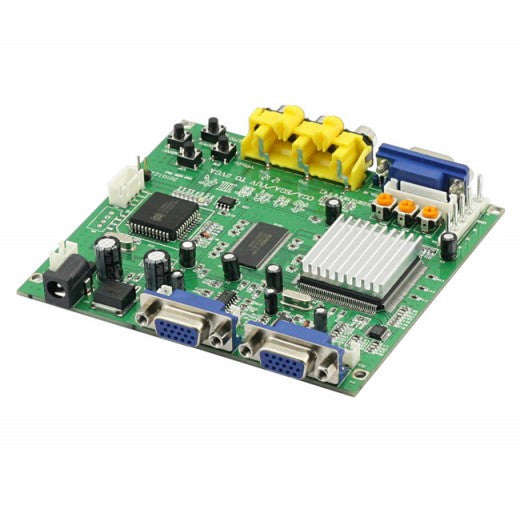

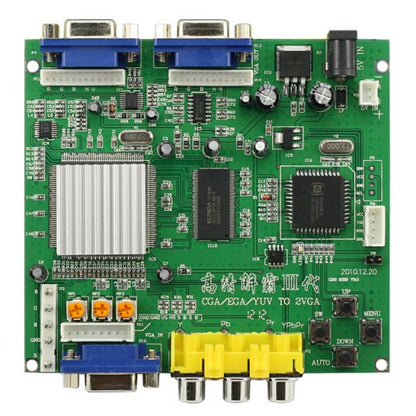

This GBS-8220 CGA/EGA/YUV to VGA Arcade HD-Converter PCB allows all types of RGB, EGA, VGA or YUV component signals to be up-converter and display on a 31KHz PC VGA monitor, TFT monitor, LCD display, or HD-TV with VGA connection. No need to set dip switches in order to figure out the specific input frequency as all inputs are detected automatically! A great alternative to purchasing a expensive, heavy CGA monitor. Use this converter with an existing computer monitor or install a lightweight LCD display or even use to build your own supergun!

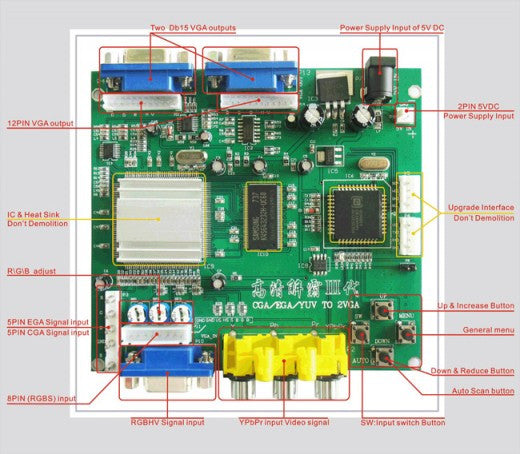

  • Supports CGA/EGA/VGA/YUV Component Signal Input,Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768)
  • CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz),YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)
  • On Screen Display (English and Chinese),Supports image position control & image zoom control
  • True digital 24-bit A/D converter for true 16.7-million color conversion.
  • Supports ALL types of VGA monitors (CRT, LCD, PDP, Projector, etc)
