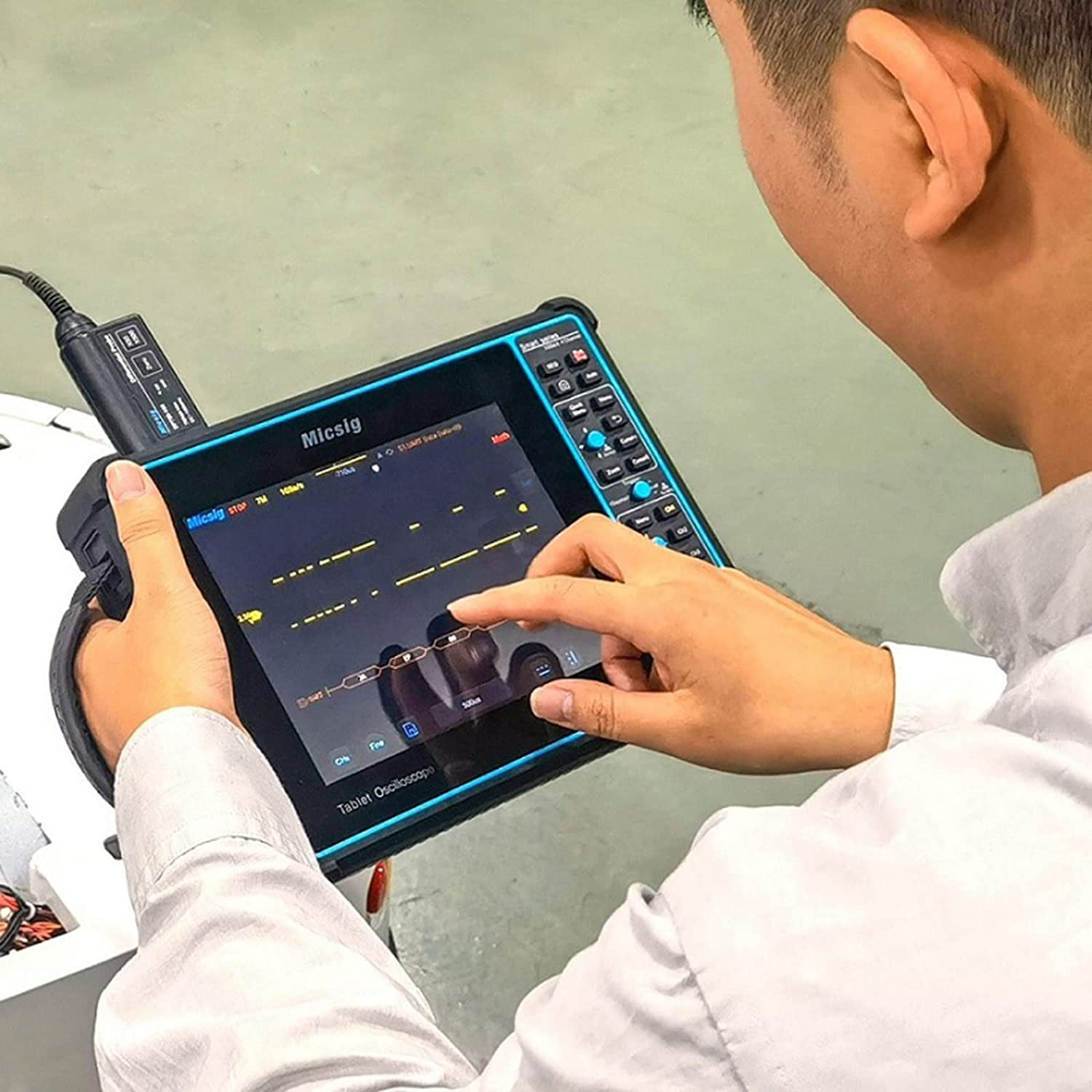

Automotive techs live and die by their diagnostic tools, and a scope that can't keep up with modern vehicle electronics just doesn't cut it anymore. That's why we sent our new Micsig SATO1004 V4 Pro automotive oscilloscope out to Eddie Aaho, an independent tech reviewer who runs the Kiss Analog channel on YouTube and has spent years working hands-on with Micsig scopes. His unboxing and first-impressions video walks through everything in the box, the hardware changes from the previous generation, and why this particular scope has become one of his go-to tools.

Take a look at the full video below, then keep reading for the highlights.

What's in the Box

The SATO1004 V4 Pro arrives well protected in dense foam packaging, along with a printed quick-start guide loaded with QR codes linking out to Micsig's product library. Since this is the four-channel automotive edition, it ships with two probe sets rather than four individual probes, a charging cable for the built-in battery, and a screen protector with a cleaning cloth already applied to the display.

A Welcome Hardware Change: BNC Probes Instead of Proprietary Connectors

One of the first things our reviewer pointed out is a meaningful design shift from the original SATO1004. The first-generation model used a proprietary probe connector that didn't carry over to Micsig's other scope lines, which meant owners couldn't mix and match probes across their toolkits. The V4 Pro switches to standard BNC connectors instead. The trade-off is that probes now need their own USB-C or DC power input rather than drawing power through the connector itself, but the upside is compatibility with the wider ecosystem of BNC-based probes and accessories, which most technicians will appreciate.

Built for the Bench and the Field

Physically, the SATO1004 V4 Pro is a solidly built unit with rubberized, reinforced corners and a weight distribution that feels balanced front to back, largely thanks to the internal battery running the width of the housing. Fold-out rear legs snap securely into place for benchtop use, solving a common complaint with slimmer scopes whose stands don't lock. Flip it over and you'll find a quiet cooling fan, a USB-C and DC12V power input, HDMI out, additional USB ports, probe compensation posts, and a chassis ground point for safety.

Because it runs on a built-in 7500mAh lithium-ion battery, the scope isn't tied to a wall outlet, which matters for field diagnostics or any time you want to isolate a measurement from mains power noise. A physical slide switch next to the power button locks out accidental power-on while the unit is packed away, so it won't drain the battery in your bag between jobs.

An 8-Inch Screen That Feels Larger Than It Is

Micsig's displays use a more square-ish aspect ratio than most scopes on the market, which cuts down on wasted black bezel space around the waveform. Our reviewer compared it side-by-side against a 7-inch competitor screen and found the usable display area noticeably larger, even though the physical screen size difference is modest. Touch response and overall UI responsiveness also seemed improved over the previous hardware revision, with the V4 Pro said to boot up faster and render menus more smoothly.

Automotive Diagnostics Built Into the Menu

This being the automotive-specific edition, the onboard software includes dedicated test modes that a general-purpose scope simply doesn't offer:

• Ignition testing — primary, secondary, and combined primary/secondary ignition analysis
• Sensor testing — ABS, throttle position, accelerator pedal, airflow meter, crankshaft, camshaft, knock, MAP, and more
• Actuator testing — fuel injectors, fan control signals, variable valve timing, EGR and canister solenoids
• Network bus testing — CAN, CAN FD, LIN, FlexRay, and K-line
• Charging and starting circuit testing — 12V and 24V systems, charging ripple, and cranking current
• Combination tests — running multiple channels together, such as crankshaft plus camshaft, or primary ignition plus injector voltage

Our reviewer ran through several of these menus live, noting the depth of pre-built test templates and the multiple ways to navigate to the same setting, whether through the dedicated hardware buttons or the touchscreen menu system.

Under the Hood: Key Specifications

A Tablet Experience, Not Just a Scope

The V4 Pro runs on an Android-based interface, complete with a home screen, notification shade, app market, screenshot and screen-recording tools, and Wi-Fi connectivity for remote operation from a smartphone app. Our reviewer called out the practical touches — a dedicated screen-lock button so the display doesn't shift while you're pointing things out to a customer or coworker, and a gallery app for reviewing saved captures without needing to pull files off the unit first.

Who Is This Scope For?

If you need a scope that can move between the bench and the field without being tethered to a power outlet, and you want automotive-specific test templates already built in rather than configuring everything from scratch, the SATO1004 V4 Pro is aimed squarely at you. Independent techs, mobile diagnostic services, and shop owners who want one scope to cover ignition, sensor, actuator, network, and charging system work will get the most value out of the automotive-specific menus.

Final Thoughts

Based on this first look, the SATO1004 V4 Pro brings a meaningful hardware refresh over the original SATO1004: a probe system that plays nicer with the broader BNC ecosystem, a snappier touchscreen, and a battery-powered design that holds up well against typical benchtop-only competitors. Our reviewer plans a full in-depth review comparing it directly against the previous generation scope, so stay tuned for that follow-up.
