Genmitsu 1/8" Shank 40-PCS CNC Cutter Milling Carving Bit Set, MC40A

Brand: SainSmart 1 review SKU: 101-61S-MC40A Variants ID: 32455899611215

High Quality -- The Genmitsu end mills are made of ultra-fine 0.2μm tungsten carbide steel alloy that can keep continuous machining 800 minutes. Moreover, its Nano Blue Coating /Titanium Coating with high hardness and heat resistance enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.

2-Flute Spiral Flat Nose & Ball Nose End Mills -- Shank Diameter: 3.175mm, Cutting Diameter: 3.175mm, Cutting Length: 17mm, Overall Length: 38mm.

Two End Mill Sets -- Shank Diameter: 3.175mm, Cutting Diameter: 0.8 - 3.0mm (0.8/1.0/1.2/1.4/1.6/1.8/2.0/2.2/2.5/3.0mm), Cutting Length: 17mm, Overall Length: 38mm, with Nano blue and Titanium coating.

Applicable Materials -- Widely used in various materials including plastics, aluminum, circuit board, wood, as well as other precision parts processing.

Wide Compatibility --The MC40A end mills are compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines. Just make sure you select the correct-sized collet for your device.

$29.99
Ship to

Genmitsu TB04-W01

40pcs End Mills CNC Router Bits



  • 10 x Spiral Flat Nose End Mills, 2-Flute
  • 10 x Spiral Ball Nose End Mills, 2-Flute
  • 10 x Nano Blue Coating End Mills (different cutting diameter: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm)

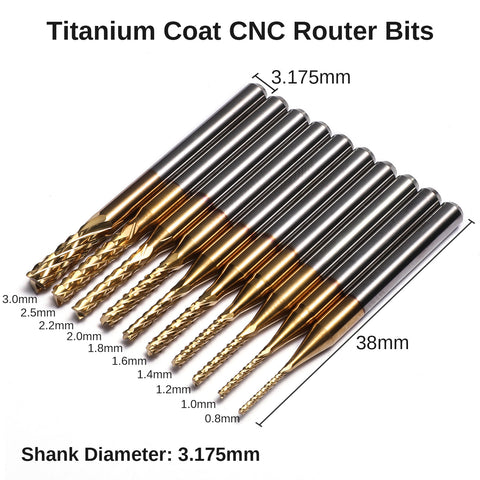

  • 10 x Titanium Coating End Mills (different cutting diameter: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm)
  • Material: Carbide
  • Surface: Nano Blue Coating
  • Radius: R0.25, R0.5, R0.75, R1.0mm
  • Shank Diameter: 3.175mm
  • Cutting Length: 15mm
  • Overall Length: 40mm
  • What project are you undertaking?
  • What are you cutting? Is it hard or soft wood? Is it stainless steel, fiberglass, MDF, acrylic, or aluminum?
  • In case you’re new to CNC routing and you want a multi-purpose bit, go for two-flute spiral bits since they cut a wide range of materials, including plastics, aluminum, foam, and wood.

Cost-Effective Set

The MC40-U01 end mill set includes 4 type bits: spiral flat nose bits, ball nose bits, Nano Blue Coat end mills and Titanium Coat end mils. It's a very cost-effective set to meet your all needs in engraving work.

Wide Application

Widely used in various materials including plastics, aluminum, circuit board, wood, as well as other precision parts processing. They are compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines.

High Quality

It's Nano Blue Coating /Titanium Coating with high hardness and heat resistance enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.

SPECIFICATIONS

Material: Tungsten Carbide Steel Alloy
Surface : Nano Blue Coating/Titanium Coating
Shank Diameter: 1/8'' (3.175mm)
Cutting Diameter: 0.8-3mm, 3.175mm
Cutting Length: 17mm
Overall Length: 38mm

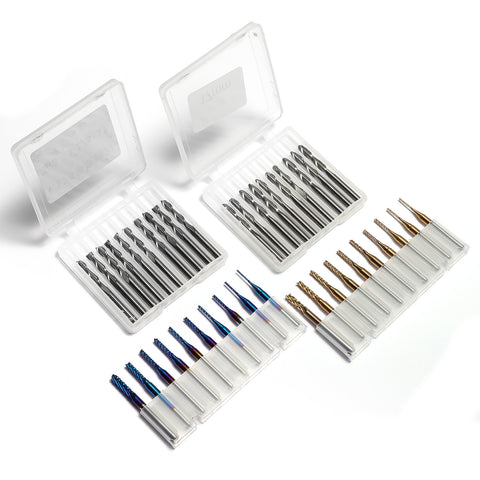

What's in the package

10 x Spiral Flat Nose End Mills, 2-Flute

10 x Spiral Ball Nose End Mills, 2-Flute

10 x Nano Blue Coating End Mills (different cutting diameter: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm)

10 x Titanium Coating End Mills (different cutting diameter: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm)

Customer Reviews
4.0 Based on 1 Reviews
Write a Review Ask a Question
  • Reviews
  • Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
GS
09/08/2020
Gabriel S.
United States United States
Not bad

Good set to get me started. Would prefer if some downcut endmills were included instead of some of the other mills
