Brand: Genmitsu SKU: 101-63-BVC2614

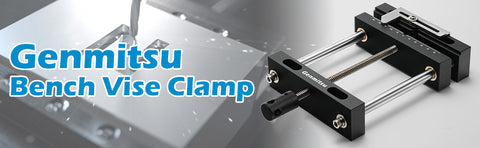

Aluminum Bench Vise Clamp 10.2" x 5.5" x 1.6"

SKU: 101-63-BVC2614 Variants ID: 32804678434895
$69.99

20% OFF Weekly Deal

Free Shipping

Ship to
USA

Dimensions: 260mm(L) x 140mm(W) x 40mm(H). Clamping Range: 0-115mm.

Graduated Ruler: Easy to read ruler, there is no need to use another ruler to measure the object when processing.

Right-angle Iron Slider: Located at the upper left corner, it can be easily adjusted to ensure your working stock is square and in just the right position.

V-groove Design: More clamping force to your stock material in place, especially for holding cylindrical objects.

Application: Used for object processing. It can hold various specifications and irregular shapes. Ideal for holding small parts, Jewelry, Watch, Hobby, Model making, Electronics, Home and Work-Bench, and many other applications.



High Quality

This bench clamp is made of high-quality aluminum alloy which provides a long tool life. That can be mounted in different positions for different cases with different sizes.

Great Efficiency and Time-Saving

Designed with a right-angle iron slider and precise graduated ruler. It is much easier, more convenient and time saving to hold your materials in place with the iron block and measure the product dimensions with its ruler.

Detail-oriented

Dual track on both sides of the vise can ensure precision while running the vise. Its T-shape screw design for smoother and a more stable vise front-to-back operation. Compared to the common screw design, the precision and life span are highly improved.

Application

Used to grip woods, metals, plastics, and more. V-groove construction provides stability to drilling operations. Ideal for model making, electronics, home and work-bench, and many other applications.

NOTE: The bench clamp is only compatible with the aluminum platform/bed of Genmitsu 3018-PRO/PROVer/PROVer Mach3/MX3 and PROVerXL 4030.



Specifications

Clamping Range: 0-4.53" (115mm)

Dimensions: 260mm(L) x 140mm(W) x 40mm(H) / 10.2" x 5.5" x 1.6"



Package List

1 x Carving Bench Clamp

8 x Screws (4 for 3018 series; 4 for PROVerXL 4030)

8 x Nuts (4 for 3018 series; 4 for PROVerXL 4030)

Specifications

Feature Genmitsu Vise (10-163-BVC2614) Genmitsu Vise (101-63-BVC2417)
Material Aluminum alloy Aluminum alloy
Weight 1.44 kg 1.45 kg
Dimensions 260mm(L) x 140mm(W) x 40mm(H) 240mm(L), 170mm(W), 40mm(H) (excluding column and ruler)
Clamping Range 0-115mm 0-146mm
Protrusion Height   21mm
Scale With scale, 0 at center With scale, aligned with left-side fixed ruler
Ruler Adjustable ruler at top left Fixed ruler at top left
Mounting Method Fixed with screw holes on the inside of the machine Three mounting methods:
1. Screw holes on the inside of the machine
2. Screw holes on the outside of the machine
3. Can be fixed with a pressure plate"
Workpiece Clamping Rectangular, cylindrical objects Rectangular, cylindrical, irregularly shaped objects, etc.
Compatible Models 3018-Pro, 3018 Prover/V2, 4040-PRO All models that can use a pressure plate (including but not limited to Genmitsu models)
