Brand: Genmitsu
SKU: 101-60-LC60A

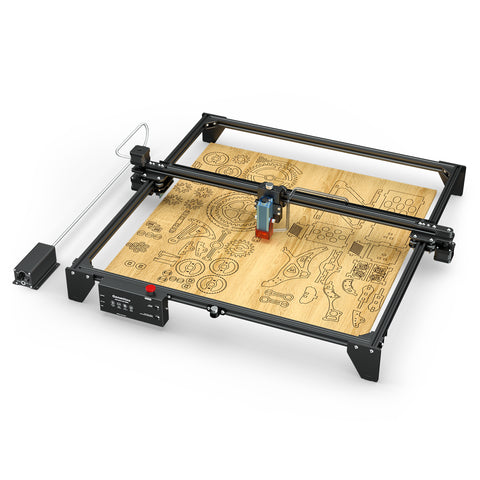

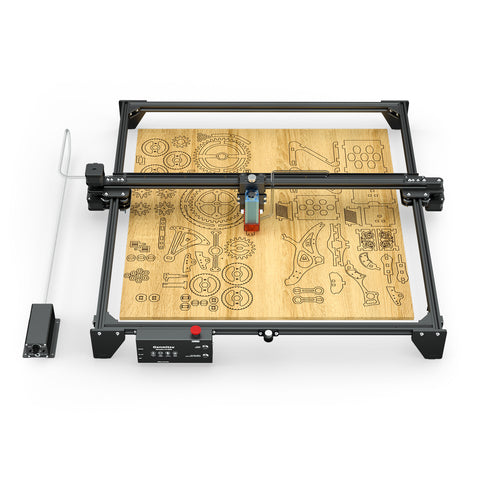

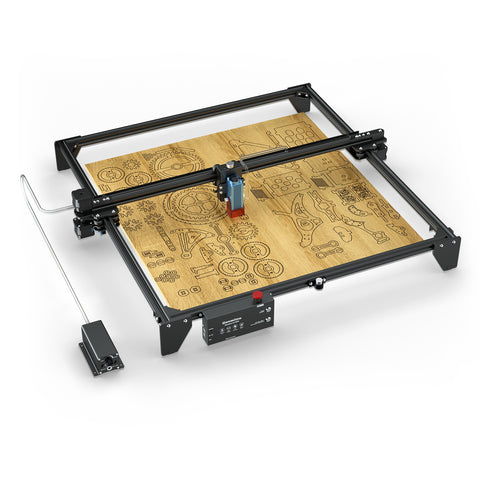

Jinsoku LC-60A 5.5W Laser Engraver Cutter with Air Assist System
SKU: 101-60-LC60A
14
$329.00
$499.00
Save $170.00
Free Shipping

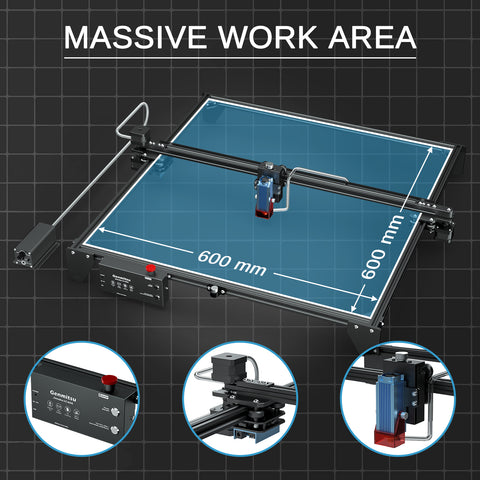

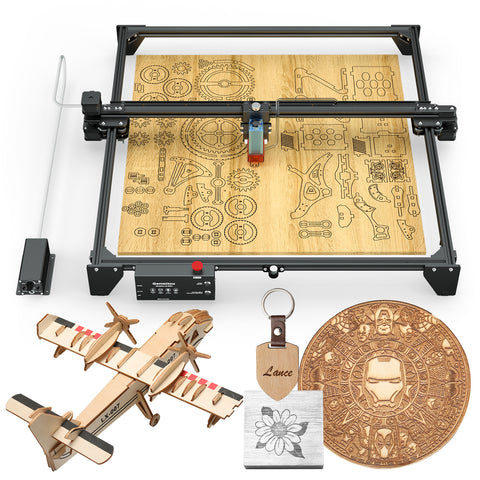

Large Format Laser Engraver for Home and Business
600mm x 600mm workspace allows for plenty of possibilities to do large design. Make your own customized gifts for friends and family at one time. It also saves you time and efforts if you are in laser engraving and cuttings business.
Complete Air Assist System for Fine Cutting Finish
The stock air assist nozzle and air compressor combo allows the LC-60A to cut faster and deeper, protects the laser lens from smoke residue buildup for longevity and cutting efficiency.

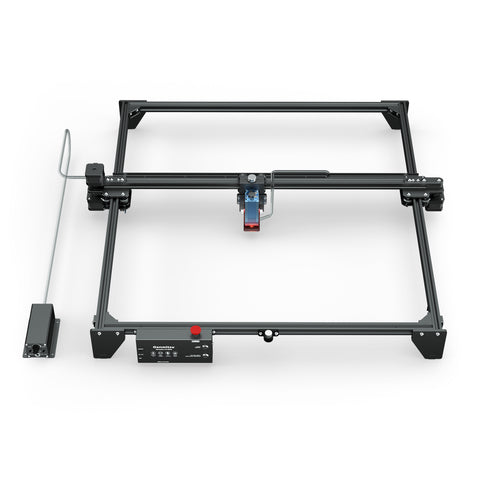

Dual Y-axis Motors for Improved Accuracy
Dual Y-axis motors for better Y-axis synchronization and more stable movement, quality aluminum frame on the LC-60A also adds up to its stability.

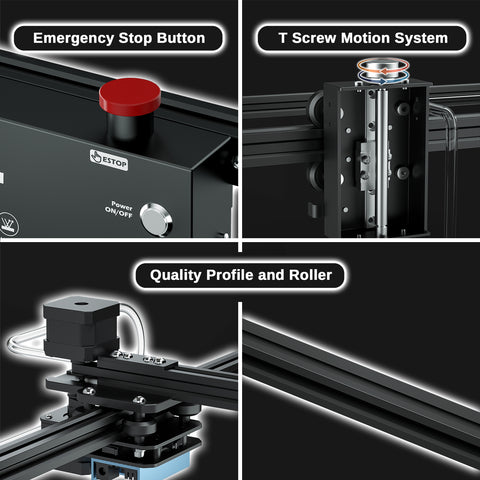

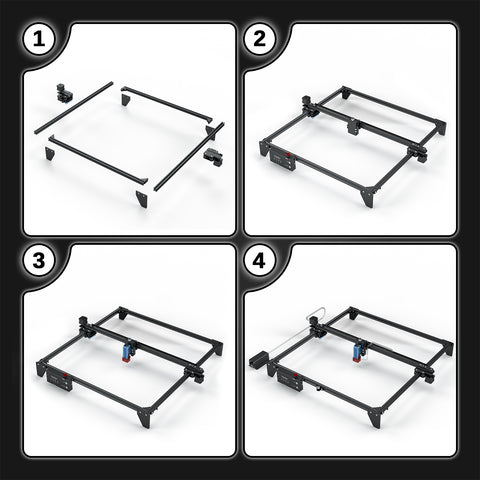

Easy Setup with Four Steps
Pre-assembled motor drivers and belts for quick assembly, along with the easy laser focusing design (fixed focus laser module + z-axis adjustment knob) , providing you a smooth out-of-box experience.
Resources:
SPECIFICATIONS
| Work area | 600 x 600 mm (23.62 x 23.62 inch) |
| Frame dimensions | 900mm x 850mm x 165mm |
| Leg Extension | 50mm |
| Weight | 6KG |
| Plug Type | US / EU plug, UK plug not included. |
| Laser type | Diode |
| Wattage input | 20W |
| Wattage output | 5.5W |
| Fixed Focus | Yes |
| Focal Length | 20mm |
| Max. moving speed | 10000mm/min |
| Manual Z Movement Range | 0-50mm |
| Max. Material Height | 50mm, (Leg Extended 135mm) |
| Engraving materials | Leather, Wood, Acrylic, MDF, Fabric, Cardboard, Anodized Aluminum, Painted Metals |
| Cutting materials | Leather, wood, Acrylic, MDF, Fabric, Cardboard |

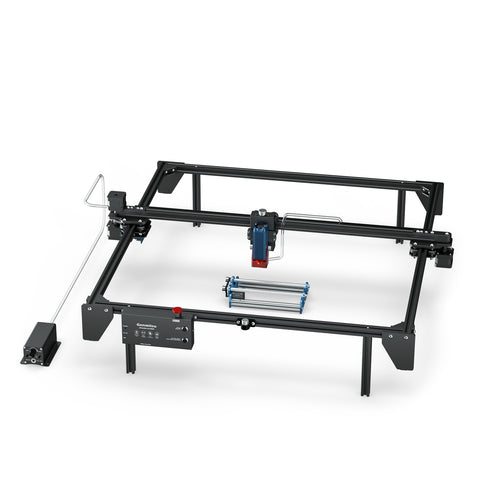

| Rotary roller support | Yes |
| Recommended control software | LaserGRBL (WIN), LightBurn (WIN / Mac OS / Linux) |
| File types | NC, BMP, JPG, PNG, DXF, etc. |
| Connectivity | USB |
| User Guide | Driver, Software, Test Code, User Manual (Click to download) |
| File types | NC, BMP, JPG, PNG, DXF, etc. |
 |
|
