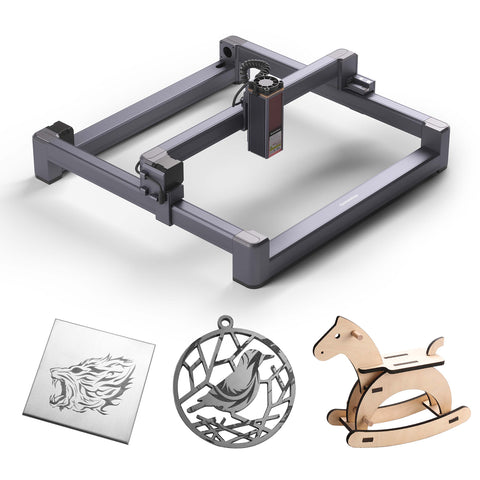

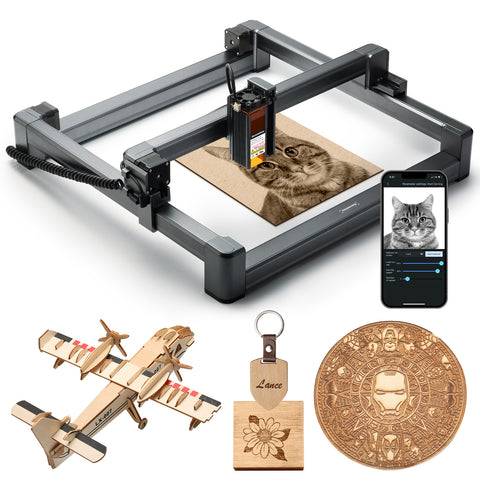

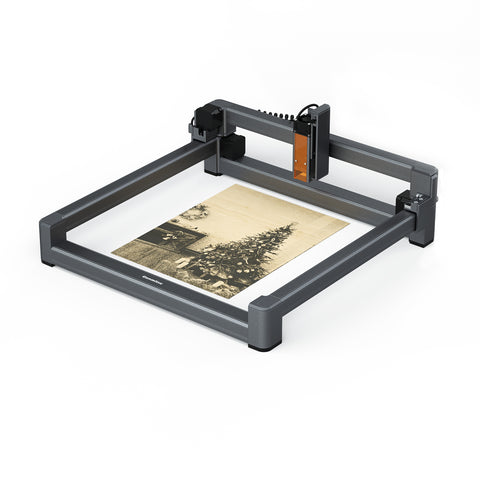

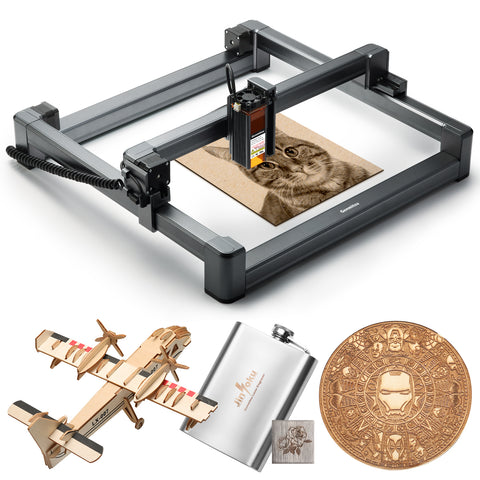

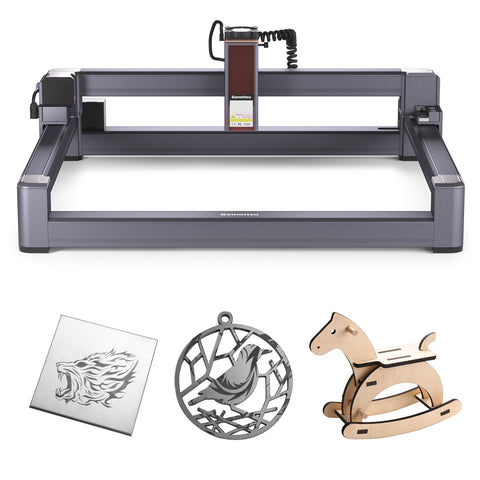

Jinsoku LC-40 Laser Engraver, 5.5W-10W Compressed Fixed Focus Laser, Wireless Control & GRBL Controller Support

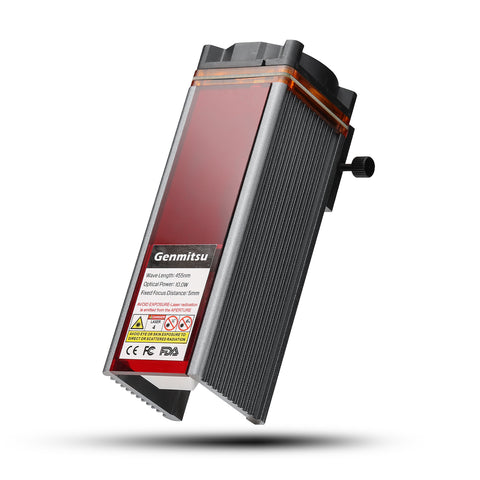

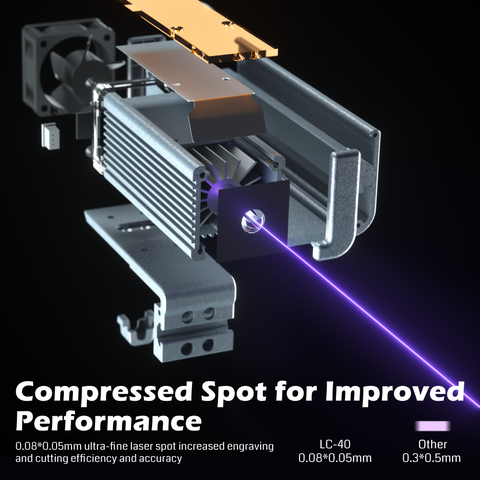

Compressed FAC 5.5-10W Laser

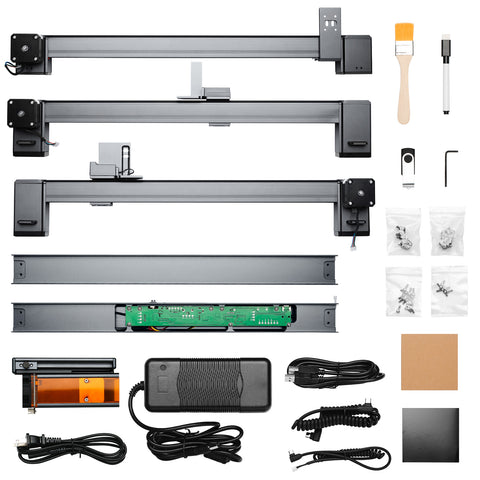

Modular Design, Easy Setup

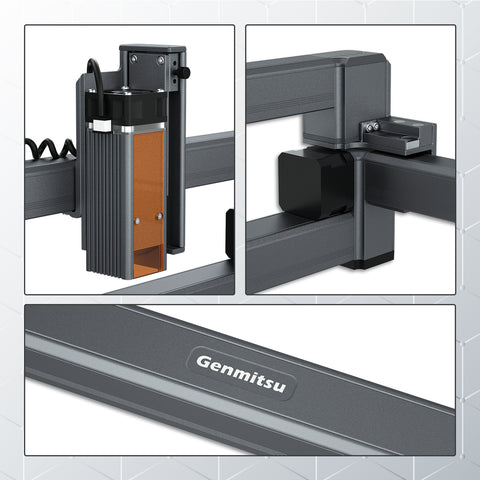

Robust Build Linear Rails
More Features
One-Click Repeat Button
Repeat your last laser project in just one click.

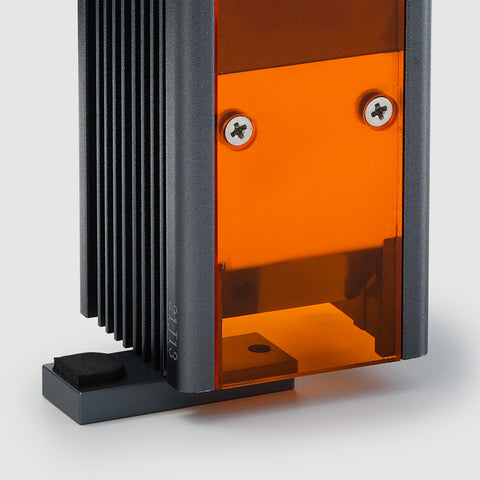

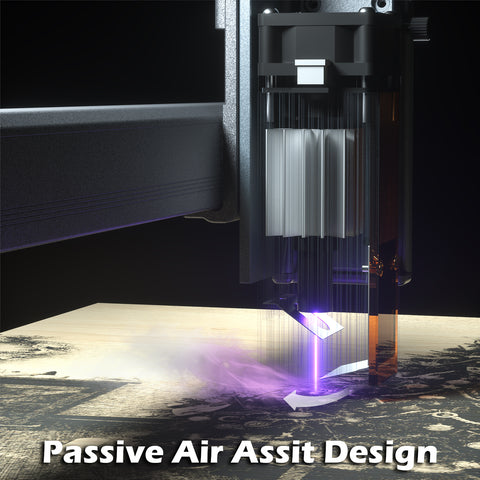

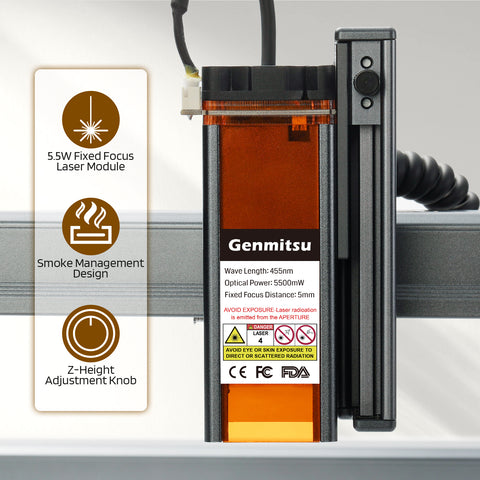

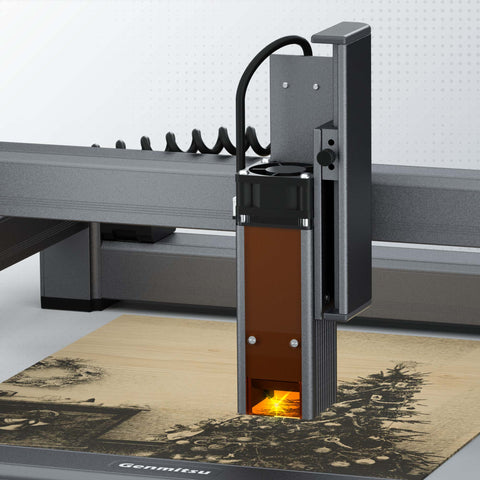

Smoke Management Design
The metal pad at the bottom of the laser module will regulate the
smoke and push it away from the laser lens to improve the engraving and cutting performance of this laser.
The
flue design will be different from the model of the laser head, but the effect is the same.
Hidden Limit Switches
Limit switches are crucial for consistent positioning. With that
included, you don't test and retest position after shutting the machine off.

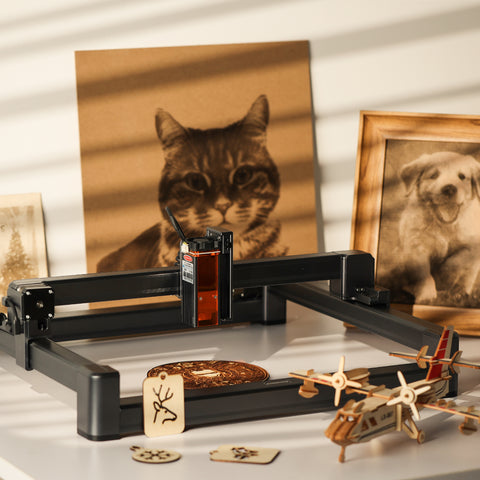

What Can I Do With It?
Efficient Mainboard
Stock limit switches on the Jinsoku LC-40 Laser Engraver allow for easy and consistent positioning, movement sensor and laser shield for improved safety, one-click repeat button for smooth and efficient engraving workflow. With all these features combined, it will provide you with an unrivaled user experience.
Quality Assurance
Jinsoku LC-40 has been certified by international testing organizations and has received safety certification from multiple countries, such as the United States, China, European Union, Japan, and United Kingdom. Trustworthy quality, safe to own.

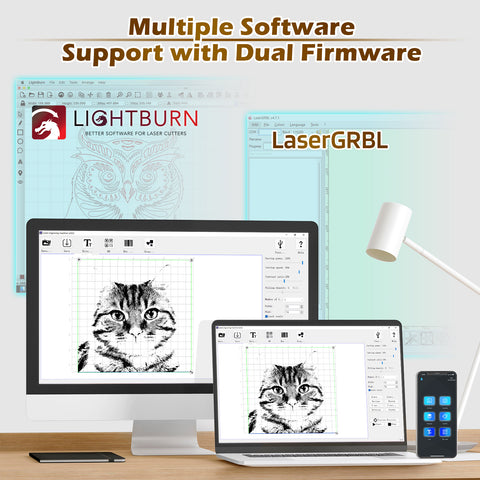

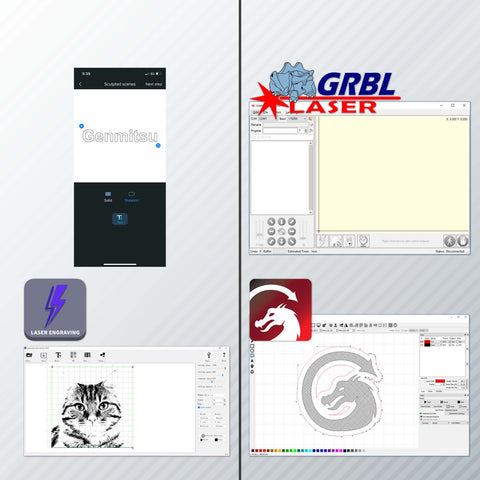

Dual Firmware Support
In addition to operating with the mobile app, GRBL-based firmware is also available for the Jinsoku LC-40. If you want to do more customization to your engraving projects when you gain more experience in laser engraving, simply flash the firmware (How to upgrade firmware?), and you can use LightBurn and LaserGrbl to control the LC-40.
Cylindrical Object Engraving
Jinsoku LC-40 laser engraving machine could be equipped optional flat rotary roller (purchased separately)that supports engraving cylindrical objects up to 390mm in diameter.
Comparison

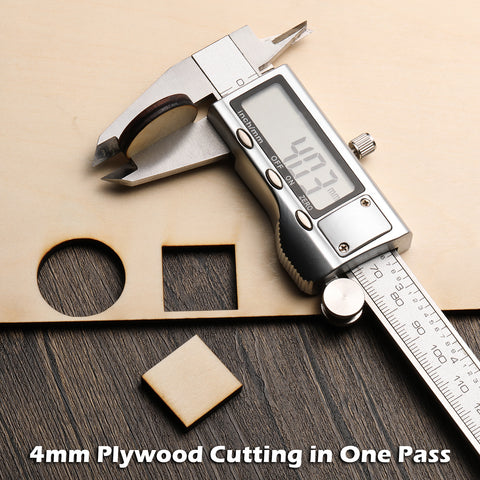

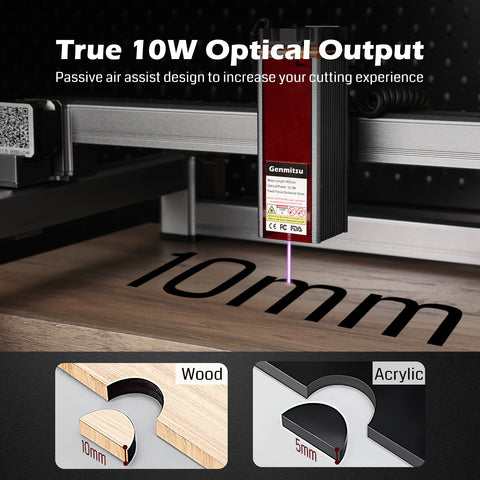

Laser Type | Optical Power | Laser Spot Size | Cutting In One Pass |
---|---|---|---|
5W Fixed Focus | >4W | 0.2 * 0.15mm | Up to 3mm wood board |
5W Compressed FAC | >4W | 0.08 * 0.05mm | Up to 5mm wood board |
10W Compressed FAC | >8W | 0.08 * 0.05mm | Up to 10mm wood board |
Specifications
Jinsoku LC-40 Resource Download APP | |
Step by step to switch firmware. | Adjust the belt tension |
Engraving Area | Work Area: 395×365mm; Motion Area: 400×400mm |
Engraving Accuracy | 0.1-0.2mm (Standard); 0.05-0.08mm (Upgradeable) |
Engravable Materials | Cardboard, plywood, non-transparent plastic, cloth, leather, stone, glass, stainless steel and metal with oxidized spray paint (More engraving tips) |
File Format | JPEG/BMP/GIF/PLT/PNG/DXF/JPG/XJ/HPGL |
Supported OS | Mobile: iOS & Android 7.0 or above. Desktop: Windows & MacOS Tablets: Not supported |
Product Size | 553.5X543.5X207mm |
Package size | 325.5X570X115mm |
Material | High-strength aluminium alloy profile + high-speed linear guide + ABS engineering plastics |
Laser Head | 5.5W - 10W Compressed Fixed Focus |
Max. Z-axis Material Height | 0.1-76mm |
Focal Distance | 5mm |
Power Supply | DC005, DC12V/5A |
Data Interface | USB Type-B (Square USB Interface) |
Cooling | Passive+ Forced Air Cooling |
Machine Power | <60W |
Laser Electric Power | 10~20W (Standard); 20~40W (Upgradeable) |
Laser Optical Power | >4.5W (Standard); >8W (Upgradeable) |
Laser Wavelength | 455nm |
Laser Service Time | >10000H |
Spot Shape | Point |
Laser Control | PWM |
APP Engraving Parameter Reference | |
Corrugated paper | Power:25%, Speed: 100% |
Wood | Power: 70%, Speed: 100%. |
Cork coasters | Power: 40%, Speed: 100%. |
PU leather coasters | Power: 70%, Speed: 90% |
Stainless Steel | Power: 100%, Speed: 1%. |
