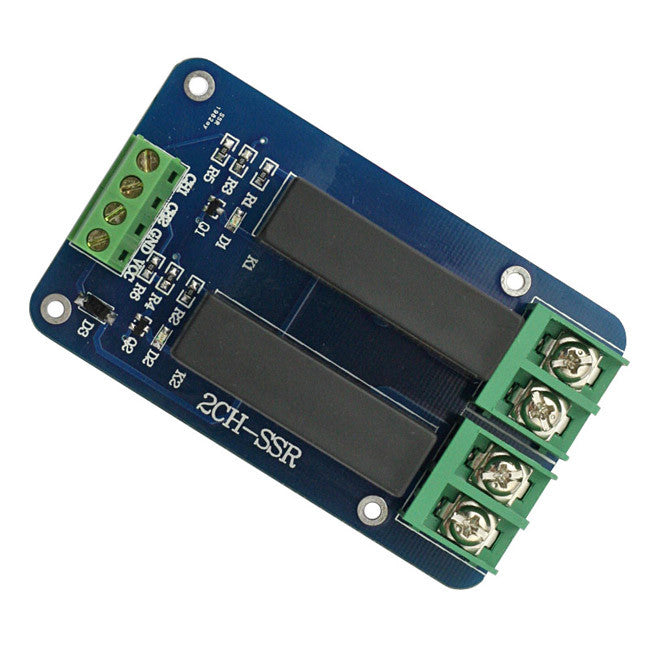

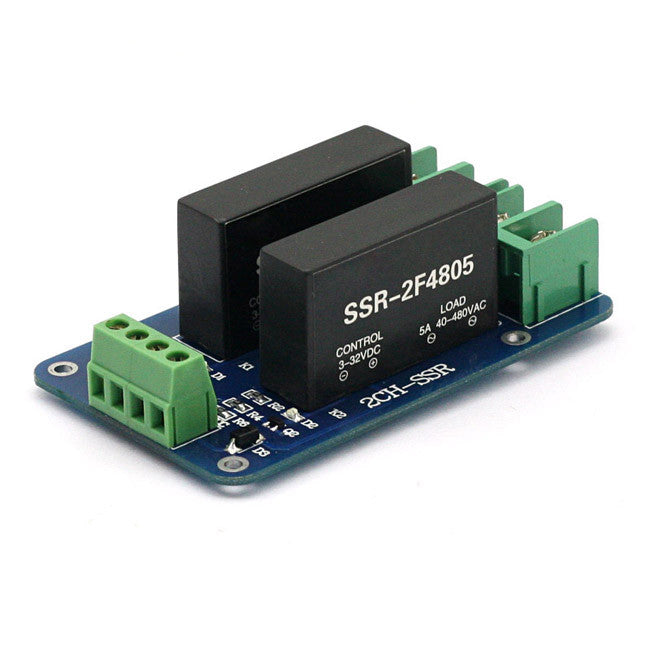

[Discontinued] 2-Channel 3V-32V Solid State Relay

SPECIFICATION

• The photoelectric isolation
• The4000V dielectric withstanding voltage
• The zero or random conducting switch
• The PCB type installation
• The SCR output
• Have extremely high surge current capability
• Built in RC absorption circuit
• It can provide LED indicate the working state of products
• Environmental friendly ( in line with the ROHS requirements )
• Input ( control ) parameters ( TA=25?)
• Input voltage range ( DC )3-32VDC
• Ensure that the turn-on voltage ( DC )3.0VDC?
• Ensure that the turn-off voltage ( DC )1.0VDC
• Input current ( typical)18Ma
• Input current ( max)25mA
• Reverse polarity voltage ( DC ) -32VDC
• Output ( load ) parameters ( TA=2?)
• Output voltage range: 40~480VAC
• Maximum transient voltage: 800Vpk?
• Maximum output current : 1Maâ€?/span>
• Maximum output voltage:1.5Vrms;
• Maximum load current: 5A
• Maximum surge current (10ms ): Rated current of 20 times
• The minimum power factor: 0.5;
• Minimum working current:50MA
