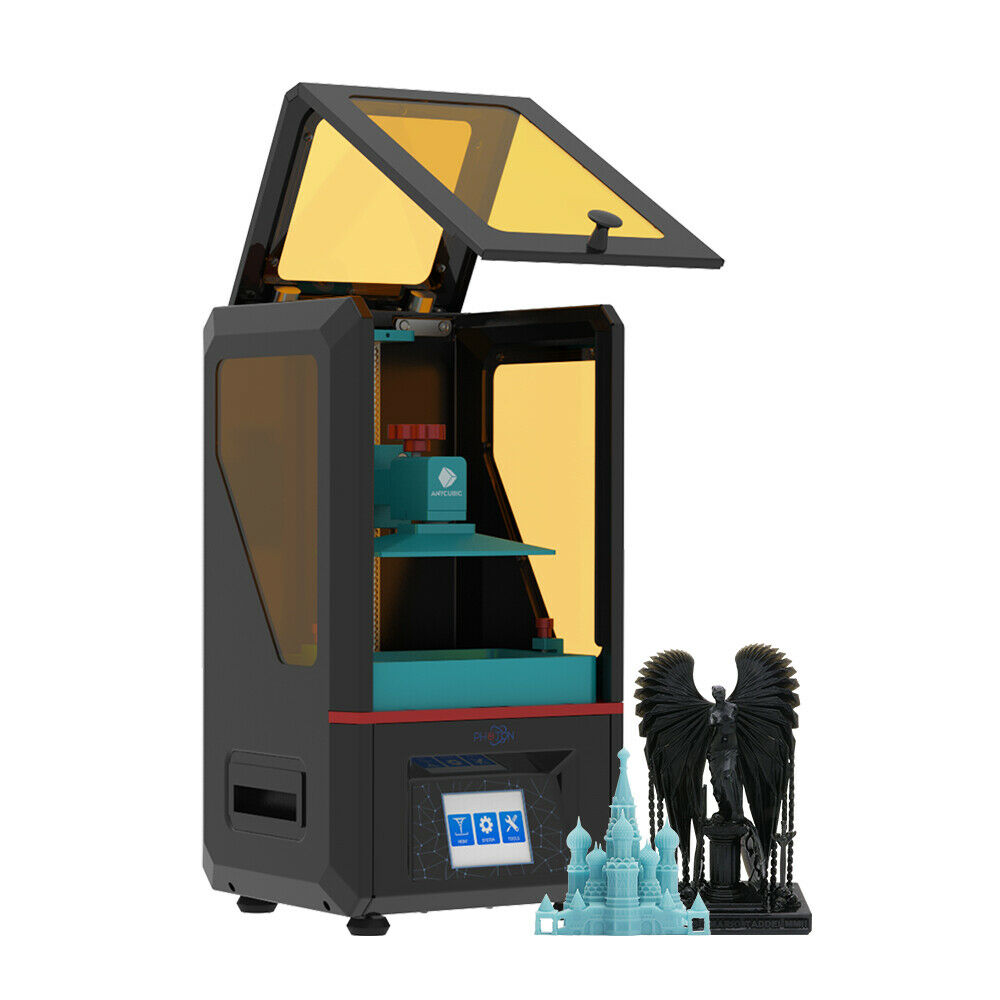

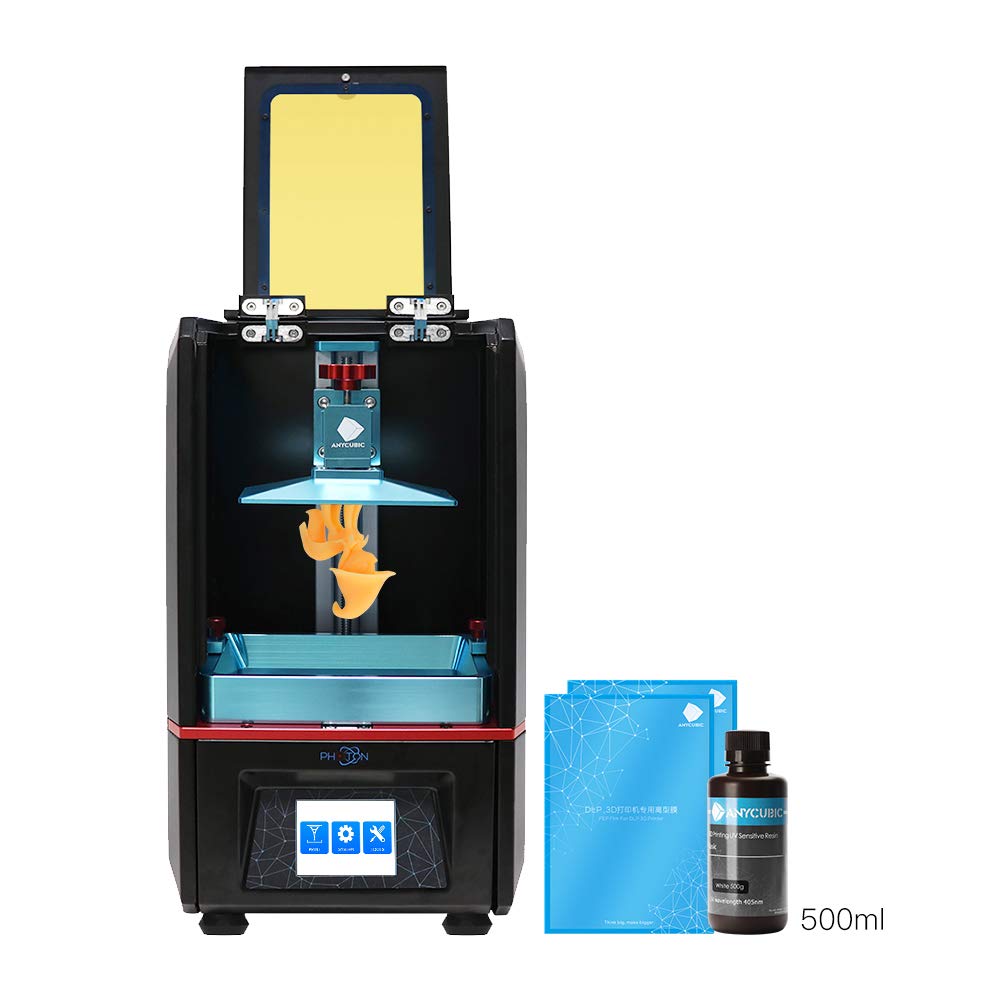

ANYCUBIC Photon UV LCD 3D Printerbrand: SainSmart SKU: 101-91-405A
Preview the Model in SD card with 2K HD touch screen just like in lap-top and also support displaying real-time printing process.
Designed with uniformity and durability -25W UV-LED source sit inside stainless steel snoot, equip with 80*80mm heat sink, to offer uniform UV light for a long-serving time.

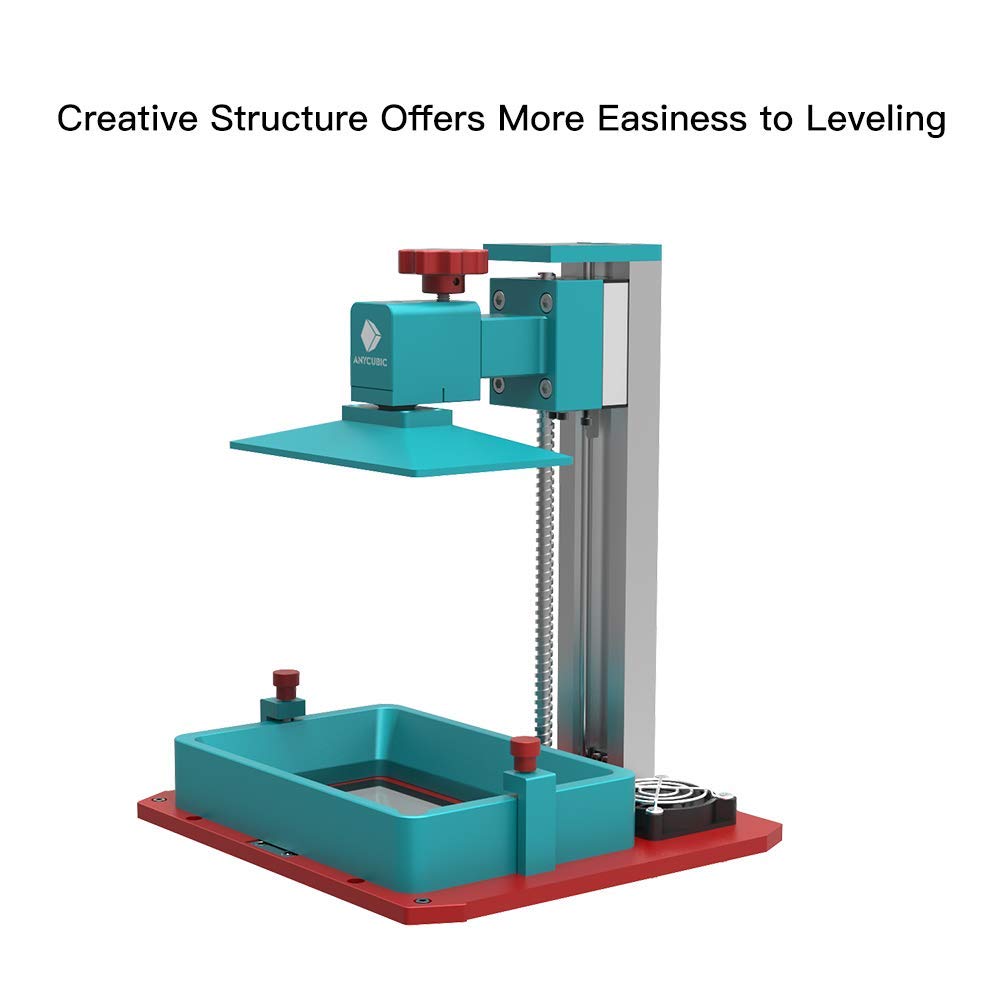

Creative structure offers so easy to leveling and Unique Resin Tank-Specially designed for FEP film to adjust the tightness.
Self-Developed Photon slicer brings a wonderful user experience and faster than open-source slicer. And also support printing directly from USB with Stable Transmission.
Used in jewelry, prototype, toys, home & garden tools, especially Medical and Dental application.

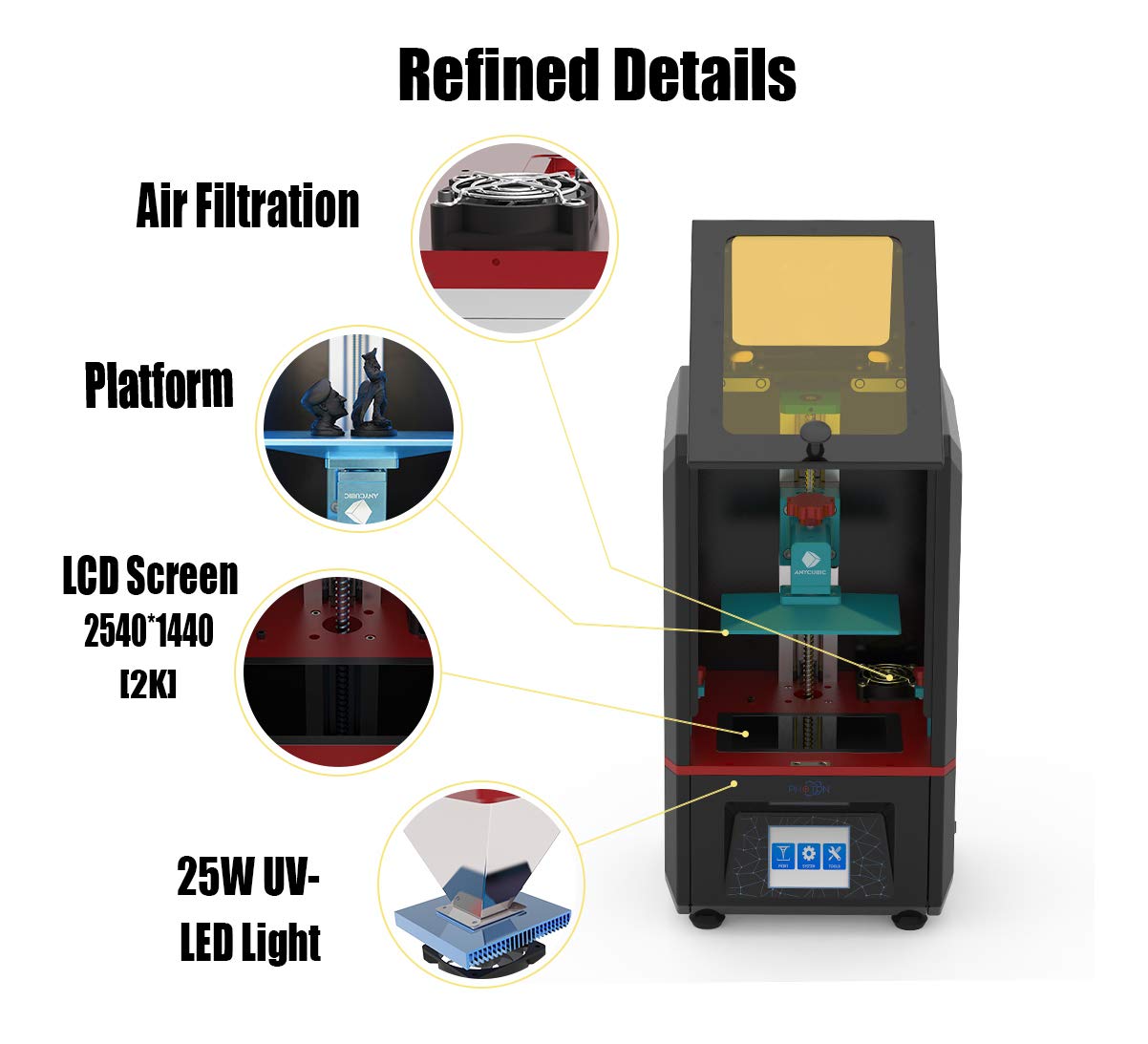

Precision: 2K LCD masking screen. 2560*1440(2k)HD masking LCD gives very fine printing details down to few micrometers.
Intelligent: Colorful touch screen equipped with Photon system bring new function.You can preview the model in SD card like you saw pictures in Windows OS.Real-time display printing process function is available now.
The ANYCUBIC Photon has an integrated computer board for printing directly from USB. You don't need to buy any additional hardware or tether your computer to print on the Photon.
UV-LED designed with uniformity and durability:25W UV light source sit inside stainless steel snoot,equip with 80*80mm heat sink,to offer uniform UV light for long serving time.
Speed: Photon slicer brings extraordinary using experience. A 30M stl file will minutes when you use a open-source slicer. While photon Slicer will finish this job within 1 minutes.
Creative: Developed Resin Vat FEP film is part of maintenance cost in daily printing. New resin vat was specially designed for FEP film to adjust the tightness.
- Modeling Technology: LCD
- Printing Volume: 4.53" x 2.56" x 6.1"(115 x 65 x 155mm)
- Z-Axis Printing Accuracy: 0.00125mm
- XY-Axis Printing Accuracy: 0.05mm
- Exposure Time: 10 to 20s
- Bottom Layer Time: 40 to 60S
- Digital Screen: 2.8inch 2560*1024 high-resolution
- Layer Thickness: 0.025 to 0.1mm
- Connection: USB2.0, Ethernet network, WIFI control
- Material: 405nm photosensitive resin
- Input: AC 110V/220V 50-60Hz
- Output: DC 12V 40W

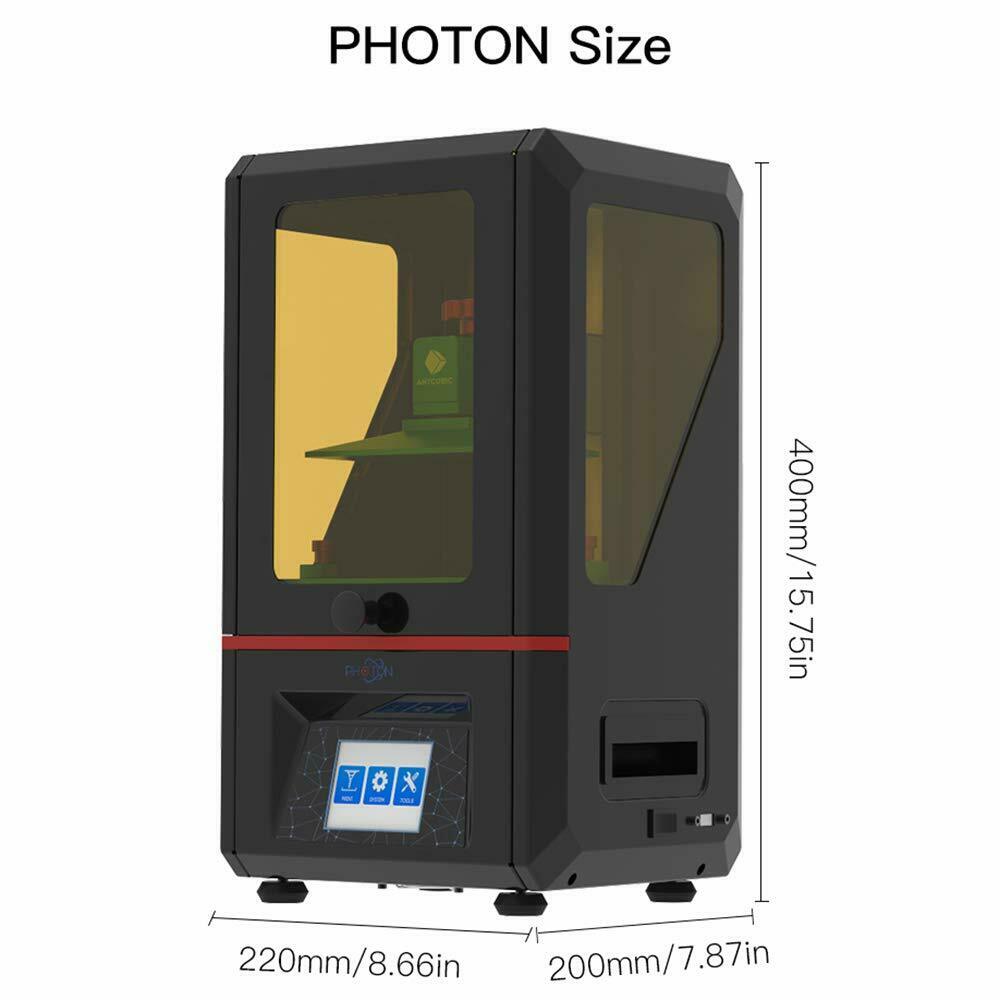

- Overall Size: 7.9 x 8.7 x 15.8’’ (200 x 220x 400mm)
- Light Source: UV LCD 25W (405nm)
- Shipping Weight: 21.2 pounds (9.5KG)

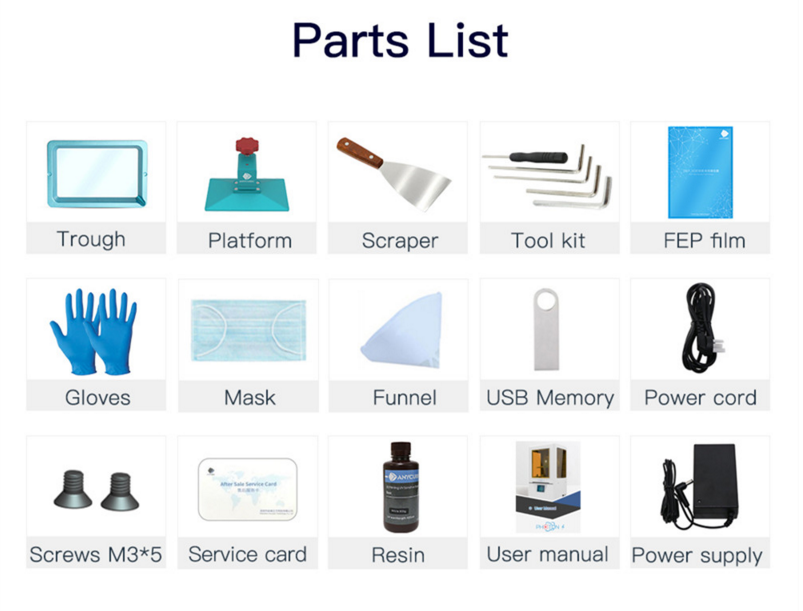

WHAT'S IN THE PACKAGE
- 1 x ANYCUBIC Photon-LCD 3D Printer (Some parts need to be assembled)
- 1 x Tool Box
- 1 x 8GB USB memory
