[Open Box] UNI-T UTD2102CEX Dual Channel Digital Storage Oscilloscopebrand: SainSmart SKU: UNT-OS-2102A-Sec
*Final Sale, no exchange or return. 6-Month Warranty. Ship to USA address only.

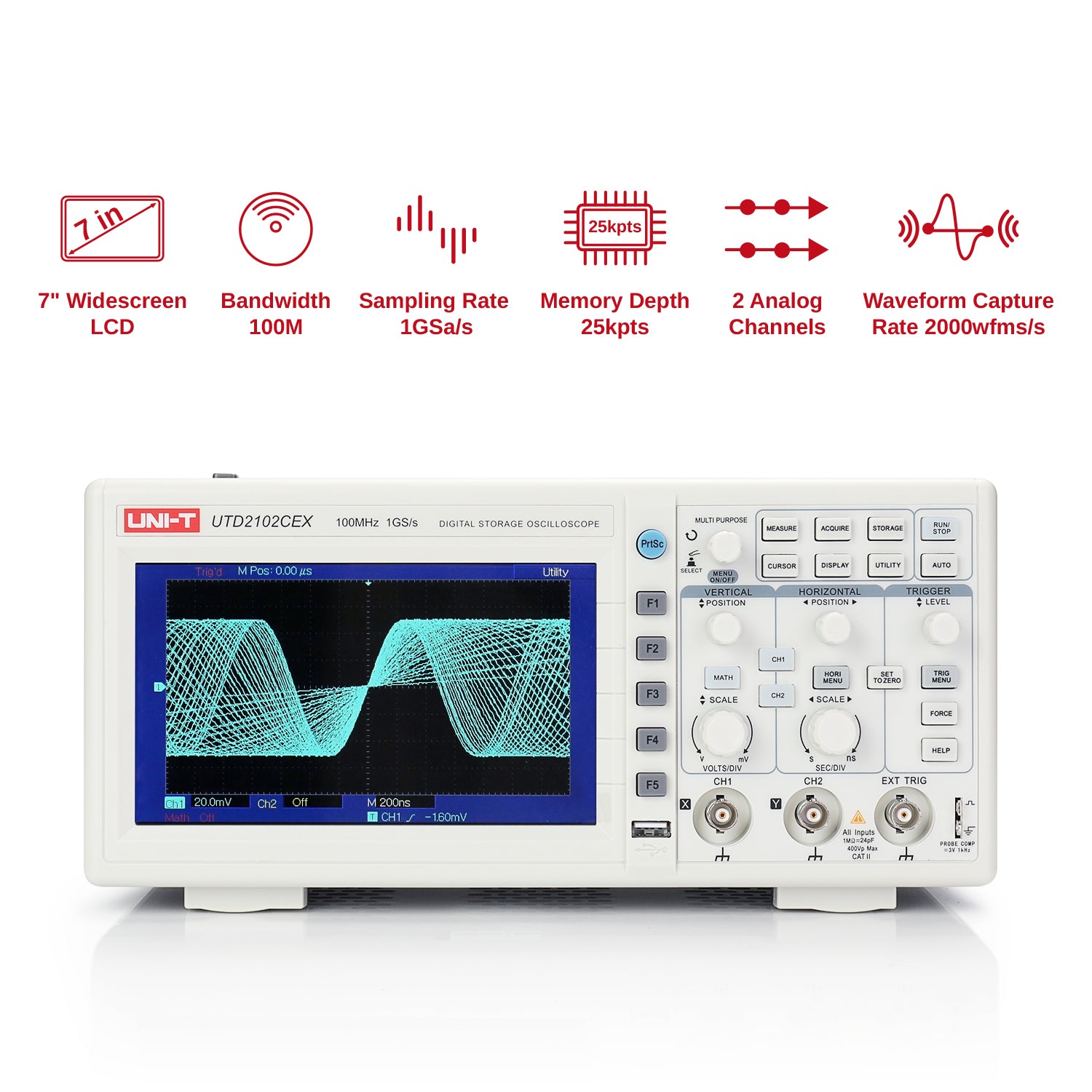

High Sampling Rate
With a bandwidth of 100MHz and sample rate of 1GS/s, the UTD2102CEX Oscilloscope will improve the ability to capture random signals and improve your efficiency while at work.

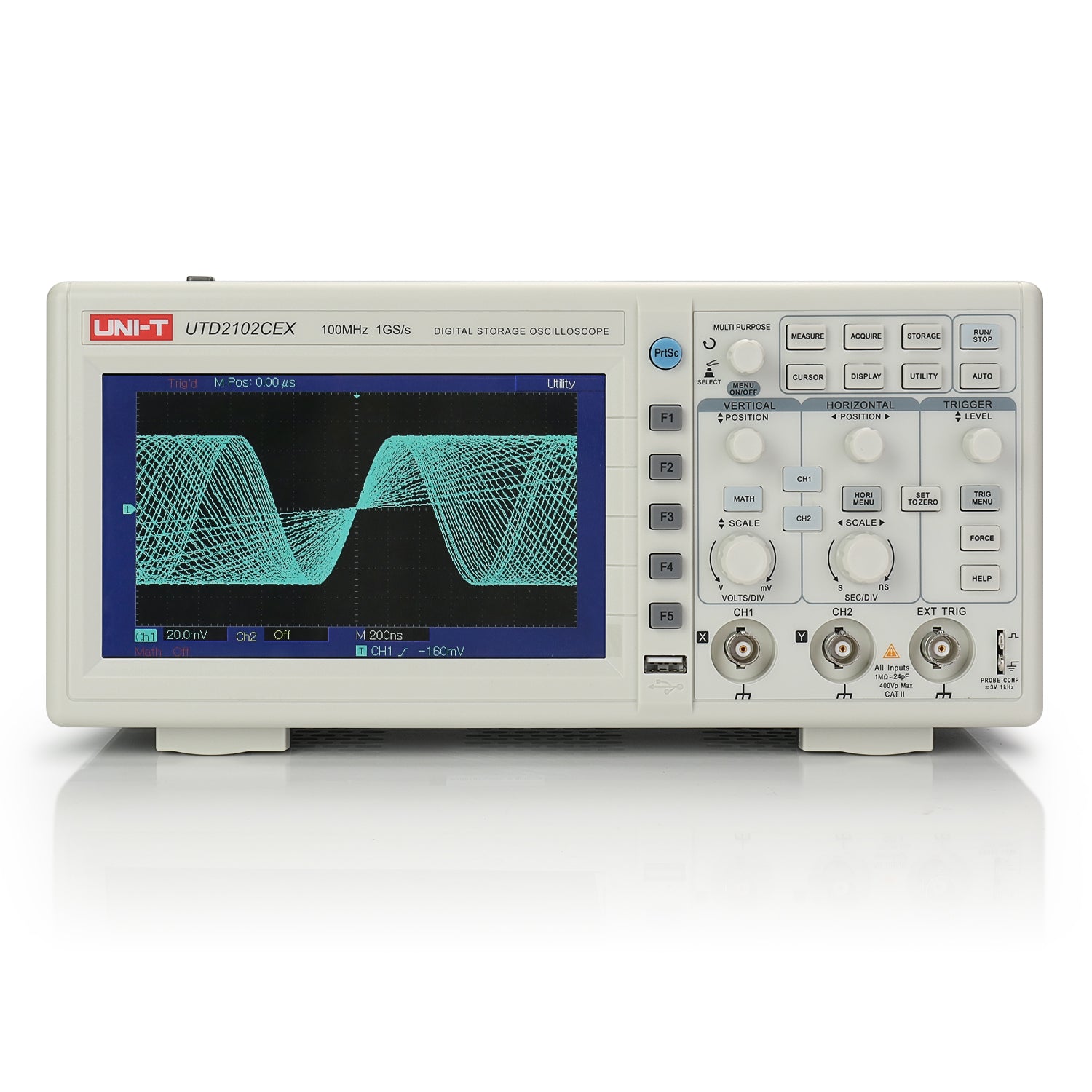

7'' LCD Screen
This oscilloscope comes equipped with a 7'' TFT LCD screen, leading to an easy representation of different waveforms and intuitive adjustment of system parameters. This device also includes a memory depth of 25kpts and multiple trigger modes (edge, pulse width, and alternate)
USB Remote Control
The UTD2101CEX is capable of sending data via a USB cable to a connected PC, making the system’s upgraded operations easier than ever. Both a USB OTG cable and a software CD are included in the oscilloscope packaging, helping users to take full advantage of the system’s upgraded operational features.
Multiple Measurement Modes
The UTD2102CEX is an advanced digital oscilloscope that can provide you with manual, track, and automatic measurement. With 32 waveform parameters, you can meet all the needs of any project you are working on. This oscilloscope also supports waveform recording and playback, so you can review at any time, making work more convenient and efficient.
Easy to Use

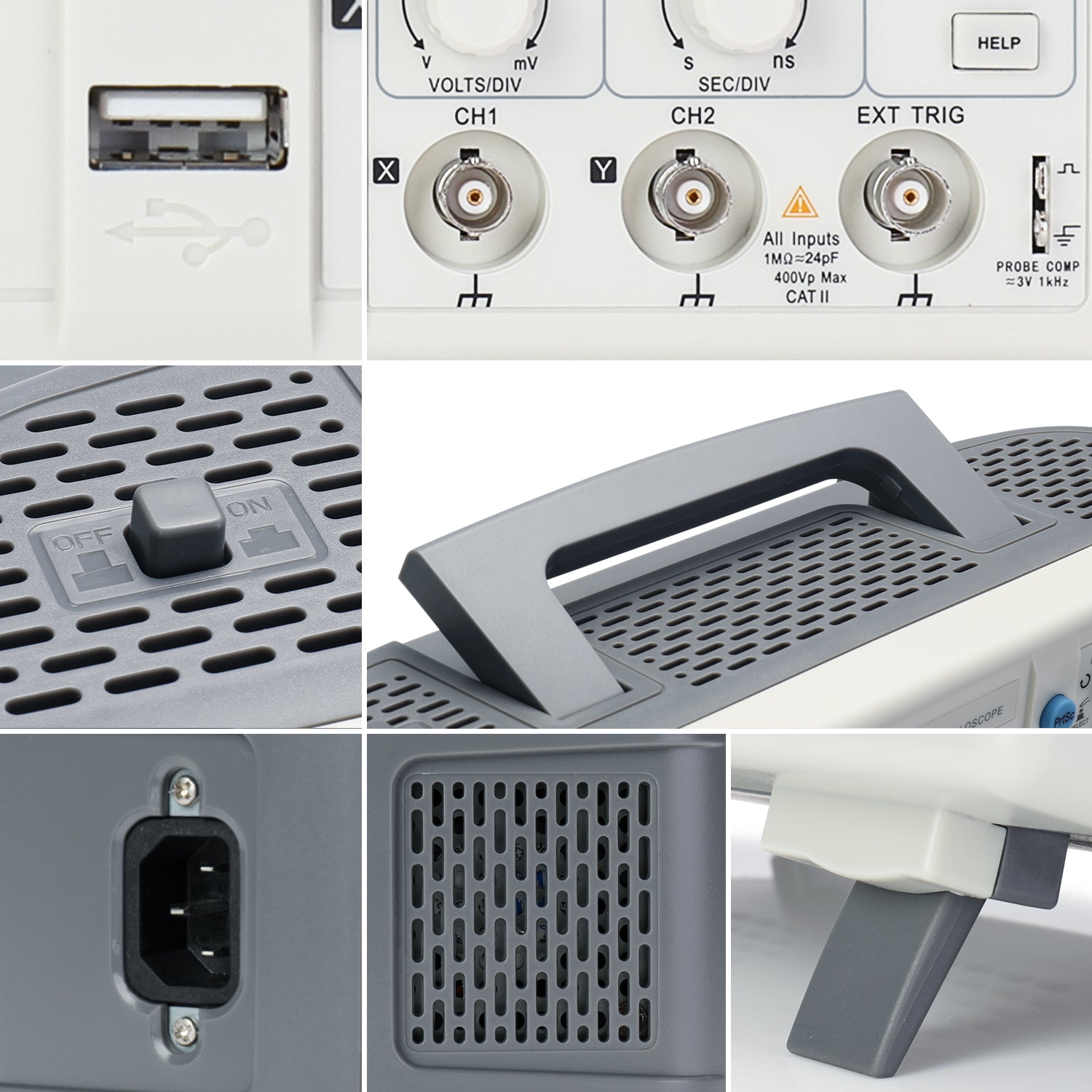

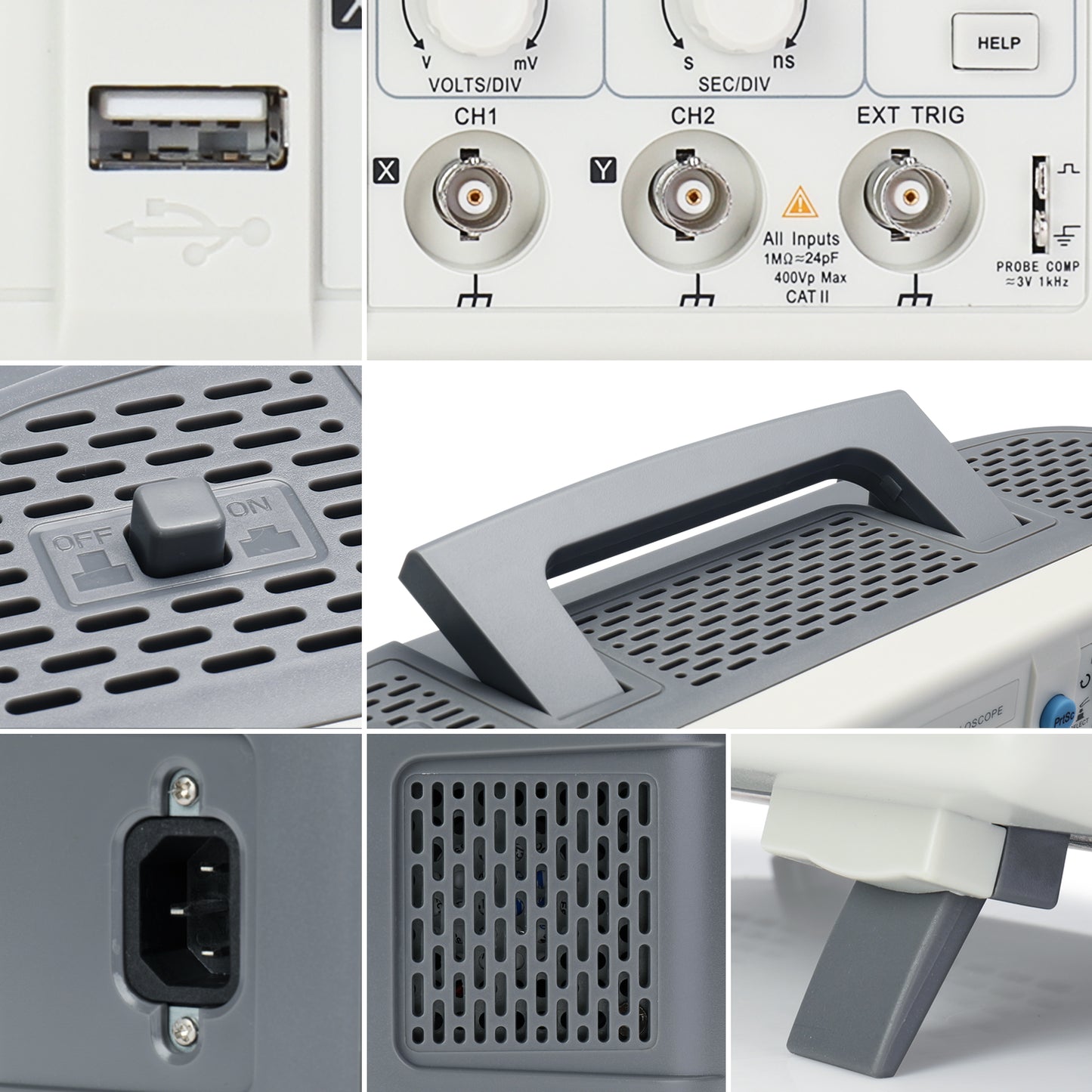

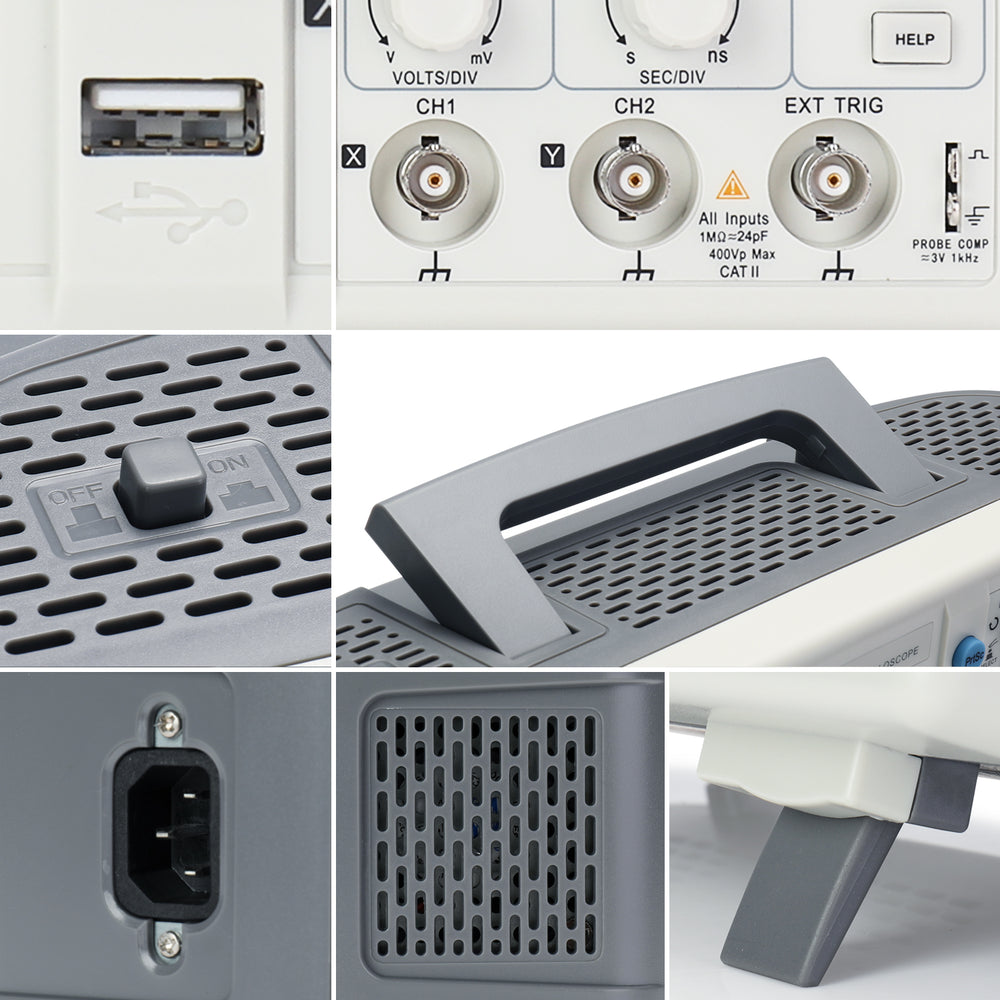

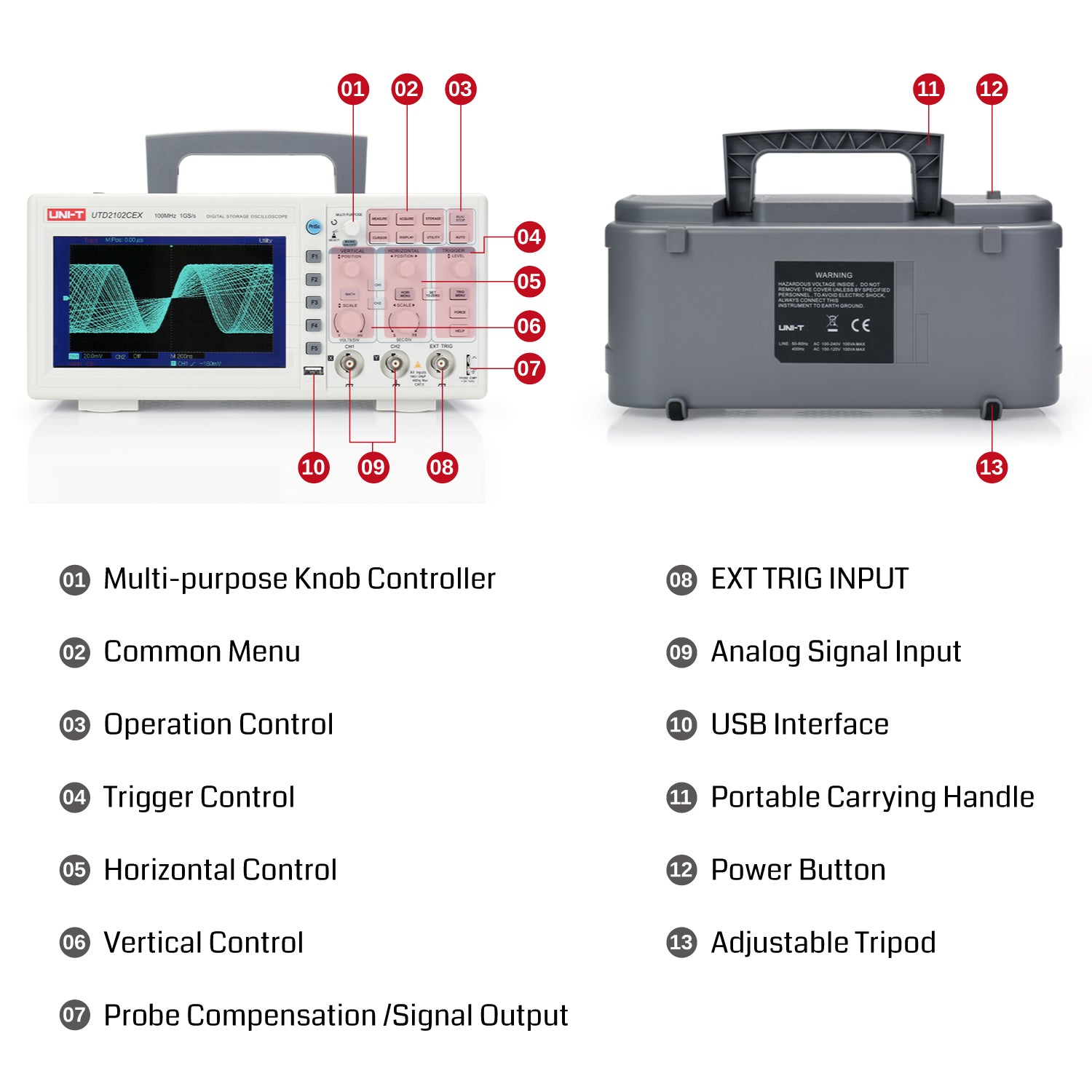

There are lots of useful functions on the device’s front panel, including position and scale adjustments, multiple languages, help menu, trigger menu, zero setting, force, cursor, measure, and many other functions.
UNI-T UTD2102CEX is a multi-functional, high-performance oscilloscope that is easy to use, has top-of-the-line technical specifications, and a perfect combination of many functionalities that can help users quickly complete testings. The UTD2102CEX can be used widely for communications equipment, semiconductors, computers, aerospace defense, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R & D, education, and many applications.
- Model: UTD2102CEX
- Channels: 2
- Bandwidth: 100MHz
- Sample Rate: 1GS/s
- Rise Time: ≤3.5ns
- Memory Depth: 25kpts
- Waveform Acquisition Rate: ≥2000wfms/s
- Vertical Sensitivity (V/div): 1mV/div~20V/div
- Timebase Range (s/div): 2ns/div~50s/div
- Storage: Setup, Wave, Bitmap
- Trigger Mode: Edge, Pulse, Video, Slope, Alternate
- Interface: USB, OTG
- Power: 100-240VAC, 45-440Hz
- Display: 7" TFT LCD screen
- Net Weight: 4.85 lbs

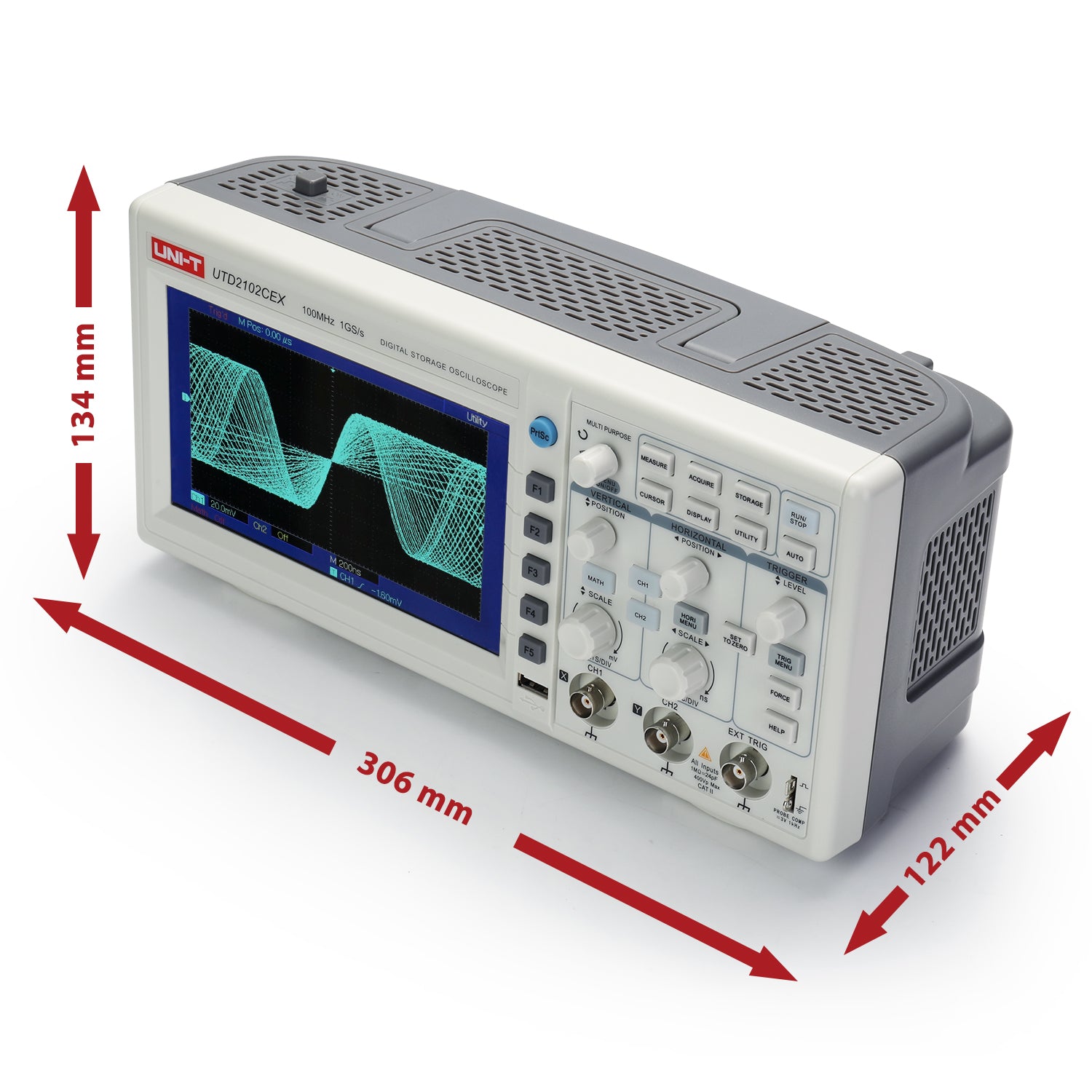

- Dimensions (W×H×D): 12.0 x 4.4 x 3.7 inch

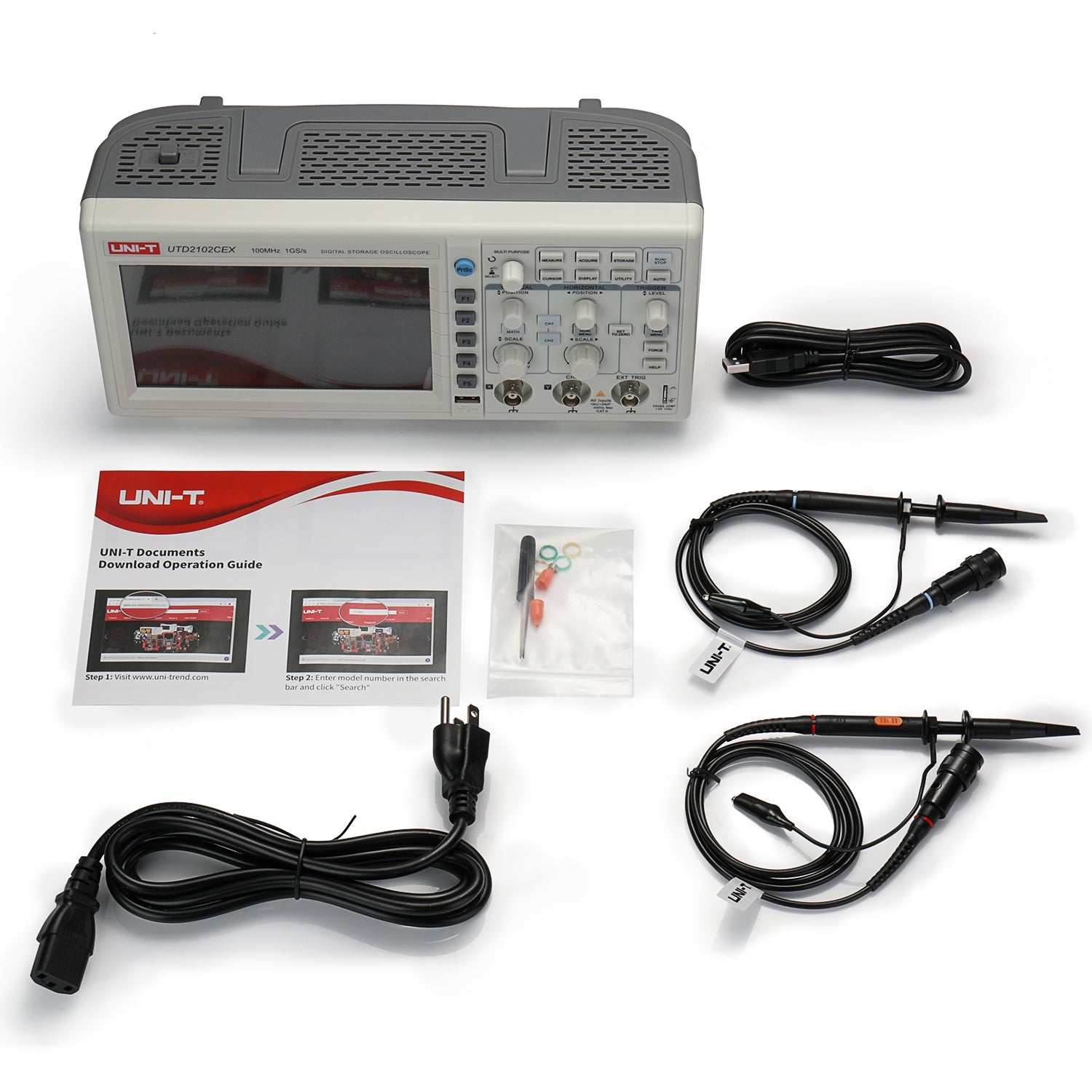

- 1 x UTD2102CEX Oscilloscope
- 2 x Probe(1x, 10x switchable)
- 1 x Power Cord
- 1 x USB Cable
- 1 x PC Software CD
