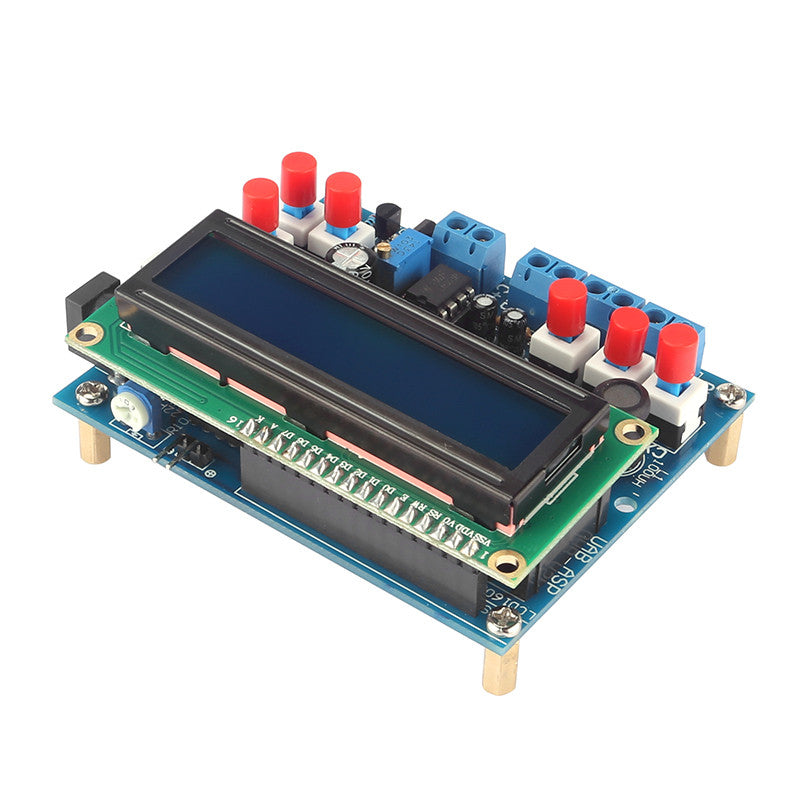

SainSmart DIY Kit Secohmmeter Capacitance Meter Inductance Meter Frequency Meter

brand: SainSmart SKU: 101-92-131 Variants ID: 45101379092
$12.99
Oops, 0 In Stock
SPECIFICATION
  • Board size: 6.8 * 8.5CM;
  • Supply voltage:
  • DC5V or DC8-14V or AC7 to 10V are available (power range is quite wide)
  • Various stalls Range Description:
  • Inductance measuring range: 0.1μH-------- 1H
  • Small capacitance measuring range: 1pF ------- 2.2μF (non-polarized capacitors)
  • Frequency Range: 20Hz ------ 400KHz (small signal can be measured)
  • Electrolytic capacitor measuring range: 0.5μF--12000μF (electrolytic capacitors)

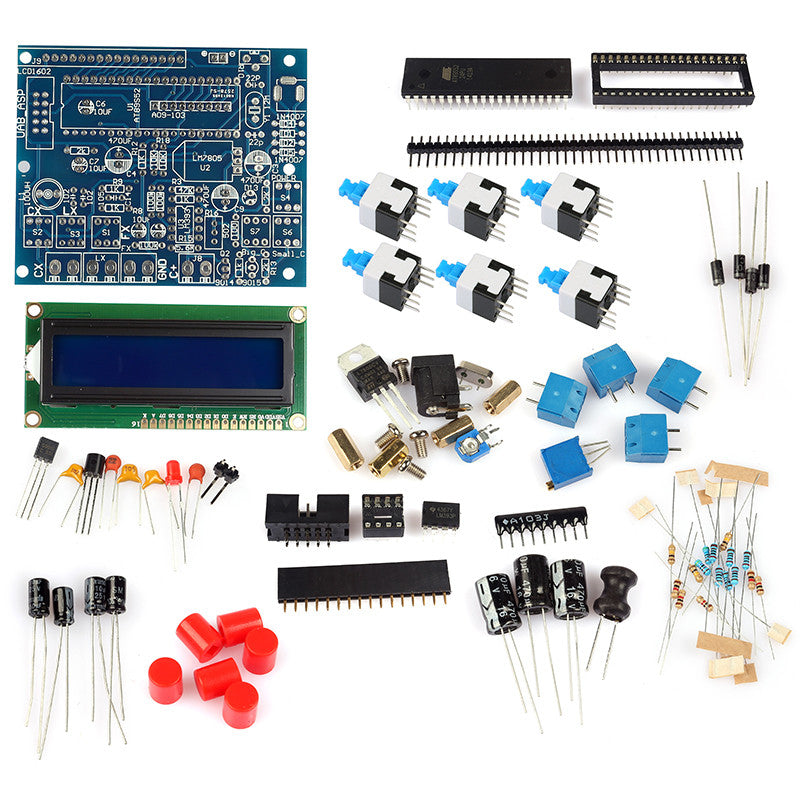

WHAT'S IN THE PACKAGE

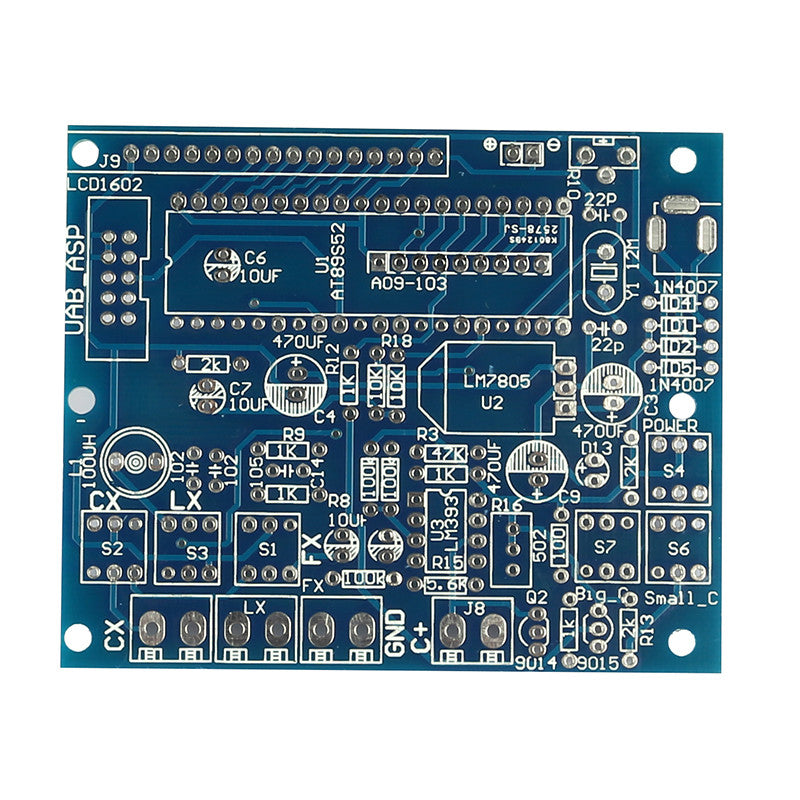

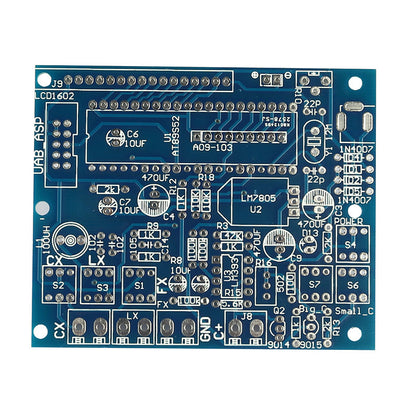

  • PCB board*1
  • 1CM studs +screw *4
  • 16P FEMALE*1
  • 40P pin straight *1
  • Bent pin 2-pin *1

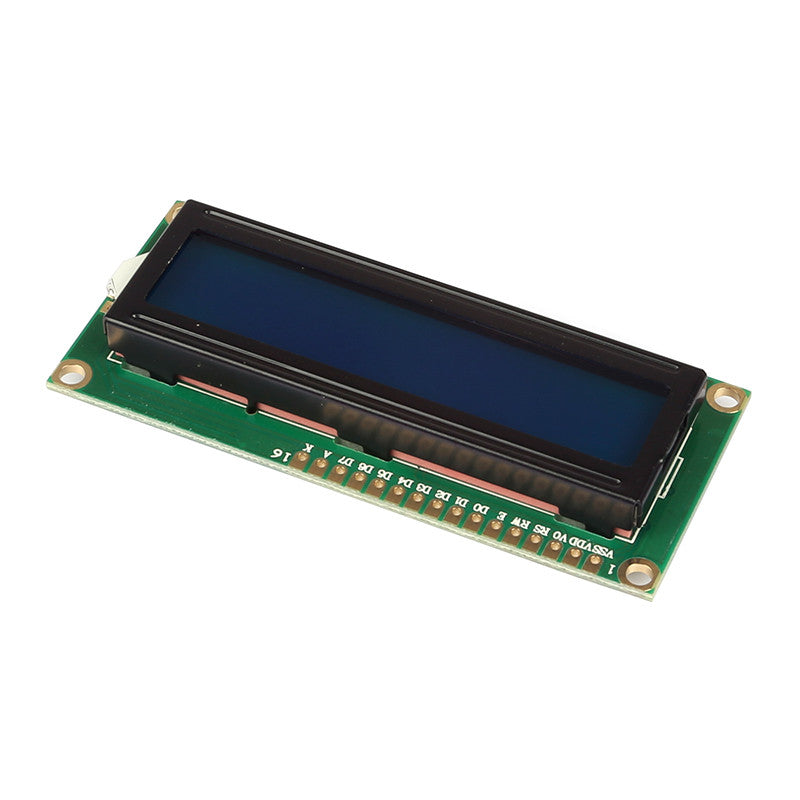

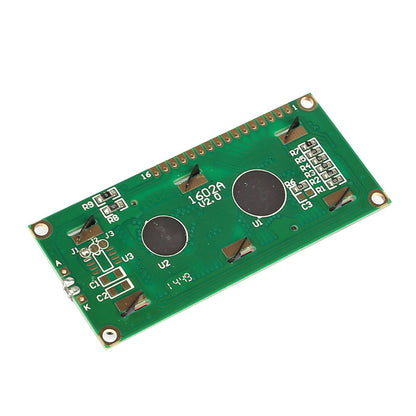

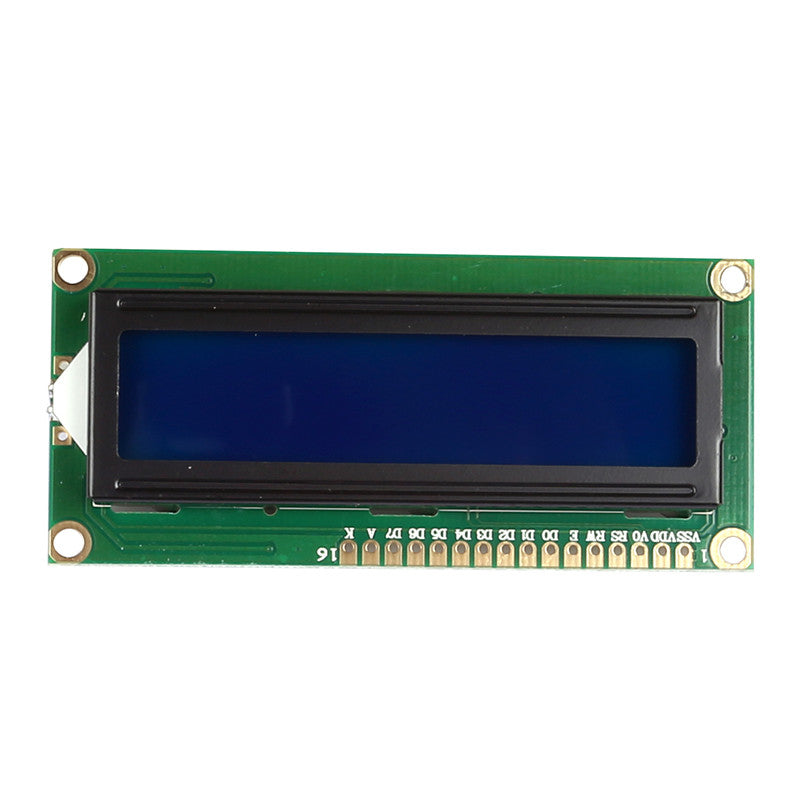

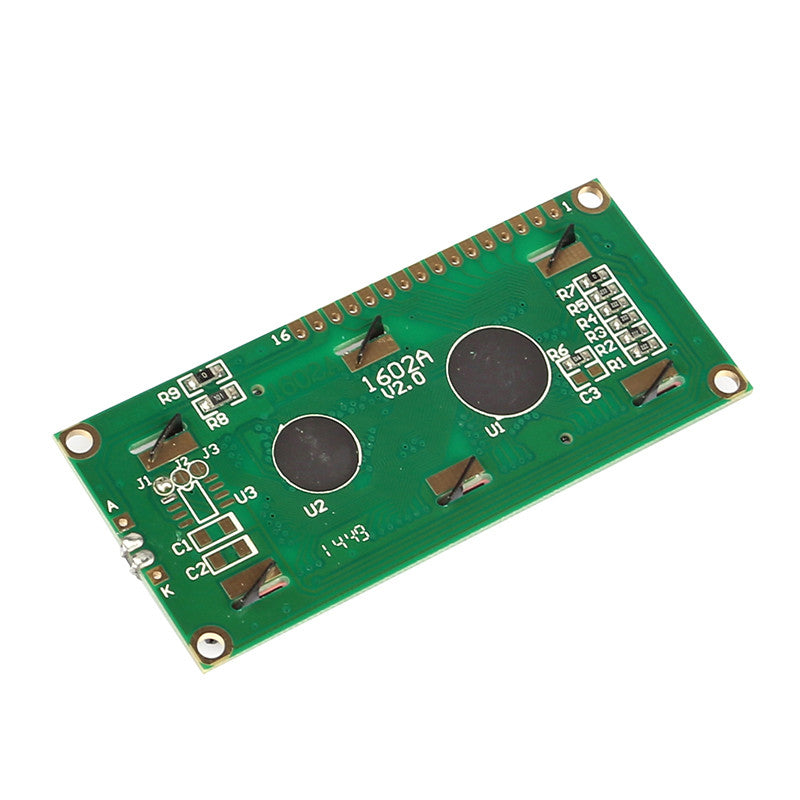

  • LCD1602 *1
  • 103 blue potentiometer *1
  • DC3-10 horns seat *1
  • 40P IC Block *1
  • AT89S52 *1
  • 8P IC Block *1
  • LM393 *1
  • 8 * 8 self-locking switch *6
  • KF301-2P Terminal Blocks *4
  • DC005 seat *1
  • LM7805 *1
  • A09-103 exclusion *1
  • 3296-502 potentiometer *1
  • 22P ceramic capacitors *2
  • 1N4007*4
  • 12M crystal*1
  • 470UF/16V capacitance *3
  • 10UF/25V capacitance *4
  • 3MM LED *1
  • 100UH inductor *1
  • 102 monolithic capacitors *2
  • 105 monolithic capacitors *1
  • 9014 triode *1
  • 9015 triode *1
  • 10K resistor *2
  • 1K resistor *5
  • 100K resistor *3
  • 2K resistance error of 1% *3
  • 47K resistor *1
  • 5.6K resistor *1
  • 100 ohm 1% error *1
