Brand: SainSmart SKU: 101-97-132

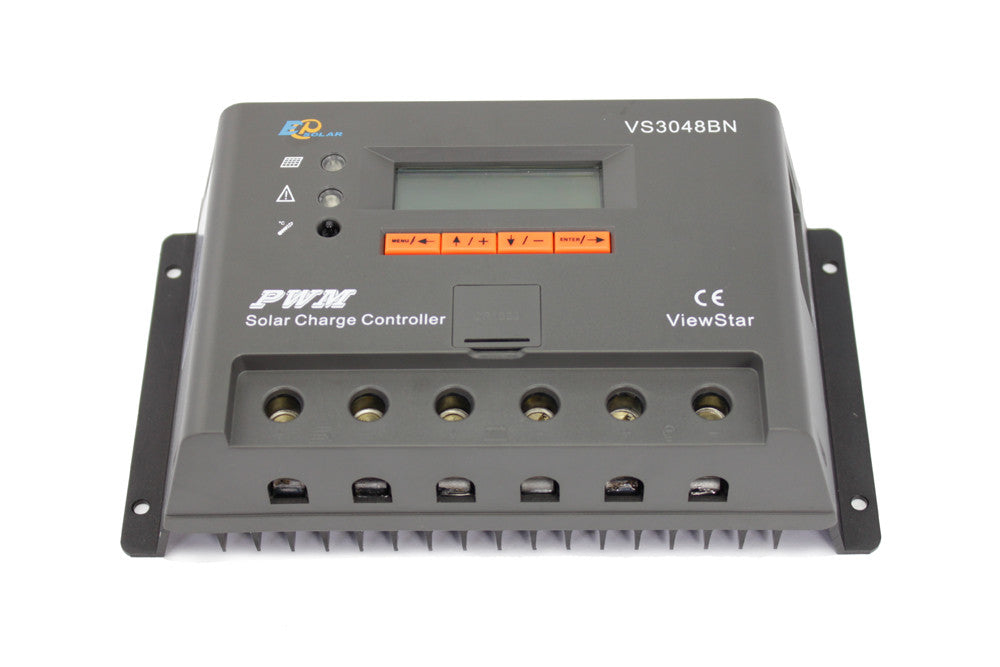

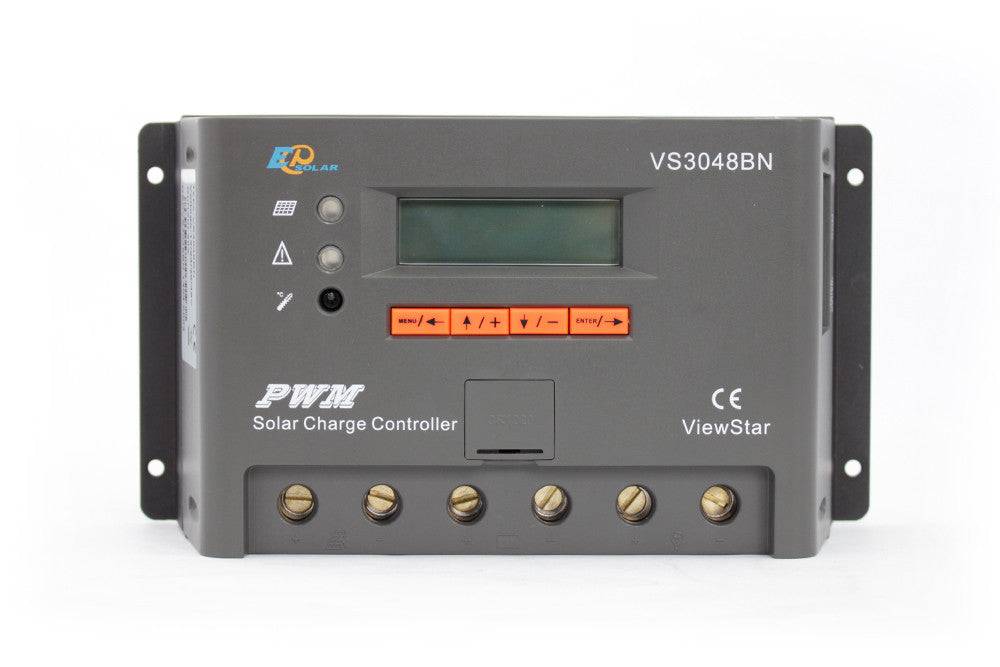

[Discontinued] EPsolar ViewStar VS3048BN PWM Solar Battery Charge Controller Regulator

SKU: 101-97-132 Variants ID: 45102808596
$159.99

This solar controller is designed for off-grid solar system, such as street light, solar home system or small power station etc. It has LCDdisplay, reliable battery charging , full electronic protection,
Communication:RS485 / RJ45 interface
Battery type options:Sealed, Gel, Flooded, and USER (9-17V)
Warranty:2-year warranty

  • Excellent EMC design
  • 32 bit MCU with high speed
  • High efficient Series PWM charging
  • Four battery type options: Sealed, Gel, Flooded, and USER
  • Intelligent lighting and timer control for solar lighting system
  • 12 bit A/D high-precision sampling to ensure accuracy
  • Use MOSFET as electronic switch
  • Full control parameters setting and modification, diversified load control mode
  • Humanized design of browser interface, undertake every operating conveniently
  • Temperature compensation
  • Adopt graphics dot-matrix LCD screen and HMI  (human-machine interface) with 4 buttons,integrated menu displaying and operation
  • Energy statistics function
  • RS485 ports with MODBUS communication protocol
  • Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
  • Field upgradable firmware

This solar controller is designed for off-grid solar system, such as street light, solar home system or small power station etc. It has LCDdisplay, reliable battery charging , full electronic protection,
Communication:RS485 / RJ45 interface
Battery type options:Sealed, Gel, Flooded, and USER (9-17V)
Warranty:2-year warranty

  • Excellent EMC design
  • 32 bit MCU with high speed
  • High efficient Series PWM charging
  • Four battery type options: Sealed, Gel, Flooded, and USER
  • Intelligent lighting and timer control for solar lighting system
  • 12 bit A/D high-precision sampling to ensure accuracy
  • Use MOSFET as electronic switch
  • Full control parameters setting and modification, diversified load control mode
  • Humanized design of browser interface, undertake every operating conveniently
  • Temperature compensation
  • Adopt graphics dot-matrix LCD screen and HMI  (human-machine interface) with 4 buttons,integrated menu displaying and operation
  • Energy statistics function
  • RS485 ports with MODBUS communication protocol
  • Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
  • Field upgradable firmware




    SPECIFICATION



    • Models:VS3048BN
    • Working Voltage :12/24/36/48V Auto
    • Working Current:30A
    • Working Mode: PWM Charging
    • Dimensions:201*109*59mm
    • Net Weight:0.8kg

    Electronic Protections
    • PV short circuit  protection
    • PV reverse polarity protection
    • Battery overcharge protection
    • Battery over discharge protection
    • Battery reverse polarity protection
    • Load overload protection
    • Load short circuit protection
    • Overheating protection

    WHAT'S IN THE PACKAGE
    • 1x ViewStar VS3048BN 30A PWM Solar Charge Controller
    • 1x English Manual
