Brand: SainSmart

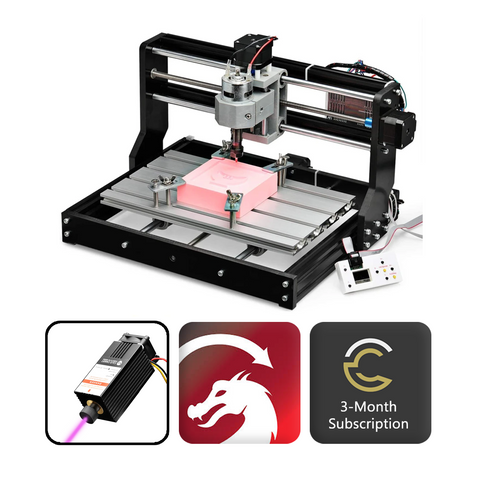

Genmitsu 3018-PRO CNC & Laser Bundle

SKU: 101-60-3018PB Variants ID: 32680871264335
$399.90 $535.90 Save $136.00
US Free Shipping

- Included Hardware (over $450 value)
Genmitsu CNC Router 3018-PRO ($270 value)

Genmitsu Offline Controller ($25 value)

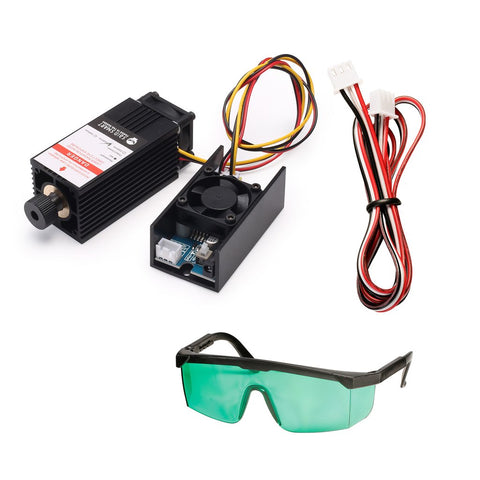

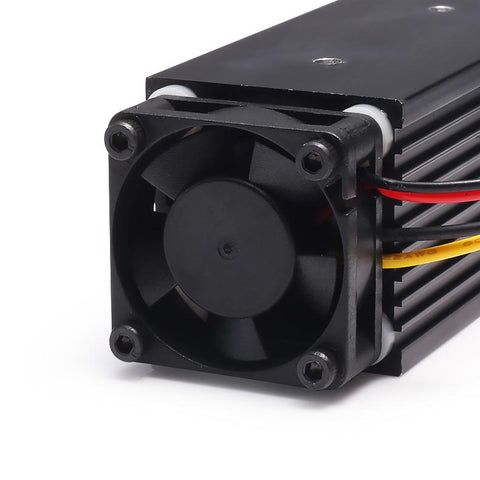

5.5W Blue Laser Module ($150 value)

- Included Software ($85 value)

3-Month Carveco Maker Subscription ($45 Value)

LightBurn GCode License Key ($40 value)

This is the latest version of CNC Router 3018-PRO, equipped with an all-new design controller board that provides better heat dissipation. Our new power adapter has been redesigned, with CE, FCC & PSE certifications, that ensure complete protection for you and your machines. The built-in smart integrated circuit design keeps the power adapter going against overheat on the unit and charging stably.

New Version Genmitsu CNC Router PRO is an upgraded version of Genmitsu CNC Router. All components do not need to be positioned, which greatly reduces the difficulty of assembly and improves the working accuracy. Moreover, the base height is raised to 4cm for better stability.

Integrated With an integrated mainboard and custom software, communication between the software and hardware is seamless by design.

Software The Genmitsu uses Grbl, high performance, open-source software for controlling movement, and runs on Arduino. Its dependability and simplicity make Grbl an industry standard, so there’s no lack of support and resources available when you get stuck.

Versatile Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, the Genmitsu can be used on a wide range of projects and materials.

Simple Assembly Assembly instructions are provided, but if you get stuck, check out the SainSmart Resource Center or contact us with any questions that arise.

★ Join SainSmart Genmitsu CNC Router Facebook Group.

Ship to
USA

- Included Hardware (over $450 value)
Genmitsu CNC Router 3018-PRO ($270 value)

Genmitsu Offline Controller ($25 value)

5.5W Blue Laser Module ($150 value)

- Included Software ($85 value)

3-Month Carveco Maker Subscription ($45 Value)

LightBurn GCode License Key ($40 value)

This is the latest version of CNC Router 3018-PRO, equipped with an all-new design controller board that provides better heat dissipation. Our new power adapter has been redesigned, with CE, FCC & PSE certifications, that ensure complete protection for you and your machines. The built-in smart integrated circuit design keeps the power adapter going against overheat on the unit and charging stably.

New Version Genmitsu CNC Router PRO is an upgraded version of Genmitsu CNC Router. All components do not need to be positioned, which greatly reduces the difficulty of assembly and improves the working accuracy. Moreover, the base height is raised to 4cm for better stability.

Integrated With an integrated mainboard and custom software, communication between the software and hardware is seamless by design.

Software The Genmitsu uses Grbl, high performance, open-source software for controlling movement, and runs on Arduino. Its dependability and simplicity make Grbl an industry standard, so there’s no lack of support and resources available when you get stuck.

Versatile Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, the Genmitsu can be used on a wide range of projects and materials.

Simple Assembly Assembly instructions are provided, but if you get stuck, check out the SainSmart Resource Center or contact us with any questions that arise.

★ Join SainSmart Genmitsu CNC Router Facebook Group.

The Genmitsu CNC

Designed to deliver the best value and performance for any new Desktop CNC user, the Genmitsu is a great tool for getting started with CNC. If wood-working or DIY crafting is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models that you can design with the included CARVECO Maker design software.

Versatile

The Genmitsu is capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, and a wide range of other materials. The effective engraving depth is 1.8 inches. You will find the SainSmart Genmitsu is an excellent self-teaching tool which allows you to try your DIY ideas on an inexpensive platform without the risk of damaging expensive equipment.

Upgraded Power Adapter

UL Approved and out-of-the-box support for the drop in 20,000rpm Spindle no need to modify G-code to ramp up to full speed and also supports the Genmitsu 3018 PRO Laser.


Add-on Laser, Frame Extension, and Z-Axis Module Upgrades*

If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the laser module kit to the machine as a drop-in upgrade.  Or if you need an extra working room you can add the Y-Extension and expand your work area potential.  If you need to work with harder materials upgrade your Z-Axis with the new all-metal carrier with support for larger 300w spindles..(Laser Module)( Extension Kit ) ( Z-Axis Spindle Carrier*)

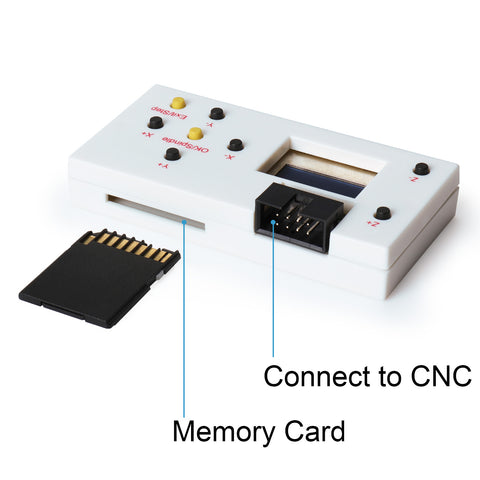

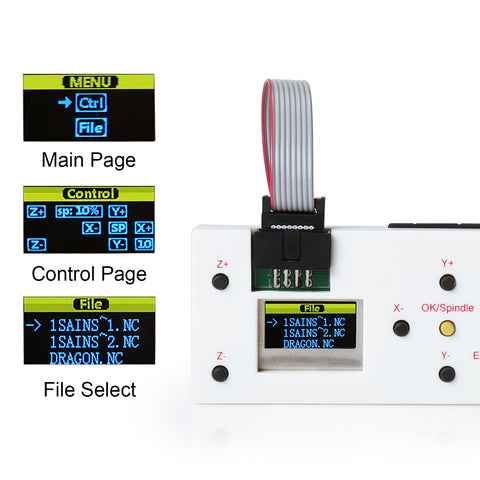

Offline Control

With SainSmart offline controller module, you can control the CNC router without connecting to the computer. The CNC router can be placed wherever you want, such as garage and workshop.

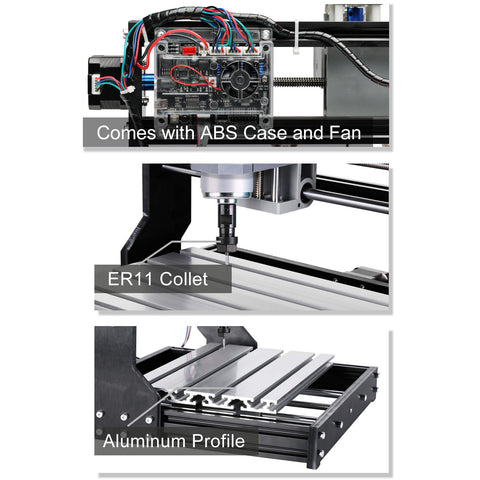

Latest V2 CNC Controller

More reliable and safer to use. With built-in fault protection and improved driver performance, you can count on your Genmitsu 3018-PRO to last for many projects to come.

Open Source

It’s built on Arduino and Grbl (both open source) support, tutorials, additional training, and new ideas to try are plentiful and easy to find elsewhere online.

Description

Designed to deliver the best value and performance for any new Desktop CNC user.  The Genmitsu 3018-PRO is a great tool for getting started with CNC learning. If wood-working or DIY crafting is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models that you can design with the included CARVECO Maker design software. which you are coding and designing.

Curious about CNC? The 3018-PRO is the perfect starter with the performance you need to work with REAL materials and get creating with Industry-leading CARVECO Maker software right out of the box and confidence that you are covered with Sainsmart’s excellent Customer service and Warranty.

Genmitsu CNC Router 3018-PRO Review   |   Blue Laser Module Review   |   Blue Laser Module
SPECIFICATIONS
  • Effective Engraving Area: 300 x 180 x 45 mm(11.8 x 7.1 x 1.8”)
  • Frame Size: 400 x 330 x 240 mm(15.7 x 13.0 x 9.4")
  • Frame Material: Aluminum
  • Axis Bracket Material: PF
  • Z-Axis Component Material: Nylon
  • Spindle: 775 motor, 12V, 3000 RPM; 24V, 7000 RPM; 36V, 9000 RPM
  • Rated Power: 60W; Maximum Power: 120W
  • Step Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in lb)
  • Drill Bits: Tip 0.1 mm, 20 degrees, Diameter 3.175 mm
  • Supported OS: Windows XP, Windows 7, Windows 8, Windows 10, Linux, Mac OS
  • Software: Grbl control(Candle)
  • Power Supply: 24V/4.75A
TIPS

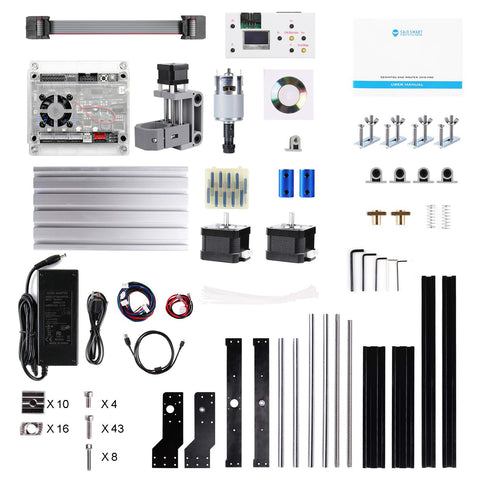

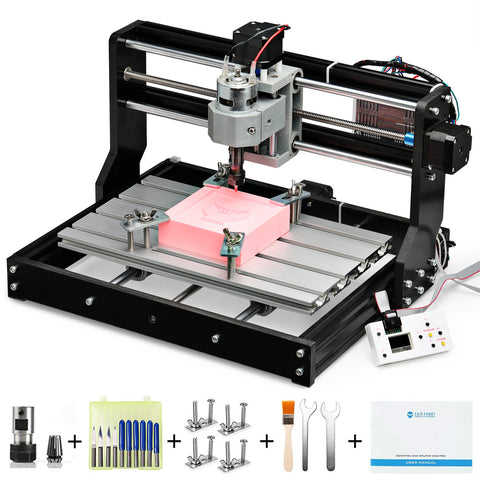

WHAT'S IN THE PACKAGE
  • 1x 3018-PRO DIY Router Kit
  • 1x Extension Rod with ER11 Collet (3.175mm)
  • 4x Plate Clamps
  • 10x CNC Router Bits (Cutting Angle: 20 Degree; Shank Diameter: 3.175mm; Tip Diameter: 0.1mm)
  • 1x English Manual
  • 1x Offline Controller


Genmitsu 1810-PRO  3018-PRO  3018-PROVer  3018-PROVer Mach3 3018-MX3
Assembly Time 2 hours 2 hours 30 minutes 30 minutes 2 hours
Working Area 180x100x45mm 300x180x45mm 300x180x45mm 300x180x45mm 300x180x45mm
Control Software GrblControl(Candle) GrblControl(Candle) GrblControl(Candle) Mach3/DrufelCNC Mach3/DrufelCNC
Driver Chip 4988ET 4988ET TB67S109 TB67S109 TB67S109
Home and Limit switches x x  ✓
Emergency-Stop x x  ✓ x
Z-Probe x x  ✓
Acrylic Baffles x x  ✓
Comes with Offline Controller?  x x
Switchable to Laser Module?  x


Learn

    User Manual

    Youtube Test and Review Video

    3018PRO Master Document

    Software Links

    LaserGRBL The best free GCode sender for DIY Laser Engraver. LaserGRBL is able to load and stream GCode path to arduino, as well engrave images, pictures and logo with internal conversion tool. Can click here to buy a laser module.

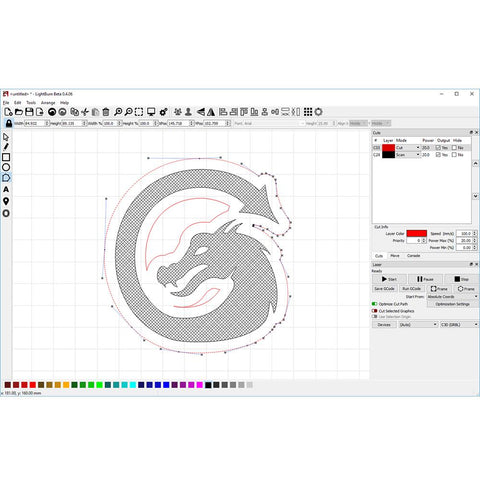

    LightBurn is a premium version of LaserGRBL which allows you powerful tools for editing, adjusting the layout and controlling your laser. LightBurn is a native application written for Windows, Mac OS, and Linux. Can click here to buy the LightBurn GCode License Key.

    Easel is the all-in-one software solution for 3D carving machines. Designed by Inventables, Easel is the easiest way to get started in the world of 3D carving.

    Fusion 360 Integrated CAD, CAM, & CAE software for everyone. Animation. Access Anywhere. Easy Collaboration. Try It Free. Integrated Design Tools. Next-Gen 3D CAD/CAM. Fabrication.
