Brand: SainSmart
SKU: 101-63-SPH52P
Genmitsu Aluminum Spindle Holder for 3018-PRO
SKU: 101-63-SPH52P
3
$109.99
$119.99
Save $10.00
US Free Shipping

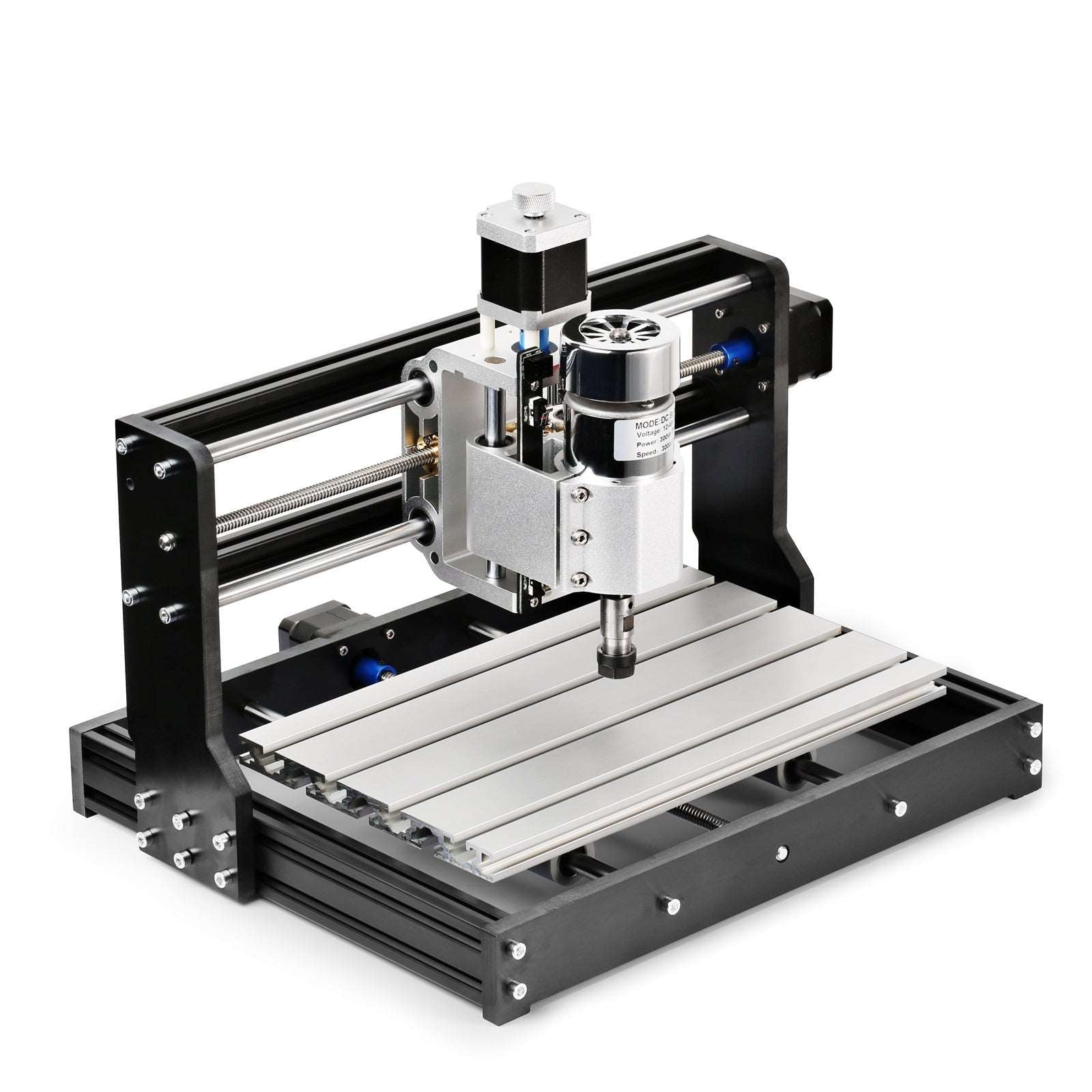

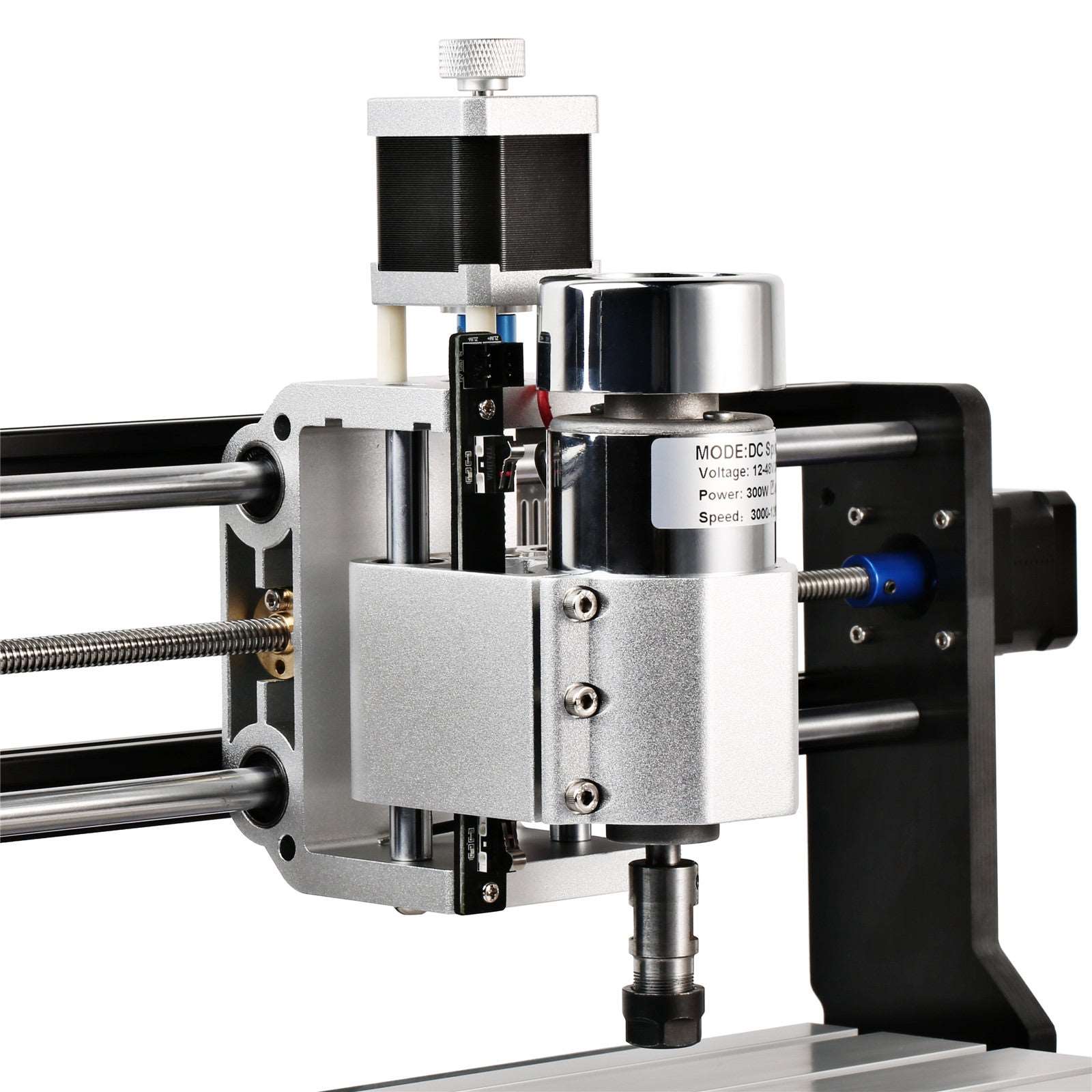

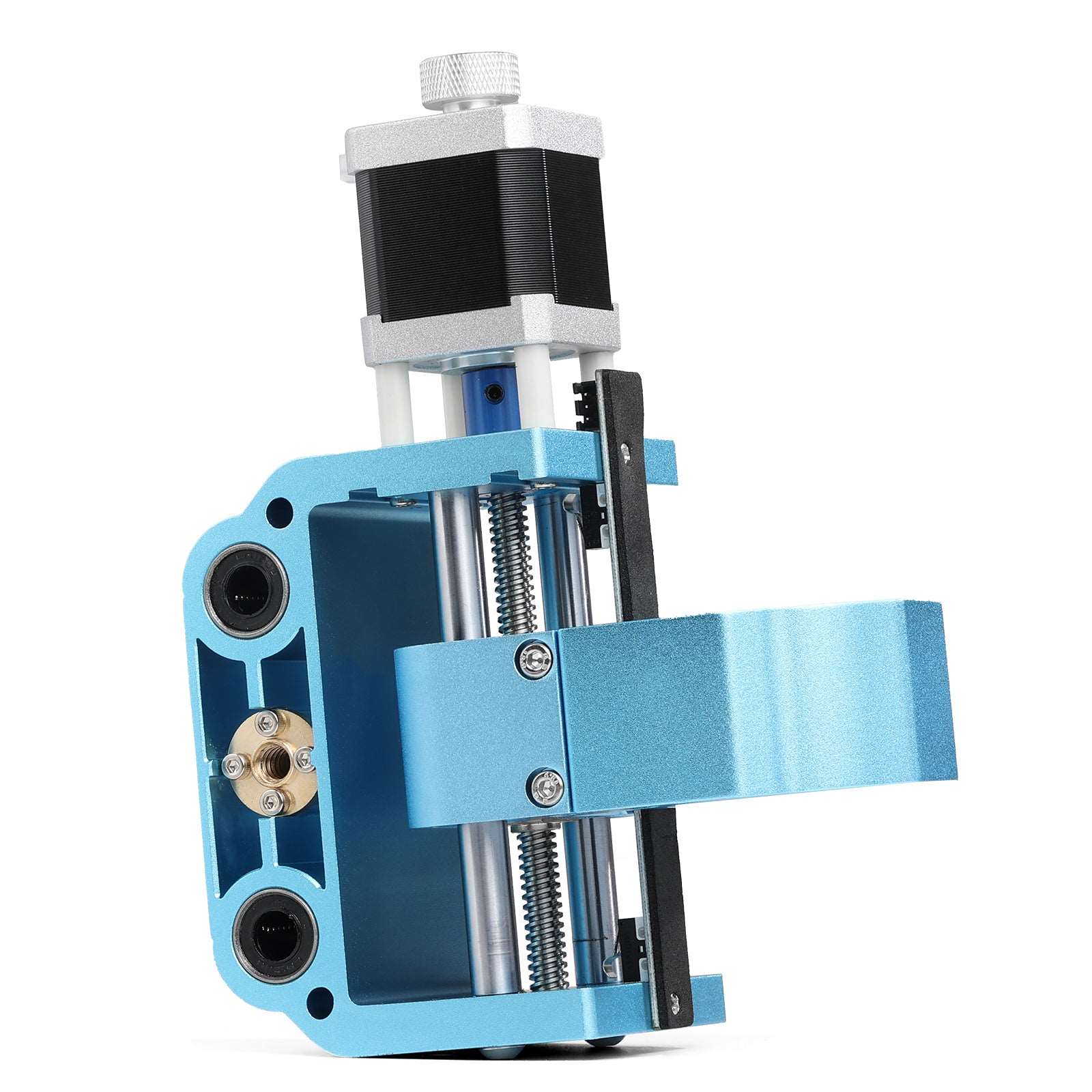

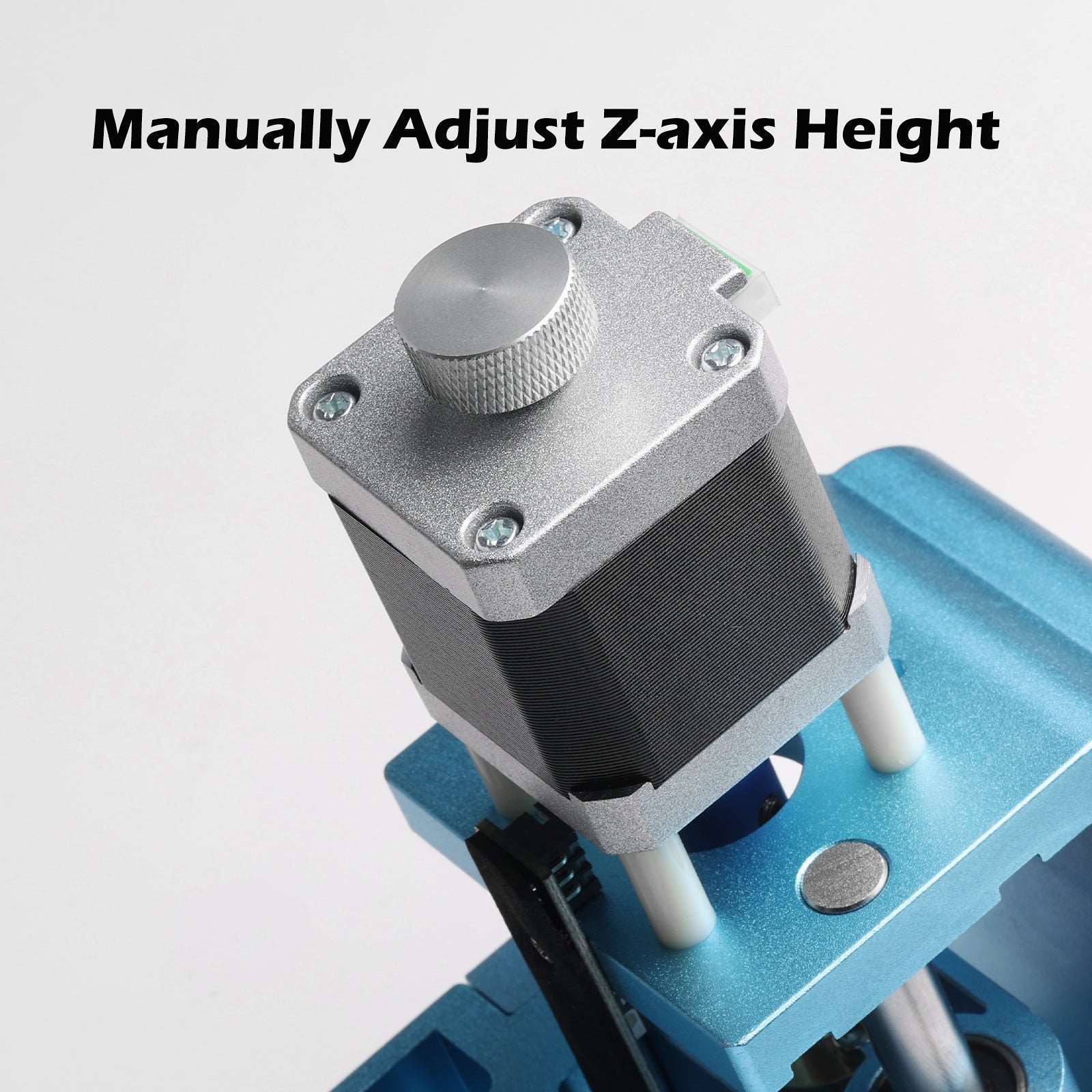

Upgrade your 3018-PRO: Upgrade with a more powerful 300-500W spindle motor and Z-axis knob with a 52mm spindle mount. (Note: this aluminum holder is not compatible with the GS775 47mm spindles such as the stock spindle and the 20K spindle for the Genmitsu 3018 router.)

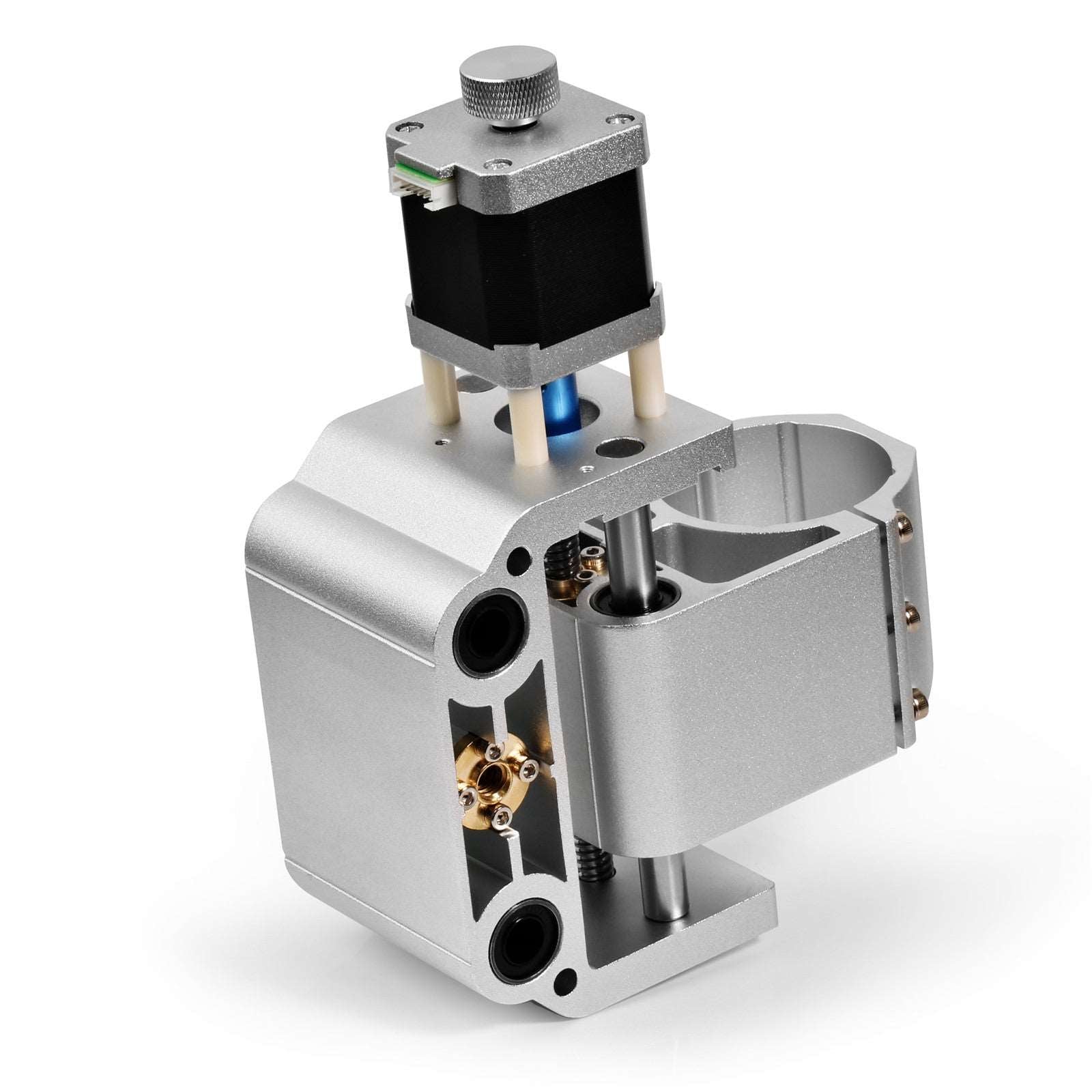

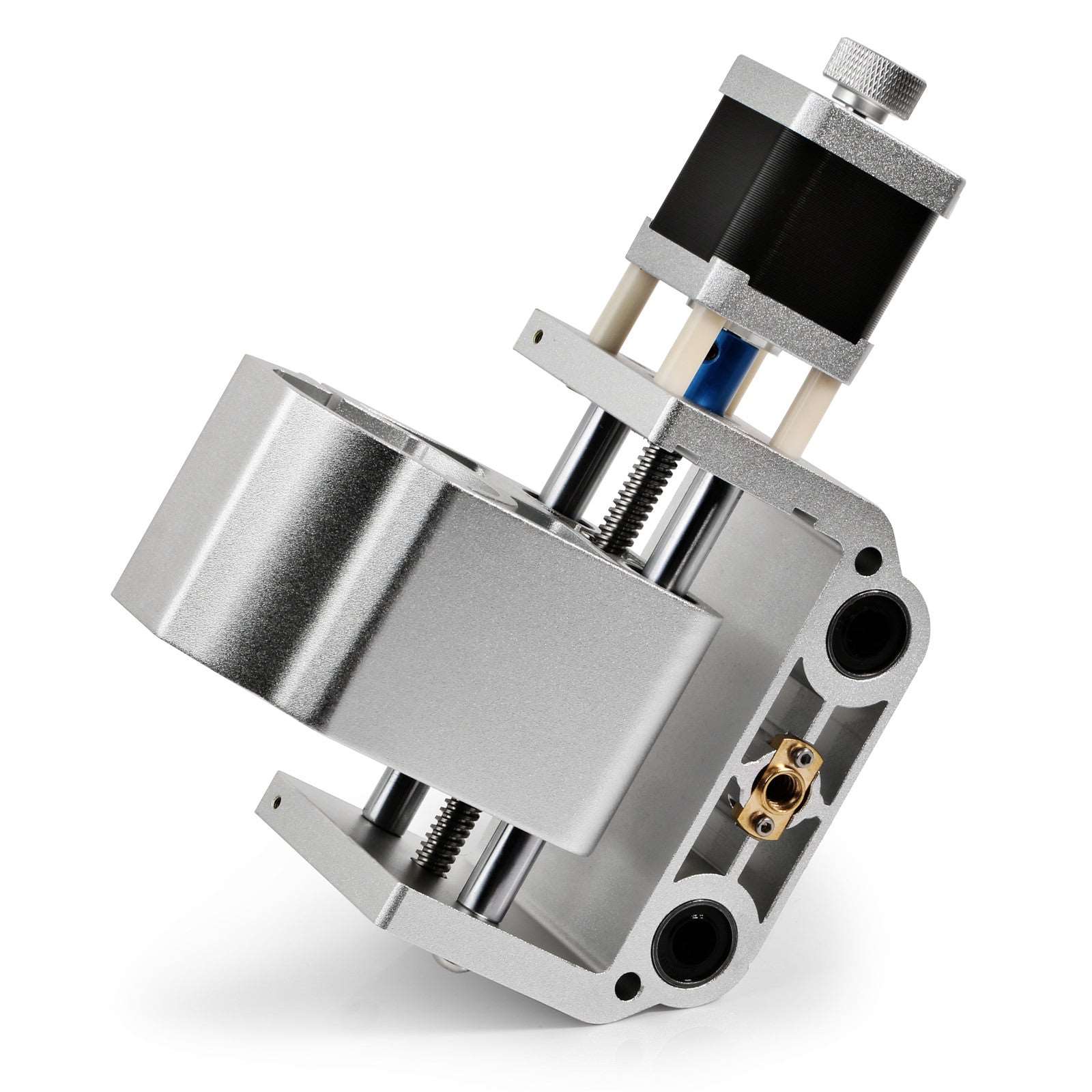

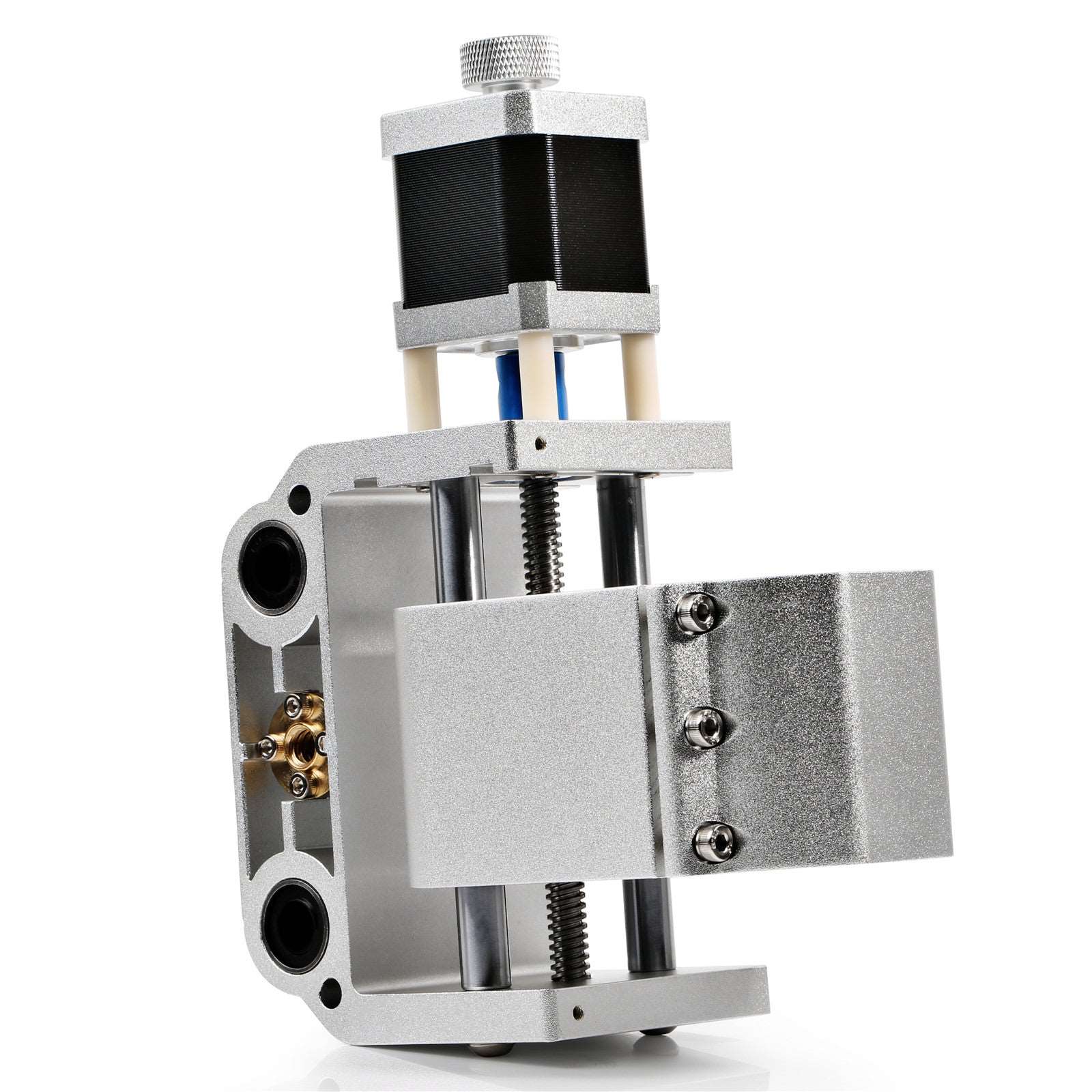

High Quality: The spindle carriage is made of high-quality aluminum for better rigidity and durability. High strength and long service life.

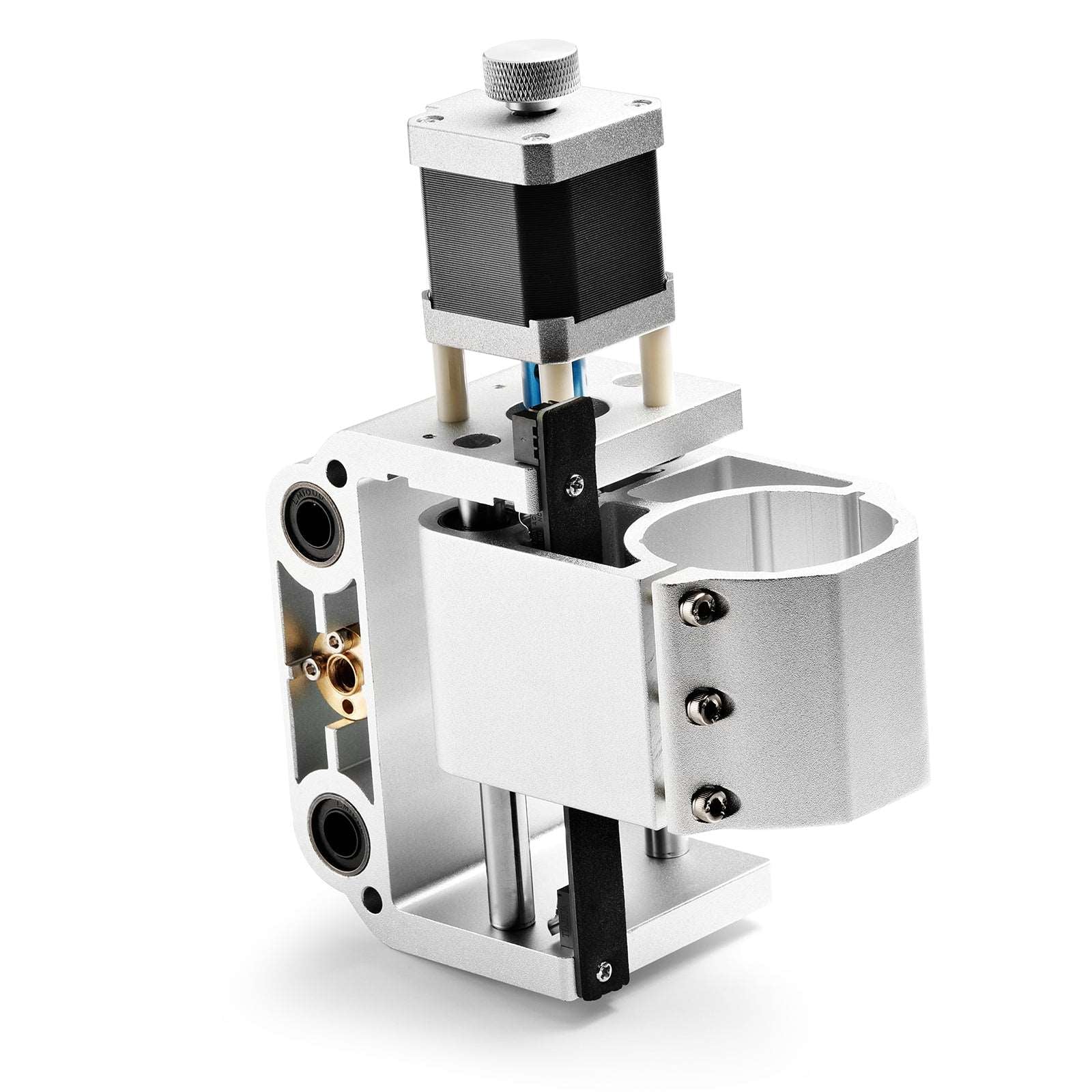

Stable and Reliable Performance: Can hold the motor firmly to increase stability and reduce noise. Limit switches and linear bearings are pre installed.
Delicate Appearance: All Metal design, drop in upgrade ready. Matches your 3018-PRO stock colors with the black sliver plating. It is practical and ideal for Genmitsu 3018-PRO. (Not Genmitsu 3018 CNC? Please contact us for size guide.)

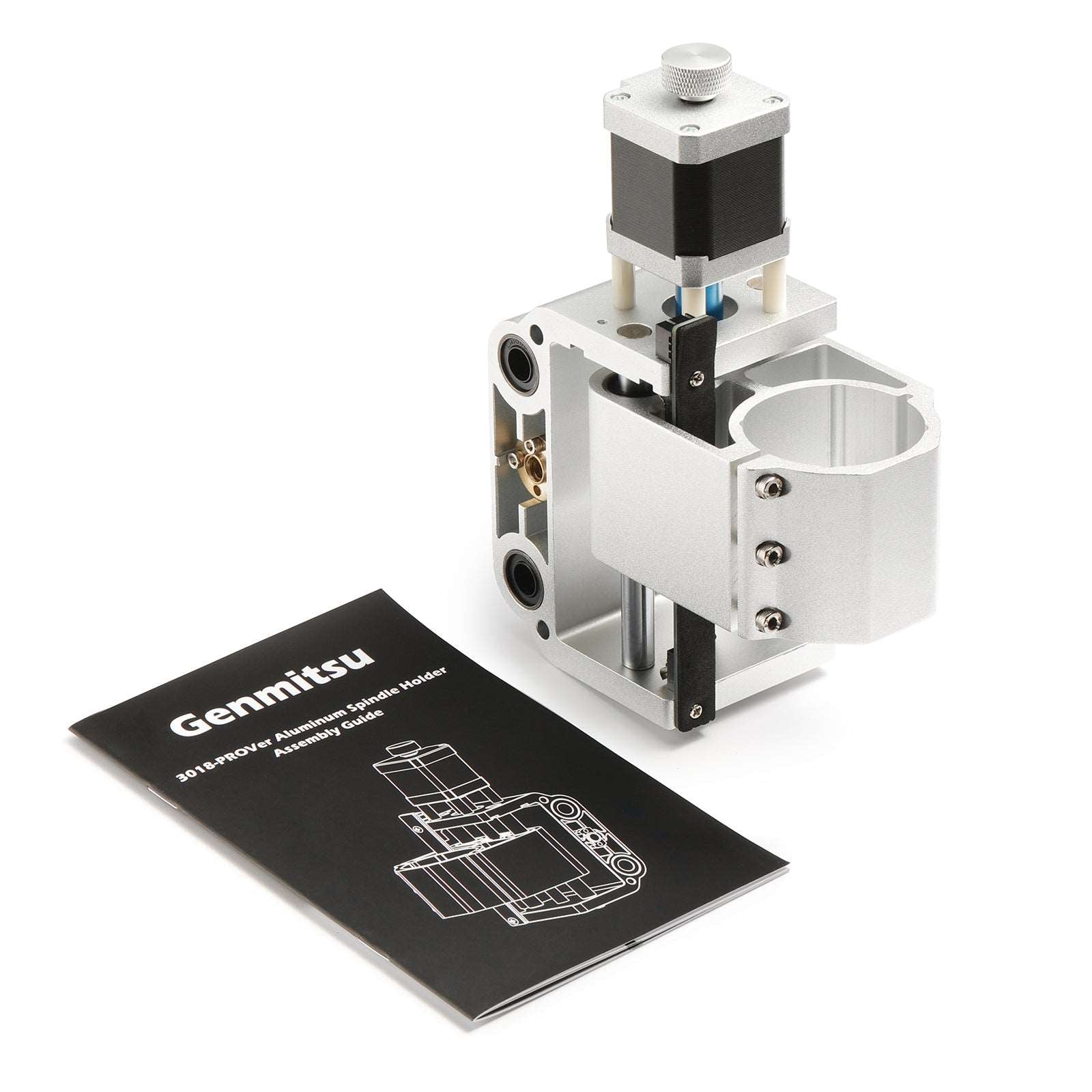

Detailed Assembly Guide: With the detailed and clear installation guide in the package you can exchange the spindle hold on your own.

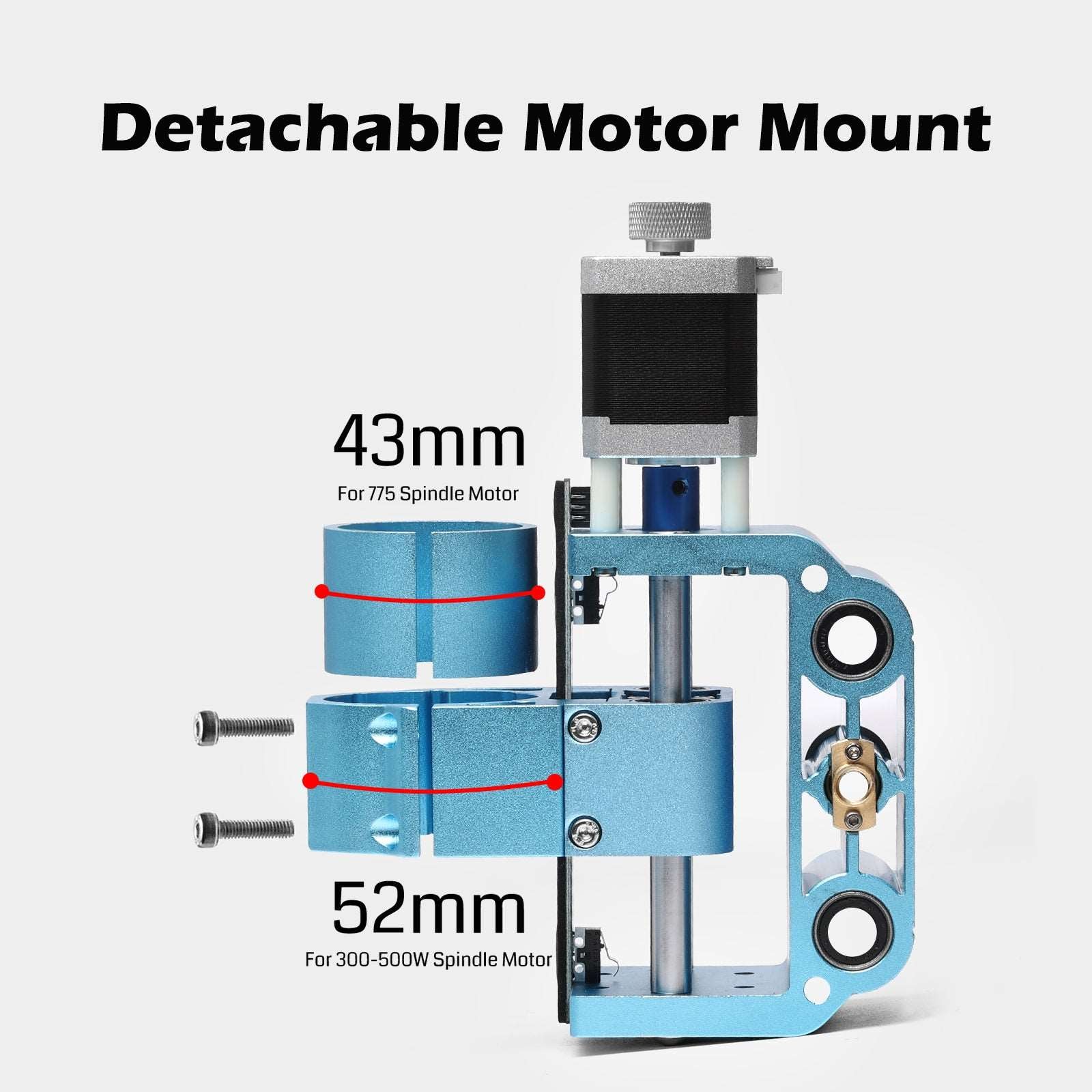

YOU MAY ALSO LIKE: Aluminum Spindle Holder for 3018-PROVer.
Better Experience:
Feel free to upgrade your CNC with a more powerful 300-500W motor, it can hold the stepper motor firmly to increase precision and reduce noise.
Assembly Guide Included:
Limit switches and linear bearings are pre-installed. Every step for exchanging the spindle holder is written in the assembly guide in detail.
Application:
Used for 3018-PRO/Bakelite 3018-MX3 upgrade φ 52mm spindle or DIY engraving machine.
If you would like to add a laser to this spindle holder, you need to add an extra motor mount. You can download the 3D model to print one.

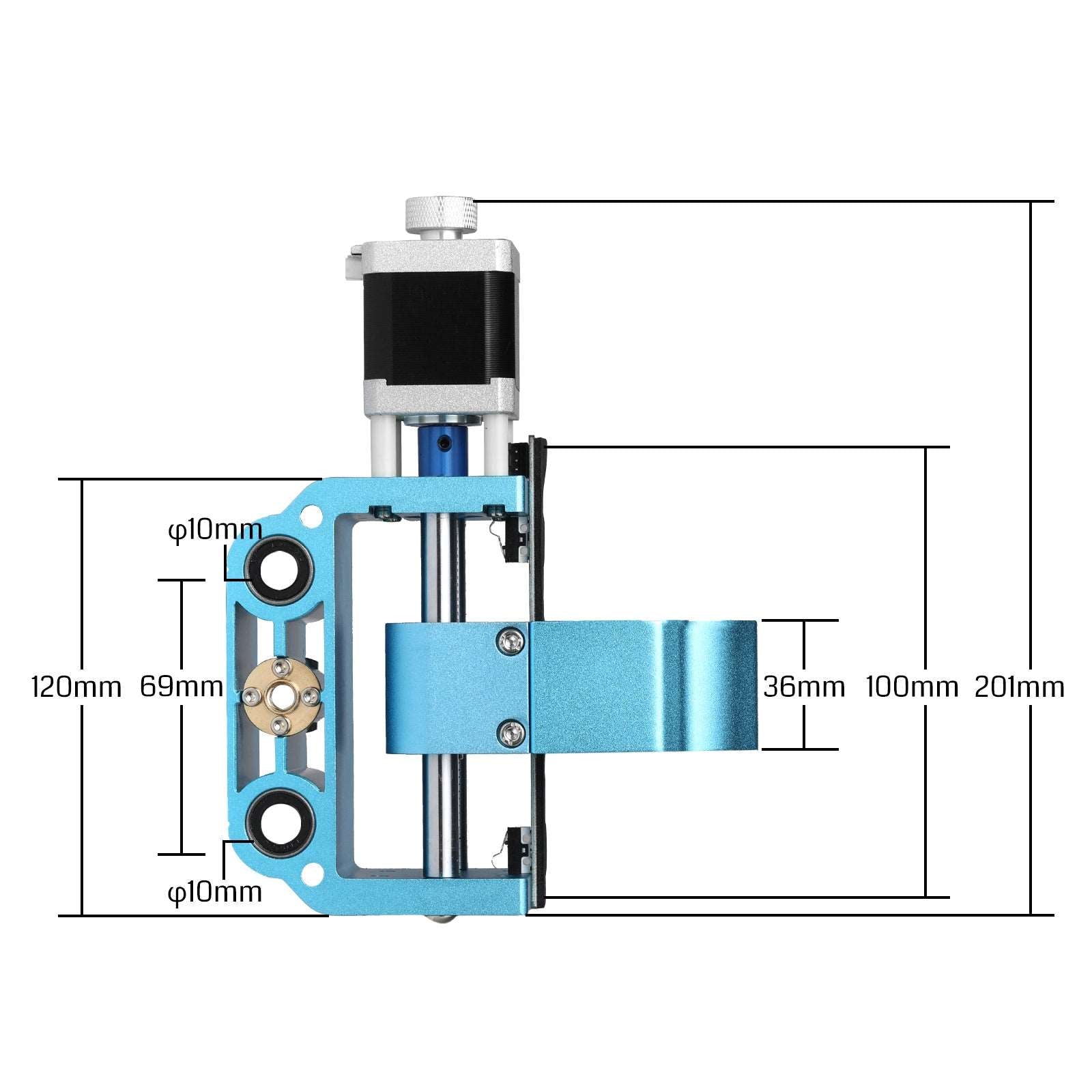

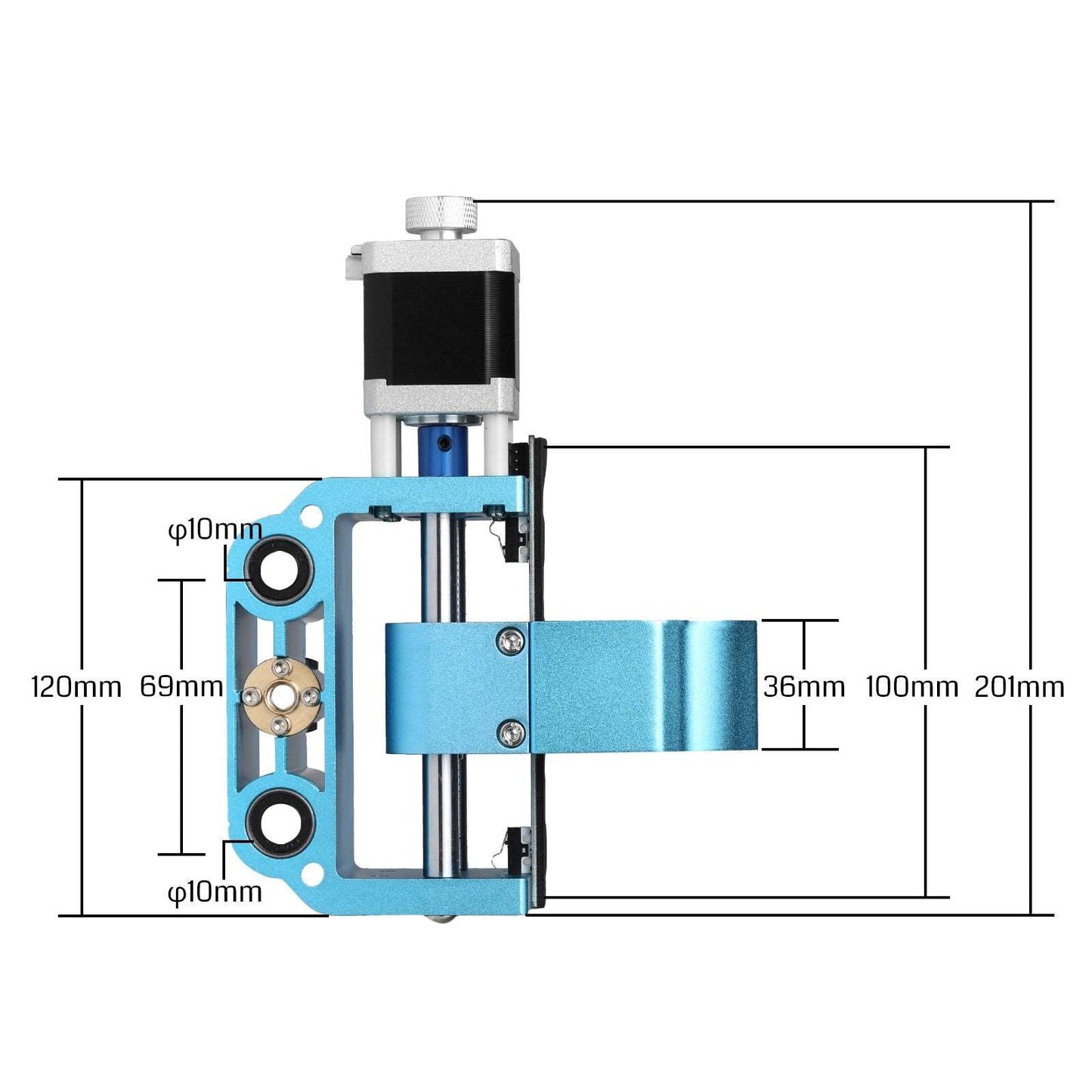

Specification:
Material: Aluminum
Copper nut: Pitch 2mm, lead 4mm

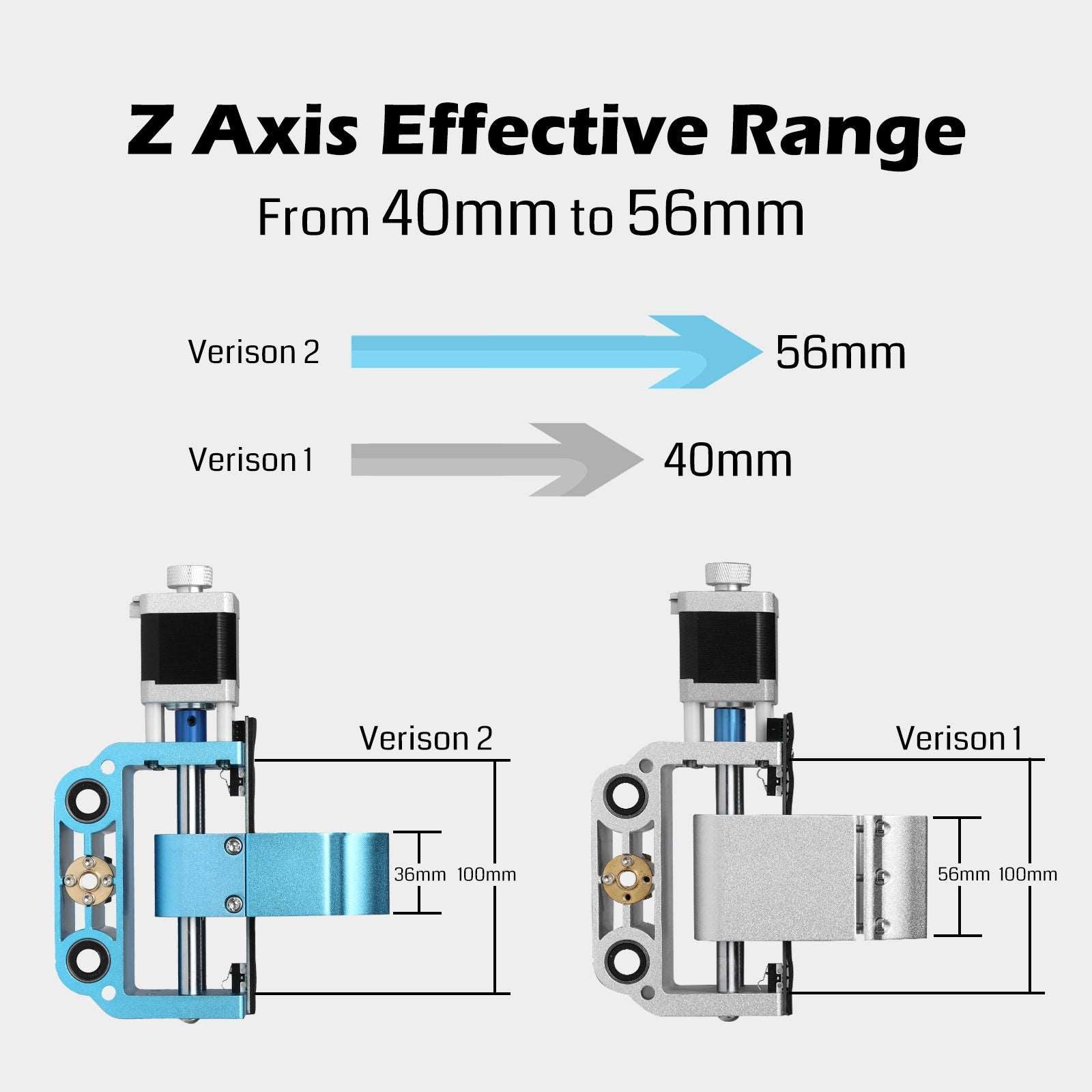

Z-axis travel: 40mm

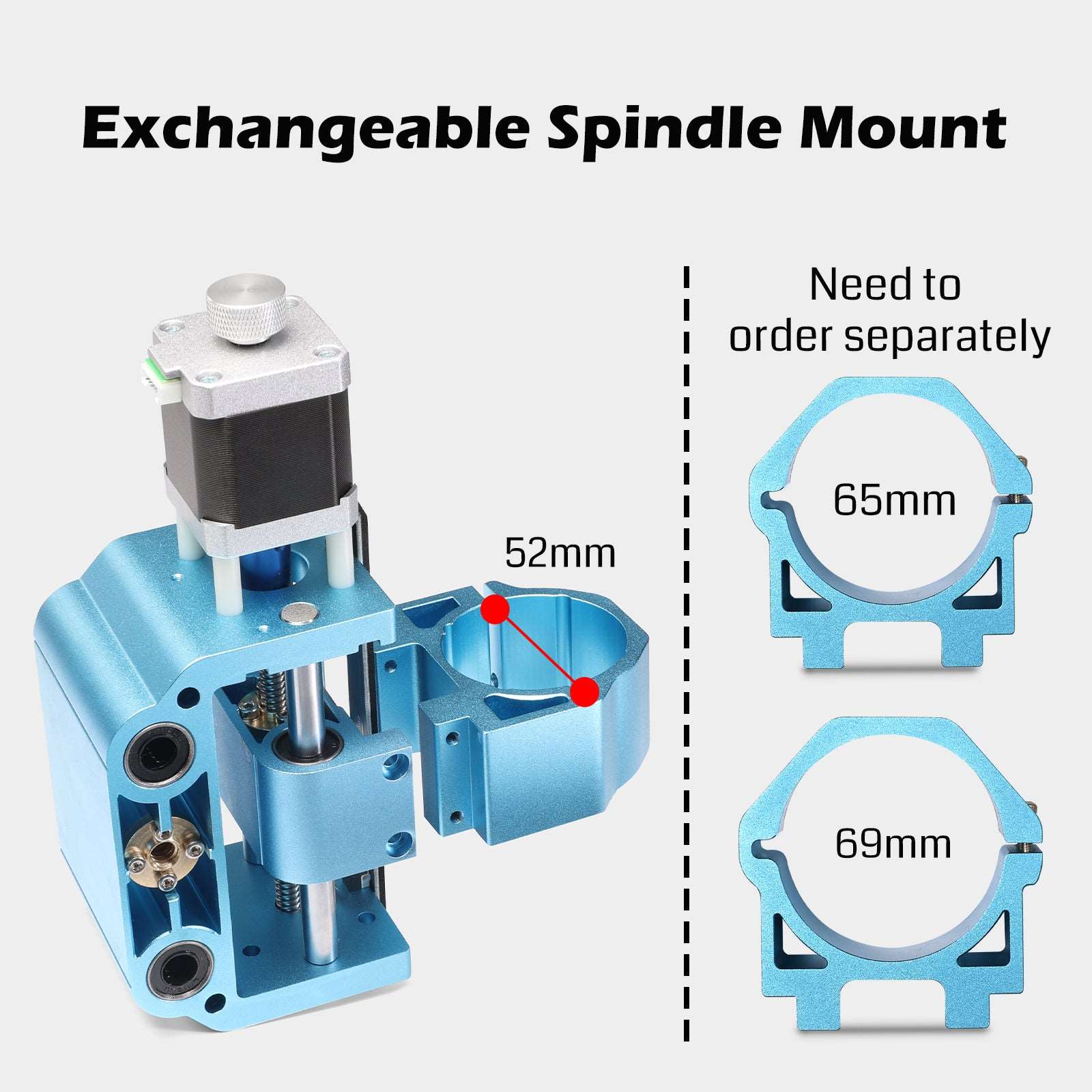

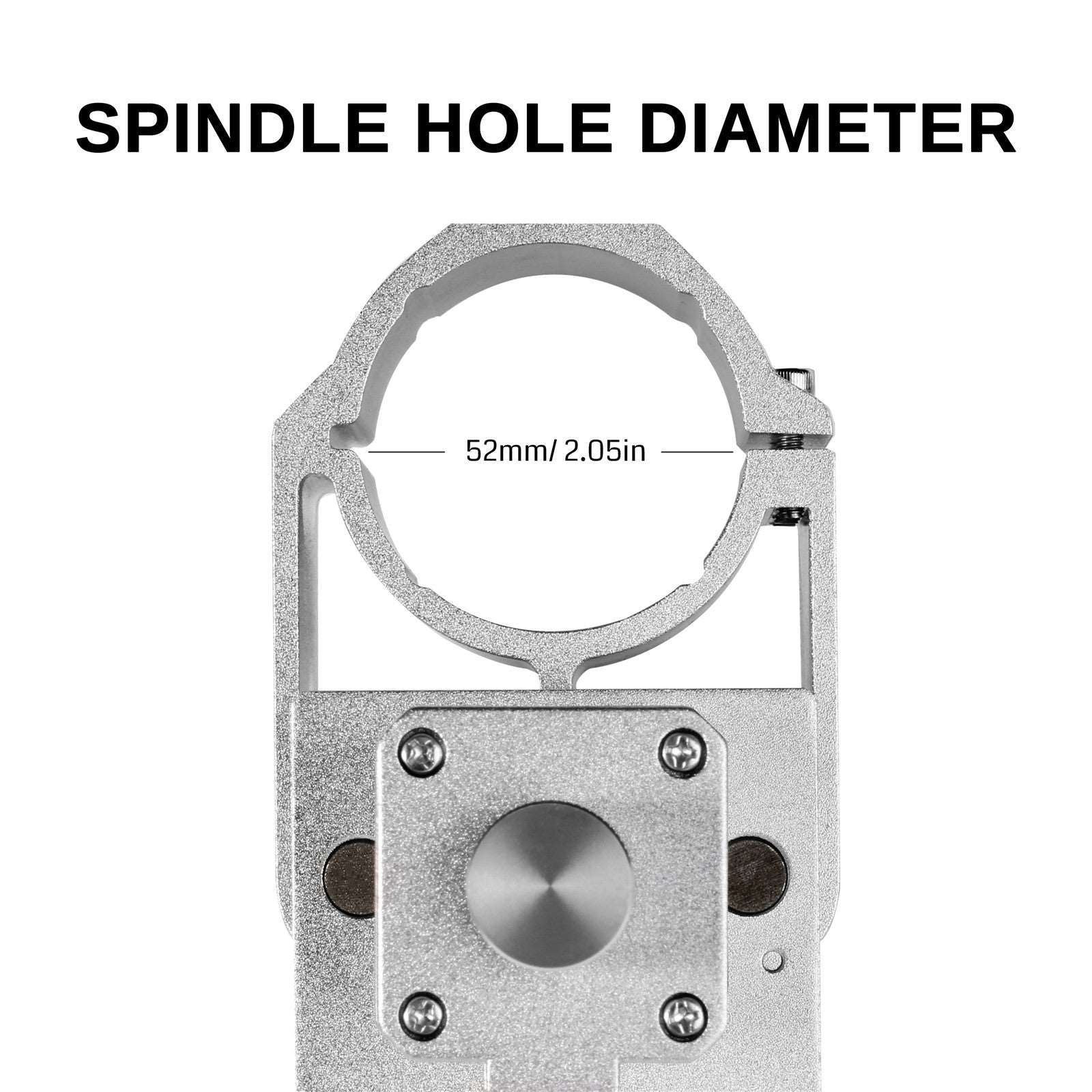

Spindle hole diameter: 52mm
Stepper motor: NEMA17 1.7A stepper motor
Limit switch: Normally open interface, terminal block XH2.54-3P

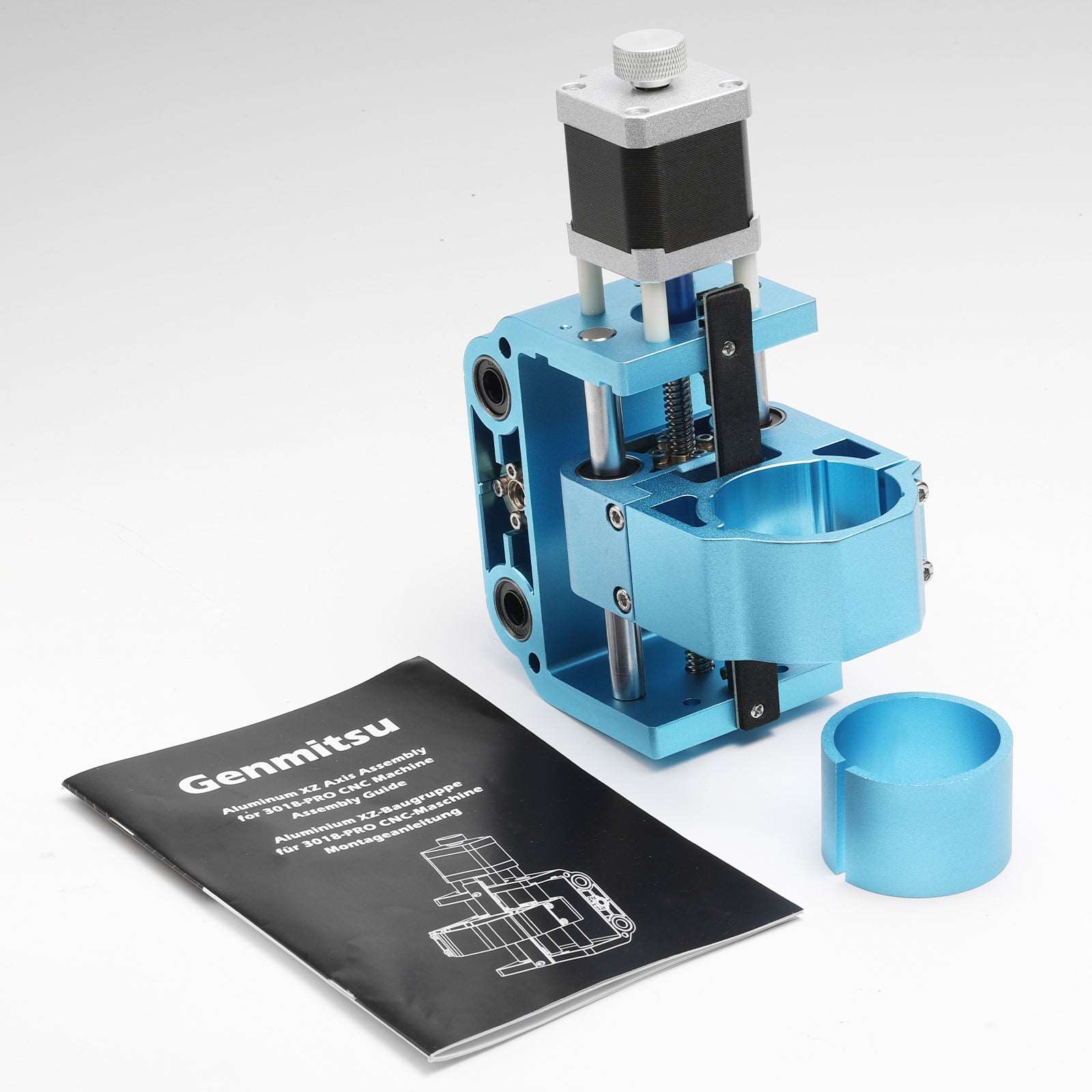

What’s included:

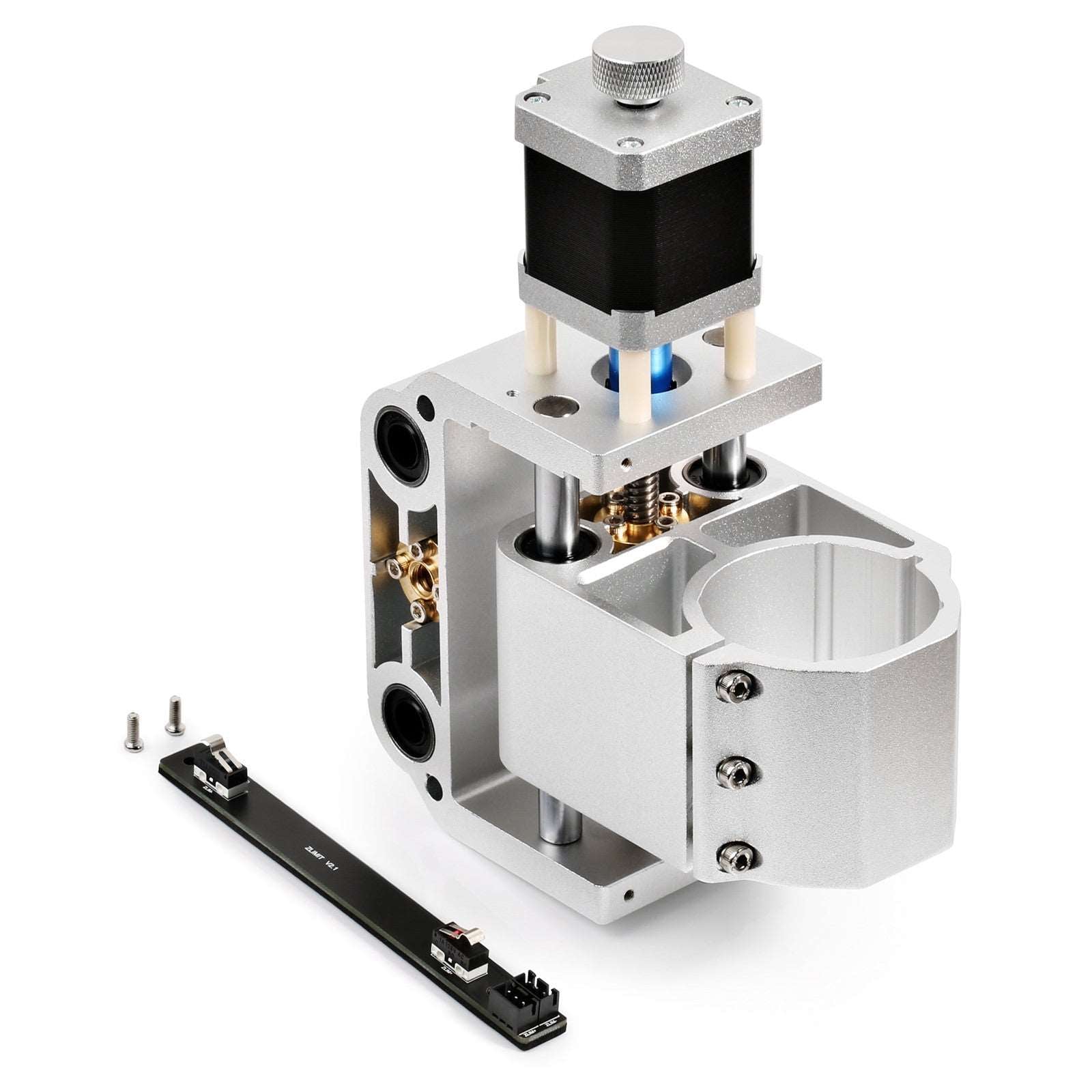

1*CNC Aluminum Z-Axis Sliding Table (Fully Assembled Includes Bearings)
1* Removeable Limit Switches
1*Assembly Guide
Customer Reviews
4.3 Based on 3 Reviews
Write a Review Ask a Question - Reviews
- Questions
Filter Reviews:
JM
06/24/2021
James M.
United StatesQuality Z-Axis control and 52mm clamp
This design aids in cooling the 52mm Spindle Motor as well as being a solid mount. The build provides movement without vibration and includes limit switches.
RG
06/23/2021
robert g. United StatesWrong spindle holder
My spindle holder was 42 mm that was 52
ME
05/13/2021
Mark E. United StatesBuilt like a tank
The spindle holder is very solid and well built. I've not yet installed it, but it seems much heavier than the stock plastic one. While it comes with limit switches, there's no documentation on how to wire them to the 3018-pro controller. The 3018-Pro has two connections, these limit switches have 3, labelled 12V, GND and IN. It appears that IN can be connected to the Z axis limit switch inputs top row and GND can be connected to the bottom row, which is ground. It appears that the only purpose of the 12V connection is to provide power for a small blue LED next to each switch that lights when the switch is tripped. I have found that the LEDs work fine with 5V which is available on the header with the limit switch inputs. However, there is a problem with the 3018-Pro controller, both Z axis limit switch inputs are in parallel and if either switch is tripped, both LEDs light. To get around this I installed a couple small diodes.
