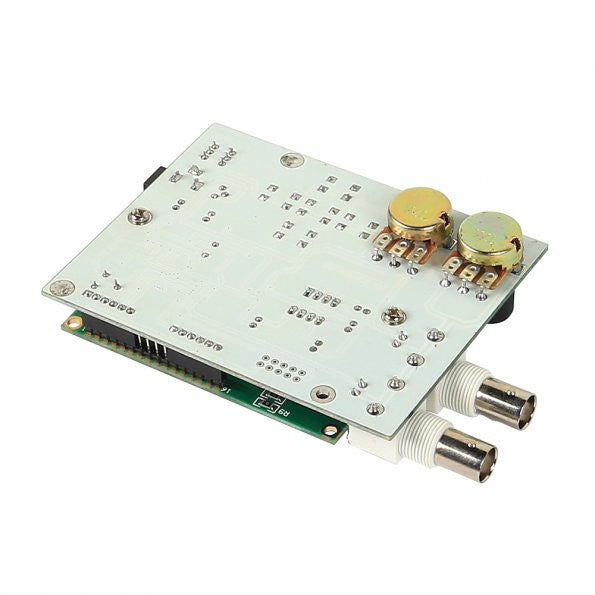

SainSmart 2015 Low Frequency DDS Function Signal Generator Module Sine Square Triangle Wave

brand: SainSmart SKU: 20-010-505
Oops, 0 In Stock


  • Operating voltage: DC 7V-9V.
  • DDS frequency range: 1HZ-65534Hz.
  • High-speed frequency (HS) output up to 8MHz.
  • DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.
  • DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
  • 1602 LCD menu.
  • With keypad area onboard for easy control of frequency and wave type.
  • Step: 1, 10, 100, 10000Hz.
  • The power automatically restore the last used configuration.
  • Offset: 0.5pp-5Vpp.
  • Amplitude amount: 0.5Vpp-14Vpp.
  • Size: 12cm x 8cm x 3cm.

Package list:

  • 1xDDS Function Signal Generator Module

Note: Power cord is not included.
