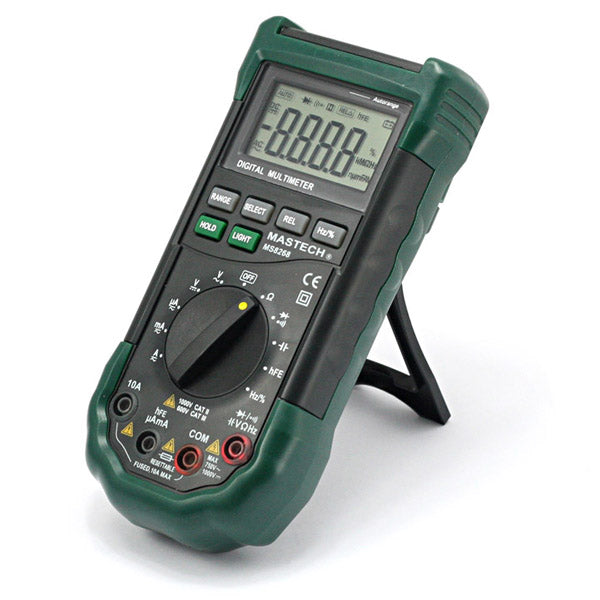

OVERVIEW
The newly released Mastech MS8268 is an auto/manual ranging digital multimeter, complying with IEC 1010-1 (61010-1@IEC:2001), GAT. II 1000V and CAT. III600V overvoltage standards. It is equipped with misconnection alarm system. If the maximum range is repeatedly exceeded, a continuous audible signal warns the user in DCV, ACV, DCμA, ACμA, DCmA, ACmA, DC 10A and AC 10A functions. (Detailed English Manual included).
SPECIFICATION

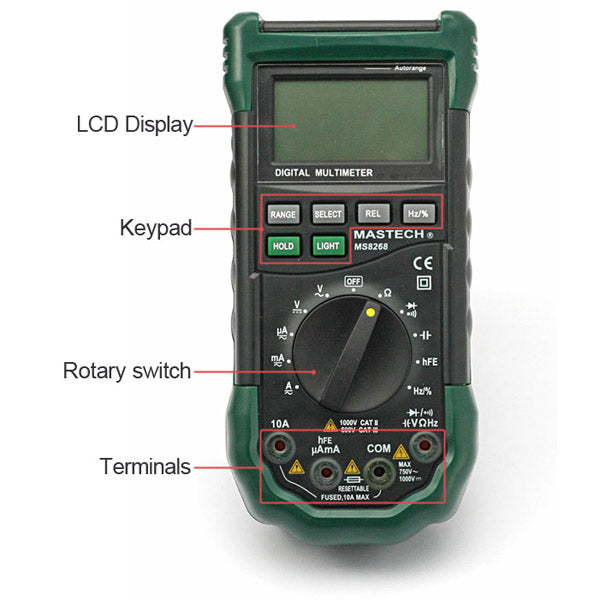

| Display | 3 3/4 digits LCD. Actomatic indication of functions and symbols. |
| DC voltage | 400m/4/40/400V±0.7%, 1000V±0.8% |
| AC voltage | 400mV±3.0%, 4/40/400V±0.8%, 750V±1.0% |
| DC current | 400μ/4000μ/40m/400mA±1.2%, 10A±2.0% |
| AC current | 400μ/4000μ/40m/400mA±1.5%, 10A±3.0% |
| Resistance | 400/4k/40k/400k/4MΩ±1.2%, 40MΩ±2.0% |
| Capacitance | 4nF±5.0%, 40n/400n/4μ/40μ/200μF±3.0% |
| Frequency | 10/100/1000/10k/200kHz±2.0% |
| hFE | 1~1000 |

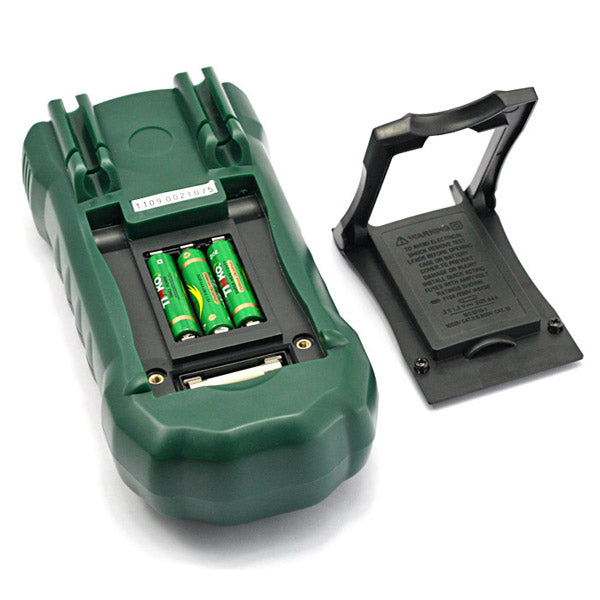

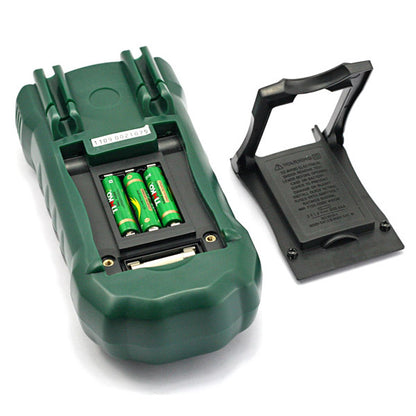

| Power | AAA (1.5V) x 3 |

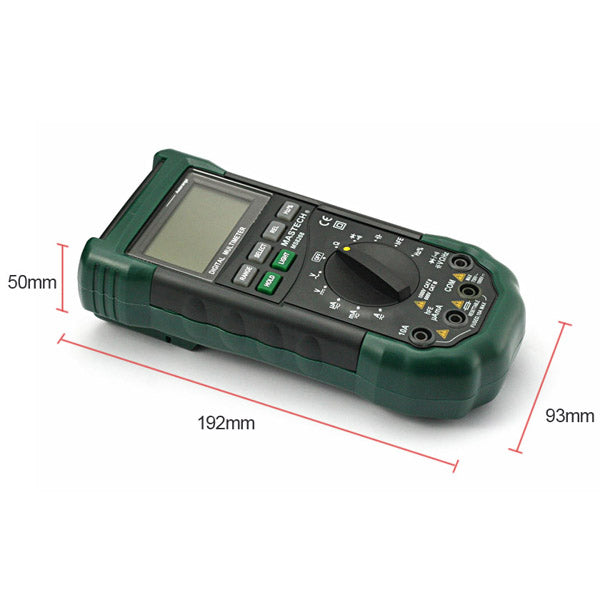

| Size | 195mm x 92mm x 55mm |
| Weight | Approx. 380g(including battery) |
FEATURE
- Sound & light warning for the Incorrect inserting the input plug
- Full over load protection
- Resistance fuse inside
- Diode test
- Continuity test
- Duty cycle test
- Relative measurement
- Data hold
- Function characters indication
- Low battery indication
- Back light
- Auto power off

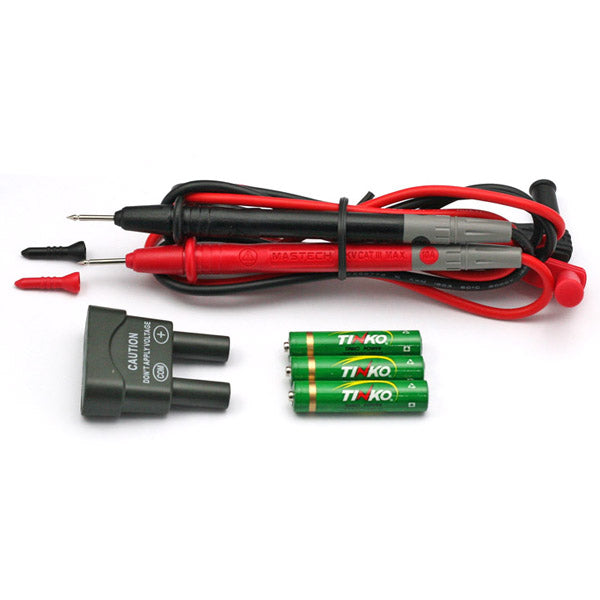

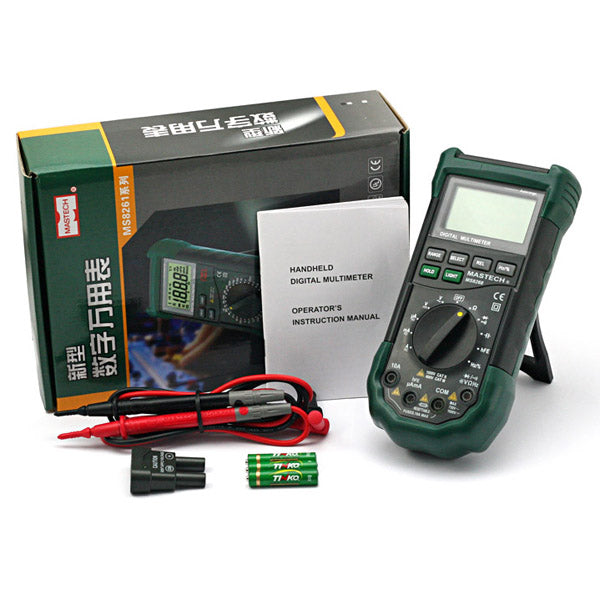

WHAT'S IN THE PACKAGE
- Digital Multimeter MS8268
- Test Leads
- Battery AAA (1.5V) x 3
- Multifunctional Test Socket
- English User Manual
