Brand: SainSmart

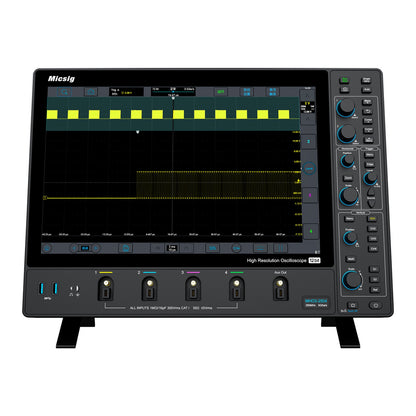

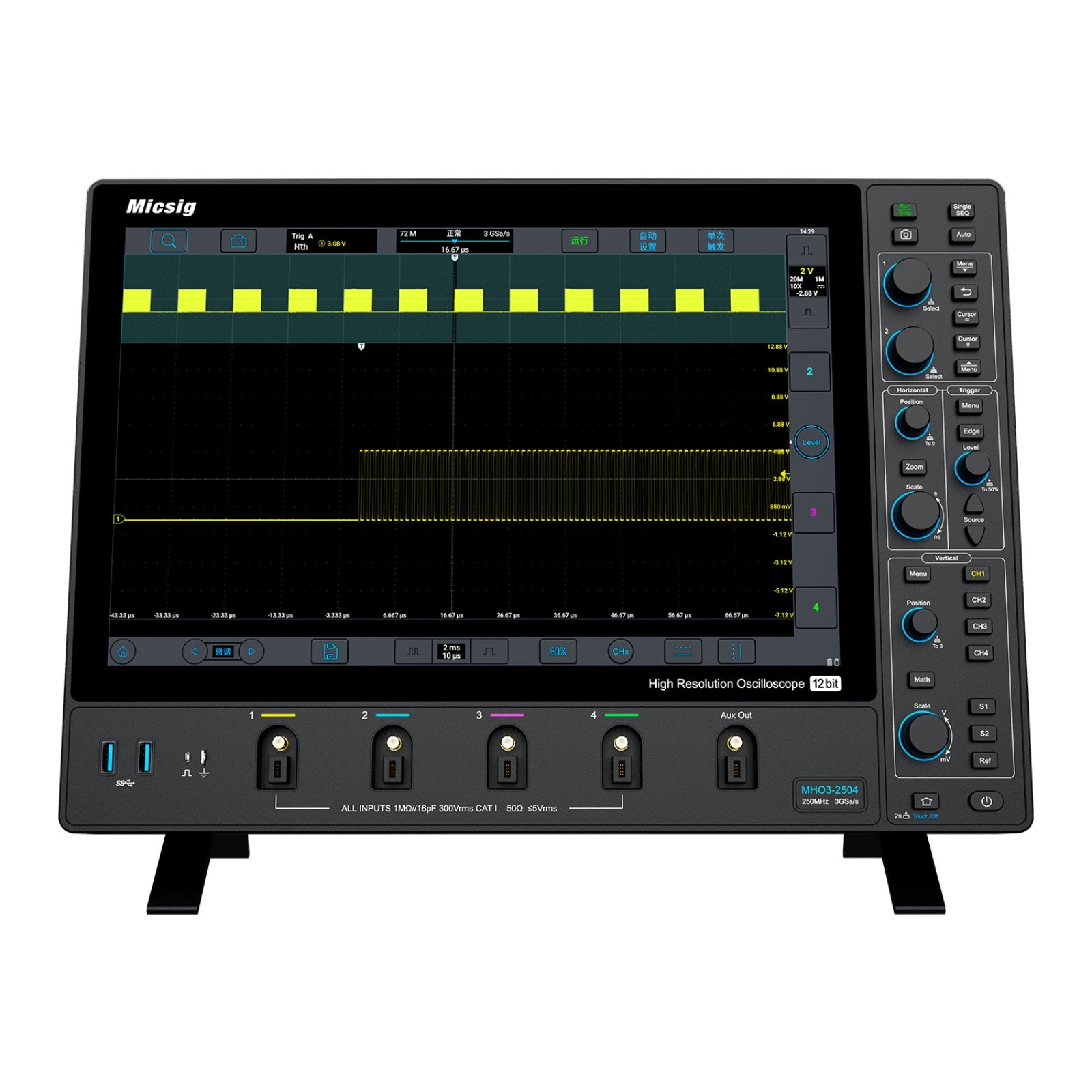

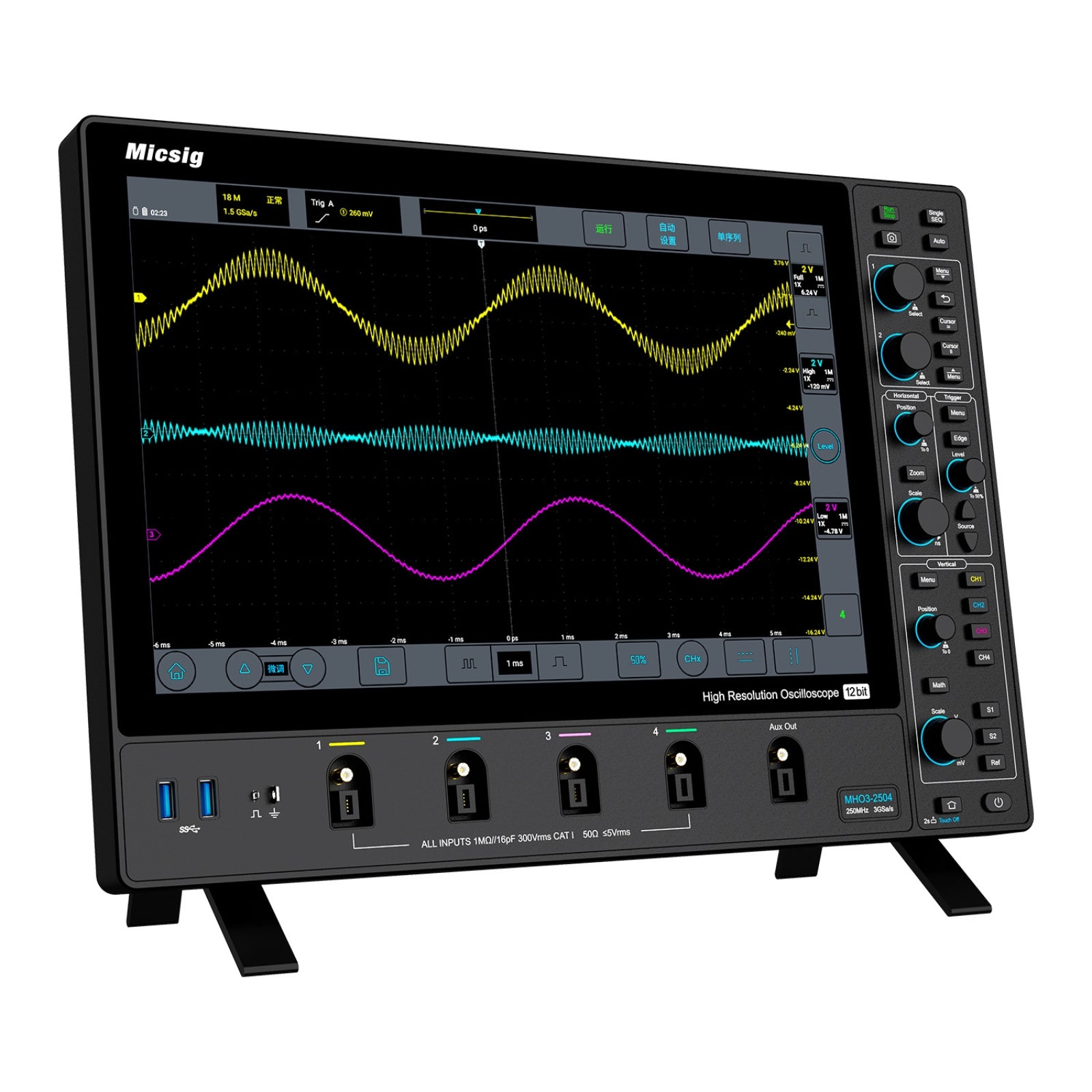

Micsig Oscilloscope MHO3-2504, Digital Storage Oscilloscope with 12-bit High-Resolution ADC

Micsig Oscilloscope MHO3-2504, Digital Storage Oscilloscope with 12-bit High-Resolution ADC

SKU:  101-10-MHO3-2504
Regular price $1,999.00
-Liquid error (snippets/price line 160): divided by 0 Regular price Sale price $1,999.00
Free Shipping
Shipping calculated at checkout.
Ship to
  • 101-10-MHO3-2504
  • 101-10-MHO3-2504

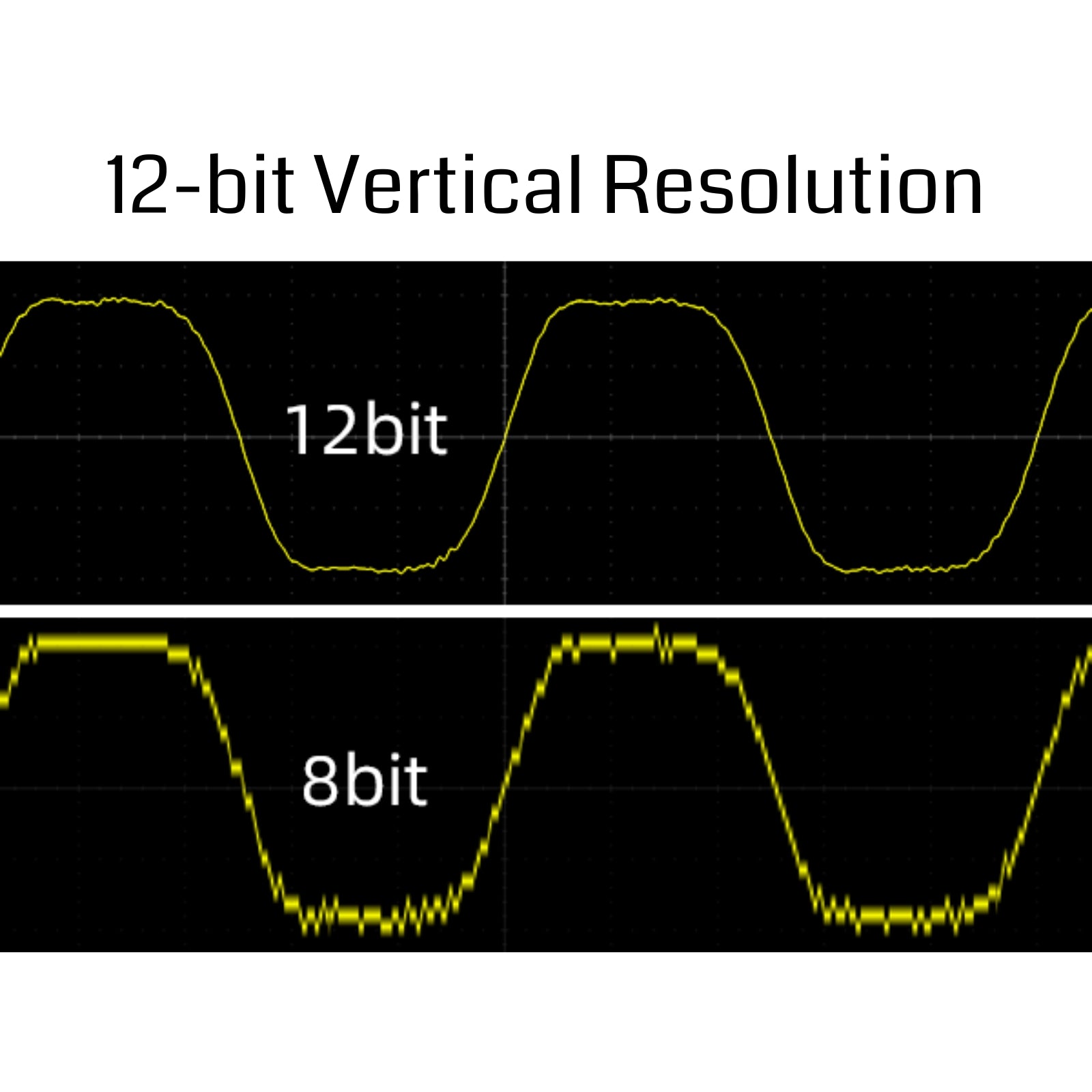

  • 12-bit Vertical Resolution: The MHO 3 series has 12-bit high-resolution ADC with a quantization level of up to 4096, 16 times that of traditional 8-bit ADC, revealing waveform details with Precision.
  • Precision Measurement: MHO High Resolution Oscilloscope boasting a 250MHz bandwidth, 3GSa/s sampling rate, 4 analog channels, <80μVrms low noise and 360Mpts memory depth for precise measurements and analysis.

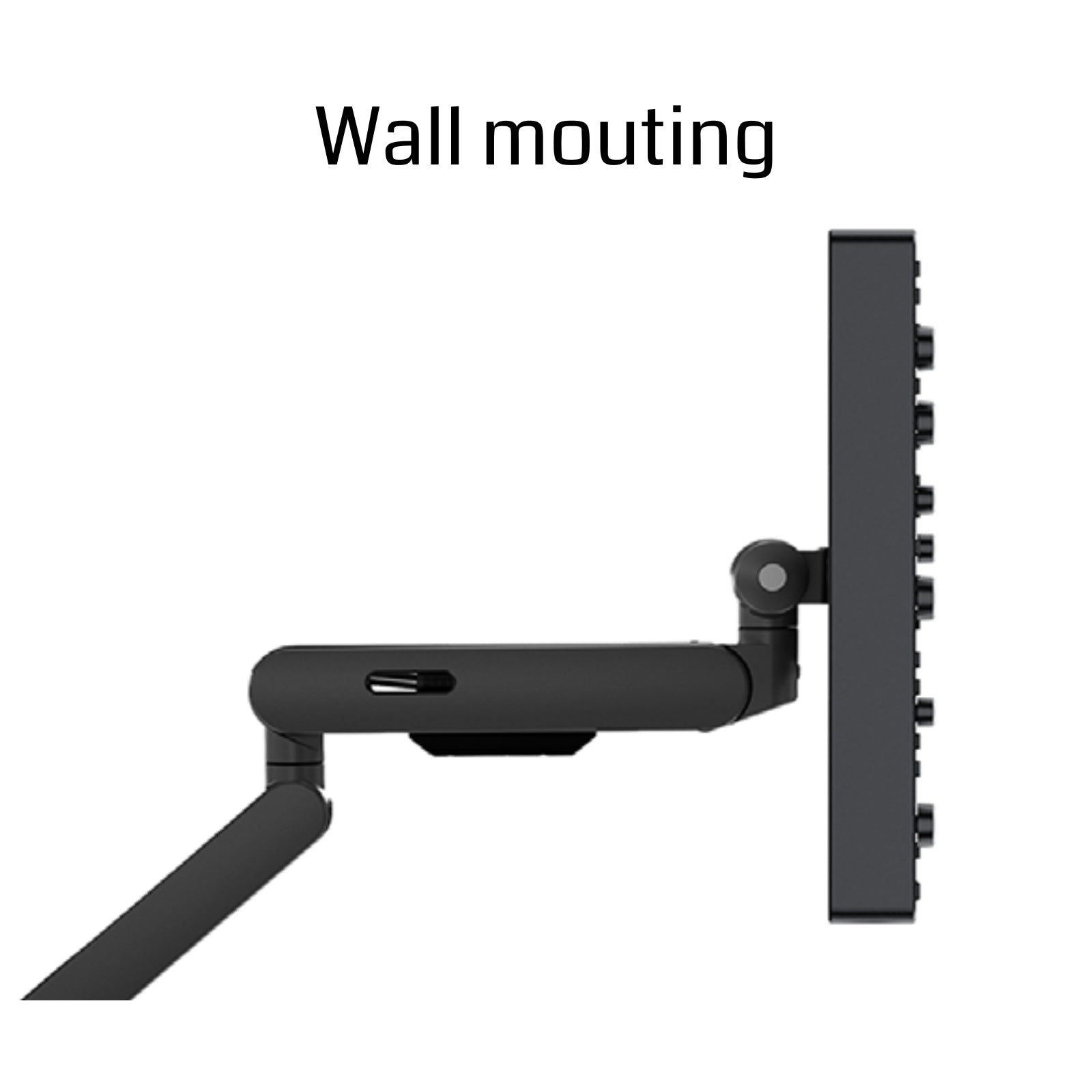

  • New Design: It features an ultra-thin 3.58cm body and wall mount interface, ideal for wall or arm mounting, saving valuable desktop space. Its 14-inch integrated touch screen with a 1920 x 1200 resolution ensures crystal-clear waveform display for enhanced visibility.
  • Most friendly UI: Equipped with instrument-dedicated SigTestUI operating system, the MDO series evolved to simplify all user interfaces, newer engineers can quickly learn to use in 5 minutes.

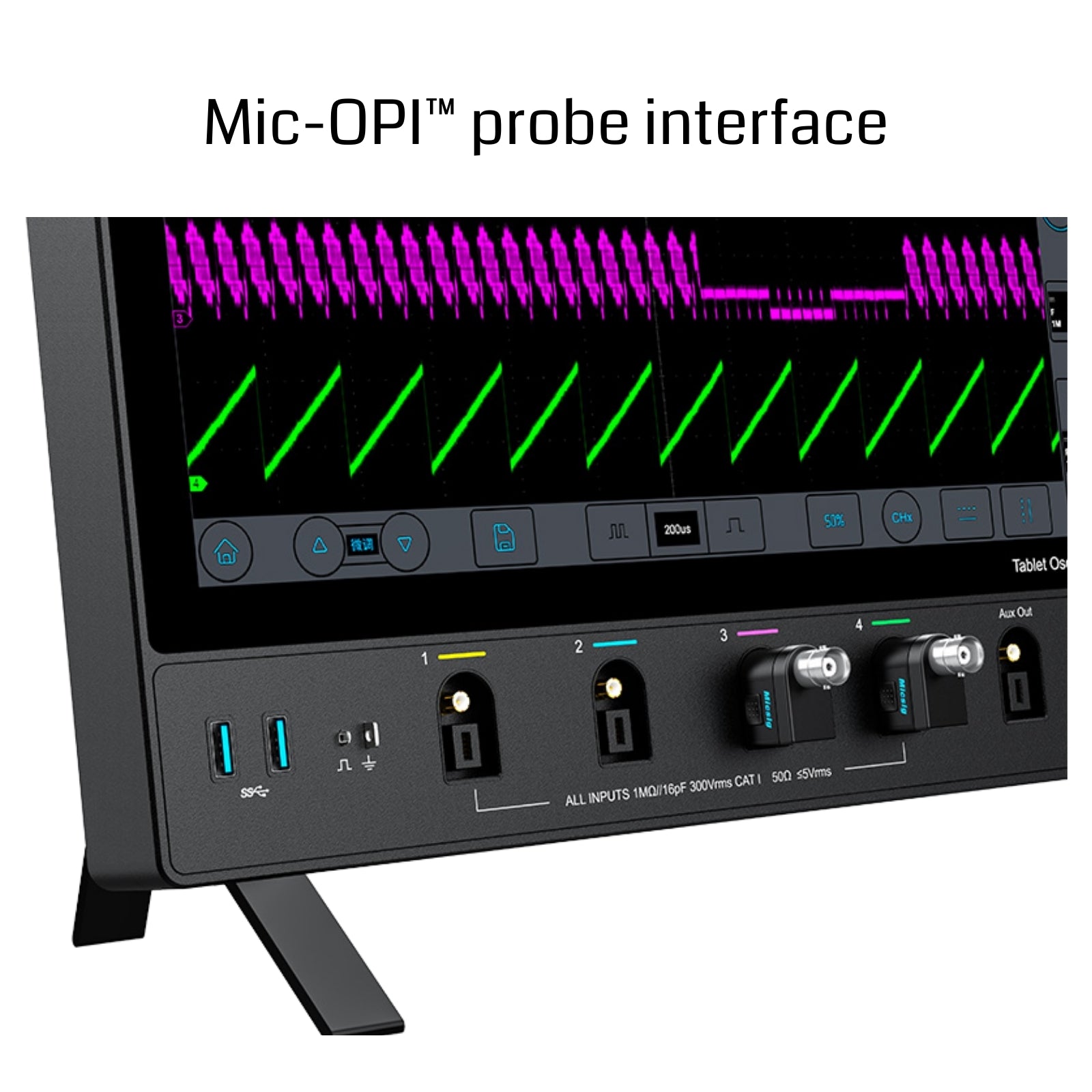

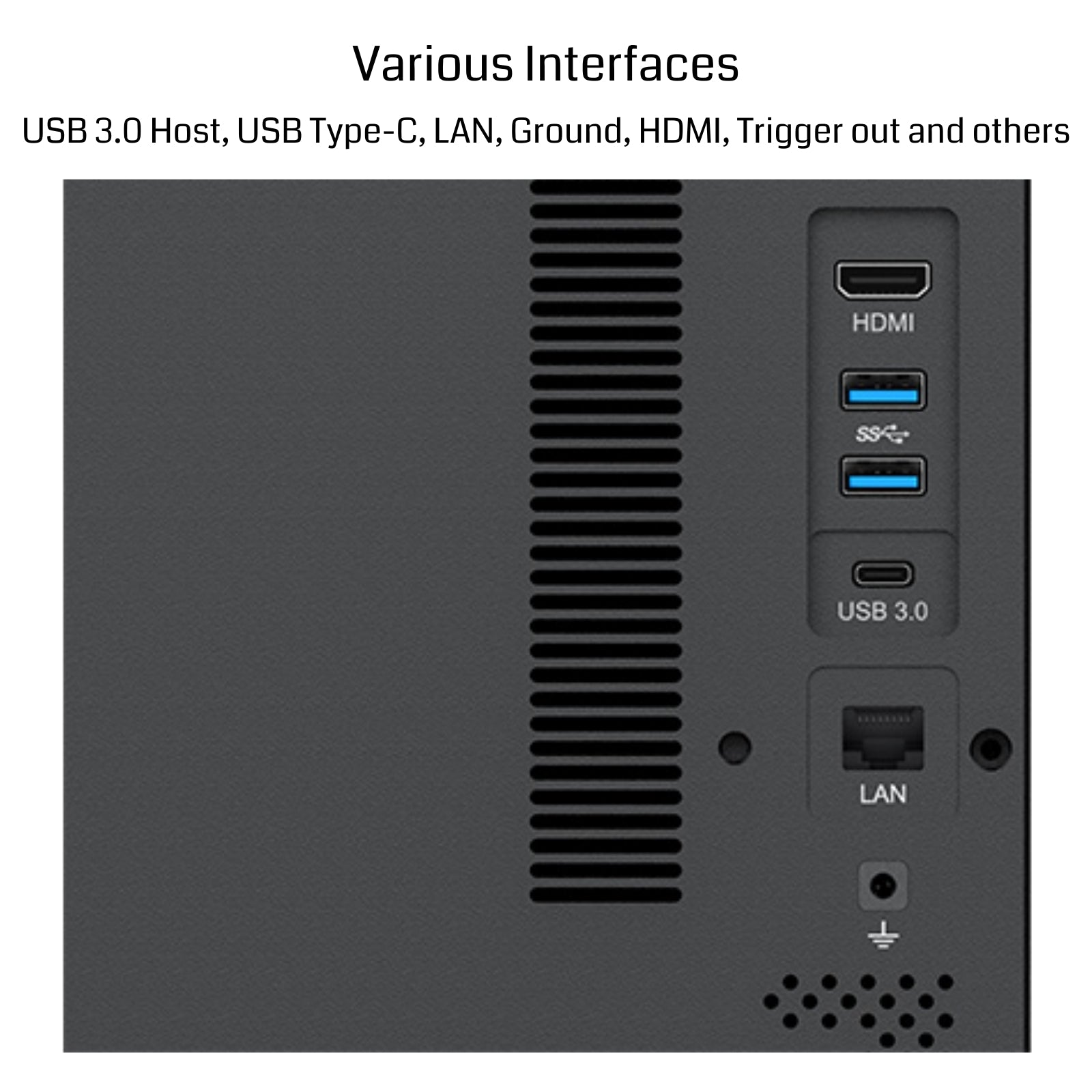

  • Complete connectivity: Original Mic-OPI probe interface, automatically identifies passive probe attenuation, one-click to proceed auto-calibration; standard with BNC adapter, also has USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger out etc.
View full details



MDO

MDO

MDO

MDO

Segmented storage acquisition

Unlike the traditional single acquisitions, egmented storage acquisition captures target signals, allowing playback of captured events, effectively capturing target signals multiple times over a long period.

Hardware Digital Filter

Our oscilloscope features a hardware digital filter for selective signal processing within specific frequency ranges, perfect for detailed frequency band analysis and component monitoring.

Faster time base adjustment

In addition to traditional sequential steps, the MDO series also has a time base matrix, allows user to select any time base in one click.

Serial bus decoding and analysis

8 serial bus decodes: RS-232/422/485/ UART, CAN, LIN, CAN FD, SPI, I2C, ARINC-429, 1553B. With the TXT decoding text mode, the data can be transferred to CSV format.

MDO

MDO

MDO

MDO

Multiple Trigger Functions

The MDO series offers various triggers: edge, pulse width, logic, Nth edge, Runt, slope, bus decoding, etc. It effortlessly meets your needs, whether you're capturing specific edge transitions or observing signal duration and frequency.

Statistics Measurement

Simultaneously calculate the average, maximum, minimum, and root mean square of 10 measurement items, with a max count of up to 10,000, every waveform data is accurately recorded, provide more accurate and comprehensive readings.

Advanced Math Functions

Perform calculations like addition, subtraction, multiplication, division, integration, and differentiation with ease. Customize function formulas for advanced signal analysis and utilize FFT for real-time spectral analysis.

Diverse file saving

Users can save waveforms and measurement results as binary (BIN) or CSV files for data analysis using Matlab or Excel. It also supports saving as WAV format for opening and analysis within the oscilloscope. In addition, users can save waveforms as images or record videos.

What's in the box

Comprehensive selection of probes

Connects to a variety of Micsig probes, including fiber-optic isolated, high-voltage differential, and AC/DC current probes, maximizing measurement versatility and accuracys.

Package:
  • 4 x Passive Probe
  • 4 x MSP-BNC Adapter
  • 1 x Power Adapter
  • 1 x Power Cord
  • 1 x Calibration certificate
  • 1 x Quick Guide
  • 1 x User Instructions
