New TL-510C Optical Power Fiber Meter -50~+26 dBm For CCTV Test + Free Bag

brand: SainSmart SKU: 21-030-104 Variants ID: 45100688852
$46.77
Oops, 0 In Stock

Description:

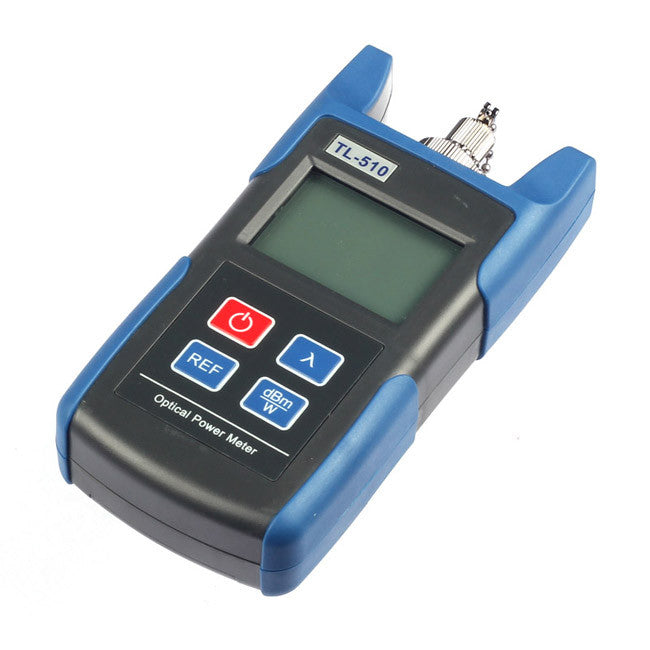

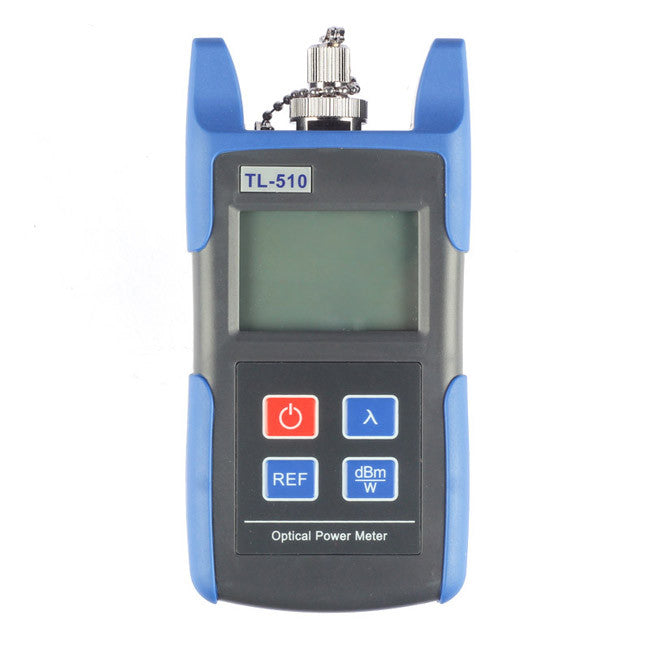

TL510C Mini handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.



Features:
1.High measurement accuracy and display resolution.
2.Quick response and measurement:It can display fast-tracking abd real-time measurement of optical power when output power changes.
3.Wide measurement range:it can provide 80Db of optical power measurement range
4.Six calibrated wavelength:850nm,1300nm,1310nm,1490nm,1550nm,and1625nm(other wavelength can be provide according to customer’s request)
5.Provide absolute optical power measurement and relative power measurement.
6.Real-time monitoring and displaying the battery level.
   Warning notice is available when the battery is low
7.Auto-off function
8.Backlight LCD display

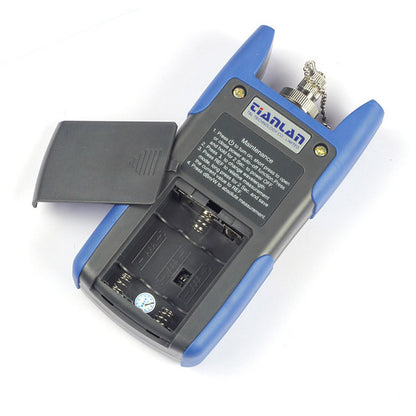

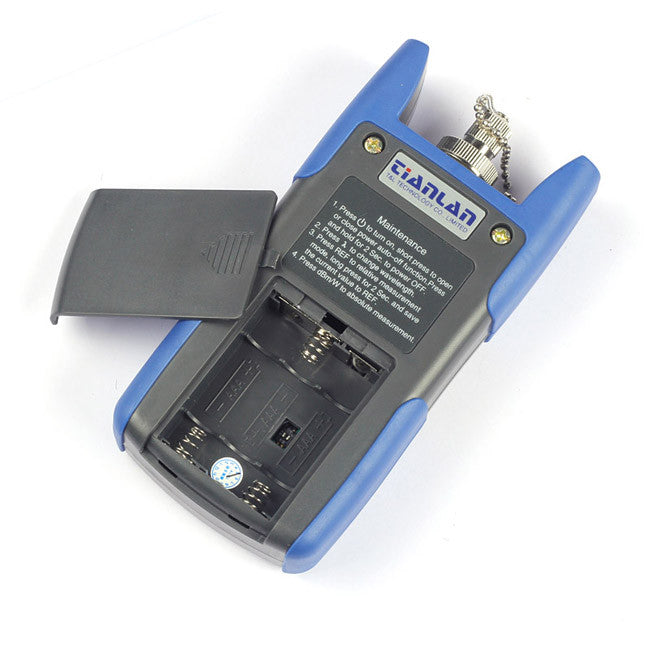

9.AAA batteries which is more convenient to carry
10.User self-calibration function



Specifications:

Type

TL510C

Wavelength(nm)

(800nm to 1650nm )

Detector

InGaAs

Measurement Range (dBm)

-50--+26

Calibrated Wavelength(nm)

850,1300,1310,1490,1550,1625

(more calibrated wavelength can be optional)

Resolution(dB)

Linear 0.1% or Non-linear 0.01dBm

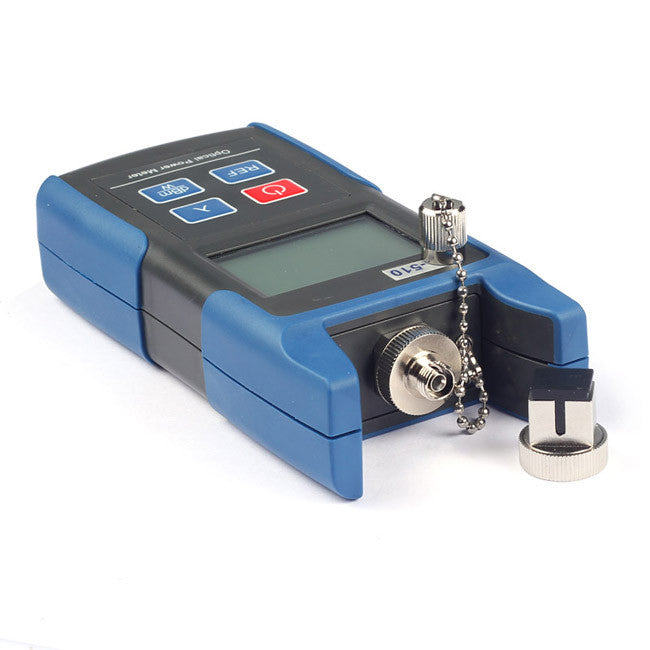

Connector

SC, FC,ST/ Universal 2.5mm adaptor

Power Supply

3pcs AAA batteries

Battery Operating Time

240 h with 1.5V Battery(3)

Operating Temperature(oC)

_10-- +50

Storage Temperature(oC)

_ 20--- +70

Working hours

>120 hours ( without backlight)

Relative Humidity

90% (+30oC )

Weight

200 g

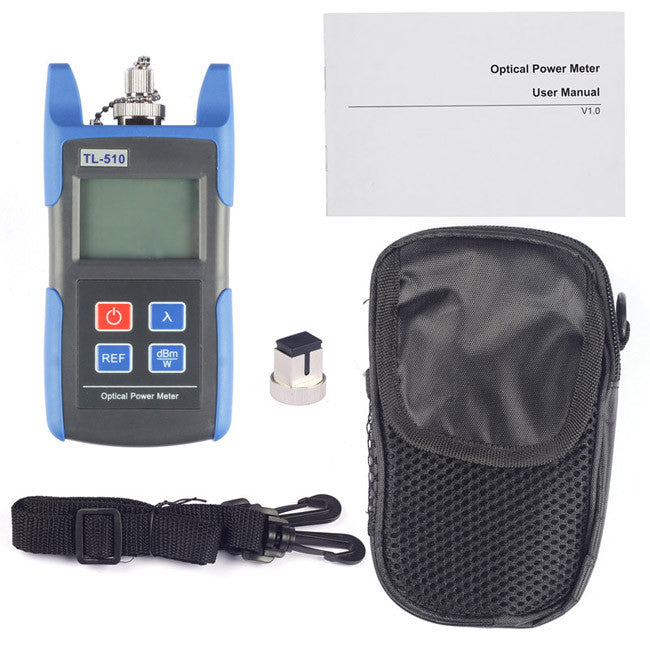

Package List:

1x TL510C power meter
1x Carrying case
1x ST,FC,SC connector
1x English manual

Warm tips:The package does not include the battery.
