Owon HDS1022M-N Handheld 20 mhz 2 Channel Digital Storage Oscilloscope & Multimeter TrueRMS AC

brand: OWON SKU: 20-010-604
$465.99 FREE EXPRESS SHIPPING
Oops, 0 In Stock



Description:

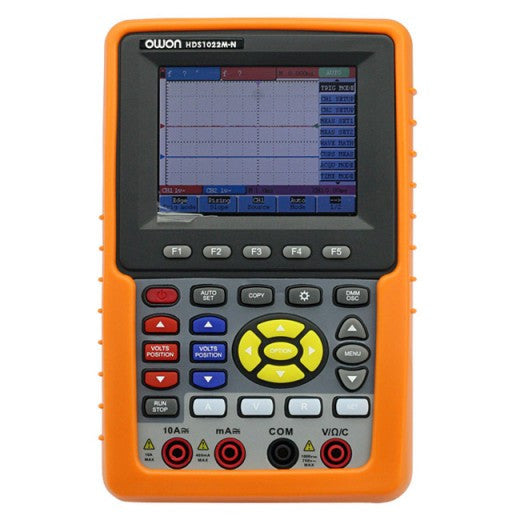

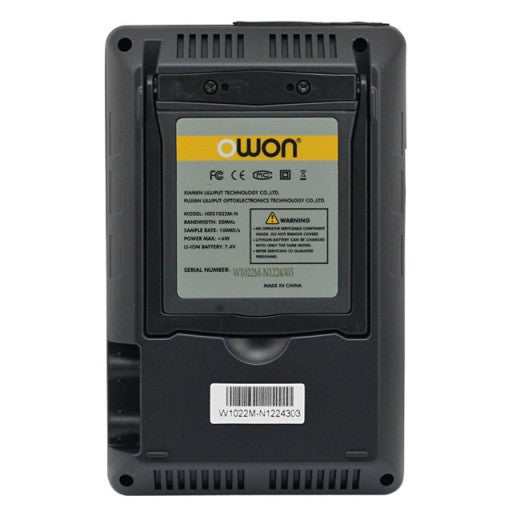

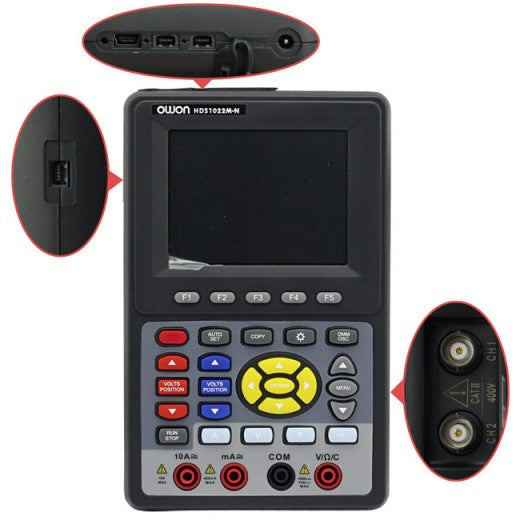

The HDS1022M-N is a 2 channel handheld Digital Storage Oscilloscope and Multimeter with 20MHz bandwidth, 100MS/s sample rate, and 3,7 inches (640x480) color TFT-LCD screen. It includes 2 DSO probes, 2 Multimeter probes, USB cable, software CD, power adapter, user manual, lithium battery (4 hours operation time) and a Soft-bag.






Features:

  • 2 in 1(DSO+Multimeter)
  • Autoscale
  • FFT
  • 20 automatic measurements
  • Bandwidth: 20MHz-100MHz
  • Support USB for data transmission to PC
  • Replaceable li-ion battery back up (6 hours)
  • USB flash disk storage
  • Waveform record & replay(HDS2062M-N, HDS3102M-N)
  • Dimension: 180mm(L)×115mm(H)×40mm(W)



Application:

  • Electronic circuit debugging    Circuit testing
  • Design and manufacture
  • Education and training
  •  Automobile maintenance and testing



Specification:

Model Name  HDS1022M-N   HDS2062M-N  HDS3102M-N
 Bandwidth  20MHz  60MHz  100MHz
 Sample Rate ( Real time )  100MS/s  250MS/s  500MS/s
 Horizontal Scale(S/div)  5ns/div~100s/div
 step by 1~2.5~5
 5ns/div~100s/div
 step by 1~2~5
 Rise time(at input, typical)  â‰?7.5ns  â‰?.8ns  â‰?.5ns

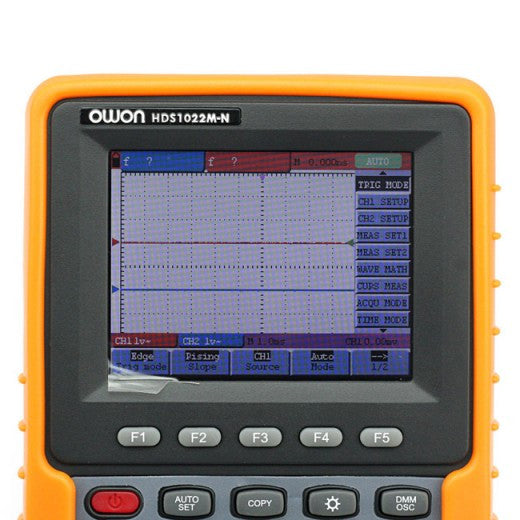

 Display  3.7 inch color display with TFT panel(640×480 pixels, 65535 colors)
 Channels  Dual
 Record length  Max. 6000 points on each channel
 Interpolation  (sin x)/x
 Probe attenuation factor  1X, 10X, 100X, 1000X
 Input coupling

 DC, AC, GND

 DC accuracy(Average)  Average>16:±(5% reading+0.05div) for ΔV
 Vertical Sensitivity  5mV/div~5V/div (at input)
 Vertical resolution (A/D)  8 bit(2 channels simultaneously )
 Max. Input Voltage  400V (PK-PK) (DC + AC PK-PK, 1MΩ input impedance, Probe attenuation 10:1) CAT II
 Trigger Type  Edge, Video, Alternate
 Trigger Mode  Auto, Normal, Single
 Trigger level  ±6 divisions from screen center
 Acquisition modes  Sample, Peak Detect and Average
 DC gain accuracy  ±3%
 Automatic Measurement  Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot
 ,Preshoot,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A→BOWON
 Delay A→BOWON
 Waveform math  +, -, ×, ÷, FFT
 Waveform storage  4 waveforms
 Lissajou’s
 figure
 Bandwidth  20MHz  60MHz  100MHz
 Phase difference  ±3 degrees
 Communication interface  USB
 Power supply  100V-240V AC, 50/60Hz
 Li-ion battery  7.4V, 6 hours operation



 Multimeter specifications
 Full scale reading  3 3/4 digits (Max.4000-count)  Diode  0V-1.5V
 Input Impedance  10 MΩ  On/Off measurement  <50(±30) beeping
 Capacitance  51.2nF-100uF:±(3%±3 digit)
 Voltage  VDC:400mV,4V, 400V: ±(1±1digit) Max.input:DC 1000V, VAC:4V,40V,
 400V:±(1±3digit)
 Frequency:40Hz-400Hz, Max:input:AC 750V(virtual value)
 Current  DCA:40mA, 400mA:±(1.5%±1 digit) 10A:±(3%±3digit)
 DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 10A:±(3%±3digit)
 Impedance  400Ω:±(1%±3digit), 40Ω



 General specifications
 Interface  USB Data Cable (Transfer waveform data to a PC)
 Power  Supply:100V~240V AC,50/60Hz   DC input: 8.5VDC, 1500mA
 Battery: 6 hours
 Dimension  180mm x 115mm x 40mm
 Weight  645g

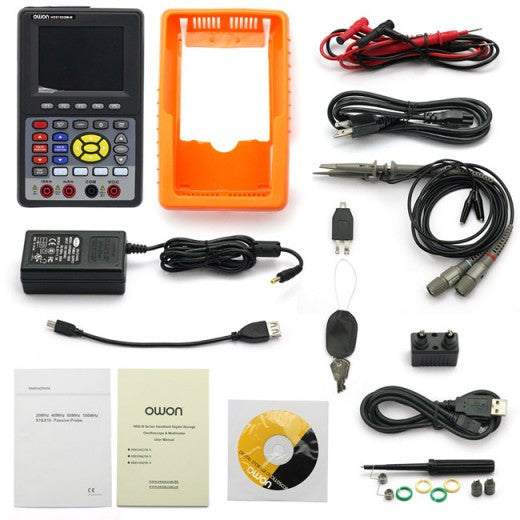

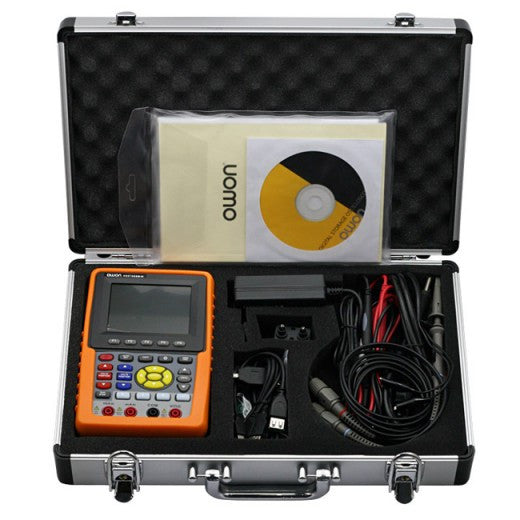

Package includes:
1x HDS1022M-N handheld digital storage oscilloscope.
2x 1:1/1:10 passibe probe.
1x probe adjust pen.
1 pair of multimeter leads.
1x small capacitance measurement module.
1x power supply (charges the battery as well).
1x USB cable.
1x Drivers CD.
1x Instruction manual.
1x Soft-bag.
