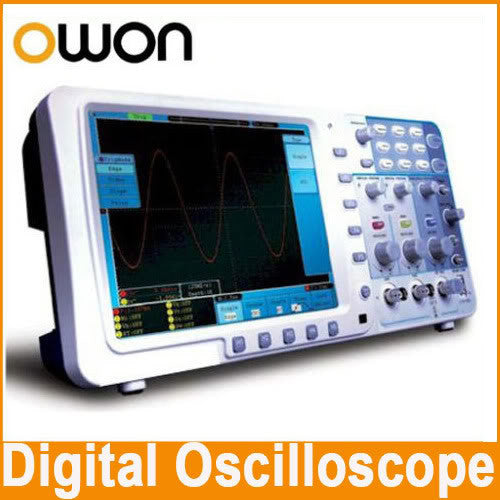

[Discontinued] OWON SDS6062 60MHz Deep Memory Digital Storage Oscilloscope 2-channel with LAN and VGA ports

SKU: 20-010-607 Variants ID: 45100086420
$389.99
Free Shipping


Description:
The new digital storage oscilloscope SDS6062V offers reliably measurement technology for a really good price.
The colorful 8" (20.3 cm) TFT LCD panel with the resolution of 800 × 600 makes the wave easy to read, especially when a big data or many wave covered reciprocally.
The SDS6062V offers 60 MHz bandwidth, a sample rate of 250 MSa/s in dual Channel and a memory depth of 10 MSa per channel.
Delivery including 2 probes, USB cable, pc software, power adapter and manual.
The "V" variants offers a VGA output instead of a RS232 interface. The VGA output is useable for bigger medias like monitors or beamers and can be used for presentation purposes

.

Oscilloscope details:

  • Brandwidth: 60 MHz
  • Sample Rate: 500 MSa/s
  • Memorydepth per CH: 10 Mpts
  • Additional Interface: VGA
  • Channels: 2
  • Real-time sample rate: 500 MSa/s real time
  • Display: 8" TFT LCD with 65535 colors
  • Resolution: 800 × 600 Pixel
  • Interfaces: USB PC Connection

                    USB Host for USB-Sticks
                    VGA Interface
                    LAN Port

  • Supported operation systems: Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)

Signal:

  • Max. Input voltage: 400 V (peak)
  • Real-time sample rate: 10 Sa/s to 500 MSa/s real time
  • Time base: 5 ns/Div. to 5 s/Div. (Steps 1 - 2 - 5)
  • Memory: 10 Mpts per channel

Vertical:

  • Analog digital converter (A/D): With the resolution of 8 bits, make sampling on both channels synchronously.
  • Sensitivity range (V/div): 2 mV/Div to 10 V/Div.
  • Displacement range: ±10 Div



Trigger:

  • Trigger: Channel 1, 2 and external Trigger
  • Trigger displacement: depends on record length and selected time base
  • Signal system and line/field frequency (Video triggering mode): Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency.


Measurement:

  • Cursor measurement: Voltage difference (?V) and time difference (?T) between cursors
  • Auto measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B Rising Edge, Delay A→B
  • Falling Edge, +Width, -Width, +Duty, -Duty

Specifications:



Model

SDS6062









Vertical System

Vertical resolution (A/D)

8 bits Resolution (2 channels simultaneously )

Vertical sensitivity

2mV/div~10V/div(at input)

Displacement

±10 div(5m~10v)

Analog Bandwidth

60MHz

Single bandwidth

Full bandwidth

low frequency

>= 5Hz

Rise time (at input, typical)

<=5.8ns







DC gain accuracy

+-3%

DC accuracy(Average)

Average 16: +-(3% rdg + 0.05 div) for V

Measurement

Cursor measurement

V andbetween cursors

Automatic measurement

Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, Delay, Dela , +Width, -Width, +Duty, -Duty

Waveform Math

+,-,*, / ,FFT

Waveform storage

15 waveform

Lissajouâ

figure

Bandwidth

Full bandwidth

Phase difference

+-3 degrees

Communication interface

USB, support USB flash disk storage, SVGA

Trigger

Trigger level range

+-6 divisions from screen center

Trigger level accuracy

±0.3div

Horizontal Trigger displacement

Pre-trigger: 655 div,Post-trigger: 10 div

Trigger Holdoff range

100ns~10s

Edge trigger

Rising~Falling

Pulse Trigger

Trigger condition

Positive pulse

negative pulse

Pulse width range

24ns~10s

Video Trigger

NTSC,PAL,SECAM

Slope Trigger

Trigger condition

Positive pulse

negative pulse

Time setting

24ns~10s

Alternate Trigger

Edge, Pulse, Video, Slope

Waveform
record

Waveform quantity

1~1000

Interval time

1ms~1000s

Display

8" color LCD,TFT display,800x600 pixels,65535 colors

Power Supply

100-240VAC RMS, 50/60Hz, CAT II

Power consumption

< 18W

Dimension Weight

340mm(L)X155mm(H)X70mm(W) 1.8kg (without battery)



Size and weight:

Size: 340 mm × 155 mm × 70 mm (13.38" × 6.10" × 2.76")

Weight: 2.63 kg (5.80 lbs)



Package list:

  • 2 units of 100 MHz probes;
  • Power cord for your country;
  • USB data cable;
  • Driver CD;
  • English manual;
  • Chargeable battery (Optional, can be added by paying $60 more);
  • Portable bag original from OWON (Optional, can be added by paying $25 more);
