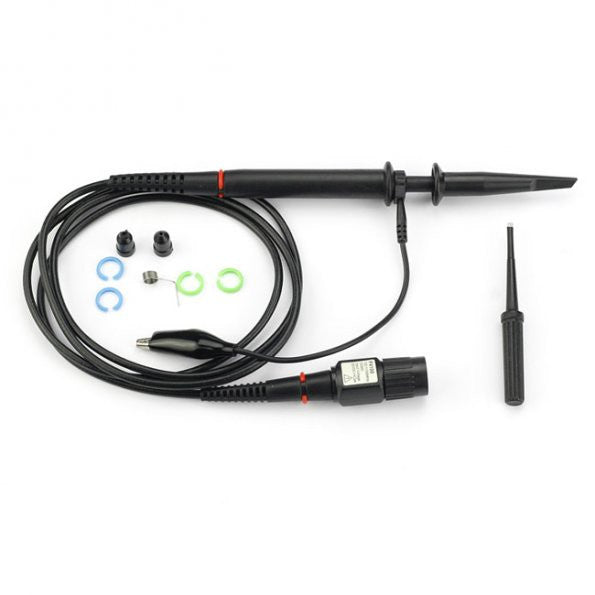

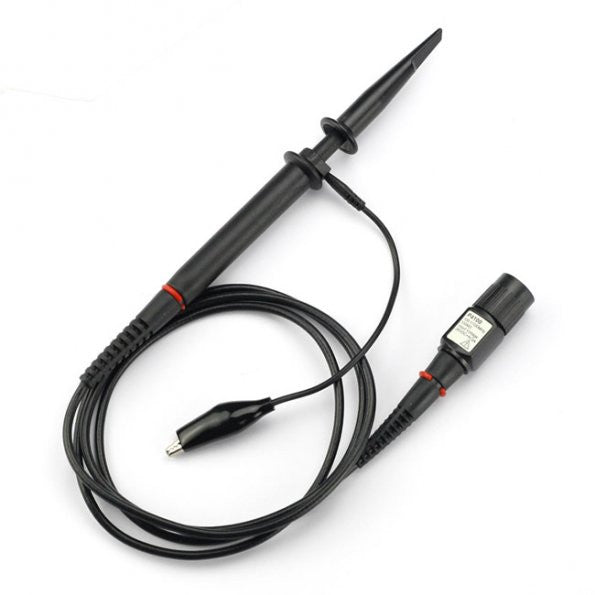

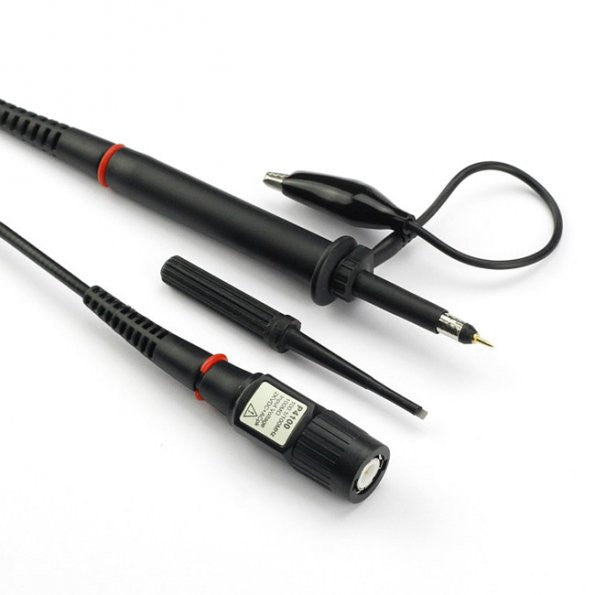

SainSmart P4100 Universal 100:1 High Voltage Probe for Oscilloscopes for Rigol Atten Owon Siglent

Brand: SainSmart SKU: 20-010-206 SKU: 20-010-206 Variants ID: 45100339156

Oops, 0 In Stock


Model: P4100

Attenuation Ratio: x100

Input Resistance(MΩ): 100

Input Capacitance(pF): 6

Compensation Range(pF):  10-35

Brandwidth(MHz): 100

Rise time(ns): 3.5

Working Voltage(Vp-p): 2000

Net Weight(g): 55

Cable Length(cm):110

Operating Temp.(?):-10-+50

Non-operating Temp.(?):-20-+75

Humidity: �5% Relative Humidity

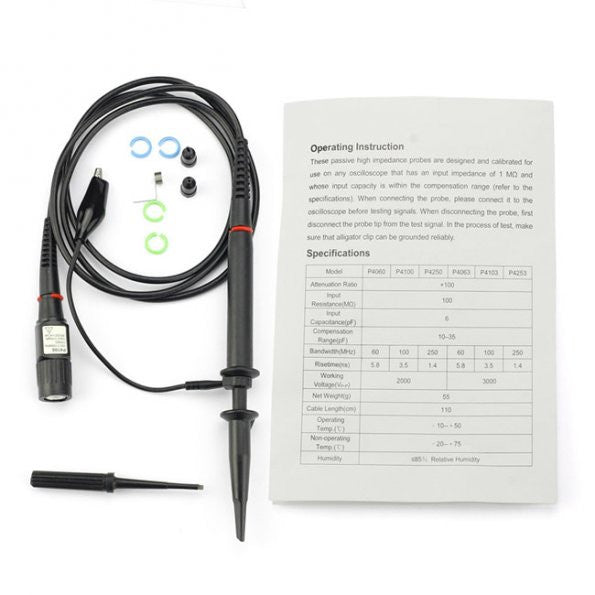

Operating Instruction

These high passive impedance probes are designed  and calibrated for use on any oscilloscope that has an input impedance of 1 MΩ and whose input capacity is within the compensation range (refer to the specifications.) When connecting the probe, please connect it to the oscilloscope before testing signals. When disconnecting the probe, first disconnect the probe tip form the test signal. In the process of test, make sure that alligator clip can be grounded reliably.

Low-frequency Compensation Adjustment

Low frequency response can be matched to the oscilloscope by adjusting the compesation trimmer on the head of the probe.
1. Connect the probe to the oscilloscope and to a 1KHz square waveform source.
2. Let the oscilloscope display a stable waveform.
3. Carefullly adjust the trimmer tool to botain the flat test tops to the square waves displayed on the oscilloscope
